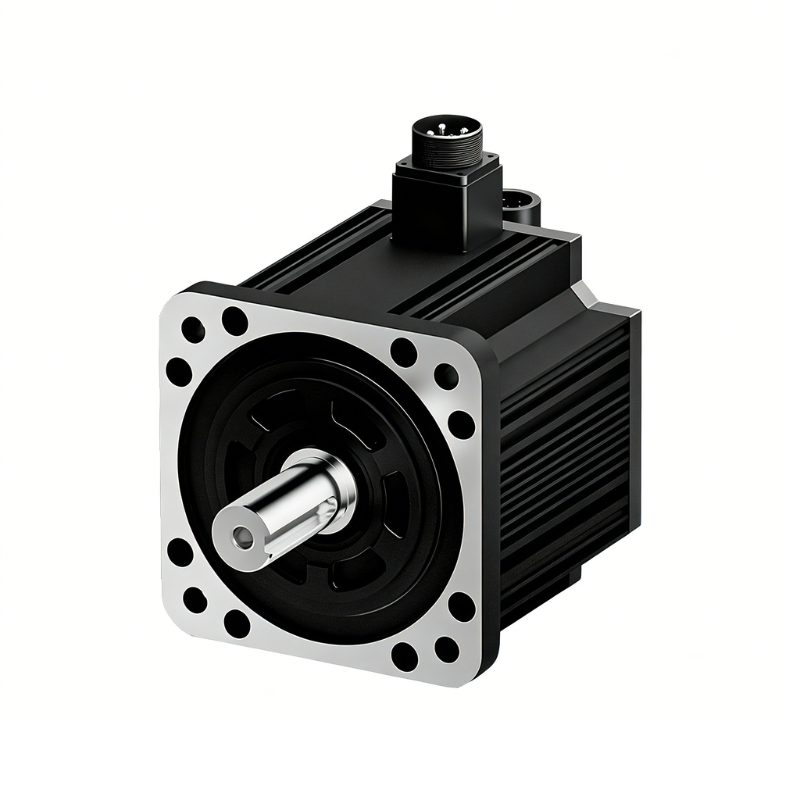

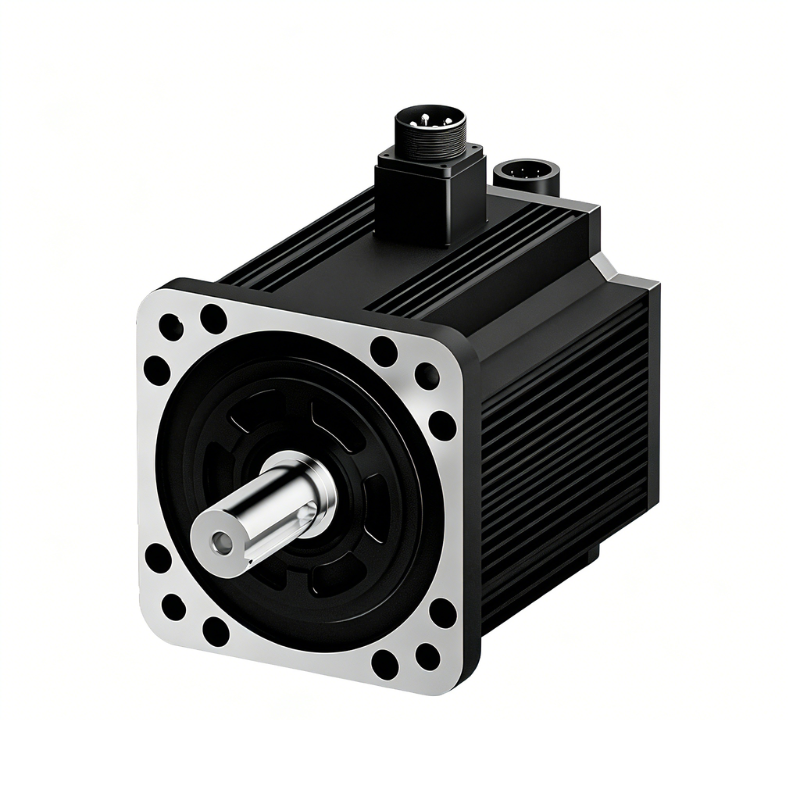

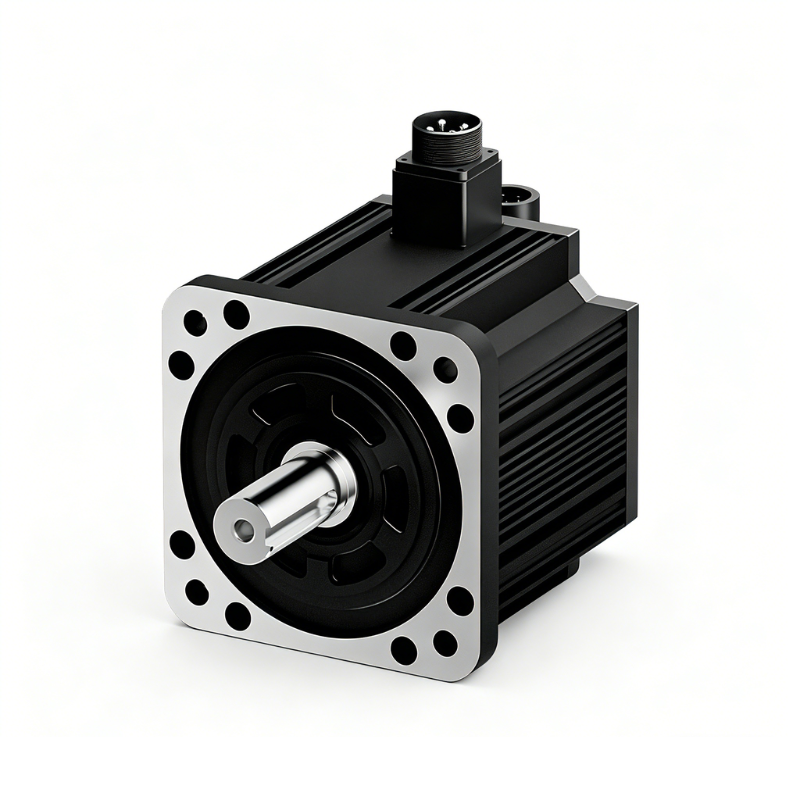

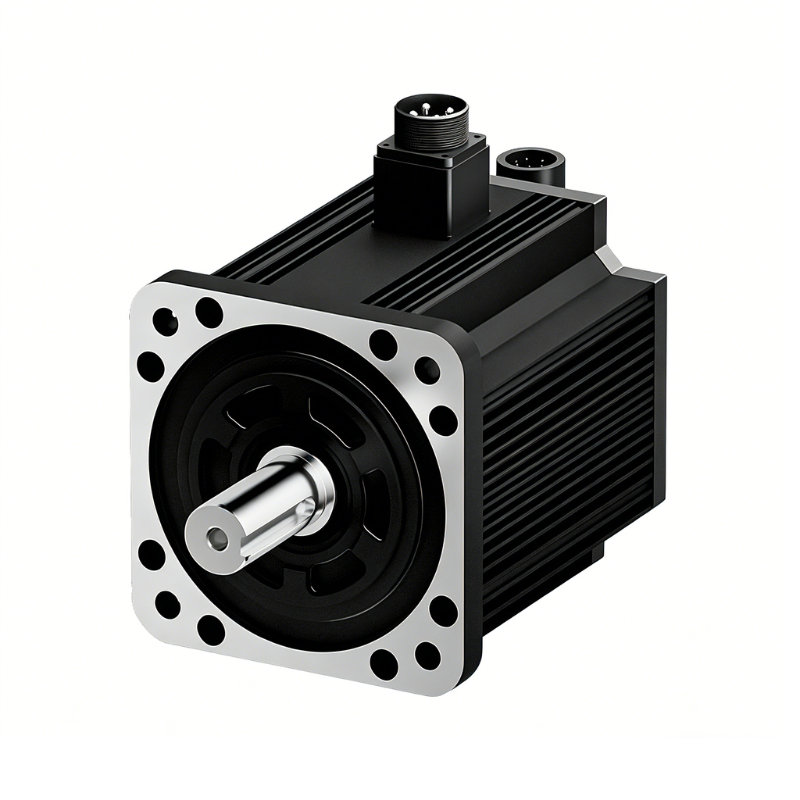

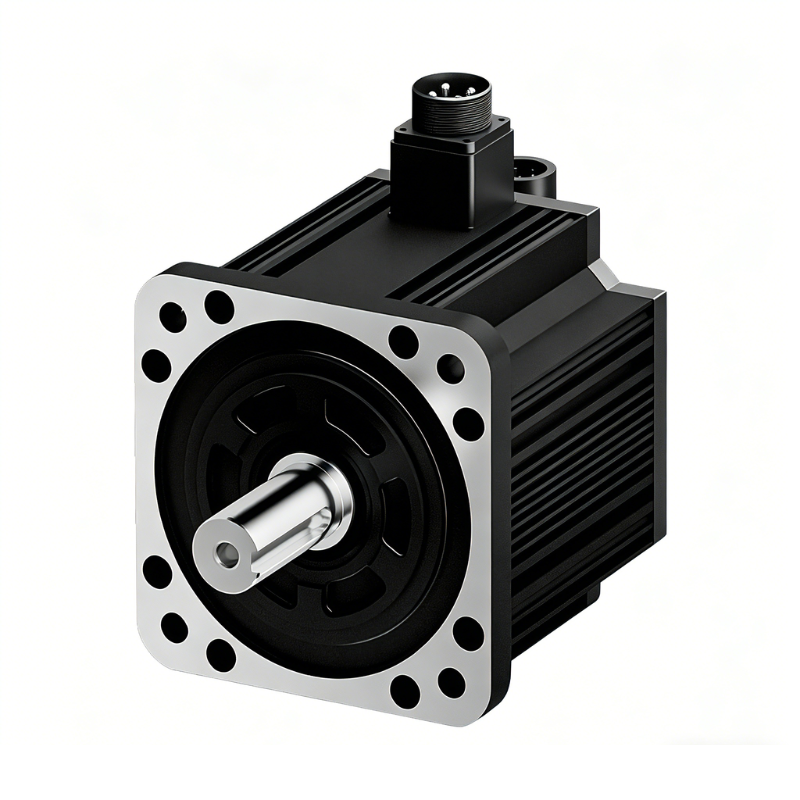

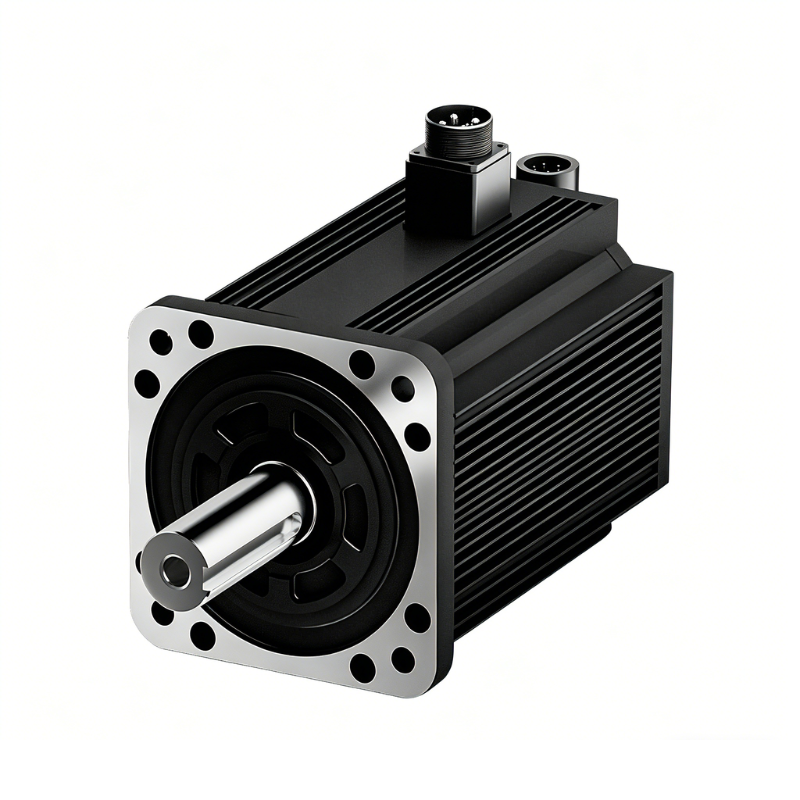

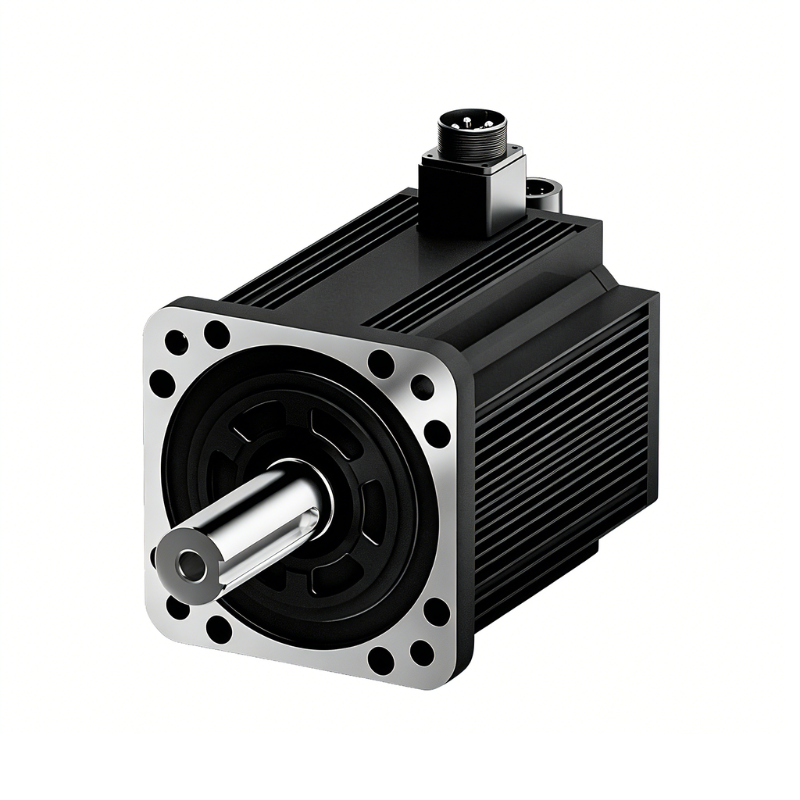

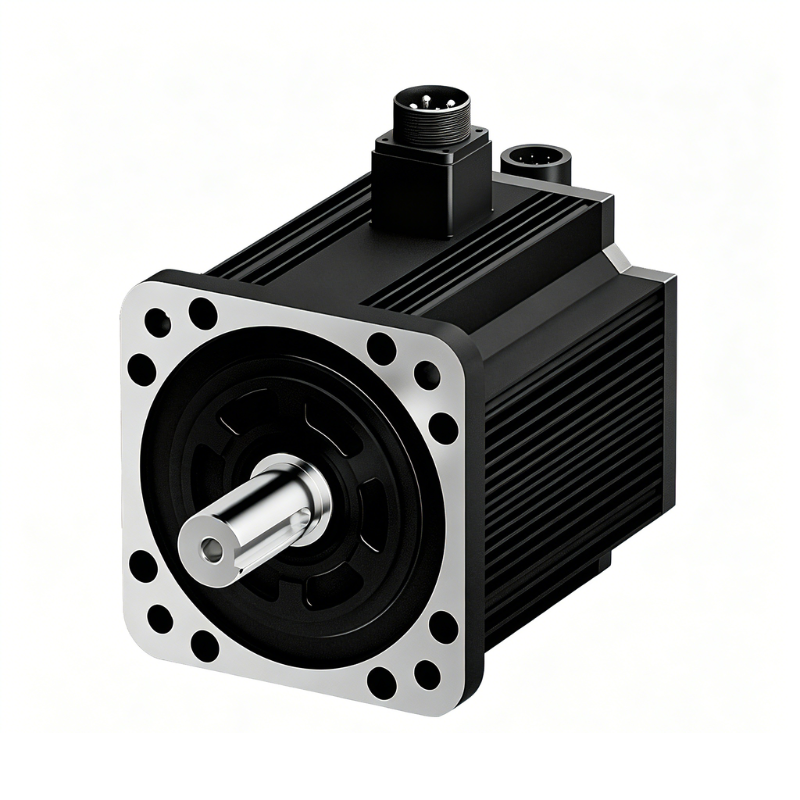

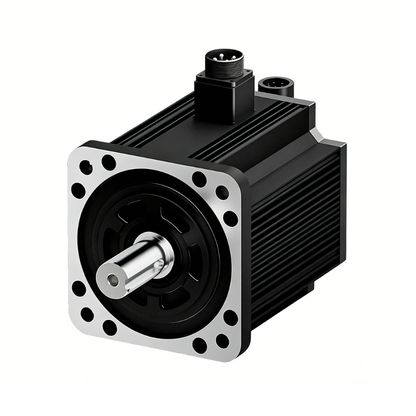

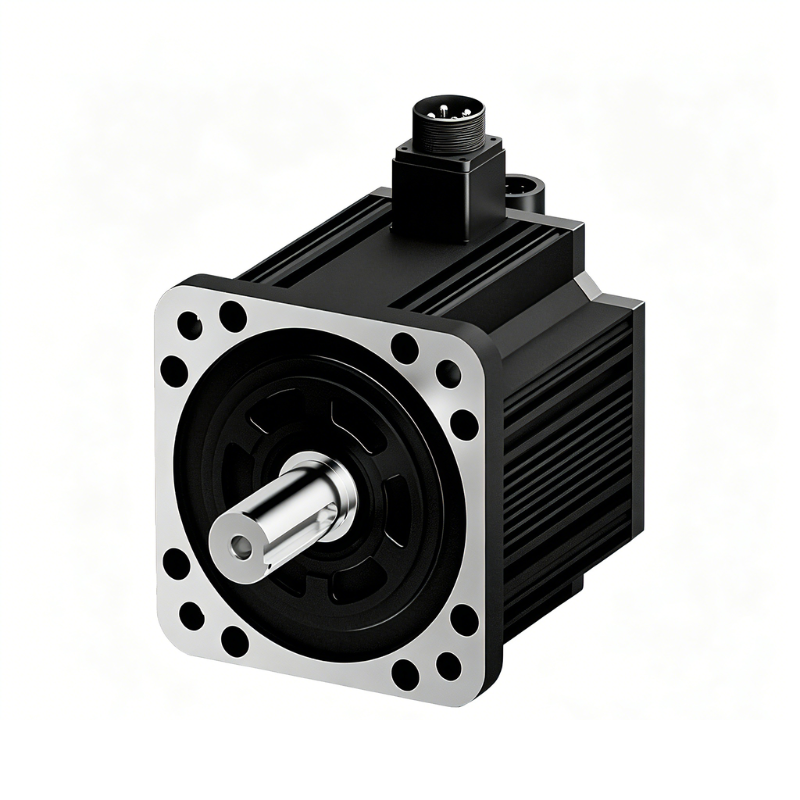

XINJE MS6H Series 180mm Flange Servo Motor - 7.5kW High Inertia, 380V, IP65 Protection

XINJE MS6H Series 180mm Flange Servo Motor - 7.5kW High Inertia, 380V, IP65 Protection

$999.00 USD

$999.00 USD

Sale Sold out

MS6H Series 180 Flange Servo Motor

✔ Low Temperature Rise
✔ Low Noise Operation
✔ Wider Overspeed Range

The MS6H Series 180 Flange Servo Motor features a power range of 3.0kW ~ 7.5kW and is fully compatible with the DS5 Series Servo Drive.

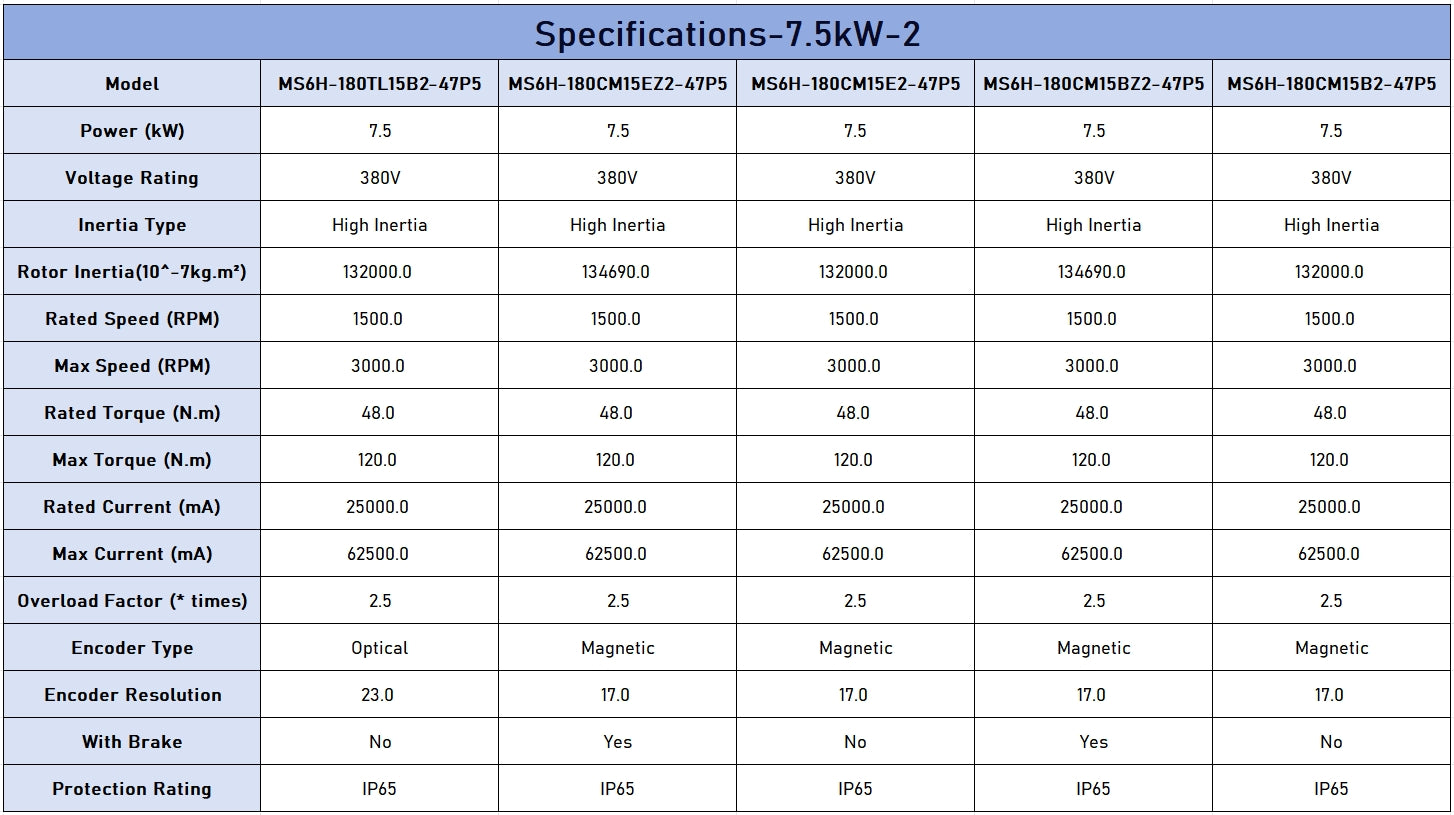

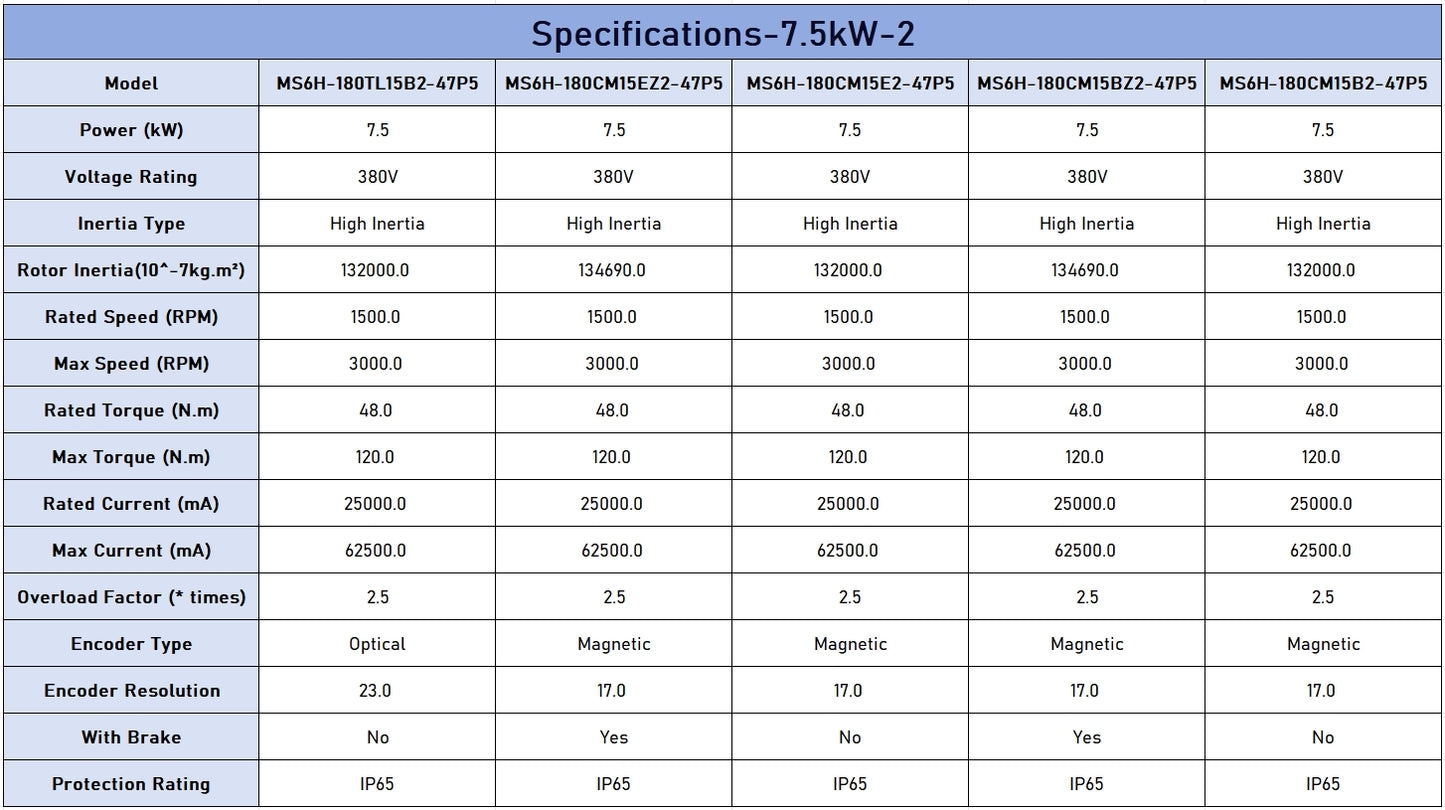

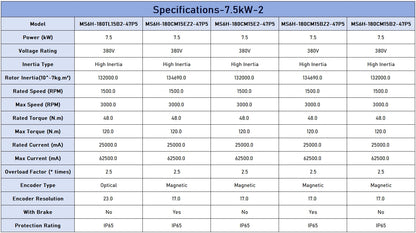

MS6H-180TL15B2-47P5

Power (kW): 7.5
Voltage Rating: 380V
Inertia Type: High Inertia
Rotor Inertia (10⁻⁷kg.m²): 132000.0
Rated Speed (RPM): 1500.0
Max Speed (RPM): 3000.0
Rated Torque (N.m): 48.0
Max Torque (N.m): 120.0
Rated Current (mA): 25000.0
Max Current (mA): 62500.0
Overload Factor (× times): 2.5
Encoder Type: Optical
Encoder Resolution: 23.0
With Brake: No
Protection Rating: IP65

MS6H-180CM15EZ2-47P5

Power (kW): 7.5
Voltage Rating: 380V
Inertia Type: High Inertia
Rotor Inertia (10⁻⁷kg.m²): 134690.0
Rated Speed (RPM): 1500.0
Max Speed (RPM): 3000.0
Rated Torque (N.m): 48.0
Max Torque (N.m): 120.0
Rated Current (mA): 25000.0
Max Current (mA): 62500.0
Overload Factor (× times): 2.5
Encoder Type: Magnetic
Encoder Resolution: 17.0
With Brake: Yes
Protection Rating: IP65

MS6H-180CM15E2-47P5

Power (kW): 7.5
Voltage Rating: 380V
Inertia Type: High Inertia
Rotor Inertia (10⁻⁷kg.m²): 132000.0
Rated Speed (RPM): 1500.0
Max Speed (RPM): 3000.0
Rated Torque (N.m): 48.0
Max Torque (N.m): 120.0
Rated Current (mA): 25000.0
Max Current (mA): 62500.0
Overload Factor (× times): 2.5
Encoder Type: Magnetic
Encoder Resolution: 17.0
With Brake: No
Protection Rating: IP65

MS6H-180CM15BZ2-47P5

Power (kW): 7.5
Voltage Rating: 380V
Inertia Type: High Inertia
Rotor Inertia (10⁻⁷kg.m²): 134690.0
Rated Speed (RPM): 1500.0
Max Speed (RPM): 3000.0
Rated Torque (N.m): 48.0
Max Torque (N.m): 120.0
Rated Current (mA): 25000.0
Max Current (mA): 62500.0
Overload Factor (× times): 2.5
Encoder Type: Magnetic
Encoder Resolution: 17.0
With Brake: Yes
Protection Rating: IP65

MS6H-180CM15B2-47P5

Power (kW): 7.5
Voltage Rating: 380V
Inertia Type: High Inertia
Rotor Inertia (10⁻⁷kg.m²): 132000.0
Rated Speed (RPM): 1500.0
Max Speed (RPM): 3000.0
Rated Torque (N.m): 48.0
Max Torque (N.m): 120.0
Rated Current (mA): 25000.0
Max Current (mA): 62500.0
Overload Factor (× times): 2.5
Encoder Type: Magnetic
Encoder Resolution: 17.0
With Brake: No
Protection Rating: IP65

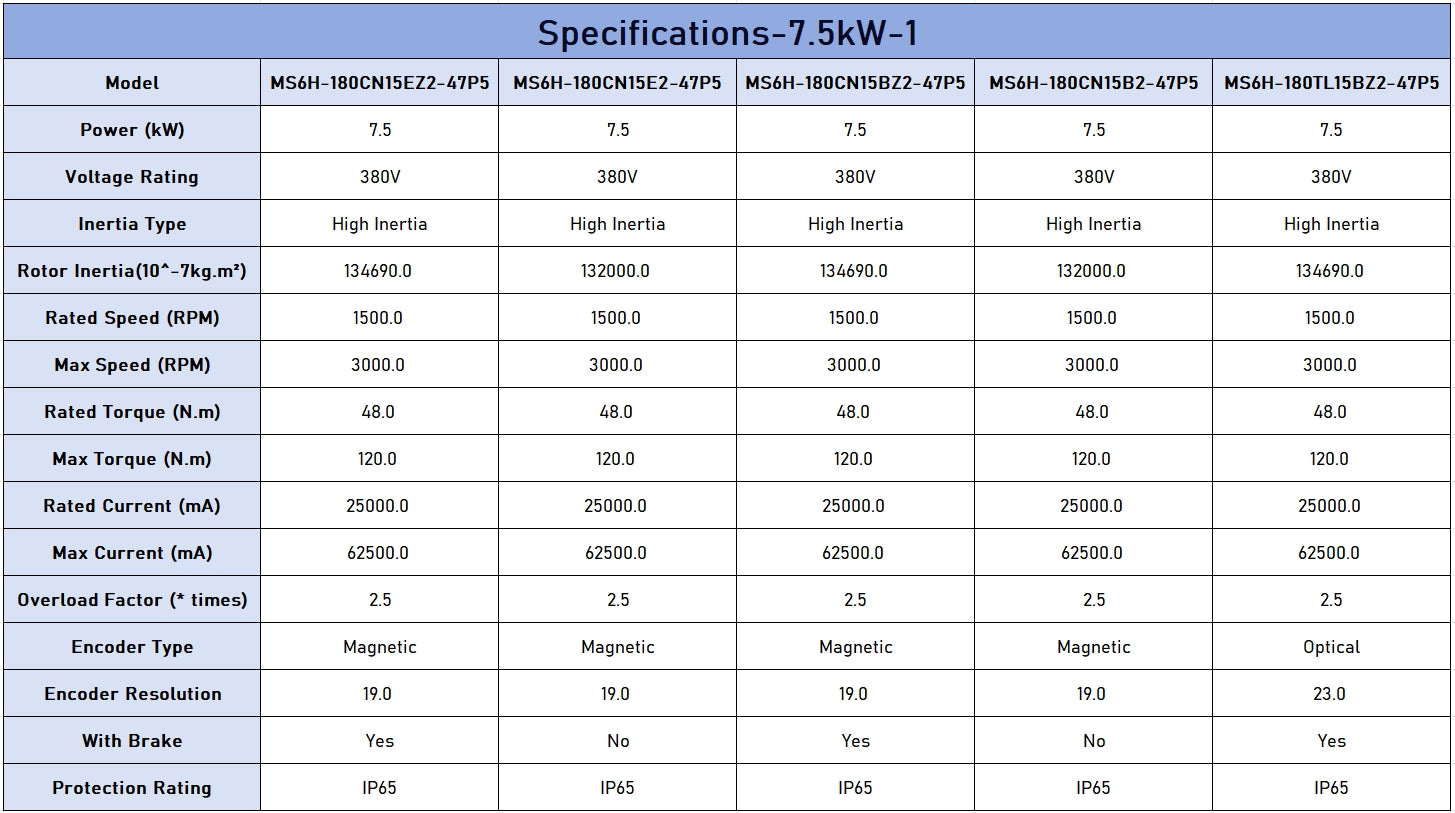

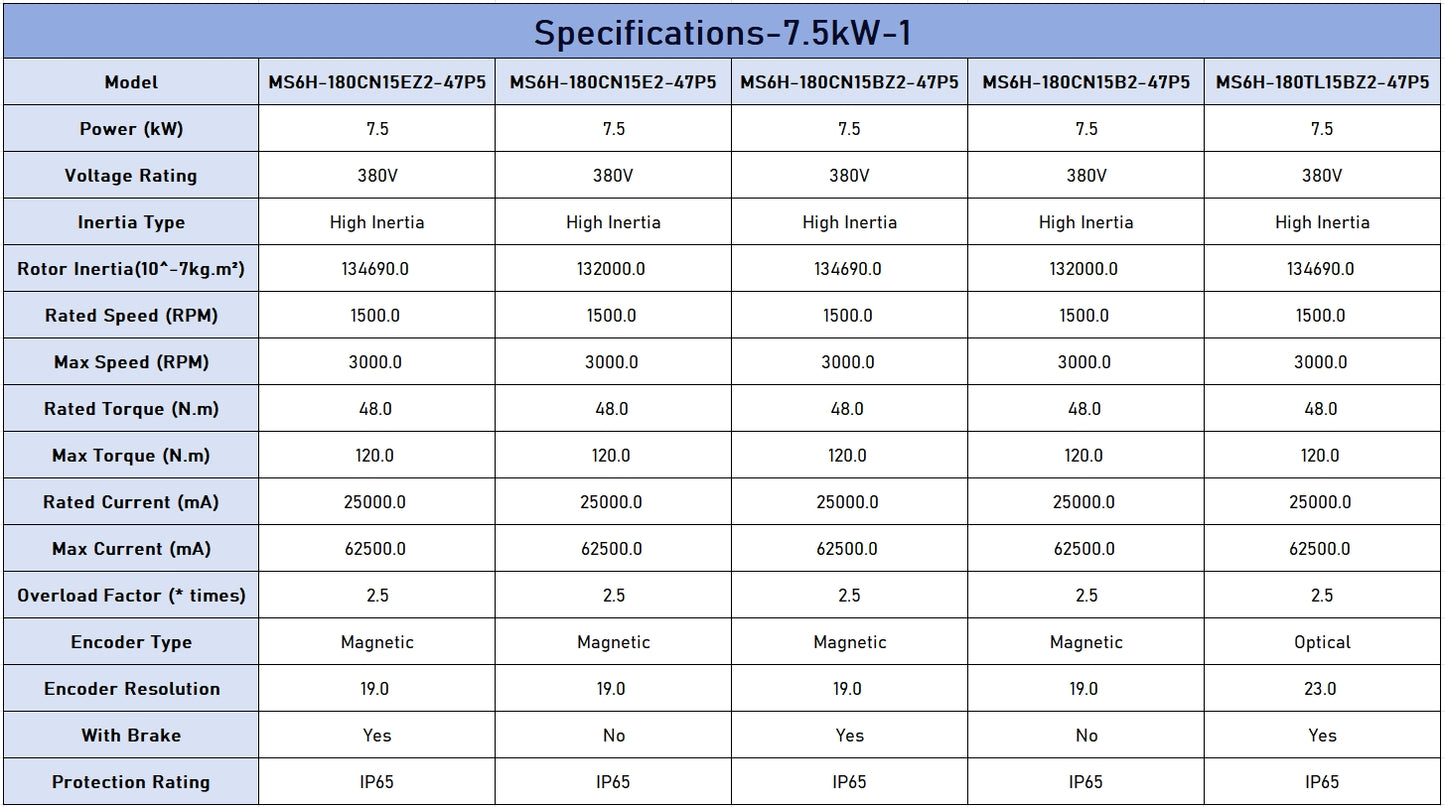

MS6H-180CN15EZ2-47P5

Power (kW): 7.5
Voltage Rating: 380V
Inertia Type: High Inertia
Rotor Inertia (10⁻⁷kg.m²): 134690.0
Rated Speed (RPM): 1500.0
Max Speed (RPM): 3000.0
Rated Torque (N.m): 48.0
Max Torque (N.m): 120.0
Rated Current (mA): 25000.0
Max Current (mA): 62500.0
Overload Factor (× times): 2.5
Encoder Type: Magnetic
Encoder Resolution: 19.0
With Brake: Yes
Protection Rating: IP65

MS6H-180CN15E2-47P5

Power (kW): 7.5
Voltage Rating: 380V
Inertia Type: High Inertia
Rotor Inertia (10⁻⁷kg.m²): 132000.0
Rated Speed (RPM): 1500.0
Max Speed (RPM): 3000.0
Rated Torque (N.m): 48.0
Max Torque (N.m): 120.0
Rated Current (mA): 25000.0
Max Current (mA): 62500.0
Overload Factor (× times): 2.5
Encoder Type: Magnetic
Encoder Resolution: 19.0
With Brake: No
Protection Rating: IP65

MS6H-180CN15BZ2-47P5

Power (kW): 7.5
Voltage Rating: 380V
Inertia Type: High Inertia
Rotor Inertia (10⁻⁷kg.m²): 134690.0
Rated Speed (RPM): 1500.0
Max Speed (RPM): 3000.0
Rated Torque (N.m): 48.0
Max Torque (N.m): 120.0
Rated Current (mA): 25000.0
Max Current (mA): 62500.0
Overload Factor (× times): 2.5
Encoder Type: Magnetic
Encoder Resolution: 19.0
With Brake: Yes
Protection Rating: IP65

MS6H-180CN15B2-47P5

Power (kW): 7.5
Voltage Rating: 380V
Inertia Type: High Inertia
Rotor Inertia (10⁻⁷kg.m²): 132000.0
Rated Speed (RPM): 1500.0
Max Speed (RPM): 3000.0
Rated Torque (N.m): 48.0
Max Torque (N.m): 120.0
Rated Current (mA): 25000.0
Max Current (mA): 62500.0
Overload Factor (× times): 2.5
Encoder Type: Magnetic
Encoder Resolution: 19.0
With Brake: No
Protection Rating: IP65

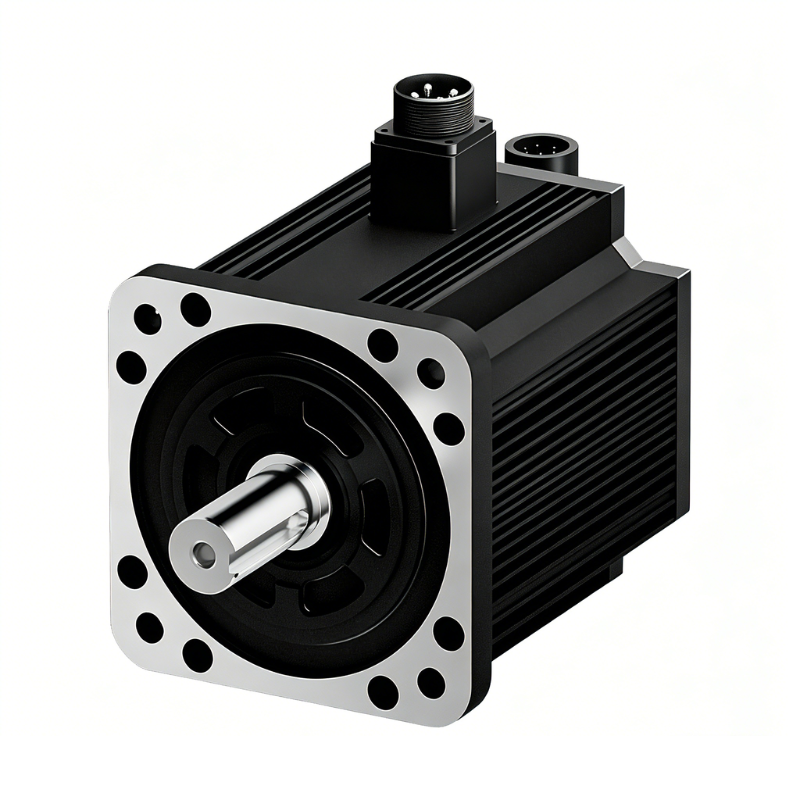

MS6H-180TL15BZ2-47P5

Power (kW): 7.5
Voltage Rating: 380V
Inertia Type: High Inertia
Rotor Inertia (10⁻⁷kg.m²): 134690.0
Rated Speed (RPM): 1500.0
Max Speed (RPM): 3000.0
Rated Torque (N.m): 48.0
Max Torque (N.m): 120.0
Rated Current (mA): 25000.0
Max Current (mA): 62500.0
Overload Factor (× times): 2.5
Encoder Type: Optical
Encoder Resolution: 23.0
With Brake: Yes
Protection Rating: IP65
