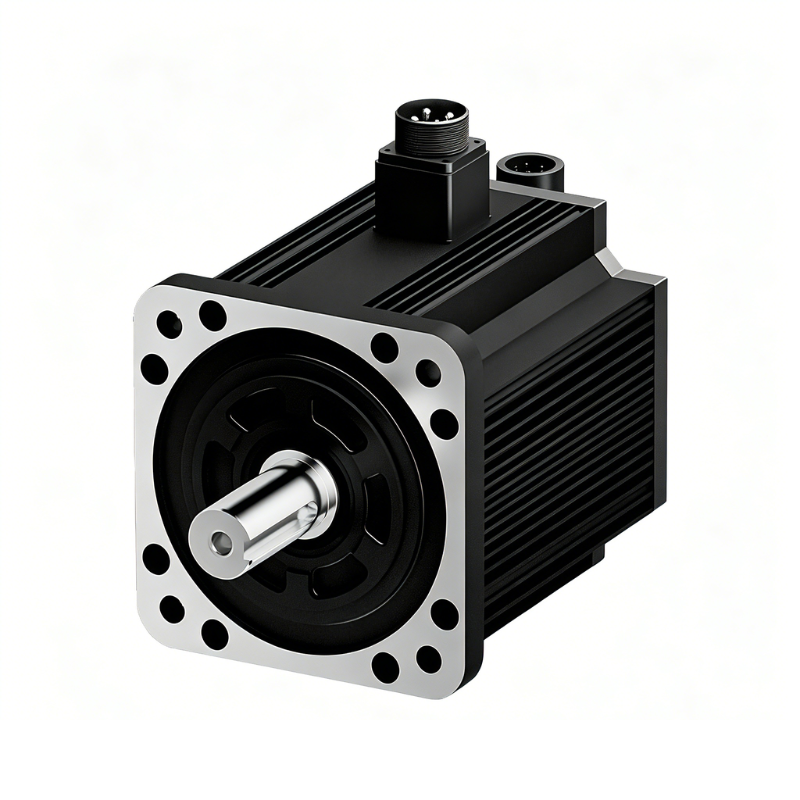

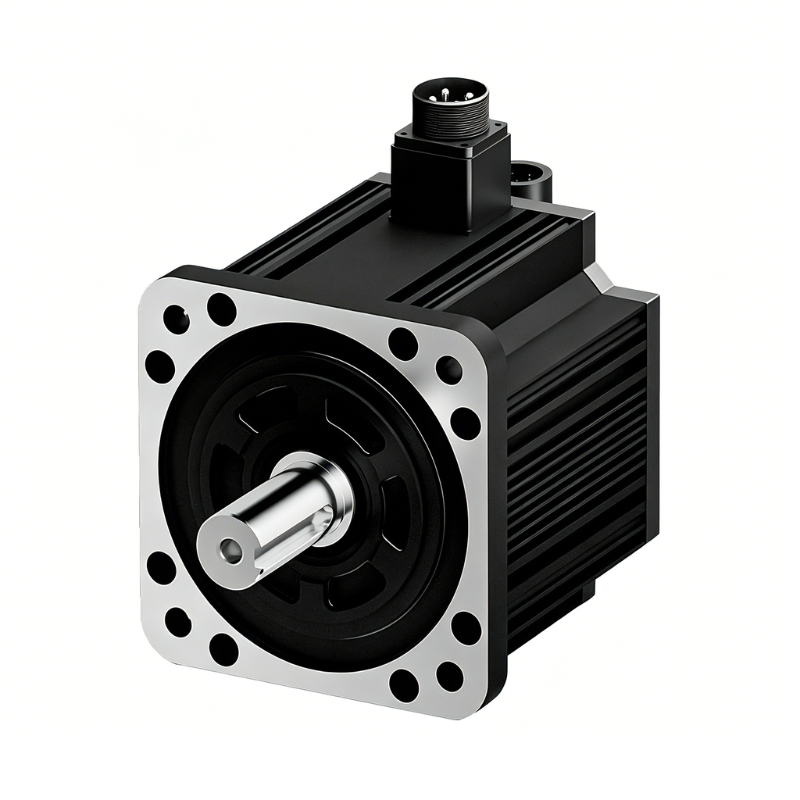

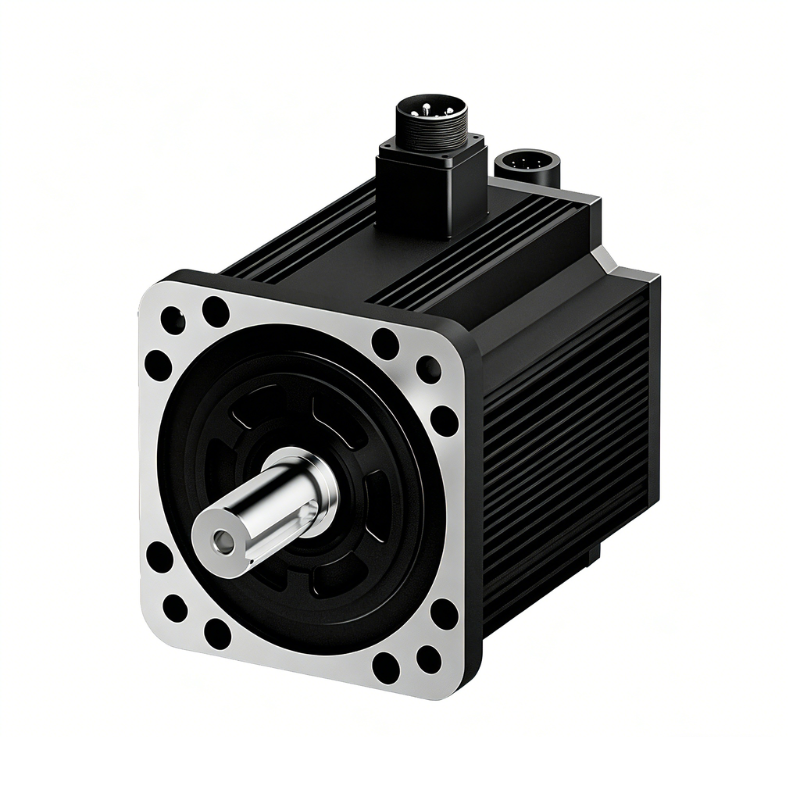

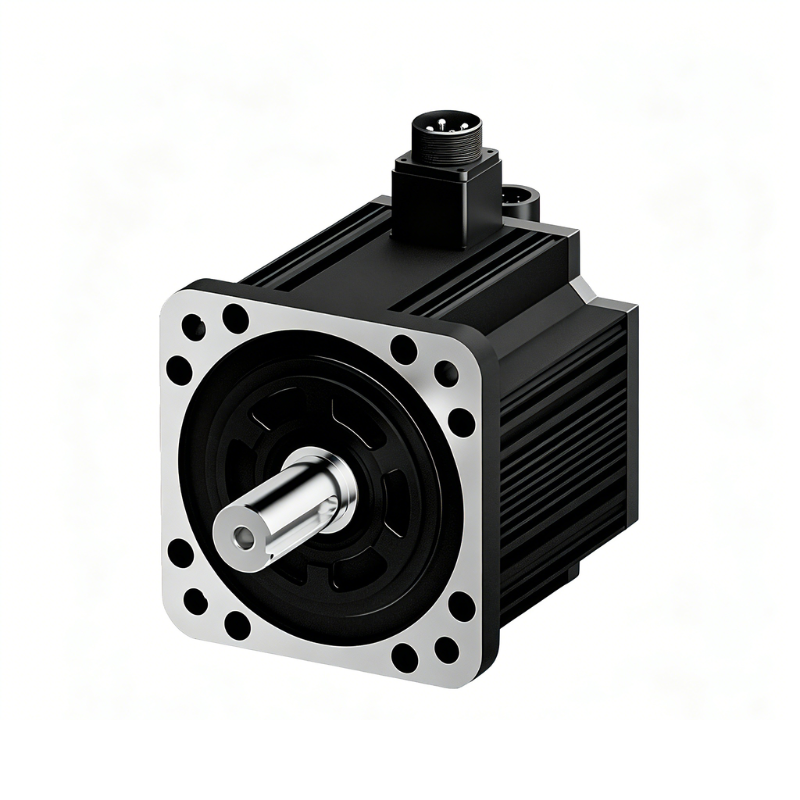

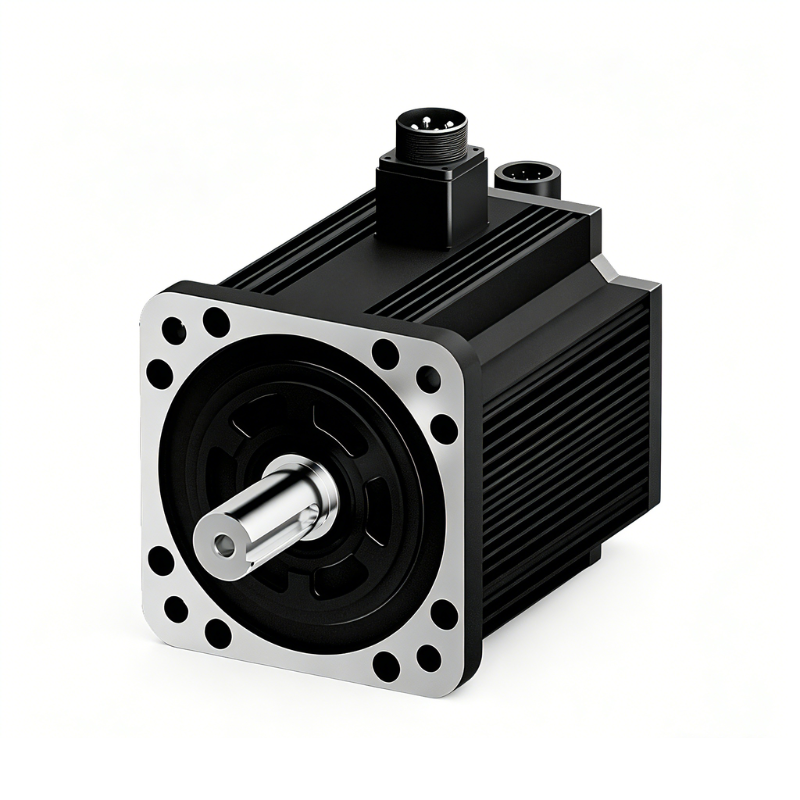

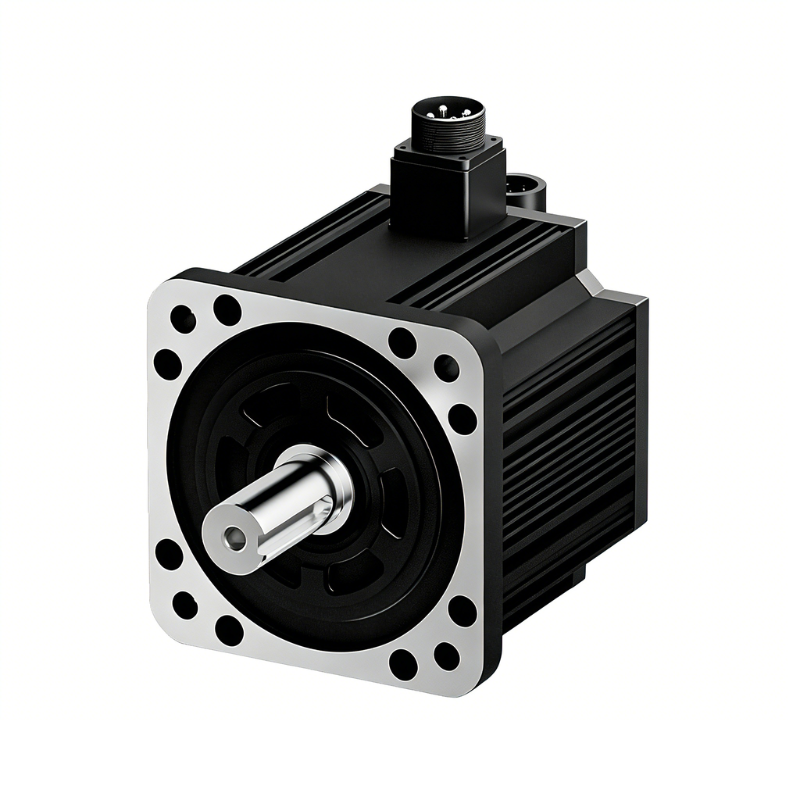

XINJE MS6H Series 180mm Flange Servo Motor - 4.4kW High Inertia, 380V, IP65 Protection

XINJE MS6H Series 180mm Flange Servo Motor - 4.4kW High Inertia, 380V, IP65 Protection

$999.00 USD

$999.00 USD

Sale Sold out

MS6H Series 180 Flange Servo Motor

Low temperature rise, low noise, wider overspeed range.

MS6H series 180 flange servo motor, power range 3.0kW~7.5kW, compatible with DS5 series servo drives.

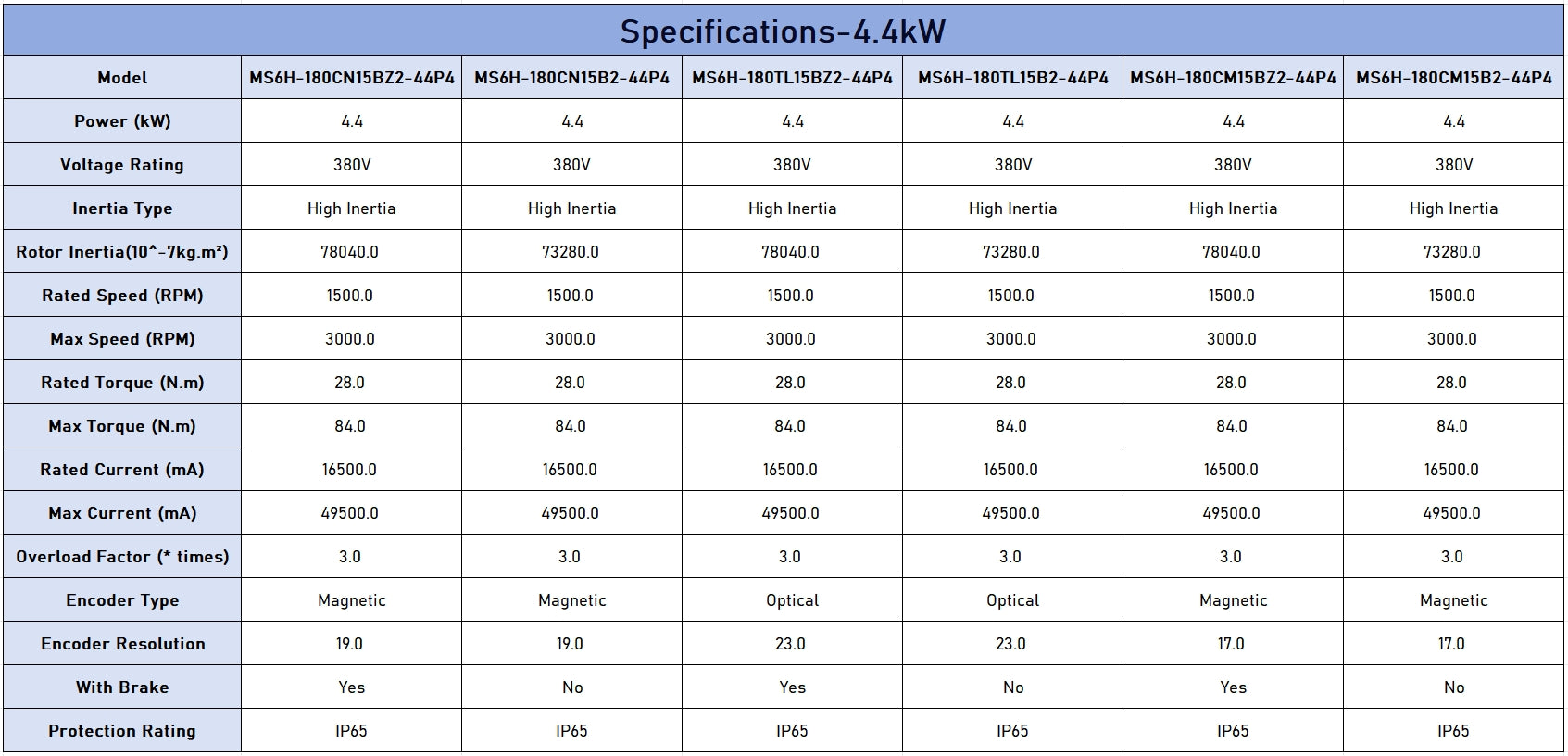

MS6H-180CN15BZ2-44P4

Power (kW): 4.4
Voltage Rating: 380V
Inertia Type: High Inertia
Rotor Inertia (10⁻⁷kg.m²): 78040.0
Rated Speed (RPM): 1500.0
Max Speed (RPM): 3000.0
Rated Torque (N.m): 28.0
Max Torque (N.m): 84.0
Rated Current (mA): 16500.0
Max Current (mA): 49500.0
Overload Factor (x times): 3.0
Encoder Type: Magnetic
Encoder Resolution: 19.0
With Brake: Yes
Protection Rating: IP65

MS6H-180CN15B2-44P4

Power (kW): 4.4
Voltage Rating: 380V
Inertia Type: High Inertia
Rotor Inertia (10⁻⁷kg.m²): 73280.0
Rated Speed (RPM): 1500.0
Max Speed (RPM): 3000.0
Rated Torque (N.m): 28.0
Max Torque (N.m): 84.0
Rated Current (mA): 16500.0
Max Current (mA): 49500.0
Overload Factor (x times): 3.0
Encoder Type: Magnetic
Encoder Resolution: 19.0
With Brake: No
Protection Rating: IP65

MS6H-180TL15BZ2-44P4

Power (kW): 4.4
Voltage Rating: 380V
Inertia Type: High Inertia
Rotor Inertia (10⁻⁷kg.m²): 78040.0
Rated Speed (RPM): 1500.0
Max Speed (RPM): 3000.0
Rated Torque (N.m): 28.0
Max Torque (N.m): 84.0
Rated Current (mA): 16500.0
Max Current (mA): 49500.0
Overload Factor (x times): 3.0
Encoder Type: Optical
Encoder Resolution: 23.0
With Brake: Yes
Protection Rating: IP65

MS6H-180TL15B2-44P4

Power (kW): 4.4
Voltage Rating: 380V
Inertia Type: High Inertia
Rotor Inertia (10⁻⁷kg.m²): 73280.0
Rated Speed (RPM): 1500.0
Max Speed (RPM): 3000.0
Rated Torque (N.m): 28.0
Max Torque (N.m): 84.0
Rated Current (mA): 16500.0
Max Current (mA): 49500.0
Overload Factor (x times): 3.0
Encoder Type: Optical
Encoder Resolution: 23.0
With Brake: No
Protection Rating: IP65

MS6H-180CM15BZ2-44P4

Power (kW): 4.4
Voltage Rating: 380V
Inertia Type: High Inertia
Rotor Inertia (10⁻⁷kg.m²): 78040.0
Rated Speed (RPM): 1500.0
Max Speed (RPM): 3000.0
Rated Torque (N.m): 28.0
Max Torque (N.m): 84.0
Rated Current (mA): 16500.0
Max Current (mA): 49500.0
Overload Factor (x times): 3.0
Encoder Type: Magnetic
Encoder Resolution: 17.0
With Brake: Yes
Protection Rating: IP65

MS6H-180CM15B2-44P4

Power (kW): 4.4
Voltage Rating: 380V
Inertia Type: High Inertia
Rotor Inertia (10⁻⁷kg.m²): 73280.0
Rated Speed (RPM): 1500.0
Max Speed (RPM): 3000.0
Rated Torque (N.m): 28.0
Max Torque (N.m): 84.0
Rated Current (mA): 16500.0
Max Current (mA): 49500.0
Overload Factor (x times): 3.0
Encoder Type: Magnetic
Encoder Resolution: 17.0
With Brake: No
Protection Rating: IP65
