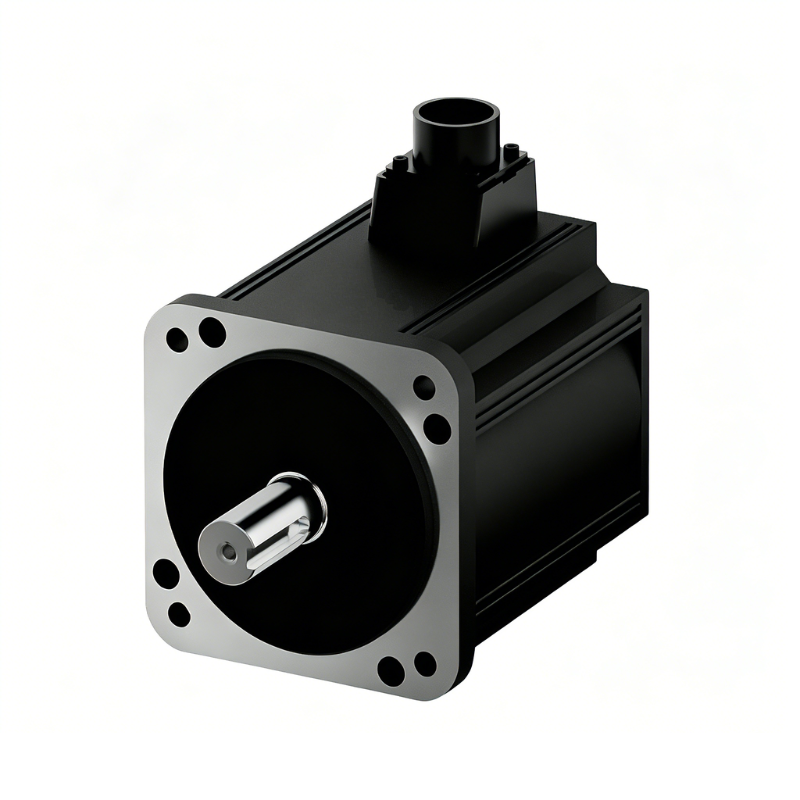

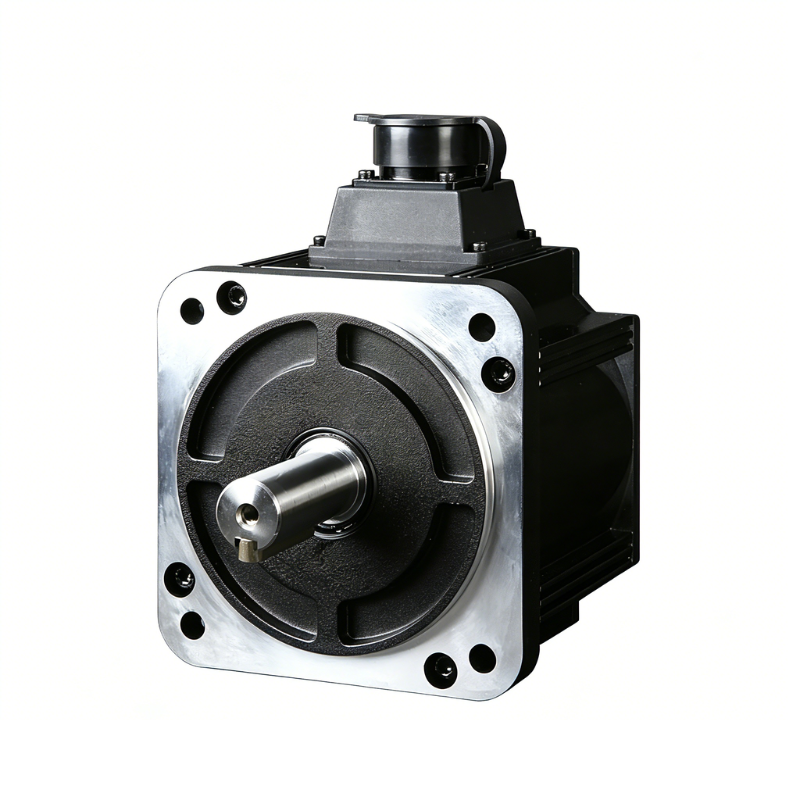

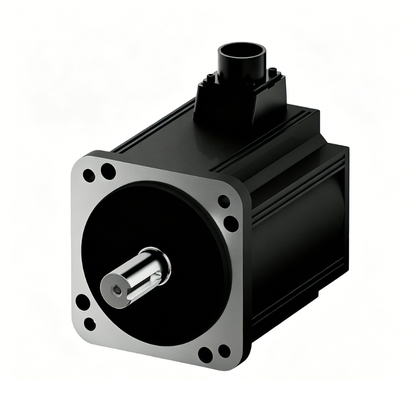

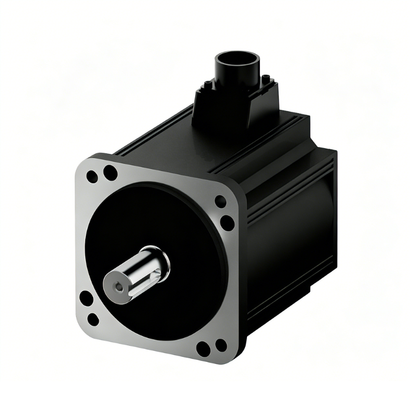

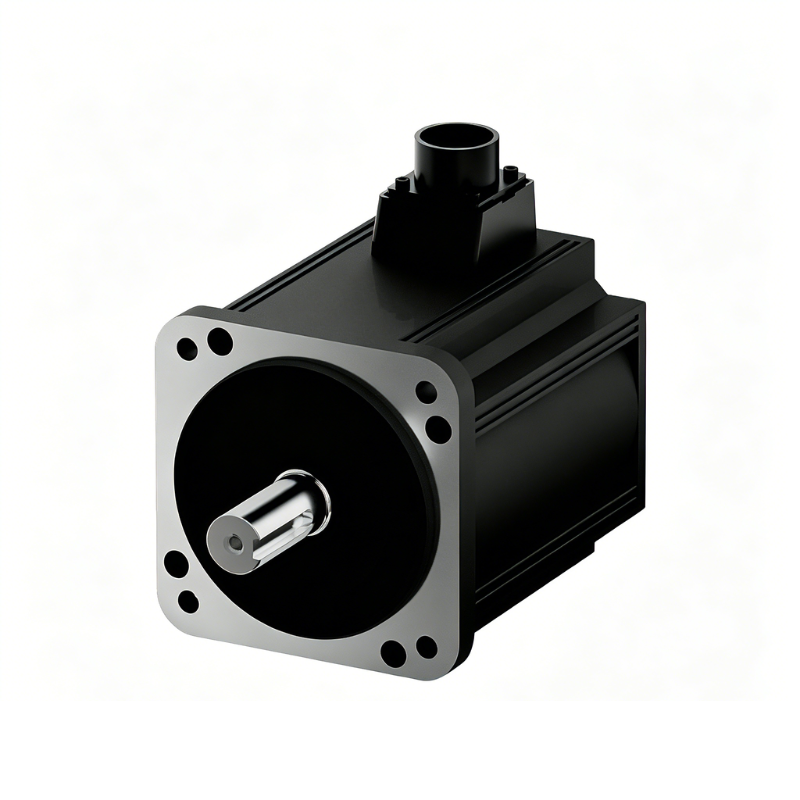

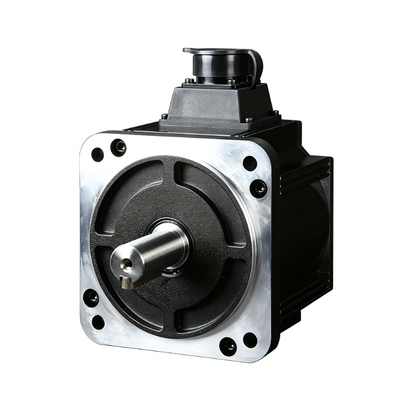

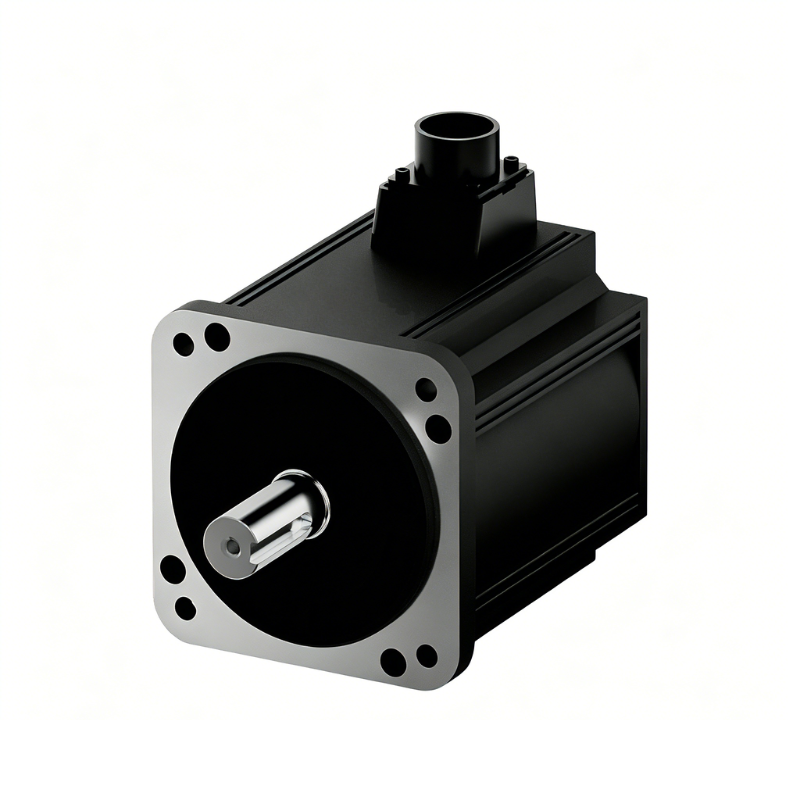

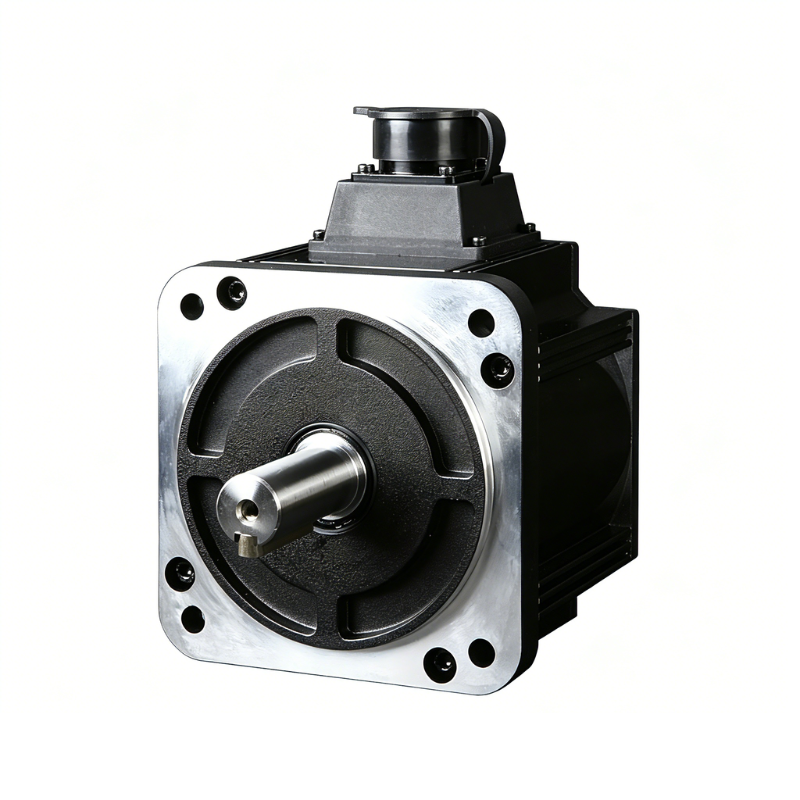

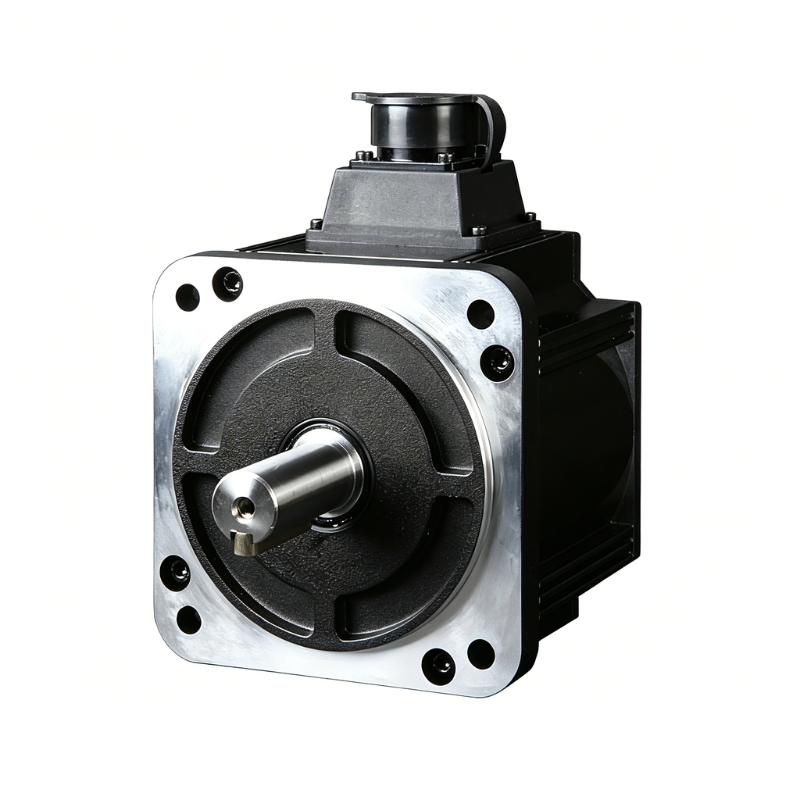

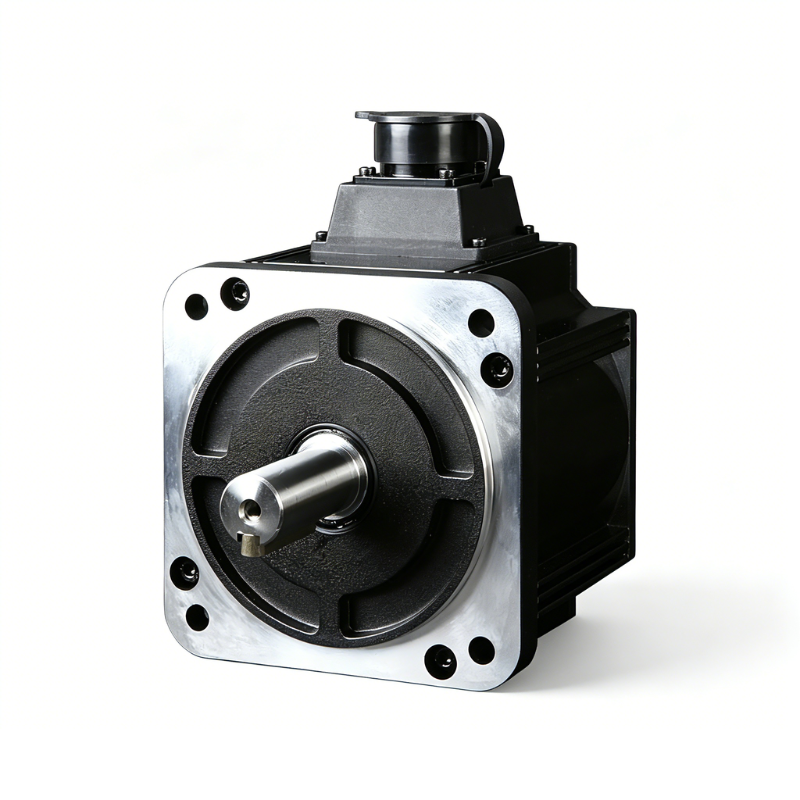

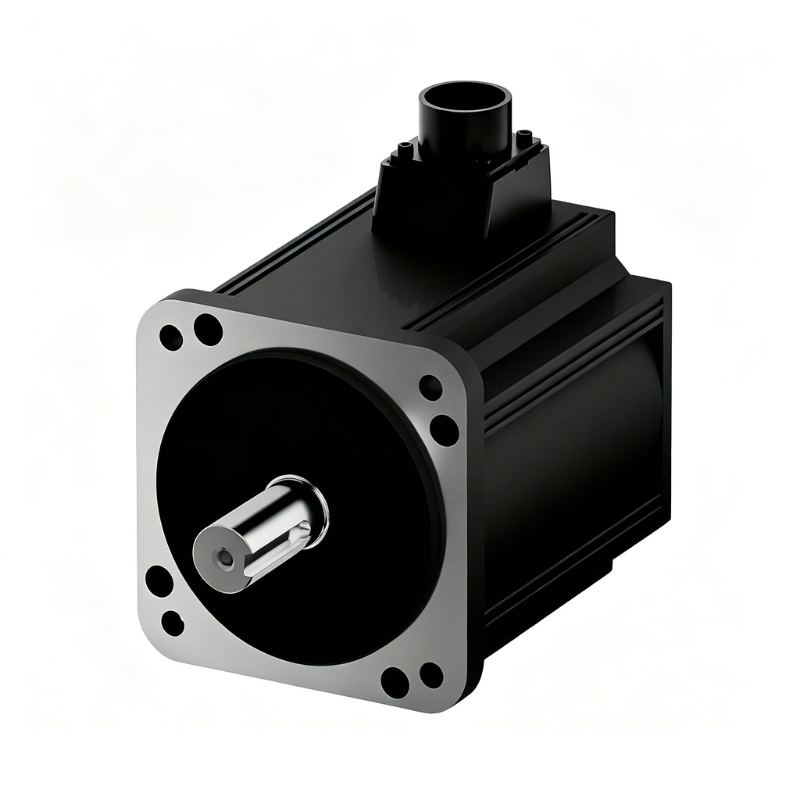

XINJE MS6H 850W 130mm Flange Servo Motor - Precision Low Noise Motion for DS5

XINJE MS6H 850W 130mm Flange Servo Motor - Precision Low Noise Motion for DS5

$999.00 USD
$999.00 USD
Sale Sold out

MS6H Series 130 Flange Servo Motor

  • Low Temperature Rise
  • Low Noise Operation

The MS6H series 130 flange servo motor features a power range of 0.85kW to 2.3kW and is fully compatible with the DS5 series servo drives.

MS6H-130TL15BZ2-40P8
  • Model: MS6H-130TL15BZ2-40P8
  • Power (kW): 0.85
  • Voltage Rating: 380V
  • Inertia Type: High Inertia
  • Rotor Inertia (10^-7kg.m²): 15340.0
  • Rated Speed (RPM): 1500.0
  • Max Speed (RPM): 3000.0
  • Rated Torque (N.m): 5.41
  • Max Torque (N.m): 16.23
  • Rated Current (mA): 3500.0
  • Max Current (mA): 10500.0
  • Overload Factor (x times): 3.0
  • Encoder Type: Optical
  • Encoder Resolution: 23.0
  • With Brake: Yes
  • Protection Rating: IP65
MS6H-130TL15B2-40P8
  • Model: MS6H-130TL15B2-40P8
  • Power (kW): 0.85
  • Voltage Rating: 380V
  • Inertia Type: High Inertia
  • Rotor Inertia (10^-7kg.m²): 13860.0
  • Rated Speed (RPM): 1500.0
  • Max Speed (RPM): 3000.0
  • Rated Torque (N.m): 5.41
  • Max Torque (N.m): 16.23
  • Rated Current (mA): 3500.0
  • Max Current (mA): 10500.0
  • Overload Factor (x times): 3.0
  • Encoder Type: Optical
  • Encoder Resolution: 23.0
  • With Brake: No
  • Protection Rating: IP65
MS6H-130CM15BZ2-40P8
  • Model: MS6H-130CM15BZ2-40P8
  • Power (kW): 0.85
  • Voltage Rating: 380V
  • Inertia Type: High Inertia
  • Rotor Inertia (10^-7kg.m²): 15340.0
  • Rated Speed (RPM): 1500.0
  • Max Speed (RPM): 3000.0
  • Rated Torque (N.m): 5.41
  • Max Torque (N.m): 16.23
  • Rated Current (mA): 3500.0
  • Max Current (mA): 10500.0
  • Overload Factor (x times): 3.0
  • Encoder Type: Magnetic
  • Encoder Resolution: 17.0
  • With Brake: Yes
  • Protection Rating: IP65
MS6H-130CM15B2-40P8
  • Model: MS6H-130CM15B2-40P8
  • Power (kW): 0.85
  • Voltage Rating: 380V
  • Inertia Type: High Inertia
  • Rotor Inertia (10^-7kg.m²): 13860.0
  • Rated Speed (RPM): 1500.0
  • Max Speed (RPM): 3000.0
  • Rated Torque (N.m): 5.41
  • Max Torque (N.m): 16.23
  • Rated Current (mA): 3500.0
  • Max Current (mA): 10500.0
  • Overload Factor (x times): 3.0
  • Encoder Type: Magnetic
  • Encoder Resolution: 17.0
  • With Brake: No
  • Protection Rating: IP65

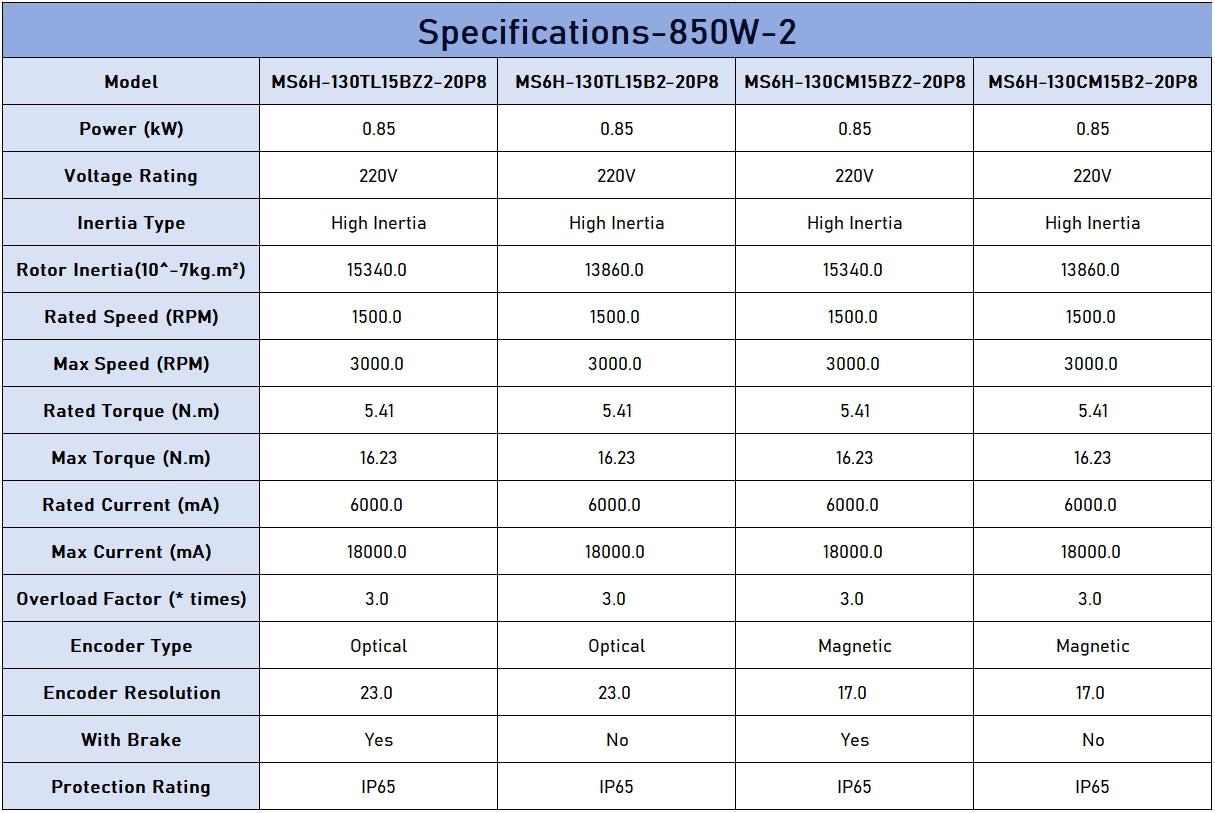

MS6H-130TL15BZ2-20P8
  • Model: MS6H-130TL15BZ2-20P8
  • Power (kW): 0.85
  • Voltage Rating: 220V
  • Inertia Type: High Inertia
  • Rotor Inertia (10^-7kg.m²): 15340.0
  • Rated Speed (RPM): 1500.0
  • Max Speed (RPM): 3000.0
  • Rated Torque (N.m): 5.41
  • Max Torque (N.m): 16.23
  • Rated Current (mA): 6000.0
  • Max Current (mA): 18000.0
  • Overload Factor (x times): 3.0
  • Encoder Type: Optical
  • Encoder Resolution: 23.0
  • With Brake: Yes
  • Protection Rating: IP65
MS6H-130TL15B2-20P8
  • Model: MS6H-130TL15B2-20P8
  • Power (kW): 0.85
  • Voltage Rating: 220V
  • Inertia Type: High Inertia
  • Rotor Inertia (10^-7kg.m²): 13860.0
  • Rated Speed (RPM): 1500.0
  • Max Speed (RPM): 3000.0
  • Rated Torque (N.m): 5.41
  • Max Torque (N.m): 16.23
  • Rated Current (mA): 6000.0
  • Max Current (mA): 18000.0
  • Overload Factor (x times): 3.0
  • Encoder Type: Optical
  • Encoder Resolution: 23.0
  • With Brake: No
  • Protection Rating: IP65
MS6H-130CM15BZ2-20P8
  • Model: MS6H-130CM15BZ2-20P8
  • Power (kW): 0.85
  • Voltage Rating: 220V
  • Inertia Type: High Inertia
  • Rotor Inertia (10^-7kg.m²): 15340.0
  • Rated Speed (RPM): 1500.0
  • Max Speed (RPM): 3000.0
  • Rated Torque (N.m): 5.41
  • Max Torque (N.m): 16.23
  • Rated Current (mA): 6000.0
  • Max Current (mA): 18000.0
  • Overload Factor (x times): 3.0
  • Encoder Type: Magnetic
  • Encoder Resolution: 17.0
  • With Brake: Yes
  • Protection Rating: IP65
MS6H-130CM15B2-20P8
  • Model: MS6H-130CM15B2-20P8
  • Power (kW): 0.85
  • Voltage Rating: 220V
  • Inertia Type: High Inertia
  • Rotor Inertia (10^-7kg.m²): 13860.0
  • Rated Speed (RPM): 1500.0
  • Max Speed (RPM): 3000.0
  • Rated Torque (N.m): 5.41
  • Max Torque (N.m): 16.23
  • Rated Current (mA): 6000.0
  • Max Current (mA): 18000.0
  • Overload Factor (x times): 3.0
  • Encoder Type: Magnetic
  • Encoder Resolution: 17.0
  • With Brake: No
  • Protection Rating: IP65
