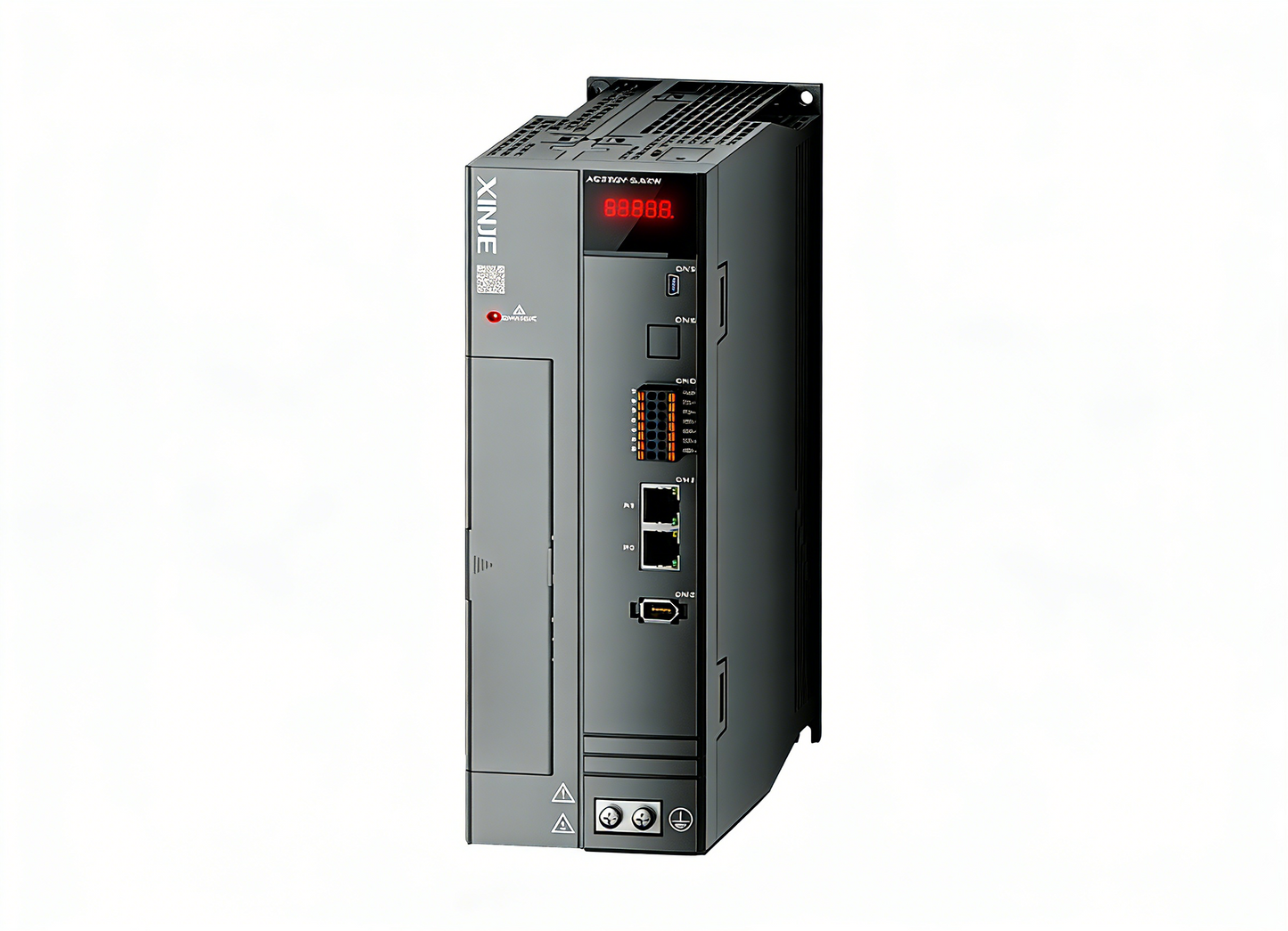

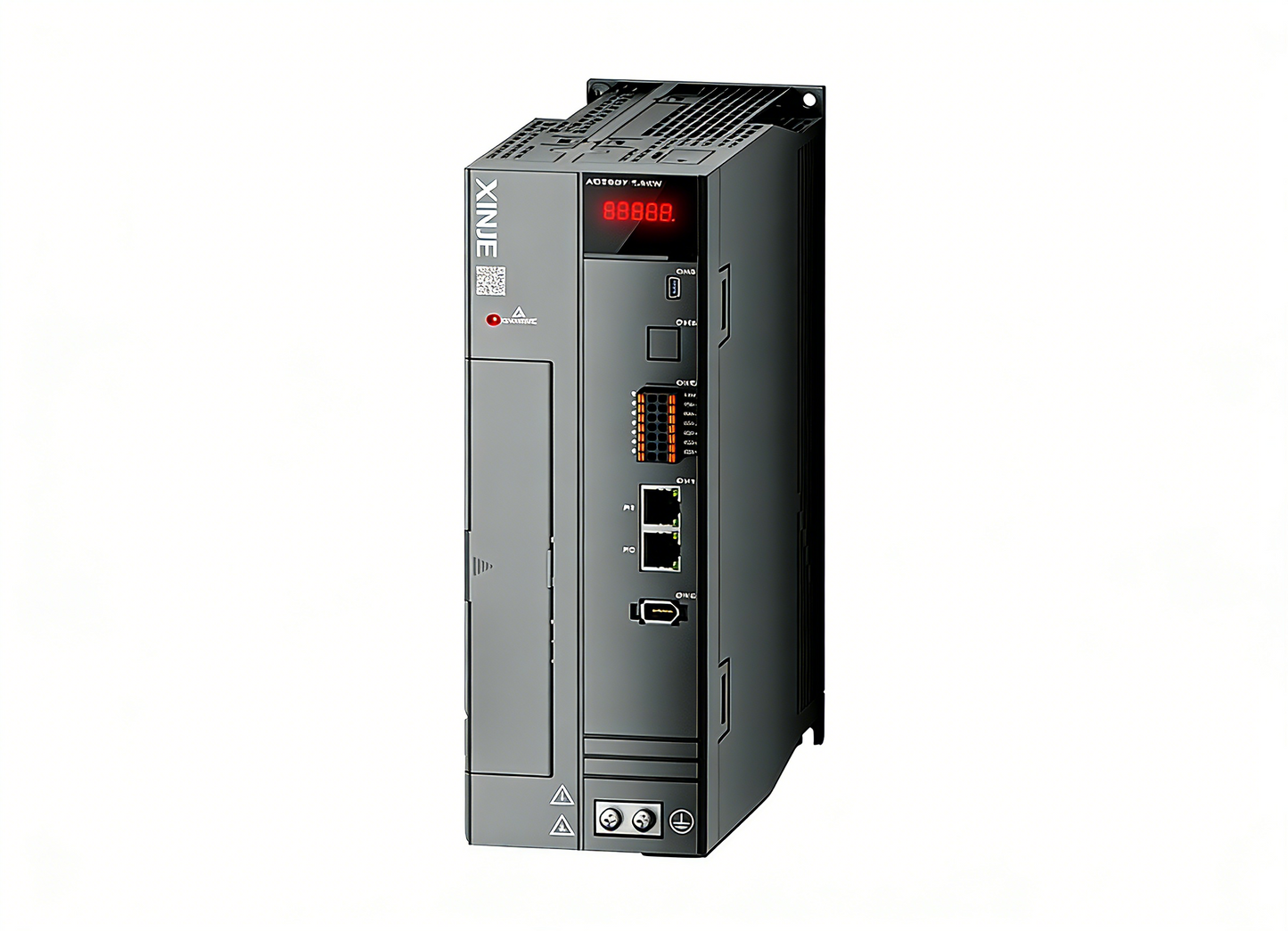

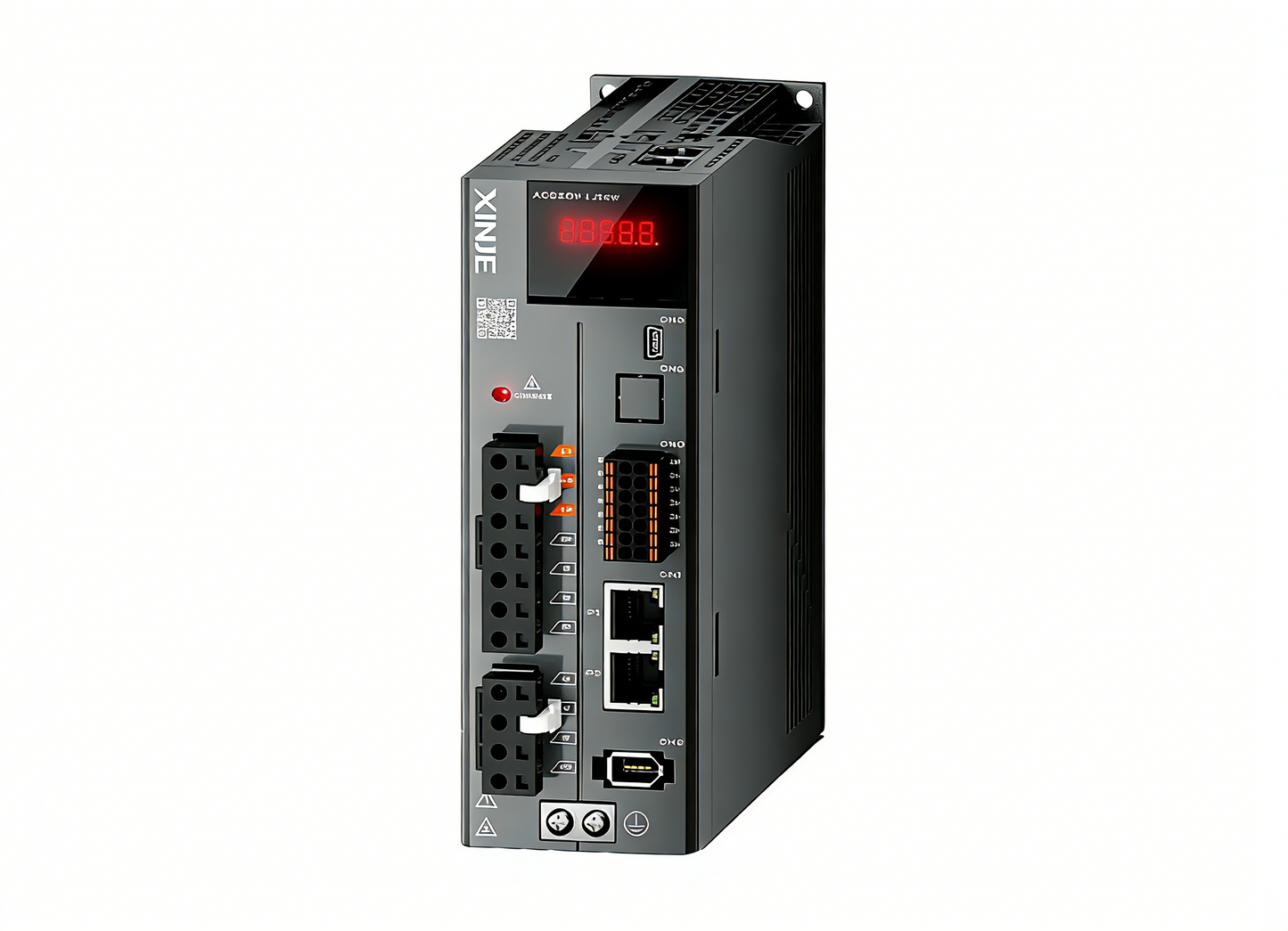

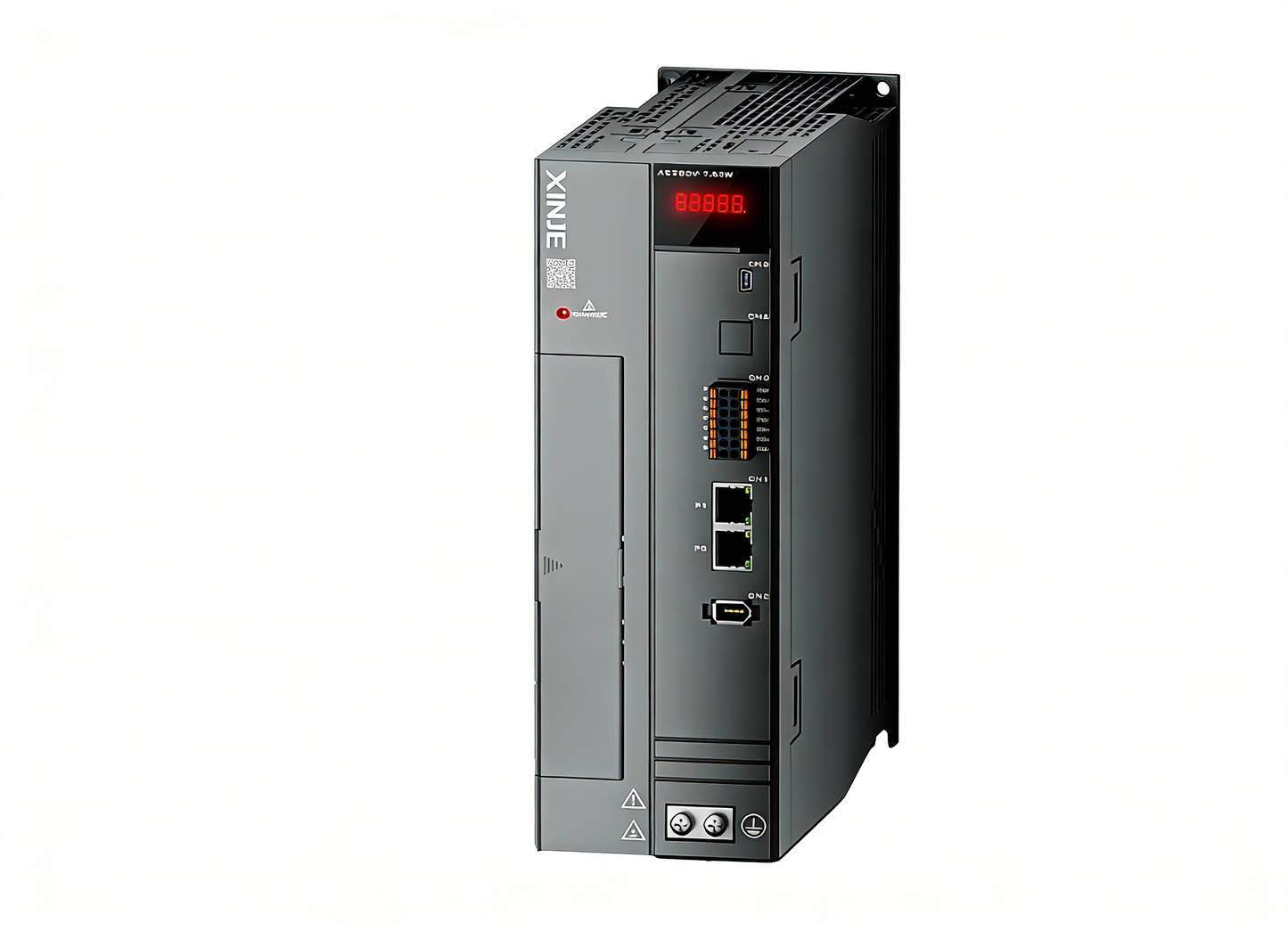

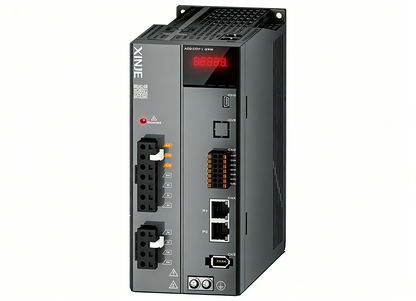

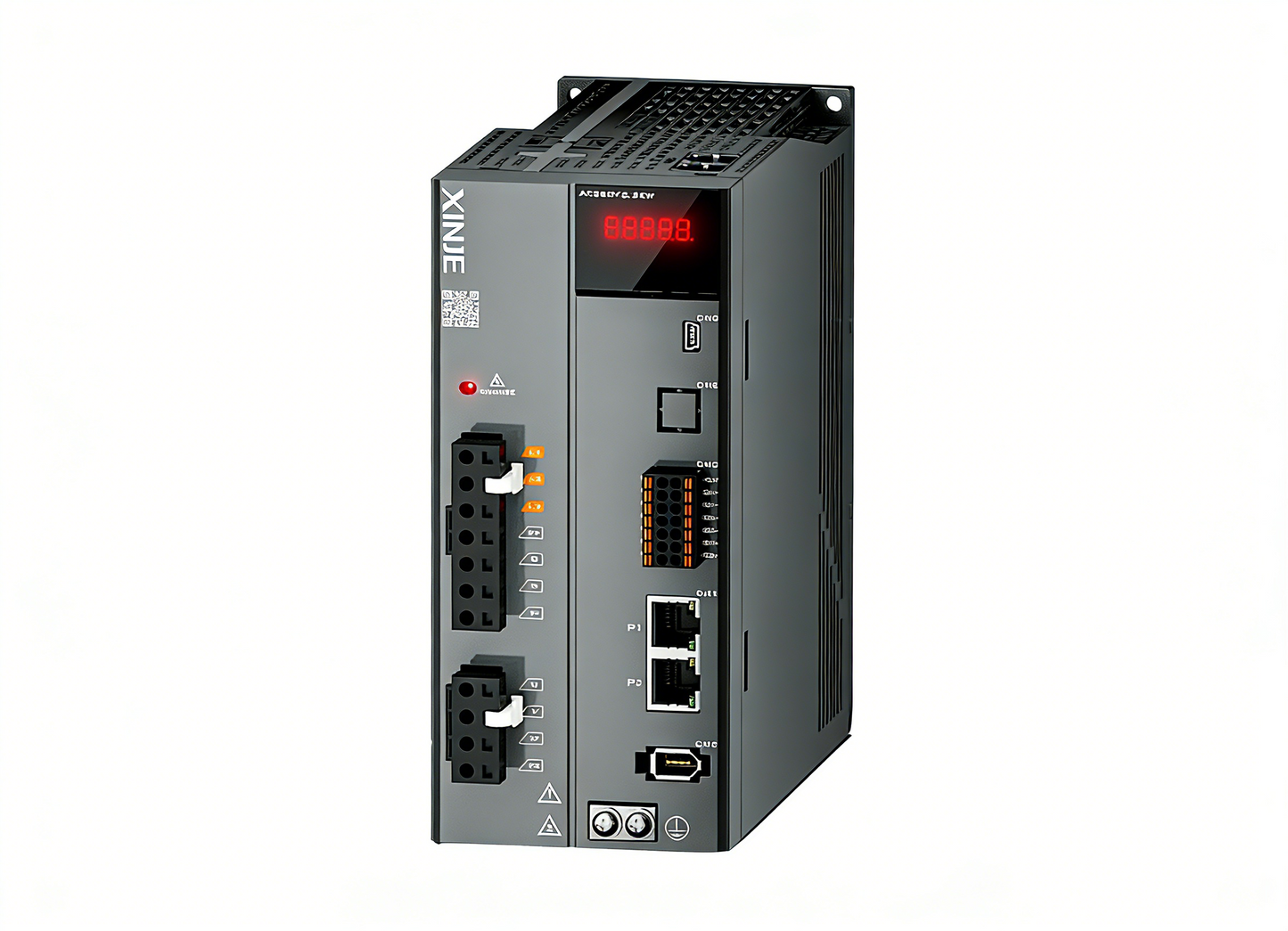

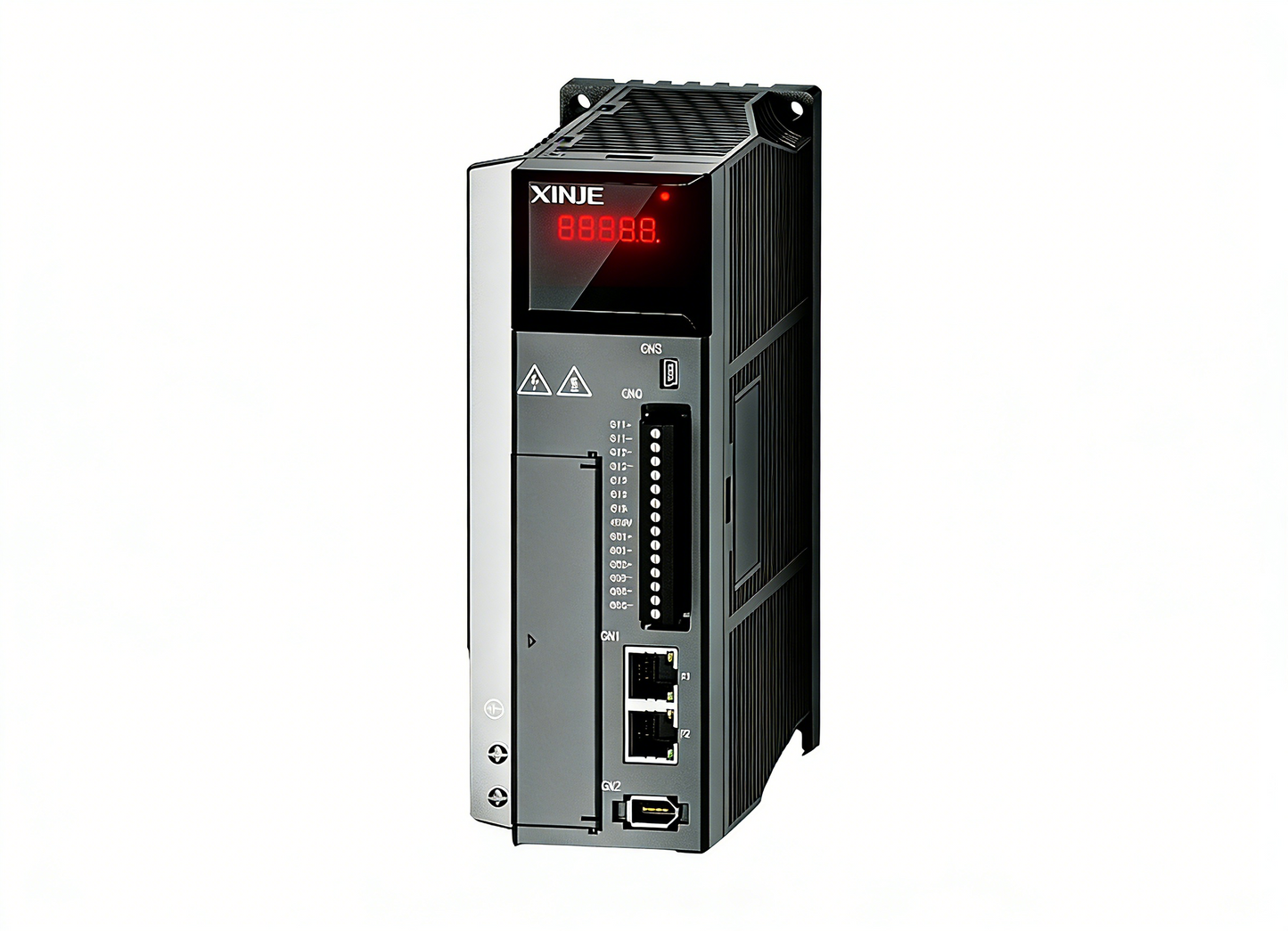

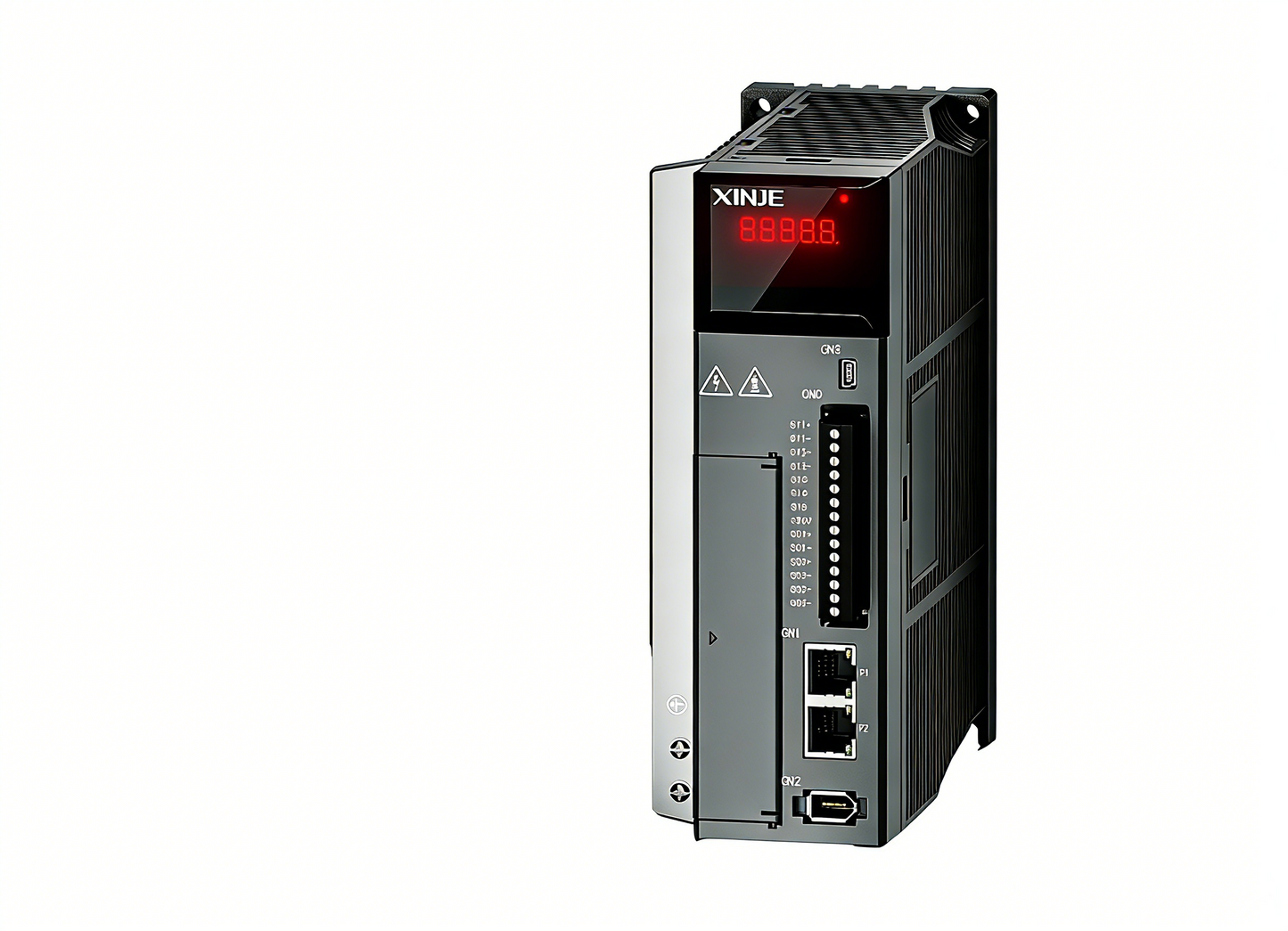

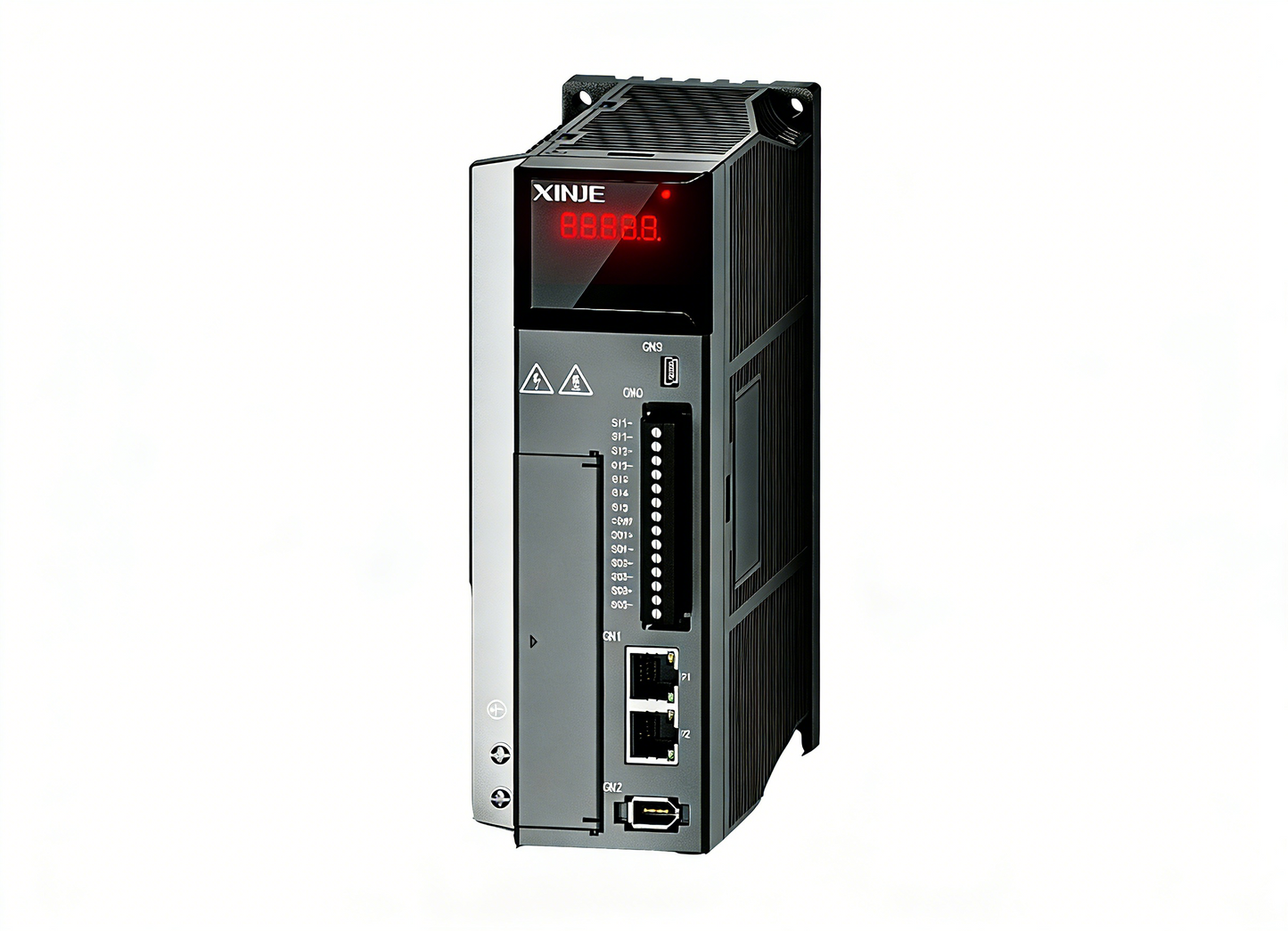

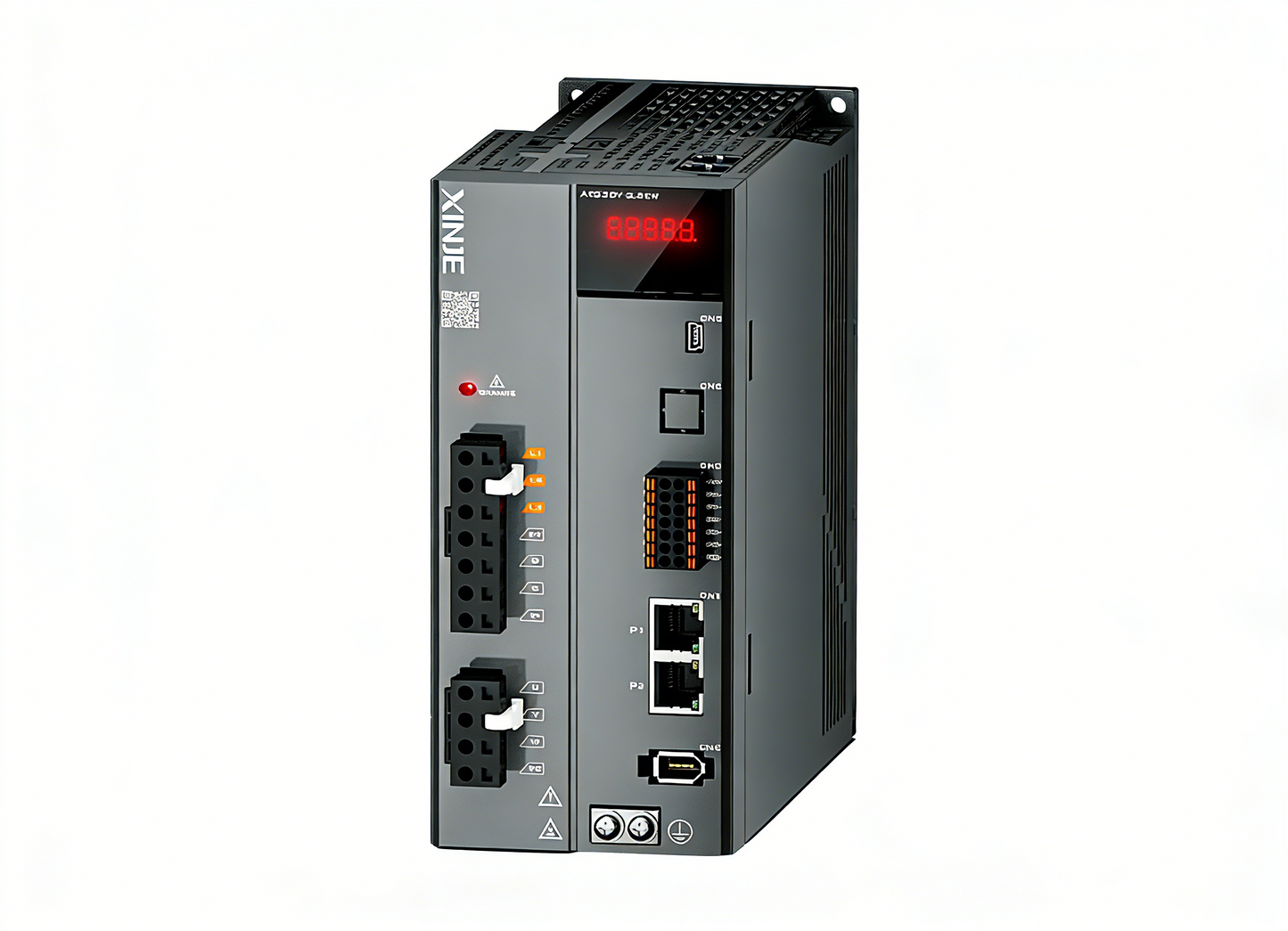

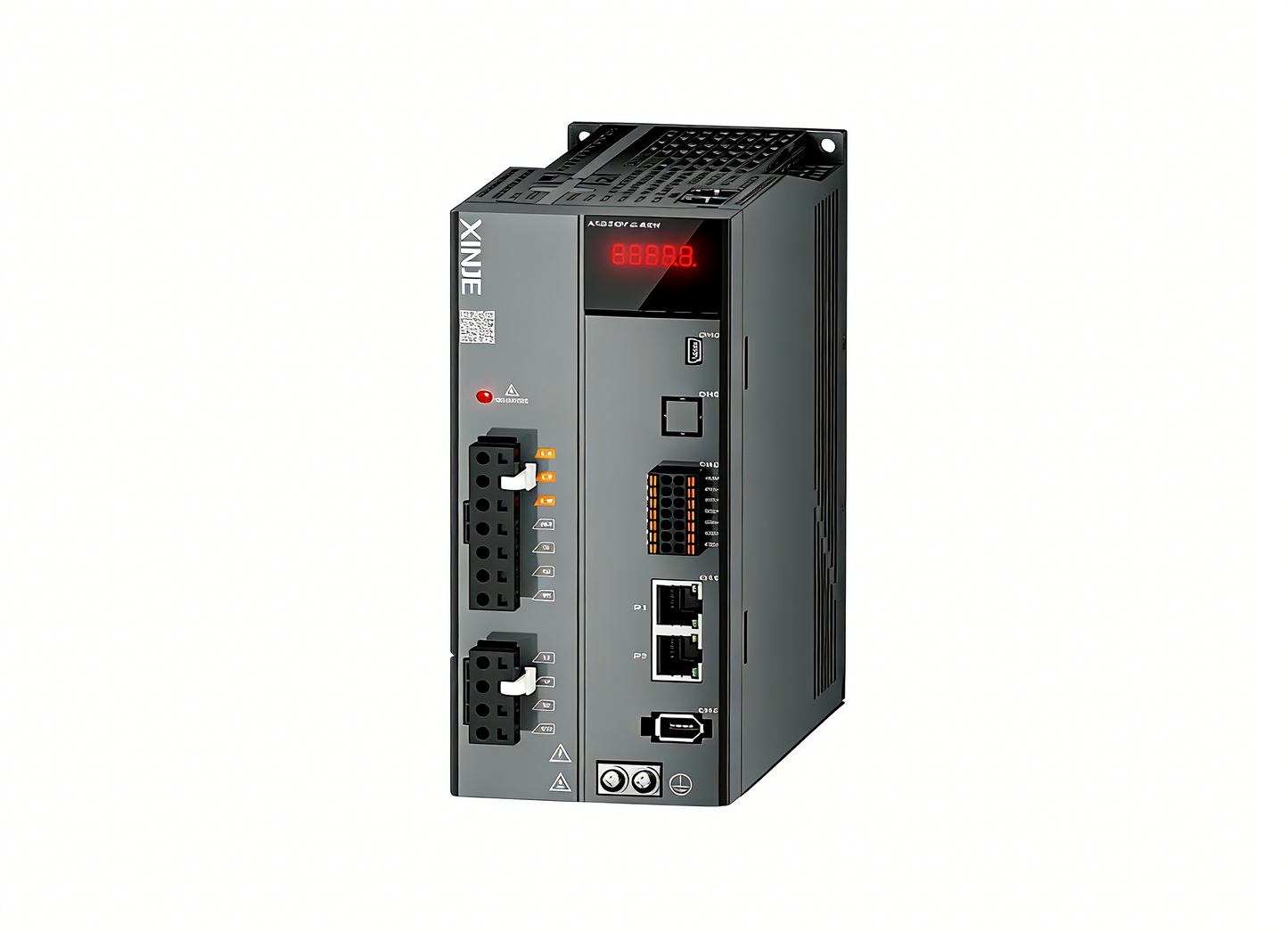

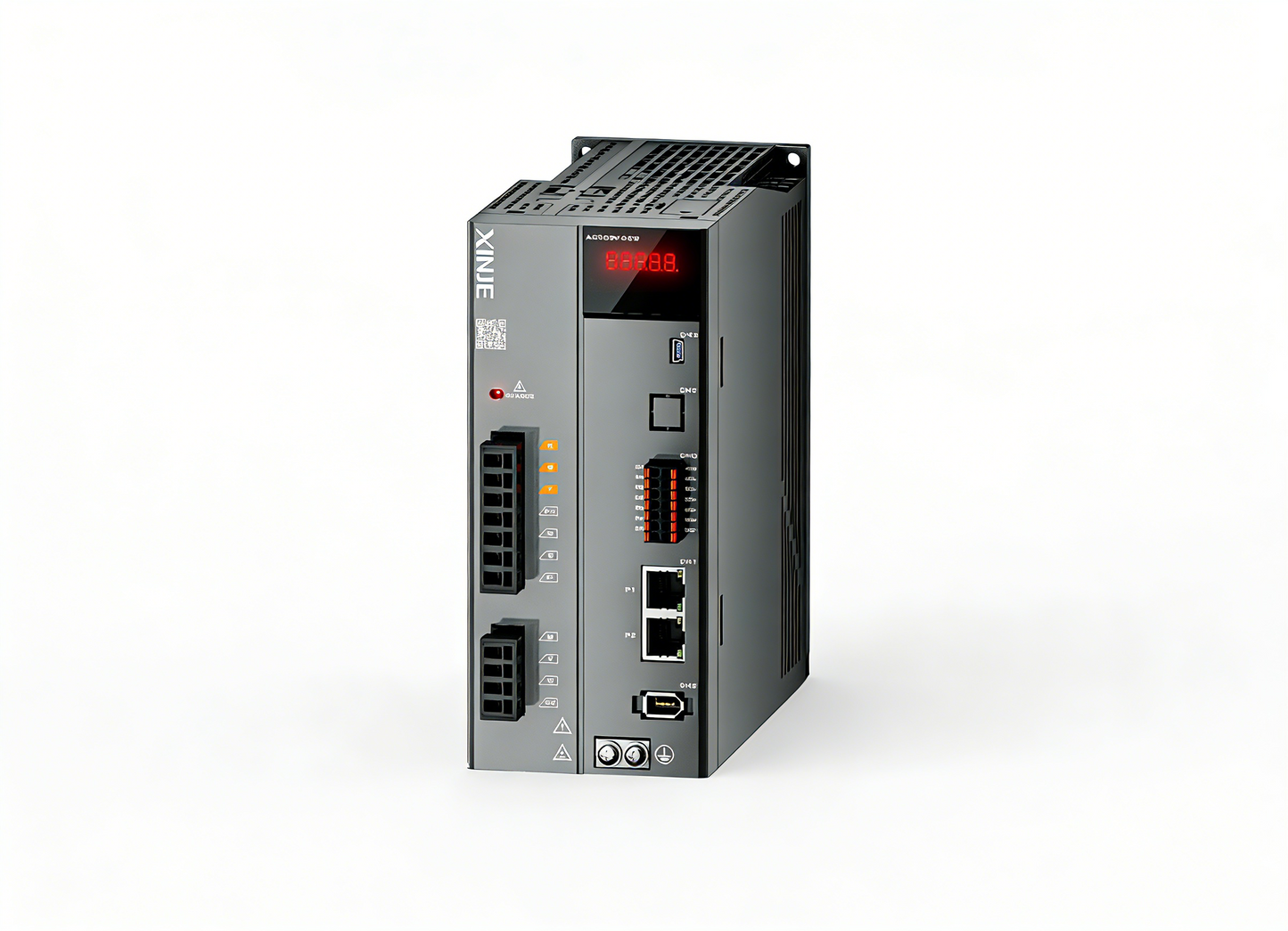

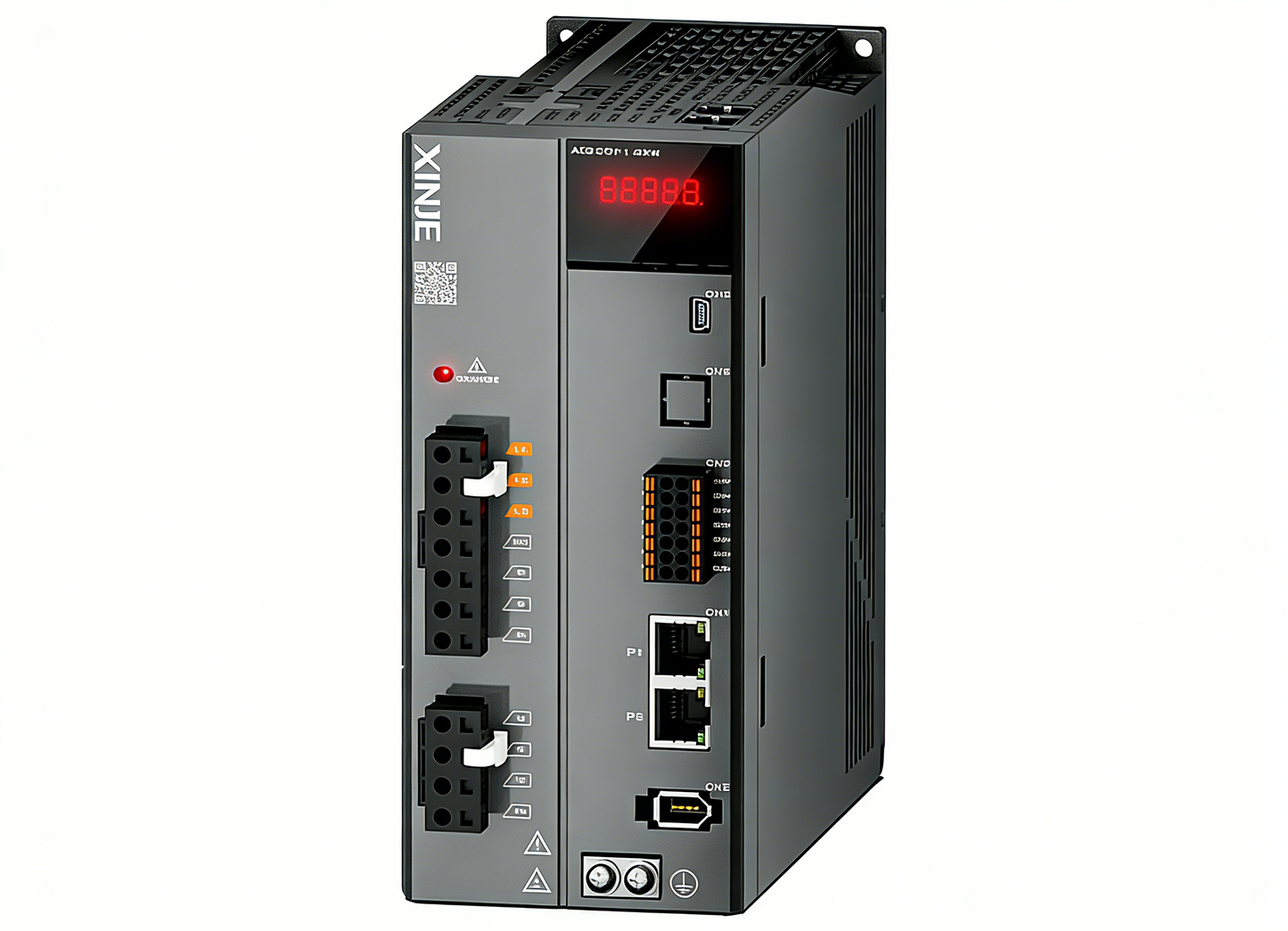

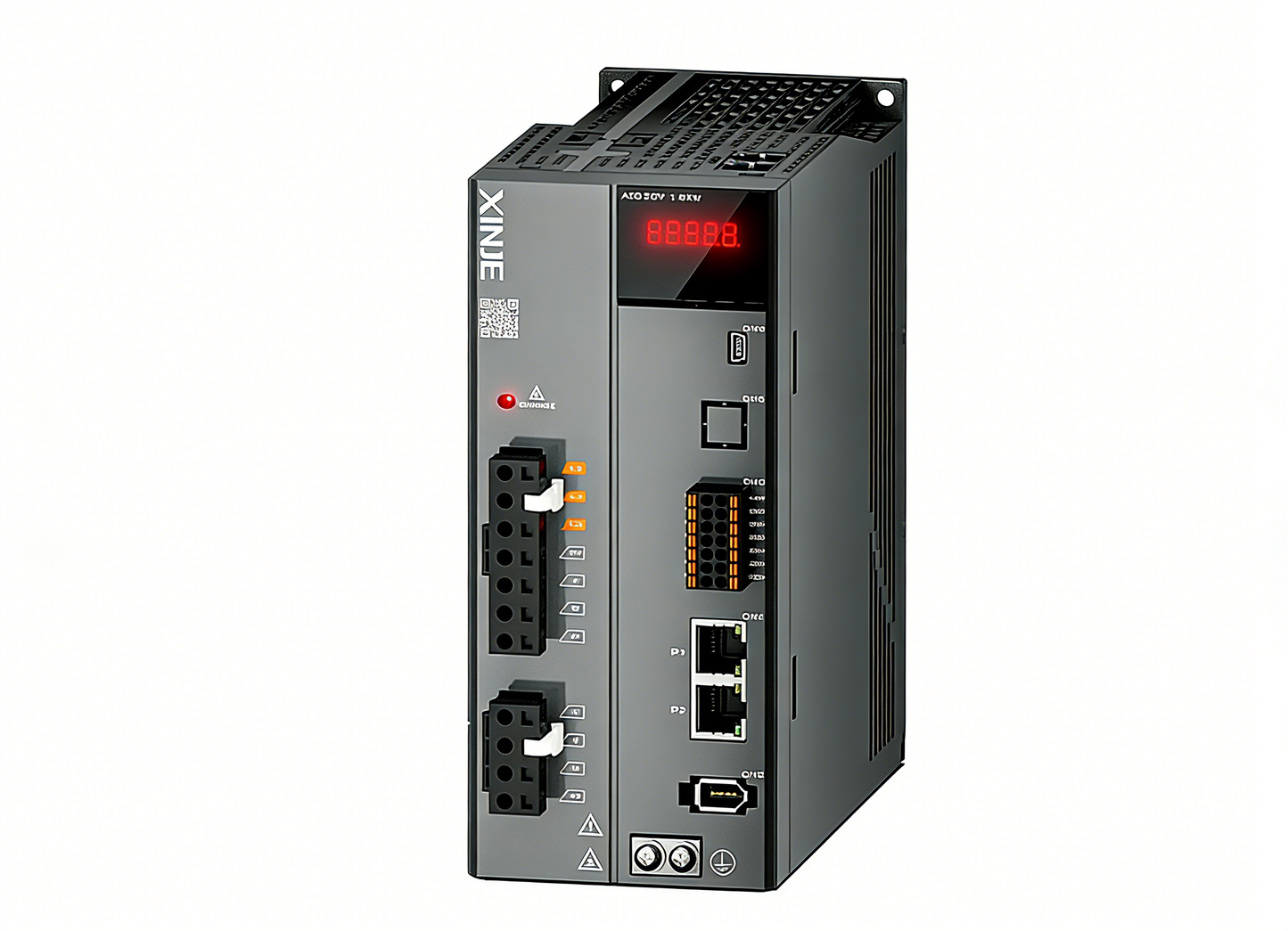

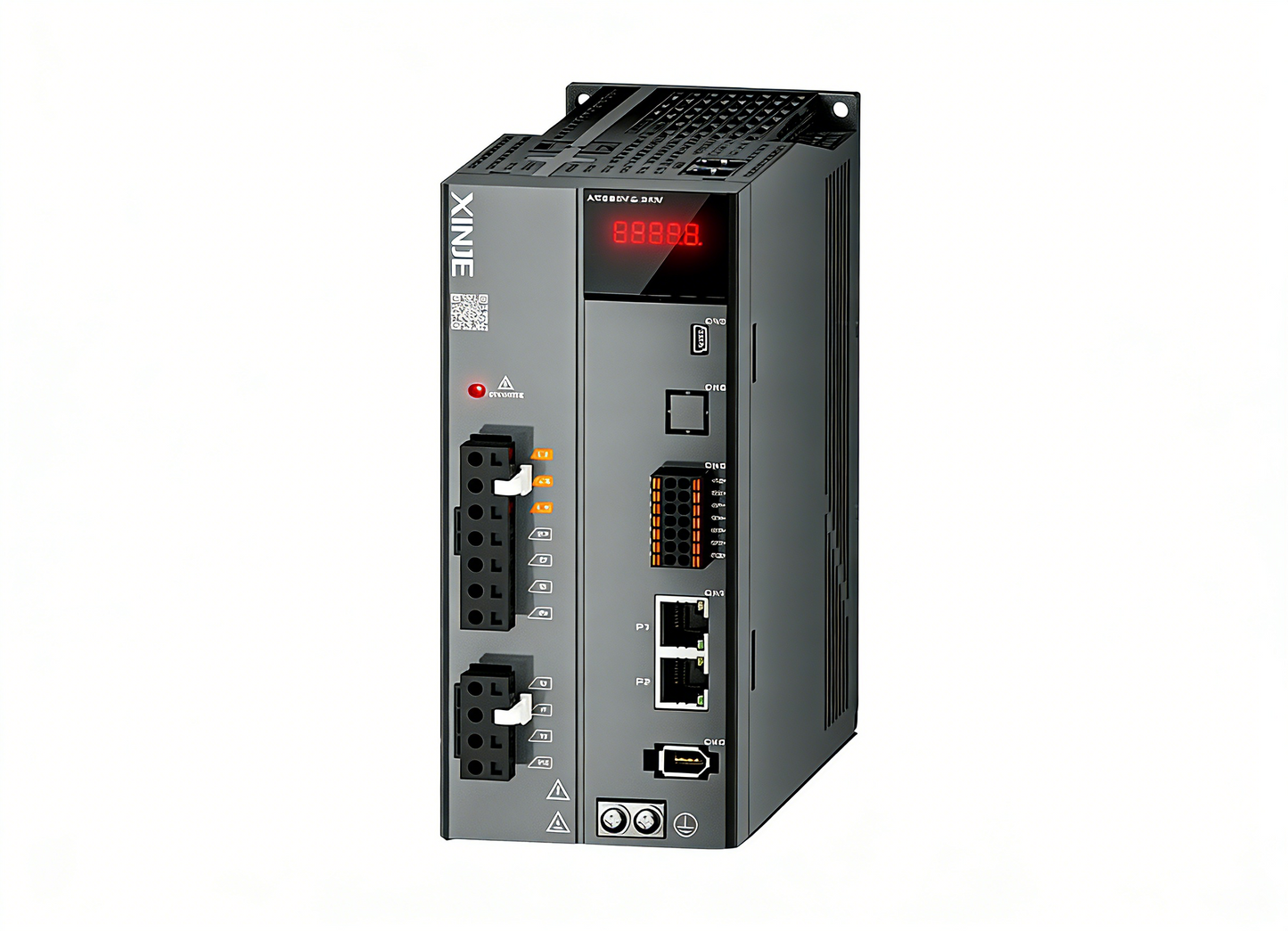

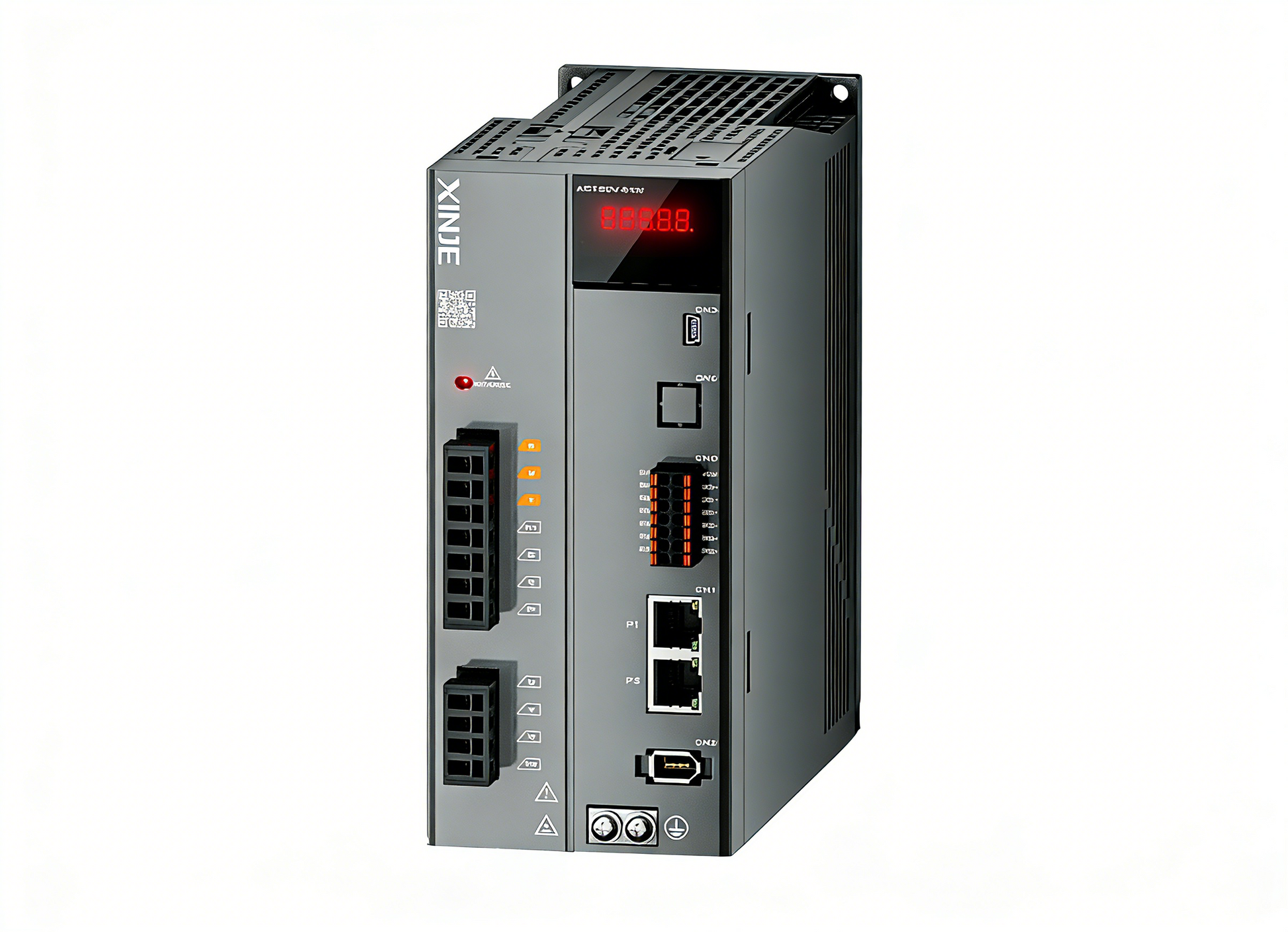

XINJE DS5P Series PROFINET AC Servo Drive | 0.75KW-7.5KW | Single & Three Phase Input

$800.00 USD

Sale Sold out

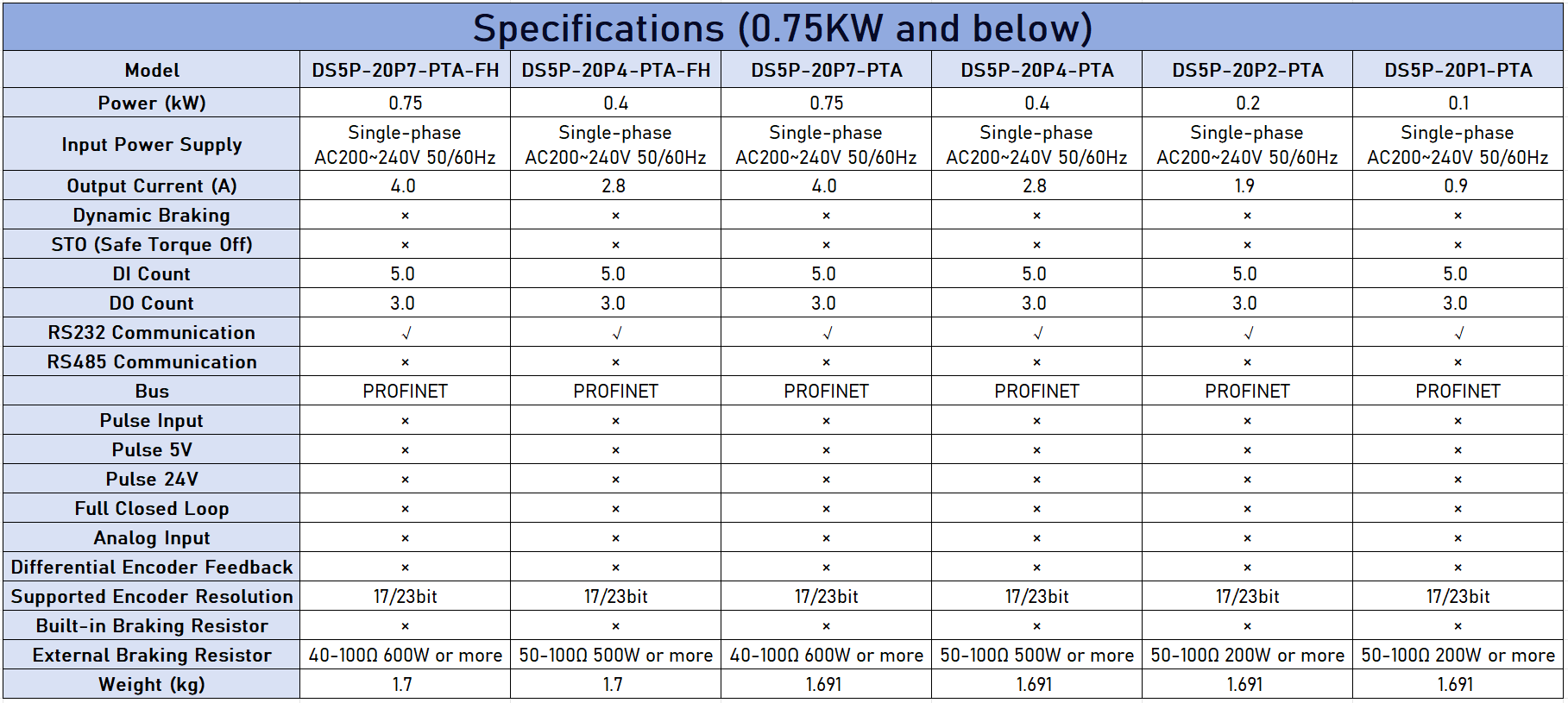

Model: DS5P-20P7-PTA-FH

Power (kW): 0.75
Input Power Supply: Single-phase AC200~240V 50/60Hz
Output Current (A): 4.0
Dynamic Braking: Not Supported (×)
STO (Safe Torque Off): Not Supported (×)
DI Count: 5.0
DO Count: 3.0
RS232 Communication: Supported (√)
RS485 Communication: Not Supported (×)
Bus: PROFINET
Pulse Input: Not Supported (×)
Pulse 5V: Not Supported (×)
Pulse 24V: Not Supported (×)
Full Closed Loop: Not Supported (×)
Analog Input: Not Supported (×)
Differential Encoder Feedback: Not Supported (×)
Supported Encoder Resolution: 17/23bit
Built-in Braking Resistor: Not Supported (×)
External Braking Resistor: 40-100Ω 600W or more
Weight (kg): 1.7

Model: DS5P-20P4-PTA-FH

Power (kW): 0.4
Input Power Supply: Single-phase AC200~240V 50/60Hz
Output Current (A): 2.8
Dynamic Braking: Not Supported (×)
STO (Safe Torque Off): Not Supported (×)
DI Count: 5.0
DO Count: 3.0
RS232 Communication: Supported (√)
RS485 Communication: Not Supported (×)
Bus: PROFINET
Pulse Input: Not Supported (×)
Pulse 5V: Not Supported (×)
Pulse 24V: Not Supported (×)
Full Closed Loop: Not Supported (×)
Analog Input: Not Supported (×)
Differential Encoder Feedback: Not Supported (×)
Supported Encoder Resolution: 17/23bit
Built-in Braking Resistor: Not Supported (×)
External Braking Resistor: 50-100Ω 500W or more
Weight (kg): 1.7

Model: DS5P-20P7-PTA

Power (kW): 0.75
Input Power Supply: Single-phase AC200~240V 50/60Hz
Output Current (A): 4.0
Dynamic Braking: Not Supported (×)
STO (Safe Torque Off): Not Supported (×)
DI Count: 5.0
DO Count: 3.0
RS232 Communication: Supported (√)
RS485 Communication: Not Supported (×)
Bus: PROFINET
Pulse Input: Not Supported (×)
Pulse 5V: Not Supported (×)
Pulse 24V: Not Supported (×)
Full Closed Loop: Not Supported (×)
Analog Input: Not Supported (×)
Differential Encoder Feedback: Not Supported (×)
Supported Encoder Resolution: 17/23bit
Built-in Braking Resistor: Not Supported (×)
External Braking Resistor: 40-100Ω 600W or more
Weight (kg): 1.691

Model: DS5P-20P4-PTA

Power (kW): 0.4
Input Power Supply: Single-phase AC200~240V 50/60Hz
Output Current (A): 2.8
Dynamic Braking: Not Supported (×)
STO (Safe Torque Off): Not Supported (×)
DI Count: 5.0
DO Count: 3.0
RS232 Communication: Supported (√)
RS485 Communication: Not Supported (×)
Bus: PROFINET
Pulse Input: Not Supported (×)
Pulse 5V: Not Supported (×)
Pulse 24V: Not Supported (×)
Full Closed Loop: Not Supported (×)
Analog Input: Not Supported (×)
Differential Encoder Feedback: Not Supported (×)
Supported Encoder Resolution: 17/23bit
Built-in Braking Resistor: Not Supported (×)
External Braking Resistor: 50-100Ω 500W or more
Weight (kg): 1.691

Model: DS5P-20P2-PTA

Power (kW): 0.2
Input Power Supply: Single-phase AC200~240V 50/60Hz
Output Current (A): 1.9
Dynamic Braking: Not Supported (×)
STO (Safe Torque Off): Not Supported (×)
DI Count: 5.0
DO Count: 3.0
RS232 Communication: Supported (√)
RS485 Communication: Not Supported (×)
Bus: PROFINET
Pulse Input: Not Supported (×)
Pulse 5V: Not Supported (×)
Pulse 24V: Not Supported (×)
Full Closed Loop: Not Supported (×)
Analog Input: Not Supported (×)
Differential Encoder Feedback: Not Supported (×)
Supported Encoder Resolution: 17/23bit
Built-in Braking Resistor: Not Supported (×)
External Braking Resistor: 50-100Ω 200W or more
Weight (kg): 1.691

Model: DS5P-20P1-PTA

Power (kW): 0.1
Input Power Supply: Single-phase AC200~240V 50/60Hz
Output Current (A): 0.9
Dynamic Braking: Not Supported (×)
STO (Safe Torque Off): Not Supported (×)
DI Count: 5.0
DO Count: 3.0
RS232 Communication: Supported (√)
RS485 Communication: Not Supported (×)
Bus: PROFINET
Pulse Input: Not Supported (×)
Pulse 5V: Not Supported (×)
Pulse 24V: Not Supported (×)
Full Closed Loop: Not Supported (×)
Analog Input: Not Supported (×)
Differential Encoder Feedback: Not Supported (×)
Supported Encoder Resolution: 17/23bit
Built-in Braking Resistor: Not Supported (×)
External Braking Resistor: 50-100Ω 200W or more
Weight (kg): 1.691

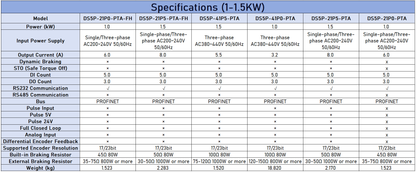

Model: DS5P-21P0-PTA-FH

Power (kW): 1.0
Input Power Supply: Single/Three-phase AC200~240V 50/60Hz
Output Current (A): 6.0
Dynamic Braking: Not Supported (×)
STO (Safe Torque Off): Not Supported (×)
DI Count: 5.0
DO Count: 3.0
RS232 Communication: Supported (√)
RS485 Communication: Not Supported (×)
Bus: PROFINET
Pulse Input: Not Supported (×)
Pulse 5V: Not Supported (×)
Pulse 24V: Not Supported (×)
Full Closed Loop: Not Supported (×)
Analog Input: Not Supported (×)
Differential Encoder Feedback: Not Supported (×)
Supported Encoder Resolution: 17/23bit
Built-in Braking Resistor: 45Ω 80W
External Braking Resistor: 35-75Ω 800W or more
Weight (kg): 1.523

Model: DS5P-21P5-PTA-FH

Power (kW): 1.5
Input Power Supply: Single-phase/Three-phase AC200~240V 50/60Hz
Output Current (A): 8.0
Dynamic Braking: Not Supported (×)
STO (Safe Torque Off): Not Supported (×)
DI Count: 5.0
DO Count: 3.0
RS232 Communication: Supported (√)
RS485 Communication: Not Supported (×)
Bus: PROFINET
Pulse Input: Not Supported (×)
Pulse 5V: Not Supported (×)
Pulse 24V: Not Supported (×)
Full Closed Loop: Not Supported (×)
Analog Input: Not Supported (×)
Differential Encoder Feedback: Not Supported (×)
Supported Encoder Resolution: 17/23bit
Built-in Braking Resistor: 50Ω 80W
External Braking Resistor: 30-50Ω 1000W or more
Weight (kg): 2.283

Model: DS5P-41P5-PTA

Power (kW): 1.5
Input Power Supply: Three-phase AC380~440V 50/60Hz
Output Current (A): 5.5
Dynamic Braking: Not Supported (×)
STO (Safe Torque Off): Not Supported (×)
DI Count: 5.0
DO Count: 3.0
RS232 Communication: Supported (√)
RS485 Communication: Not Supported (×)
Bus: PROFINET
Pulse Input: Not Supported (×)
Pulse 5V: Not Supported (×)
Pulse 24V: Not Supported (×)
Full Closed Loop: Not Supported (×)
Analog Input: Not Supported (×)
Differential Encoder Feedback: Not Supported (×)
Supported Encoder Resolution: 17/23bit
Built-in Braking Resistor: 100Ω 80W
External Braking Resistor: 75-120Ω 1000W or more
Weight (kg): 1.520

Model: DS5P-41P0-PTA

Power (kW): 1.0
Input Power Supply: Three-phase AC380~440V 50/60Hz
Output Current (A): 3.2
Dynamic Braking: Not Supported (×)
STO (Safe Torque Off): Not Supported (×)
DI Count: 5.0
DO Count: 3.0
RS232 Communication: Supported (√)
RS485 Communication: Not Supported (×)
Bus: PROFINET
Pulse Input: Not Supported (×)
Pulse 5V: Not Supported (×)
Pulse 24V: Not Supported (×)
Full Closed Loop: Not Supported (×)
Analog Input: Not Supported (×)
Differential Encoder Feedback: Not Supported (×)
Supported Encoder Resolution: 17/23bit
Built-in Braking Resistor: 100Ω 80W
External Braking Resistor: 120-150Ω 800W or more
Weight (kg): 18.820

Model: DS5P-21P5-PTA

Power (kW): 1.5
Input Power Supply: Single-phase/Three-phase AC200~240V 50/60Hz
Output Current (A): 8.0
Dynamic Braking: Not Supported (×)
STO (Safe Torque Off): Not Supported (×)
DI Count: 5.0
DO Count: 3.0
RS232 Communication: Supported (√)
RS485 Communication: Not Supported (×)
Bus: PROFINET
Pulse Input: Not Supported (×)
Pulse 5V: Not Supported (×)
Pulse 24V: Not Supported (×)
Full Closed Loop: Not Supported (×)
Analog Input: Not Supported (×)
Differential Encoder Feedback: Not Supported (×)
Supported Encoder Resolution: 17/23bit
Built-in Braking Resistor: 50Ω 80W
External Braking Resistor: 30-50Ω 1000W or more
Weight (kg): 2.170

Model: DS5P-21P0-PTA

Power (kW): 1.0
Input Power Supply: Single-phase/Three-phase AC200~240V 50/60Hz
Output Current (A): 6.0
Dynamic Braking: Not Supported (×)
STO (Safe Torque Off): Not Supported (×)
DI Count: 5.0
DO Count: 3.0
RS232 Communication: Supported (√)
RS485 Communication: Not Supported (×)
Bus: PROFINET
Pulse Input: Not Supported (×)
Pulse 5V: Not Supported (×)
Pulse 24V: Not Supported (×)
Full Closed Loop: Not Supported (×)
Analog Input: Not Supported (×)
Differential Encoder Feedback: Not Supported (×)
Supported Encoder Resolution: 17/23bit
Built-in Braking Resistor: 45Ω 80W
External Braking Resistor: 35-75Ω 800W or more
Weight (kg): 1.523

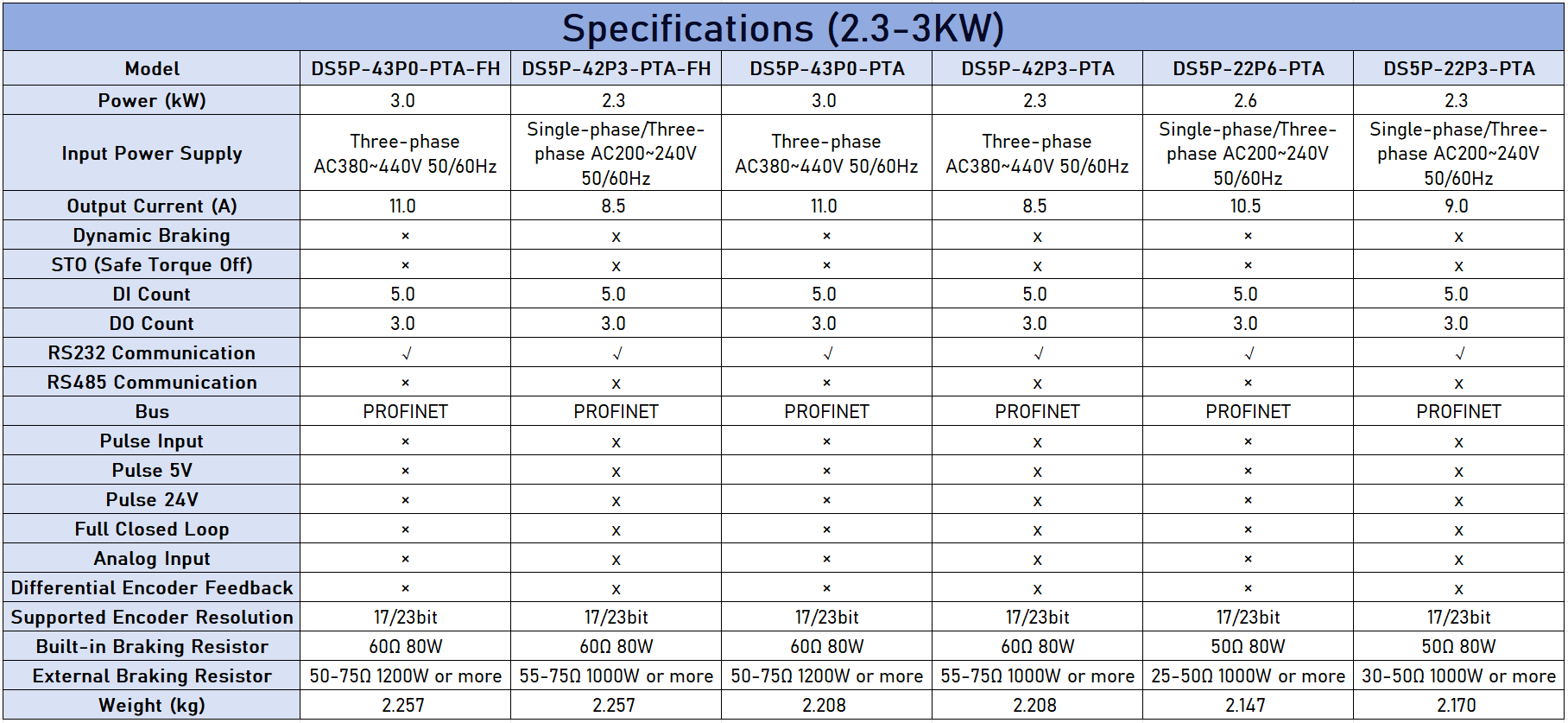

Model: DS5P-43P0-PTA-FH

Power (kW): 3.0
Input Power Supply: Three-phase AC380~440V 50/60Hz
Output Current (A): 11.0
Dynamic Braking: ×
STO (Safe Torque Off): ×
DI Count: 5.0
DO Count: 3.0
RS232 Communication: √
RS485 Communication: ×
Bus: PROFINET
Pulse Input: ×
Pulse 5V: ×
Pulse 24V: ×
Full Closed Loop: ×
Analog Input: ×
Differential Encoder Feedback: ×
Supported Encoder Resolution: 17/23bit
Built-in Braking Resistor: 60Ω 80W
External Braking Resistor: 50-75Ω 1200W or more
Weight (kg): 2.257

Model: DS5P-42P3-PTA-FH

Power (kW): 2.3
Input Power Supply: Single-phase/Three-phase AC200~240V 50/60Hz
Output Current (A): 8.5
Dynamic Braking: ×
STO (Safe Torque Off): ×
DI Count: 5.0
DO Count: 3.0
RS232 Communication: √
RS485 Communication: ×
Bus: PROFINET
Pulse Input: ×
Pulse 5V: ×
Pulse 24V: ×
Full Closed Loop: ×
Analog Input: ×
Differential Encoder Feedback: ×
Supported Encoder Resolution: 17/23bit
Built-in Braking Resistor: 60Ω 80W
External Braking Resistor: 55-75Ω 1000W or more
Weight (kg): 2.257

Model: DS5P-43P0-PTA

Power (kW): 3.0
Input Power Supply: Three-phase AC380~440V 50/60Hz
Output Current (A): 11.0
Dynamic Braking: ×
STO (Safe Torque Off): ×
DI Count: 5.0
DO Count: 3.0
RS232 Communication: √
RS485 Communication: ×
Bus: PROFINET
Pulse Input: ×
Pulse 5V: ×
Pulse 24V: ×
Full Closed Loop: ×
Analog Input: ×
Differential Encoder Feedback: ×
Supported Encoder Resolution: 17/23bit
Built-in Braking Resistor: 60Ω 80W
External Braking Resistor: 50-75Ω 1200W or more
Weight (kg): 2.208

Model: DS5P-42P3-PTA

Power (kW): 2.3
Input Power Supply: Three-phase AC380~440V 50/60Hz
Output Current (A): 8.5
Dynamic Braking: ×
STO (Safe Torque Off): ×
DI Count: 5.0
DO Count: 3.0
RS232 Communication: √
RS485 Communication: ×
Bus: PROFINET
Pulse Input: ×
Pulse 5V: ×
Pulse 24V: ×
Full Closed Loop: ×
Analog Input: ×
Differential Encoder Feedback: ×
Supported Encoder Resolution: 17/23bit
Built-in Braking Resistor: 60Ω 80W
External Braking Resistor: 55-75Ω 1000W or more
Weight (kg): 2.208

Model: DS5P-22P6-PTA

Power (kW): 2.6
Input Power Supply: Single-phase/Three-phase AC200~240V 50/60Hz
Output Current (A): 10.5
Dynamic Braking: ×
STO (Safe Torque Off): ×
DI Count: 5.0
DO Count: 3.0
RS232 Communication: √
RS485 Communication: ×
Bus: PROFINET
Pulse Input: ×
Pulse 5V: ×
Pulse 24V: ×
Full Closed Loop: ×
Analog Input: ×
Differential Encoder Feedback: ×
Supported Encoder Resolution: 17/23bit
Built-in Braking Resistor: 50Ω 80W
External Braking Resistor: 25-50Ω 1000W or more
Weight (kg): 2.147

Model: DS5P-22P3-PTA

Power (kW): 2.3
Input Power Supply: Single-phase/Three-phase AC200~240V 50/60Hz
Output Current (A): 9.0
Dynamic Braking: ×
STO (Safe Torque Off): ×
DI Count: 5.0
DO Count: 3.0
RS232 Communication: √
RS485 Communication: ×
Bus: PROFINET
Pulse Input: ×
Pulse 5V: ×
Pulse 24V: ×
Full Closed Loop: ×
Analog Input: ×
Differential Encoder Feedback: ×
Supported Encoder Resolution: 17/23bit
Built-in Braking Resistor: 50Ω 80W
External Braking Resistor: 30-50Ω 1000W or more
Weight (kg): 2.170

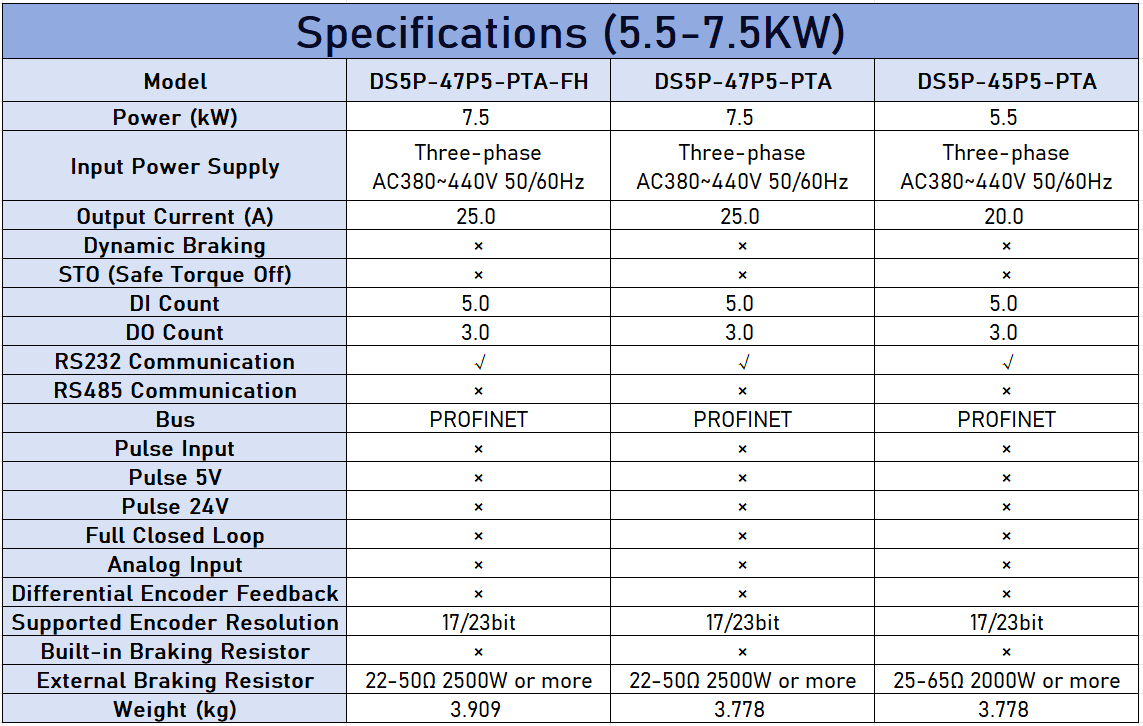

Model: DS5P-47P5-PTA-FH

Power (kW): 7.5
Input Power Supply: Three-phase AC380~440V 50/60Hz
Output Current (A): 25.0
Dynamic Braking: ×
STO (Safe Torque Off): ×
DI Count: 5.0
DO Count: 3.0
RS232 Communication: √
RS485 Communication: ×
Bus: PROFINET
Pulse Input: ×
Pulse 5V: ×
Pulse 24V: ×
Full Closed Loop: ×
Analog Input: ×
Differential Encoder Feedback: ×
Supported Encoder Resolution: 17/23bit
Built-in Braking Resistor: ×
External Braking Resistor: 22-50Ω 2500W or more
Weight (kg): 3.909

Model: DS5P-47P5-PTA

Power (kW): 7.5
Input Power Supply: Three-phase AC380~440V 50/60Hz
Output Current (A): 25.0
Dynamic Braking: ×
STO (Safe Torque Off): ×
DI Count: 5.0
DO Count: 3.0
RS232 Communication: √
RS485 Communication: ×
Bus: PROFINET
Pulse Input: ×
Pulse 5V: ×
Pulse 24V: ×
Full Closed Loop: ×
Analog Input: ×
Differential Encoder Feedback: ×
Supported Encoder Resolution: 17/23bit
Built-in Braking Resistor: ×
External Braking Resistor: 22-50Ω 2500W or more
Weight (kg): 3.778

Model: DS5P-45P5-PTA

Power (kW): 5.5
Input Power Supply: Three-phase AC380~440V 50/60Hz
Output Current (A): 20.0
Dynamic Braking: ×
STO (Safe Torque Off): ×
DI Count: 5.0
DO Count: 3.0
RS232 Communication: √
RS485 Communication: ×
Bus: PROFINET
Pulse Input: ×
Pulse 5V: ×
Pulse 24V: ×
Full Closed Loop: ×
Analog Input: ×
Differential Encoder Feedback: ×
Supported Encoder Resolution: 17/23bit
Built-in Braking Resistor: ×
External Braking Resistor: 25-65Ω 2000W or more
Weight (kg): 3.778

Product features

Materials and care

Merchandising tips

View full details

Your cart
Variant	Variant total	Quantity	Price	Variant total
DS5P-43P0-PTA-FH	DS5P-43P0-PTA-FH $800.00/ea	$0.00	Quantity	$800.00/ea	$0.00

DS5P-42P3-PTA-FH	DS5P-42P3-PTA-FH $660.00/ea	$0.00	Quantity	$660.00/ea	$0.00

DS5P-43P0-PTA	DS5P-43P0-PTA $800.00/ea	$0.00	Quantity	$800.00/ea	$0.00

DS5P-42P3-PTA	DS5P-42P3-PTA $660.00/ea	$0.00	Quantity	$660.00/ea	$0.00

DS5P-22P6-PTA	DS5P-22P6-PTA $720.00/ea	$0.00	Quantity	$720.00/ea	$0.00

DS5P-22P3-PTA	DS5P-22P3-PTA $660.00/ea	$0.00	Quantity	$660.00/ea	$0.00

DS5P-20P7-PTA-FH	DS5P-20P7-PTA-FH $370.00/ea	$0.00	Quantity	$370.00/ea	$0.00

DS5P-20P4-PTA-FH	DS5P-20P4-PTA-FH $370.00/ea	$0.00	Quantity	$370.00/ea	$0.00

DS5P-20P7-PTA	DS5P-20P7-PTA $370.00/ea	$0.00	Quantity	$370.00/ea	$0.00

DS5P-20P4-PTA	DS5P-20P4-PTA $370.00/ea	$0.00	Quantity	$370.00/ea	$0.00

DS5P-20P2-PTA	DS5P-20P2-PTA $350.00/ea	$0.00	Quantity	$350.00/ea	$0.00

DS5P-20P1-PTA	DS5P-20P1-PTA $350.00/ea	$0.00	Quantity	$350.00/ea	$0.00

DS5P-21P0-PTA-FH	DS5P-21P0-PTA-FH $400.00/ea	$0.00	Quantity	$400.00/ea	$0.00

DS5P-21P5-PTA-FH	DS5P-21P5-PTA-FH $500.00/ea	$0.00	Quantity	$500.00/ea	$0.00

DS5P-41P5-PTA	DS5P-41P5-PTA $500.00/ea	$0.00	Quantity	$500.00/ea	$0.00

DS5P-41P0-PTA	DS5P-41P0-PTA $680.00/ea	$0.00	Quantity	$680.00/ea	$0.00

DS5P-21P5-PTA	DS5P-21P5-PTA $500.00/ea	$0.00	Quantity	$500.00/ea	$0.00

DS5P-21P0-PTA	DS5P-21P0-PTA $400.00/ea	$0.00	Quantity	$400.00/ea	$0.00

DS5P-47P5-PTA-FH	DS5P-47P5-PTA-FH $1,770.00/ea	$0.00	Quantity	$1,770.00/ea	$0.00

DS5P-47P5-PTA	DS5P-47P5-PTA $1,770.00/ea	$0.00	Quantity	$1,770.00/ea	$0.00

DS5P-45P5-PTA	DS5P-45P5-PTA $1,370.00/ea	$0.00	Quantity	$1,370.00/ea	$0.00
