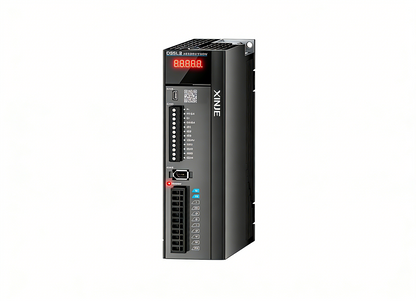

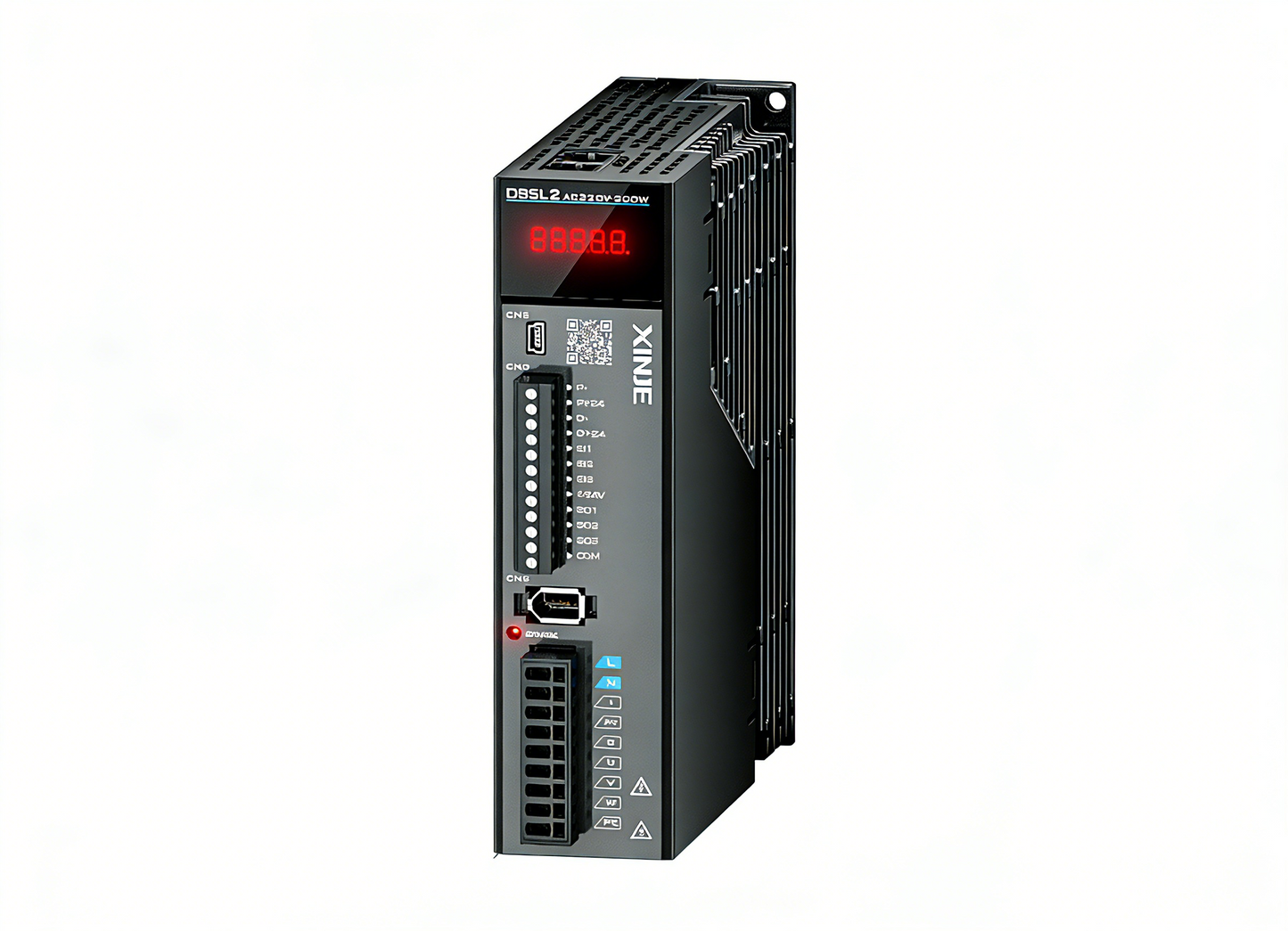

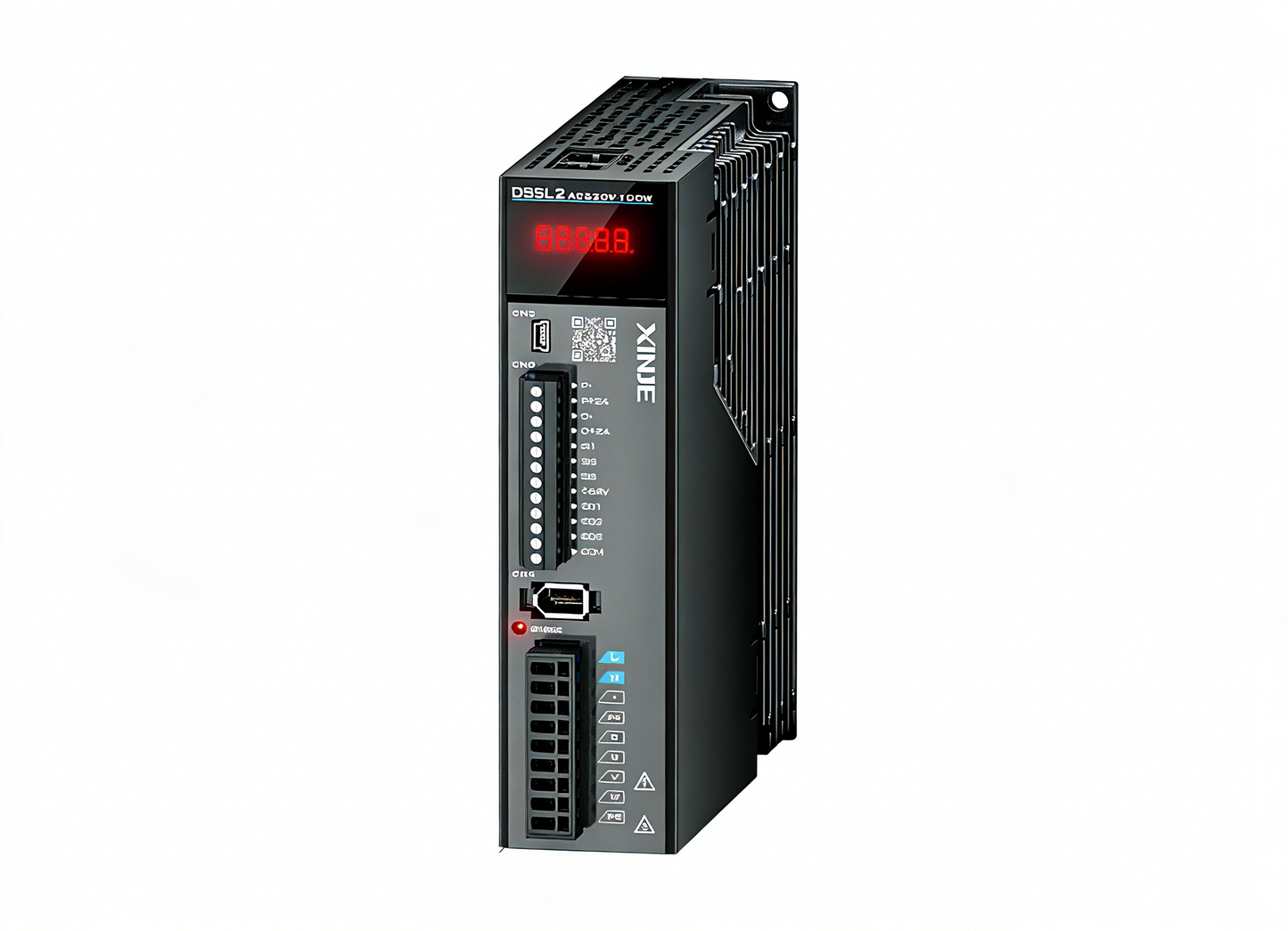

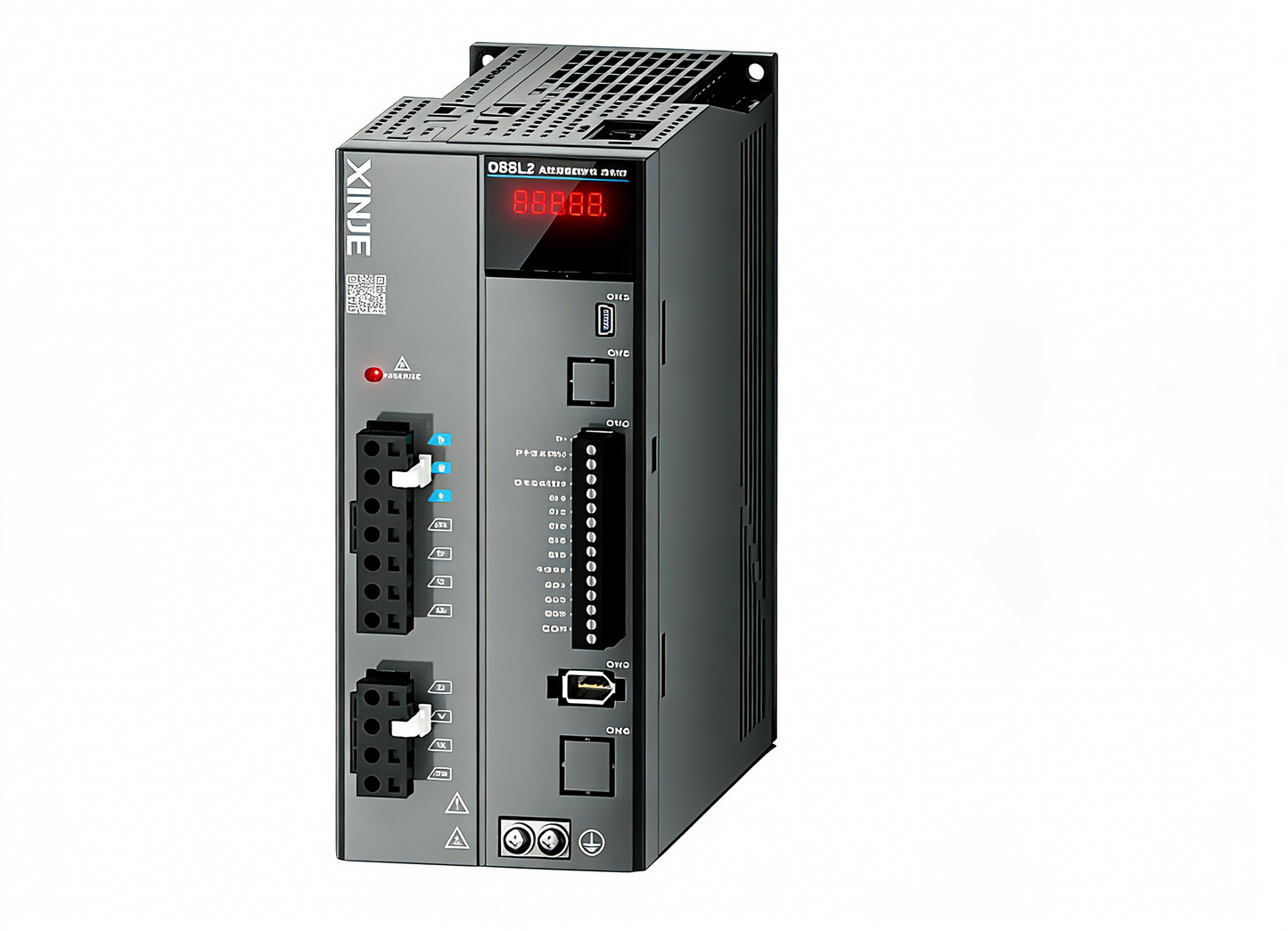

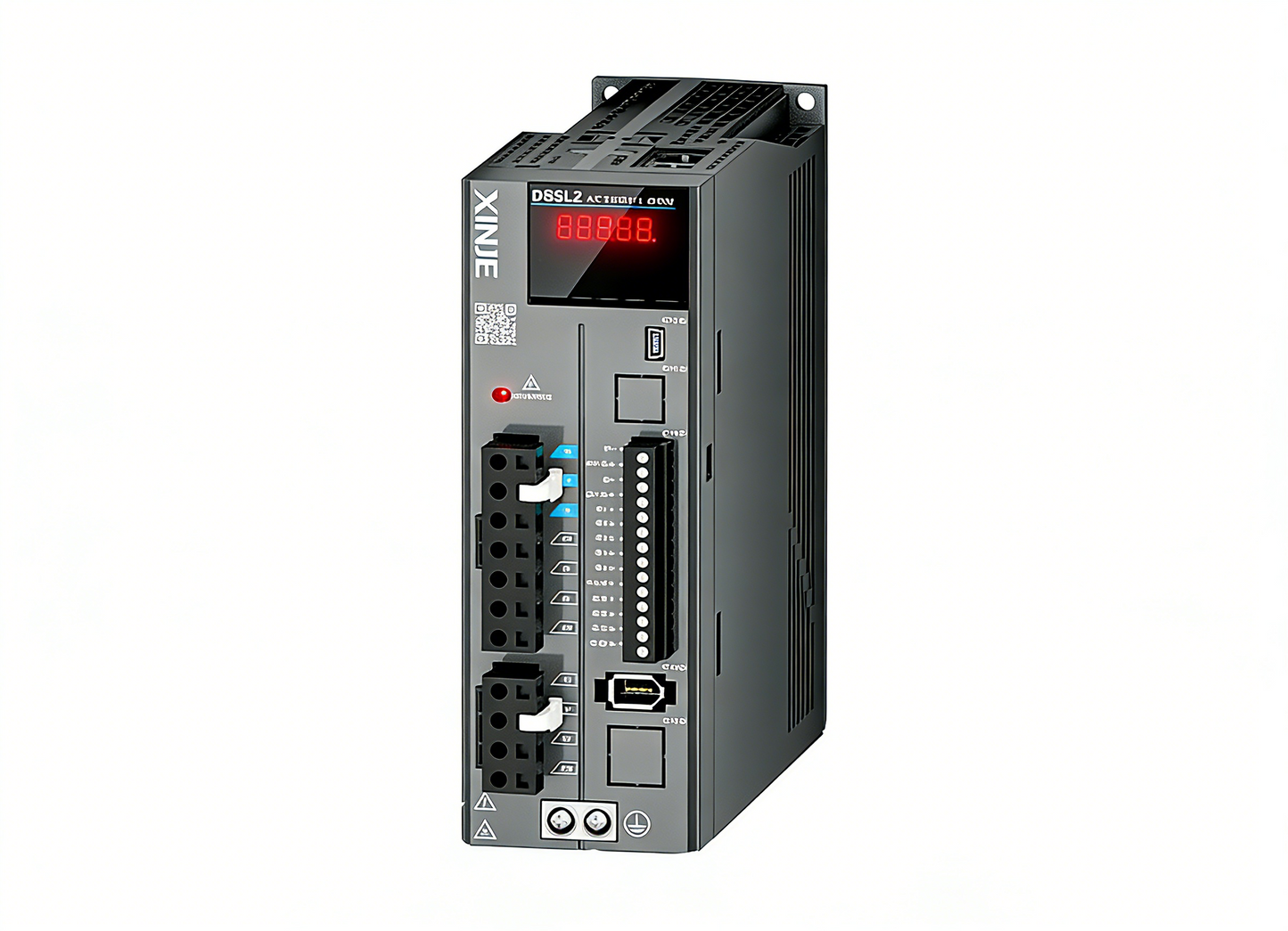

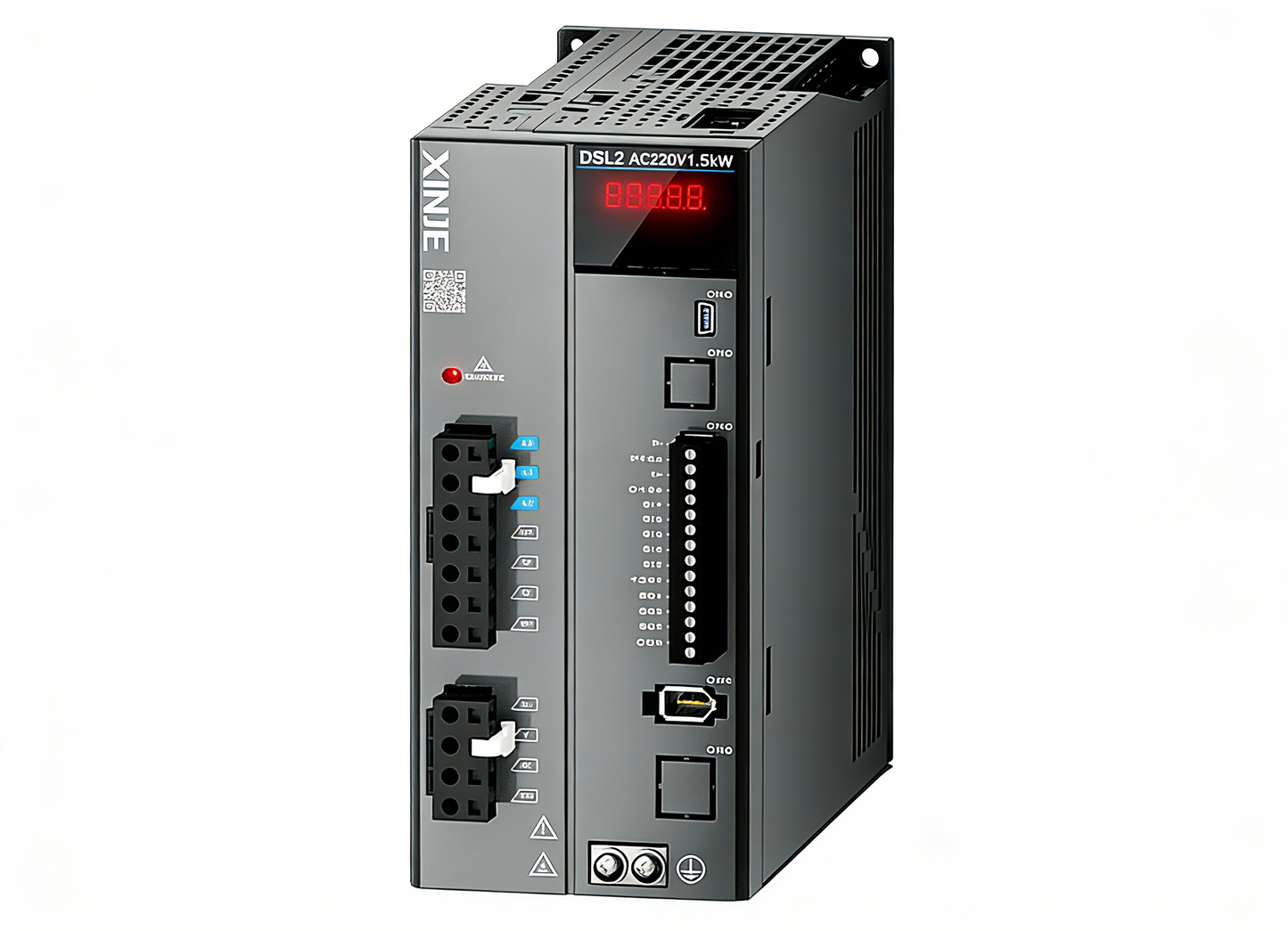

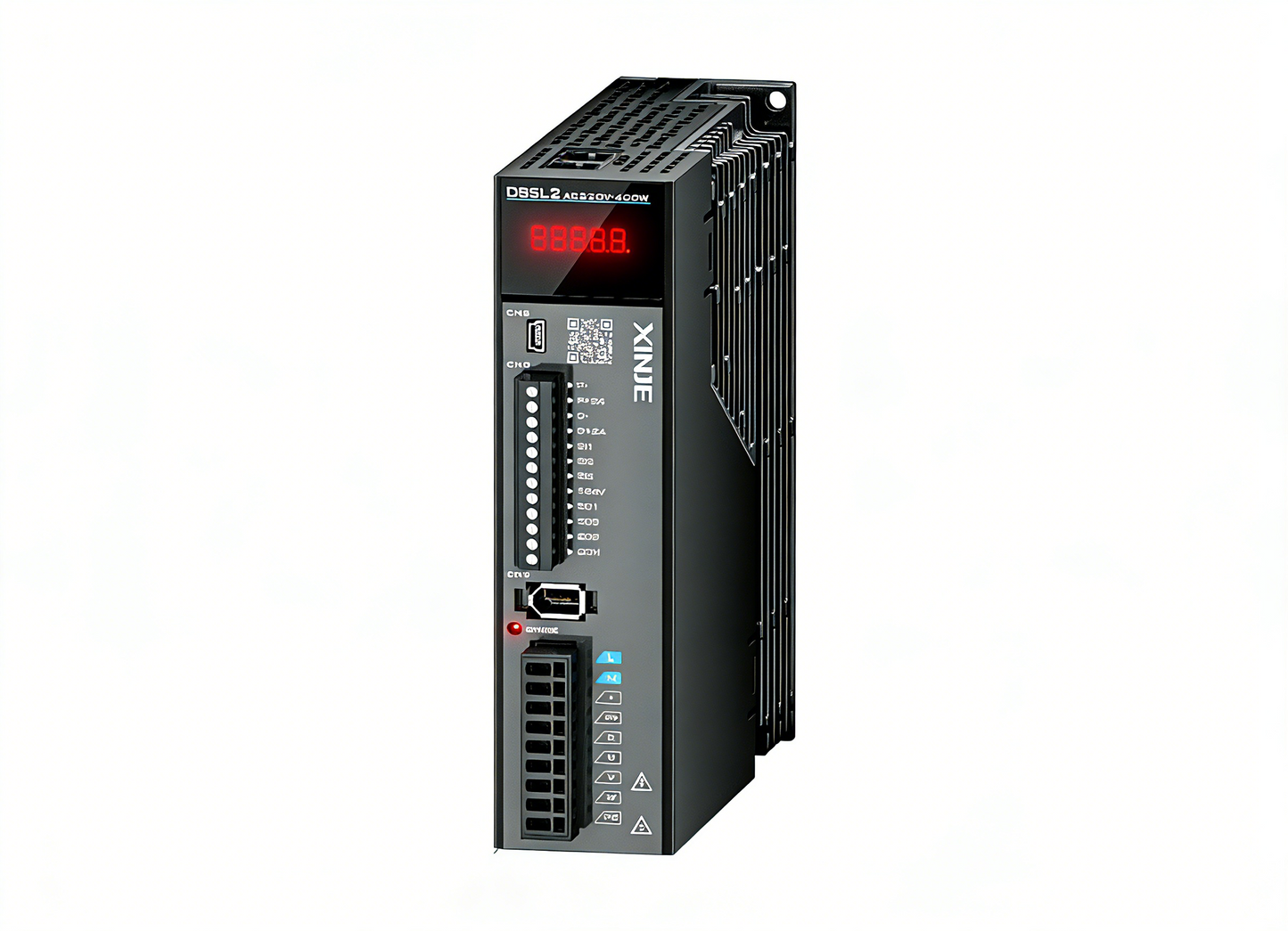

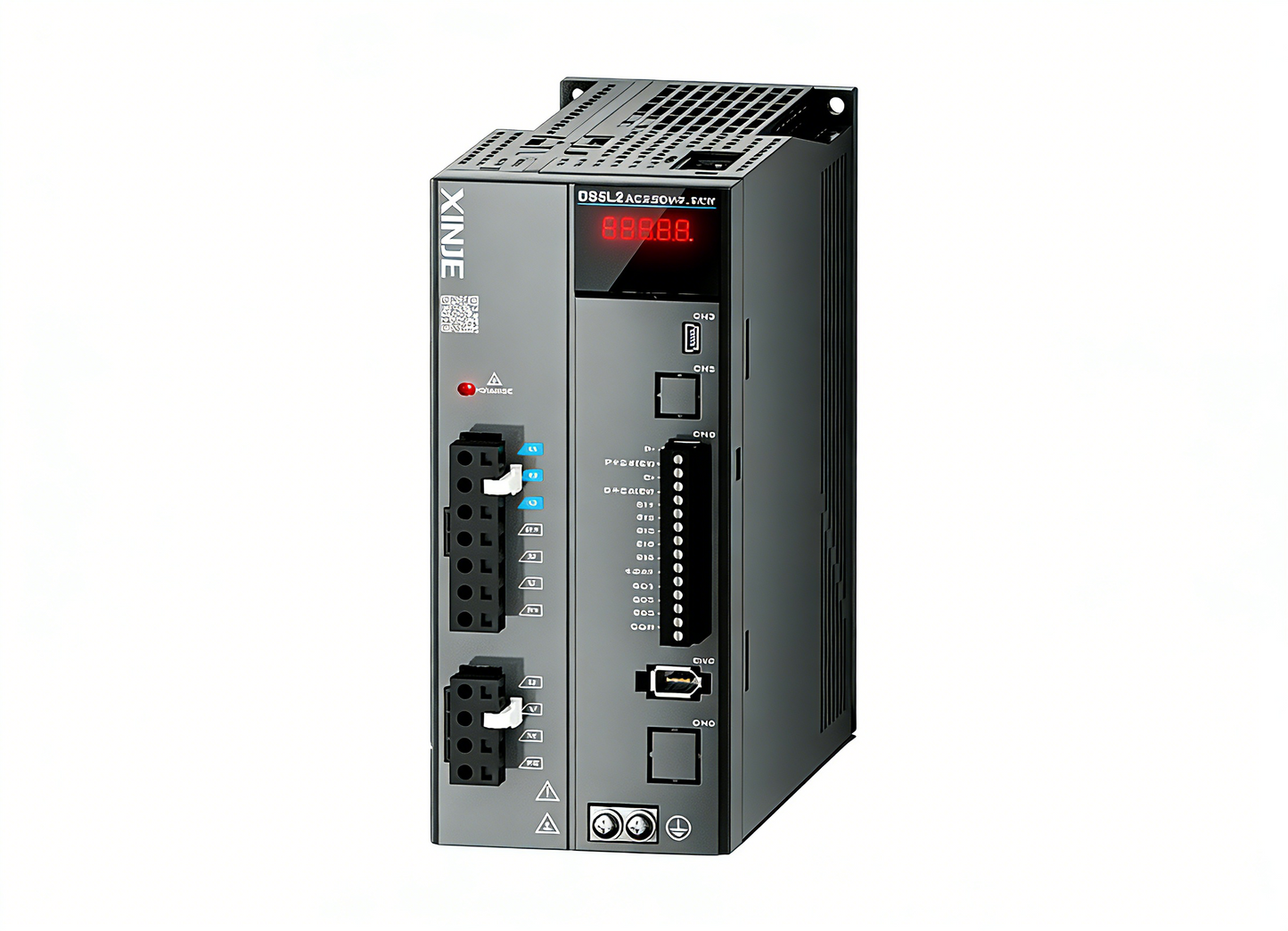

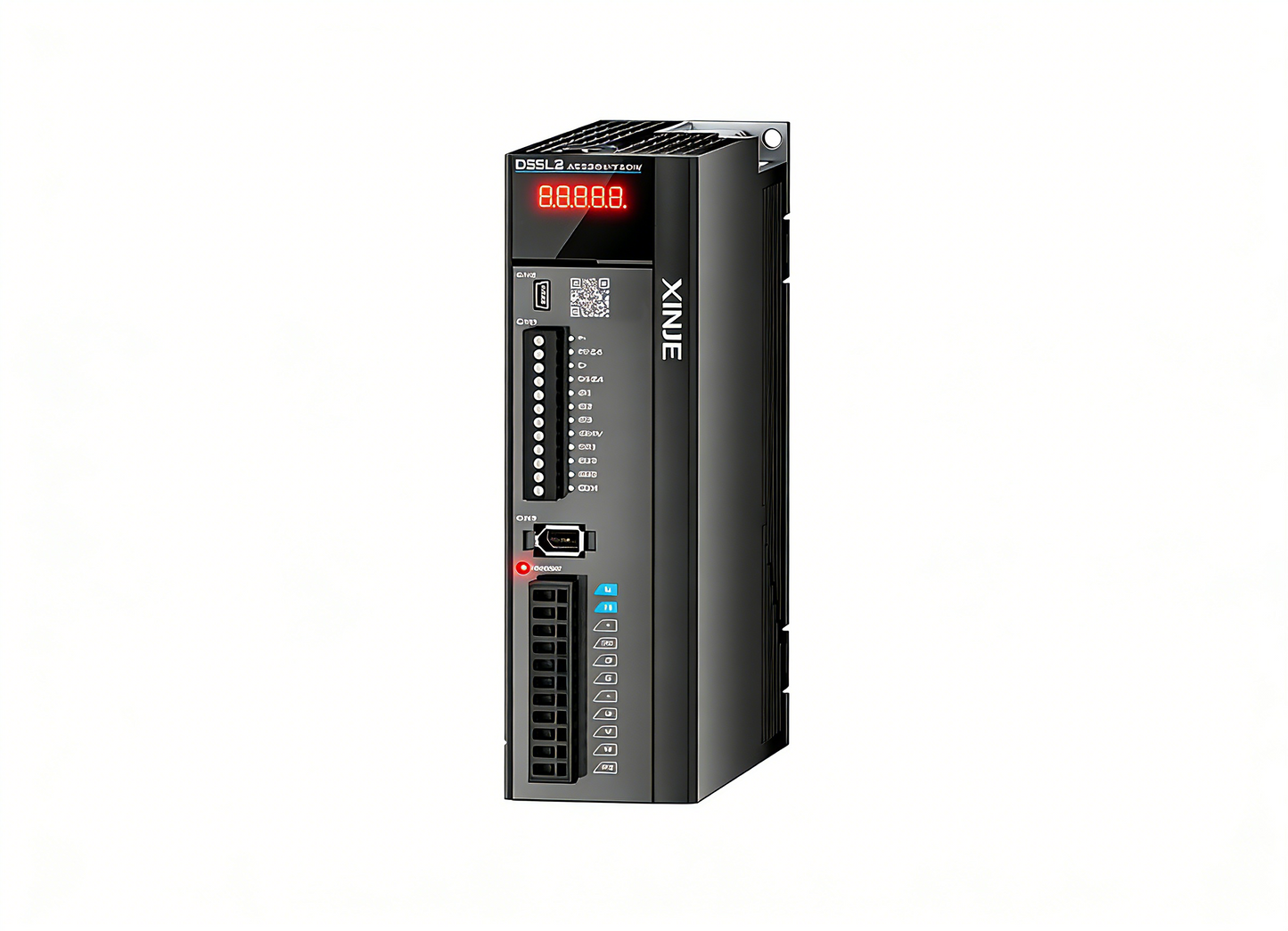

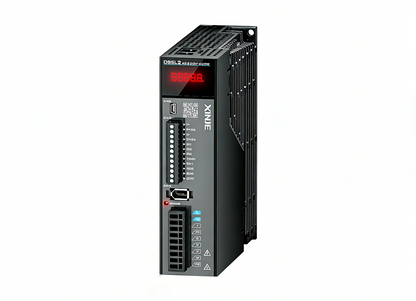

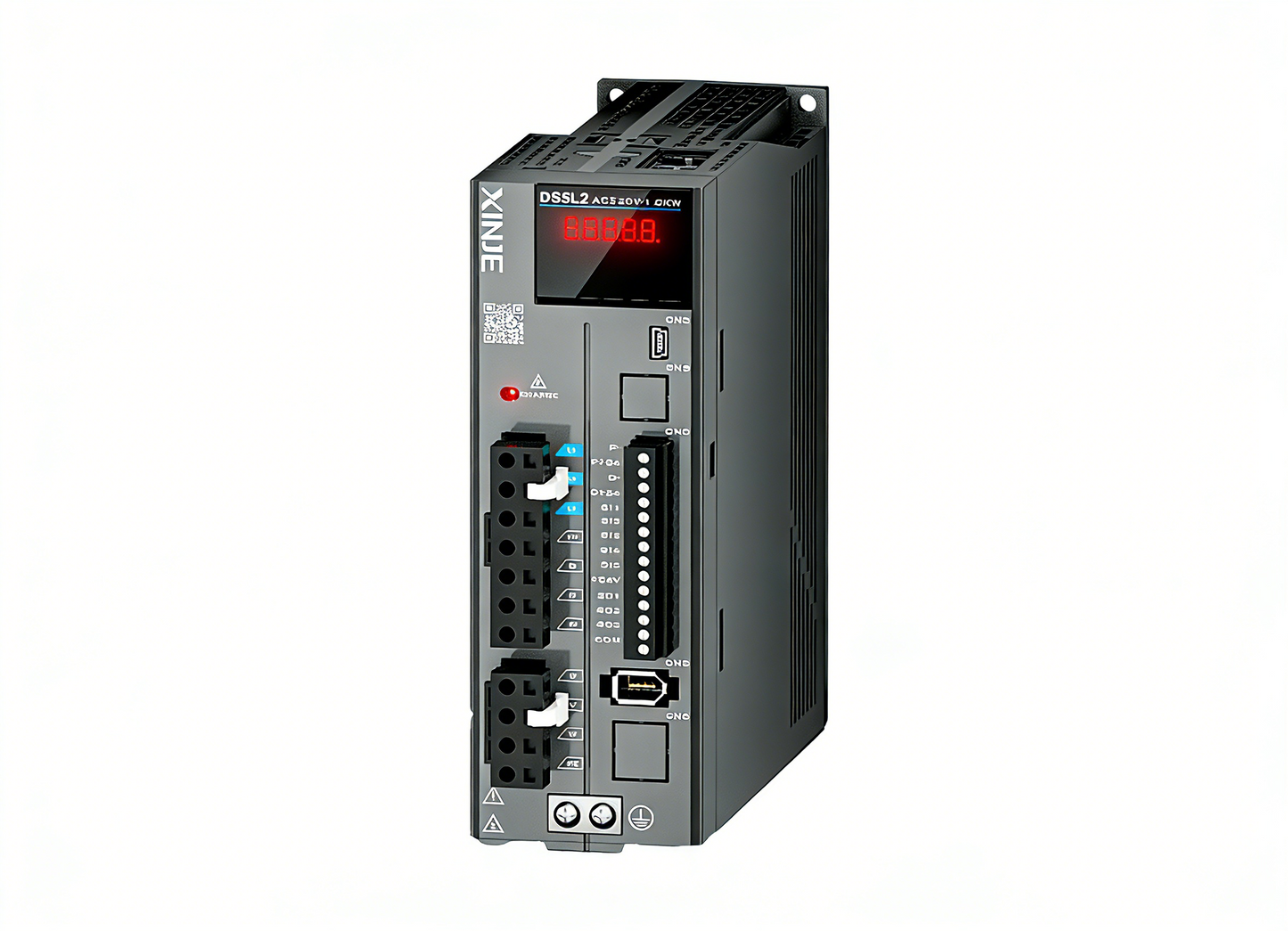

XINJE DS5L2 Pulse Servo Drive - High Dynamic Response & Vibration Suppression

XINJE DS5L2 Pulse Servo Drive - High Dynamic Response & Vibration Suppression

$800.00 USD

$800.00 USD

Sale Sold out

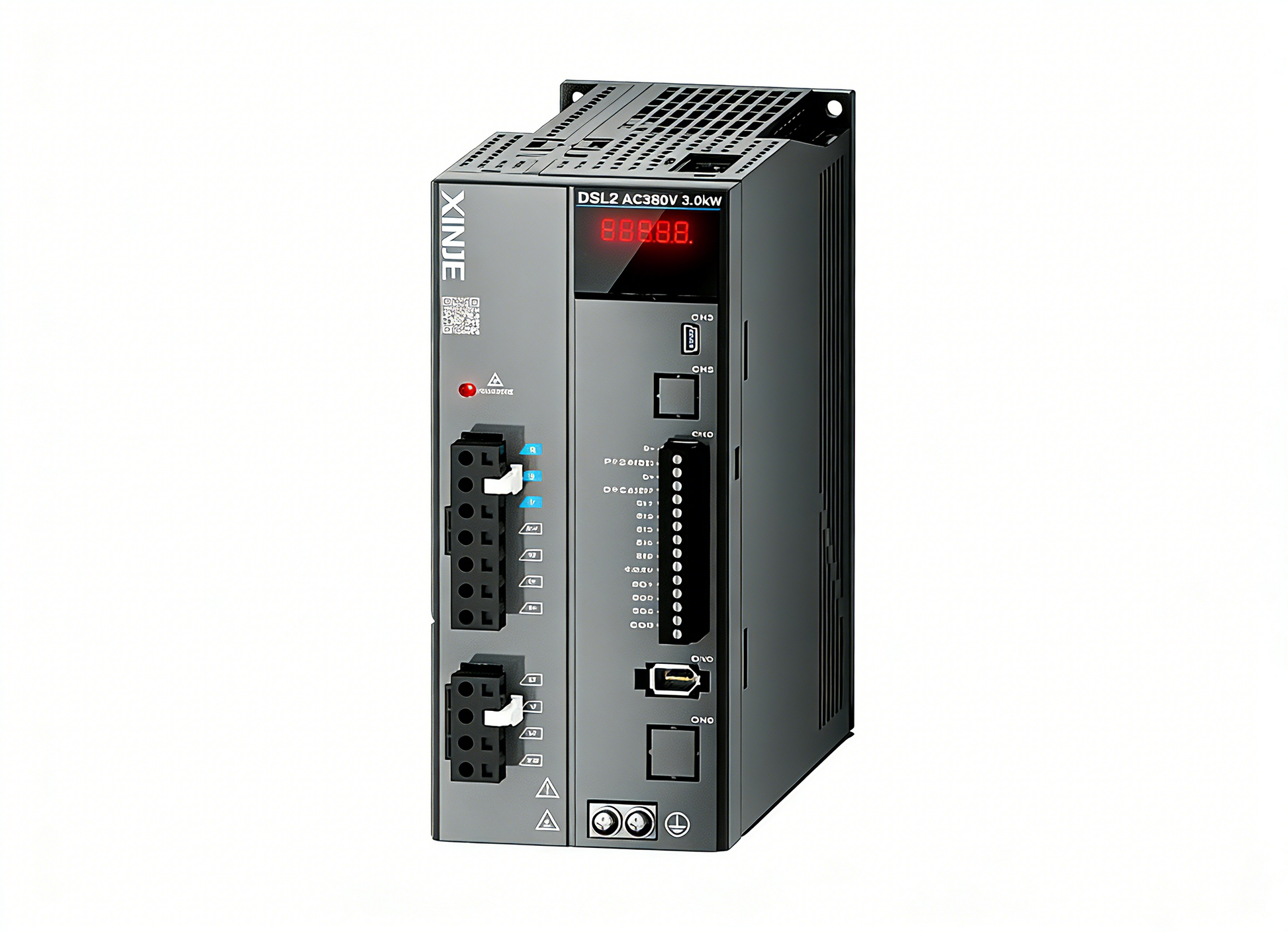

DS5L2-43P0-PTA

Power (kW)3.0
Input Power Supply3 Phase AC380~440V 50/60Hz
Output Current (A)11.0
Dynamic Braking✓
STO (Safe Torque Off)×
DI Count5.0
DO Count3.0
RS232 Communication✓
RS485 Communication✓
Bus×
Pulse Input✓
Pulse 5V✓
Pulse 24V✓
Full Closed Loop×
Analog Input×
Differential Encoder Feedback×
Supported Encoder Resolution19/23bit
Built-in Braking Resistor60Ω 80W
External Braking Resistor50-75Ω 1200W or above
Weight (kg)2.190

DS5L2-42P3-PTA

Power (kW)2.3
Input Power Supply3-Phase AC380~440V 50/60Hz
Output Current (A)8.5
Dynamic Braking✓
STO (Safe Torque Off)×
DI Count5.0
DO Count3.0
RS232 Communication✓
RS485 Communication✓
Bus×
Pulse Input✓
Pulse 5V✓
Pulse 24V✓
Full Closed Loop×
Analog Input×
Differential Encoder Feedback×
Supported Encoder Resolution19/23bit
Built-in Braking Resistor60Ω 80W
External Braking Resistor55-75Ω 1000W or above
Weight (kg)2.416

DS5L2-41P5-PTA

Power (kW)1.5
Input Power Supply3-Phase AC380~440V 50/60Hz
Output Current (A)5.5
Dynamic Braking✓
STO (Safe Torque Off)×
DI Count5.0
DO Count3.0
RS232 Communication✓
RS485 Communication✓
Bus×
Pulse Input✓
Pulse 5V✓
Pulse 24V✓
Full Closed Loop×
Analog Input×
Differential Encoder Feedback×
Supported Encoder Resolution19/23bit
Built-in Braking Resistor100Ω 80W
External Braking Resistor75-120Ω 1000W or above
Weight (kg)1.521

DS5L2-41P0-PTA

Power (kW)1.0
Input Power SupplyThree-phase AC380~440V 50/60Hz
Output Current (A)3.2
Dynamic Braking✓
STO (Safe Torque Off)×
DI Count5.0
DO Count3.0
RS232 Communication✓
RS485 Communication✓
Bus×
Pulse Input✓
Pulse 5V✓
Pulse 24V✓
Full Closed Loop×
Analog Input×
Differential Encoder Feedback×
Supported Encoder Resolution19/23bit
Built-in Braking Resistor100Ω 80W
External Braking Resistor120-150Ω 800W or above
Weight (kg)1.520

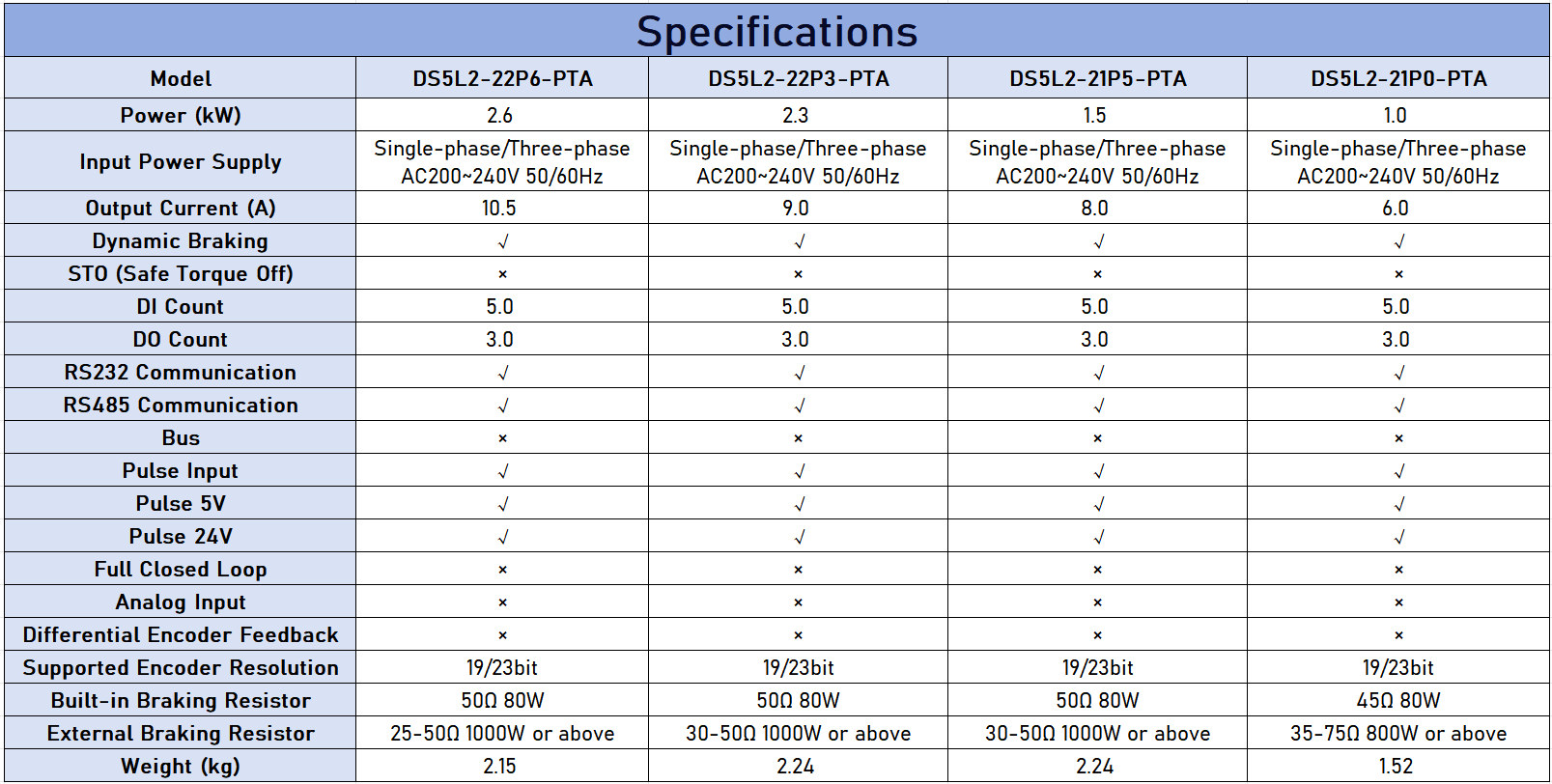

DS5L2-22P6-PTA

Power (kW)2.6
Input Power SupplySingle-phase/Three-phase AC200~240V 50/60Hz
Output Current (A)10.5
Dynamic Braking✓
STO (Safe Torque Off)×
DI Count5.0
DO Count3.0
RS232 Communication✓
RS485 Communication✓
Bus×
Pulse Input✓
Pulse 5V✓
Pulse 24V✓
Full Closed Loop×
Analog Input×
Differential Encoder Feedback×
Supported Encoder Resolution19/23bit
Built-in Braking Resistor50Ω 80W
External Braking Resistor25-50Ω 1000W or above
Weight (kg)2.15

DS5L2-22P3-PTA

Power (kW)2.3
Input Power SupplySingle-phase/Three-phase AC200~240V 50/60Hz
Output Current (A)9.0
Dynamic Braking✓
STO (Safe Torque Off)×
DI Count5.0
DO Count3.0
RS232 Communication✓
RS485 Communication✓
Bus×
Pulse Input✓
Pulse 5V✓
Pulse 24V✓
Full Closed Loop×
Analog Input×
Differential Encoder Feedback×
Supported Encoder Resolution19/23bit
Built-in Braking Resistor50Ω 80W
External Braking Resistor30-50Ω 1000W or above
Weight (kg)2.24

DS5L2-21P5-PTA

Power (kW)1.5
Input Power SupplySingle-phase/Three-phase AC200~240V 50/60Hz
Output Current (A)8.0
Dynamic Braking✓
STO (Safe Torque Off)×
DI Count5.0
DO Count3.0
RS232 Communication✓
RS485 Communication✓
Bus×
Pulse Input✓
Pulse 5V✓
Pulse 24V✓
Full Closed Loop×
Analog Input×
Differential Encoder Feedback×
Supported Encoder Resolution19/23bit
Built-in Braking Resistor50Ω 80W
External Braking Resistor30-50Ω 1000W or above
Weight (kg)2.24

DS5L2-21P0-PTA

Power (kW)1.0
Input Power SupplySingle-phase/Three-phase AC200~240V 50/60Hz
Output Current (A)6.0
Dynamic Braking✓
STO (Safe Torque Off)×
DI Count5.0
DO Count3.0
RS232 Communication✓
RS485 Communication✓
Bus×
Pulse Input✓
Pulse 5V✓
Pulse 24V✓
Full Closed Loop×
Analog Input×
Differential Encoder Feedback×
Supported Encoder Resolution19/23bit
Built-in Braking Resistor45Ω 80W
External Braking Resistor35-75Ω 800W or above
Weight (kg)1.52

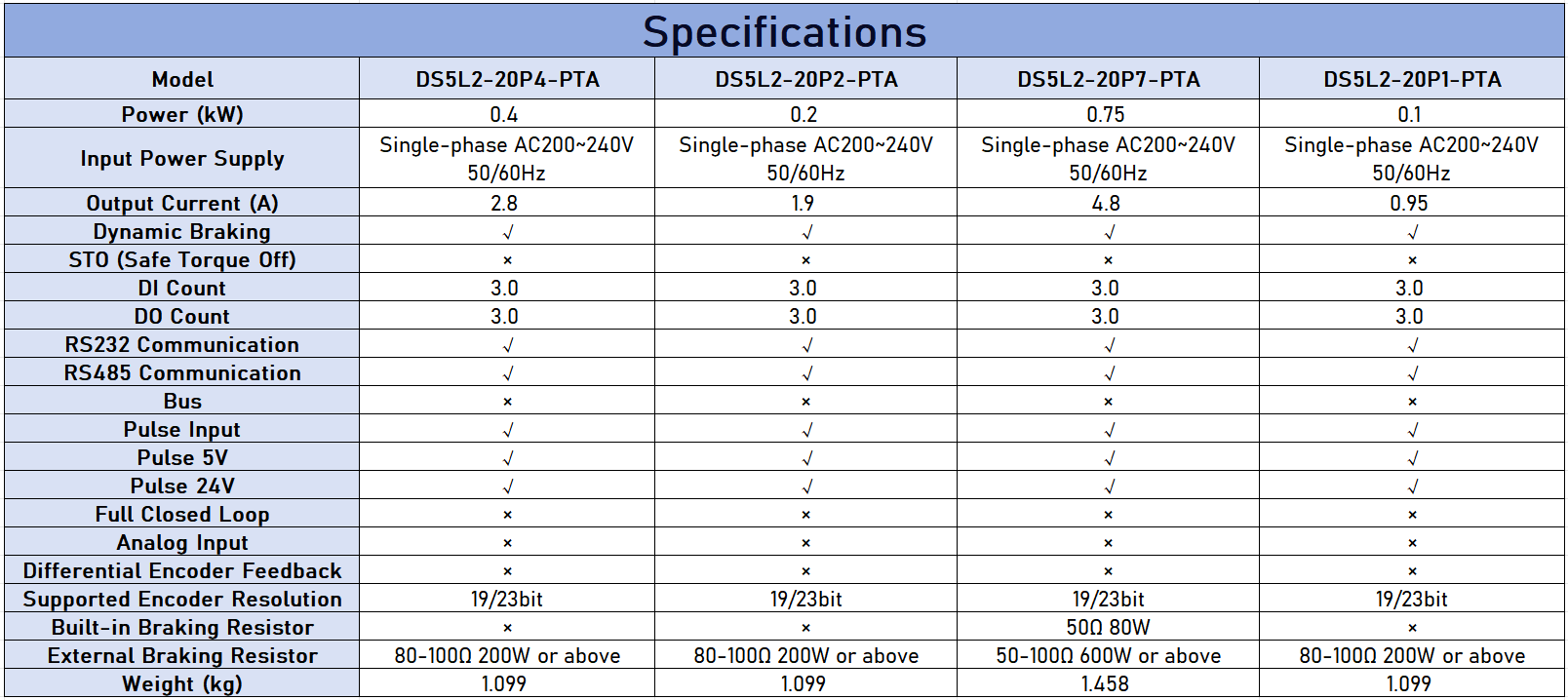

DS5L2-20P4-PTA

Power (kW)0.4
Input Power SupplySingle-phase AC200~240V 50/60Hz
Output Current (A)2.8
Dynamic Braking✓
STO (Safe Torque Off)×
DI Count3.0
DO Count3.0
RS232 Communication✓
RS485 Communication✓
Bus×
Pulse Input✓
Pulse 5V✓
Pulse 24V✓
Full Closed Loop×
Analog Input×
Differential Encoder Feedback×
Supported Encoder Resolution19/23bit
Built-in Braking Resistor×
External Braking Resistor80-100Ω 200W or above
Weight (kg)1.099

DS5L2-20P2-PTA

Power (kW)0.2
Input Power SupplySingle-phase AC200~240V 50/60Hz
Output Current (A)1.9
Dynamic Braking✓
STO (Safe Torque Off)×
DI Count3.0
DO Count3.0
RS232 Communication✓
RS485 Communication✓
Bus×
Pulse Input✓
Pulse 5V✓
Pulse 24V✓
Full Closed Loop×
Analog Input×
Differential Encoder Feedback×
Supported Encoder Resolution19/23bit
Built-in Braking Resistor×
External Braking Resistor80-100Ω 200W or above
Weight (kg)1.099

DS5L2-20P7-PTA

Power (kW)0.75
Input Power SupplySingle-phase AC200~240V 50/60Hz
Output Current (A)4.8
Dynamic Braking✓
STO (Safe Torque Off)×
DI Count3.0
DO Count3.0
RS232 Communication✓
RS485 Communication✓
Bus×
Pulse Input✓
Pulse 5V✓
Pulse 24V✓
Full Closed Loop×
Analog Input
