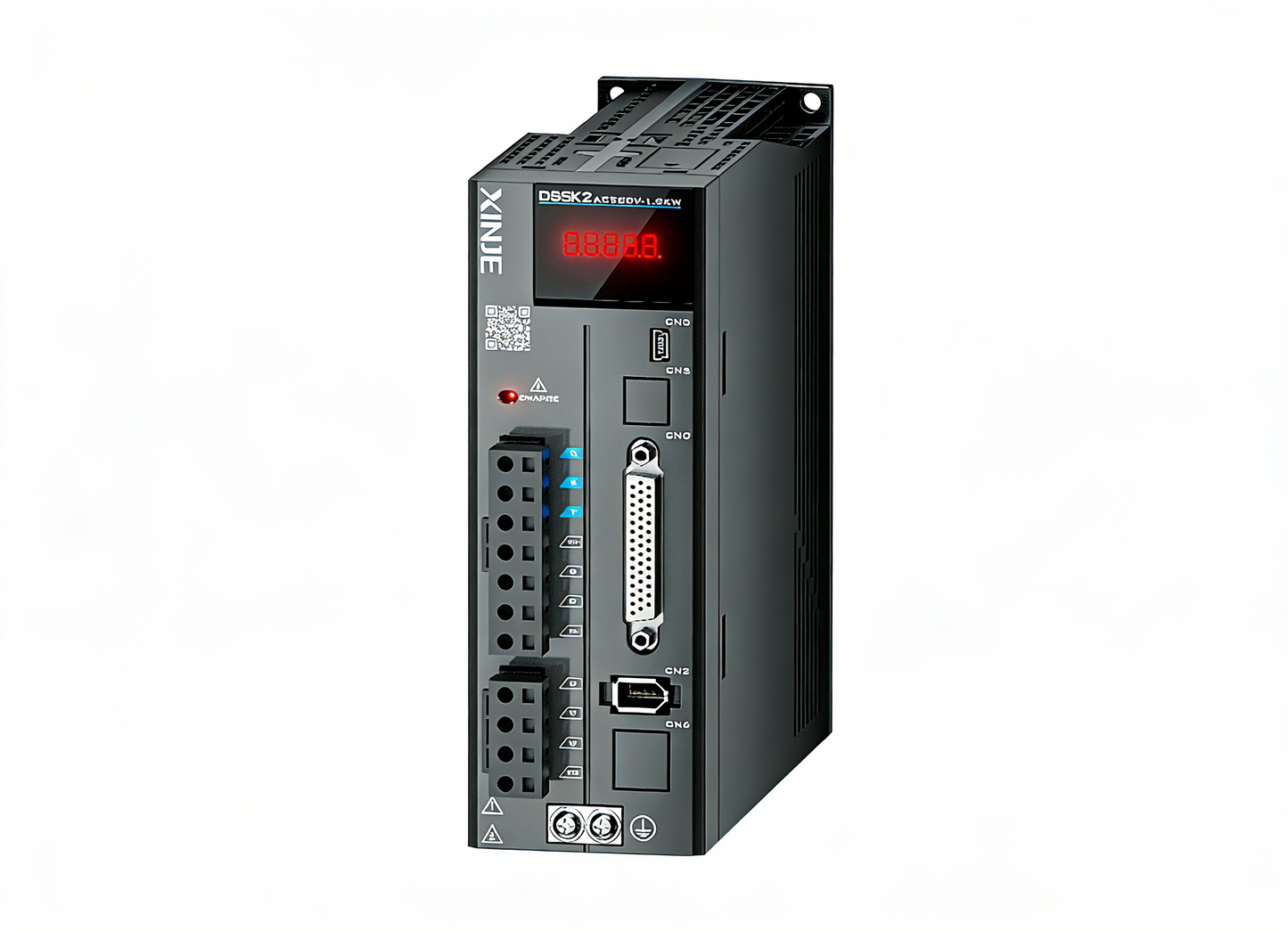

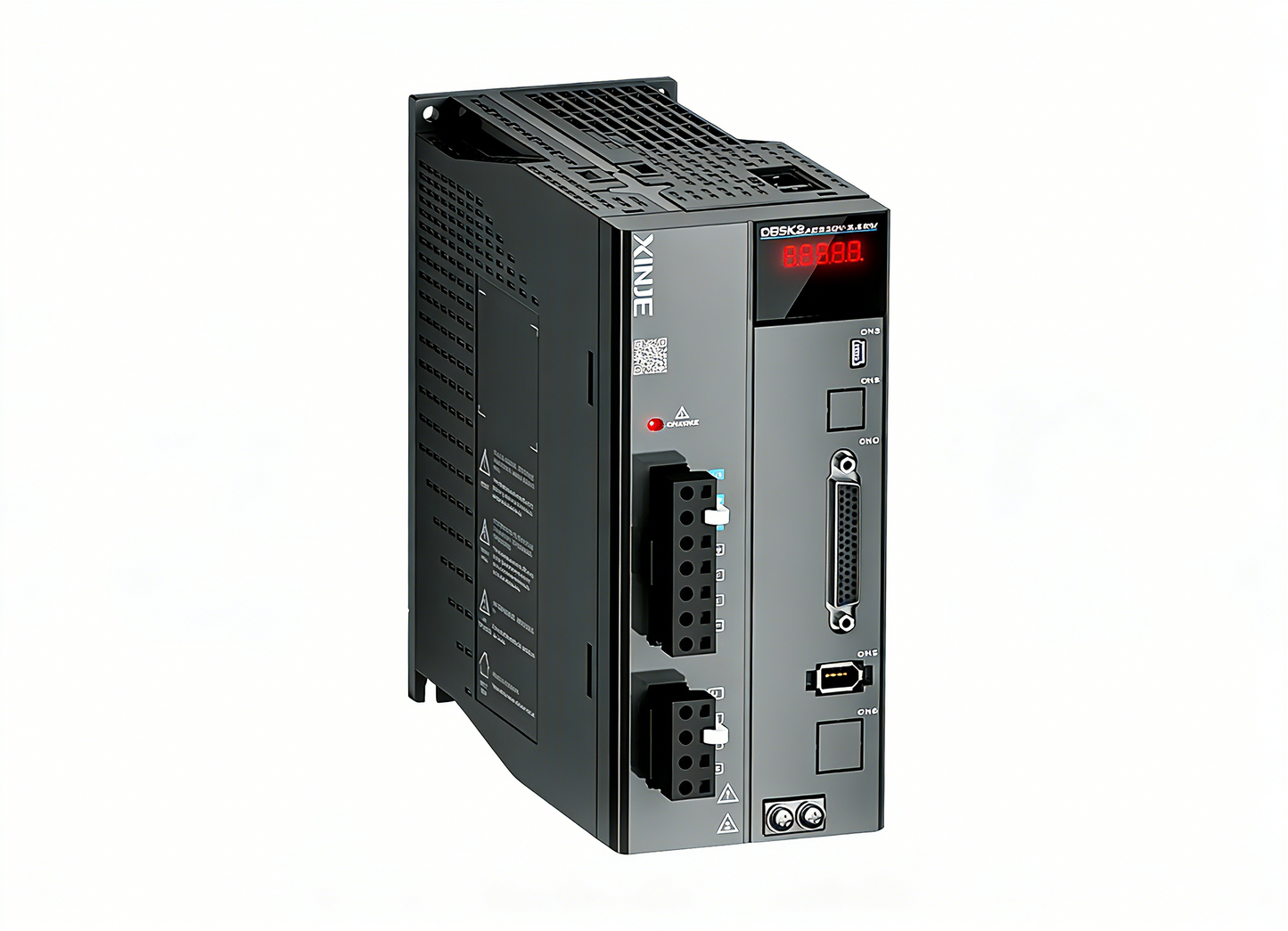

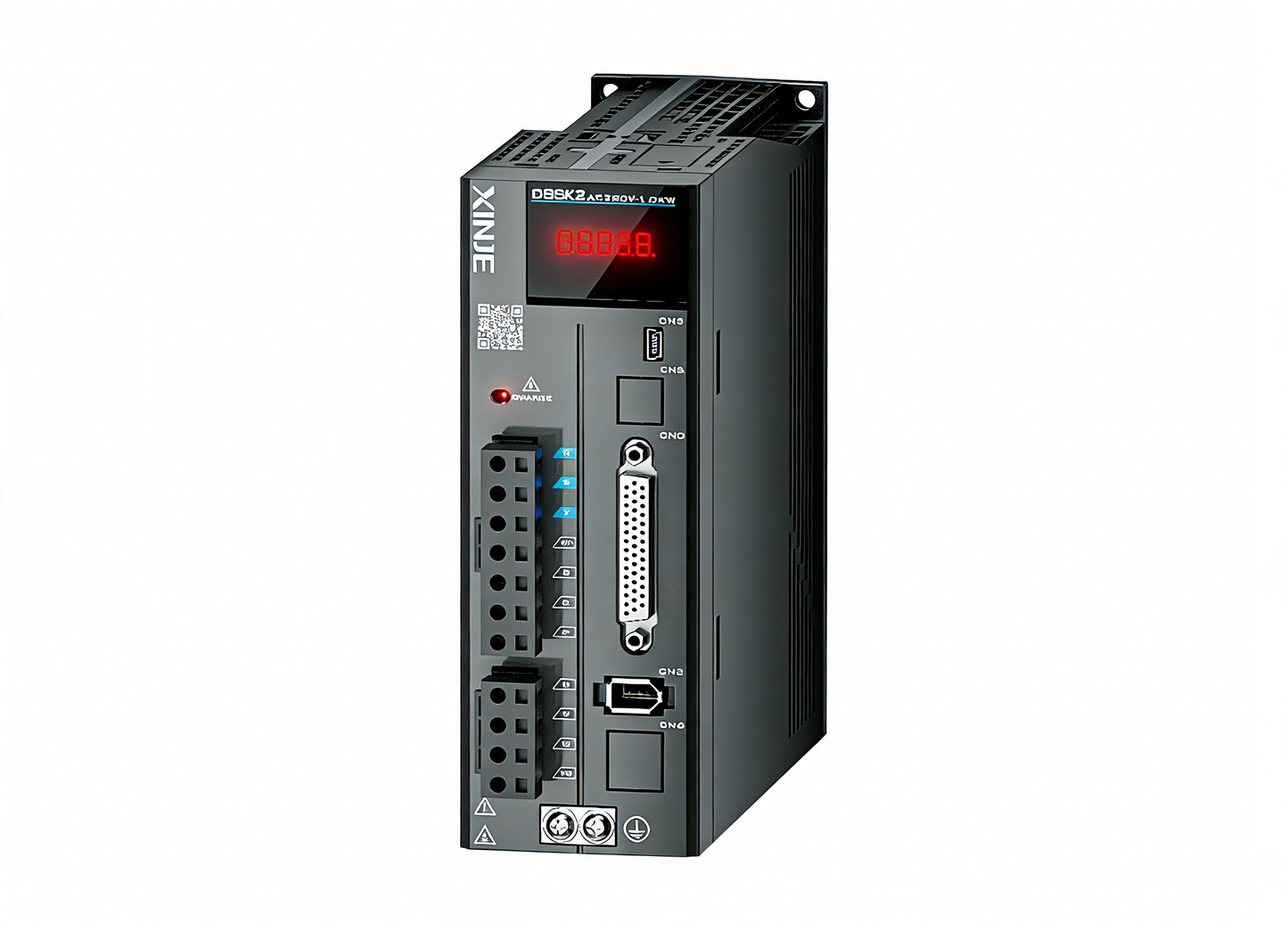

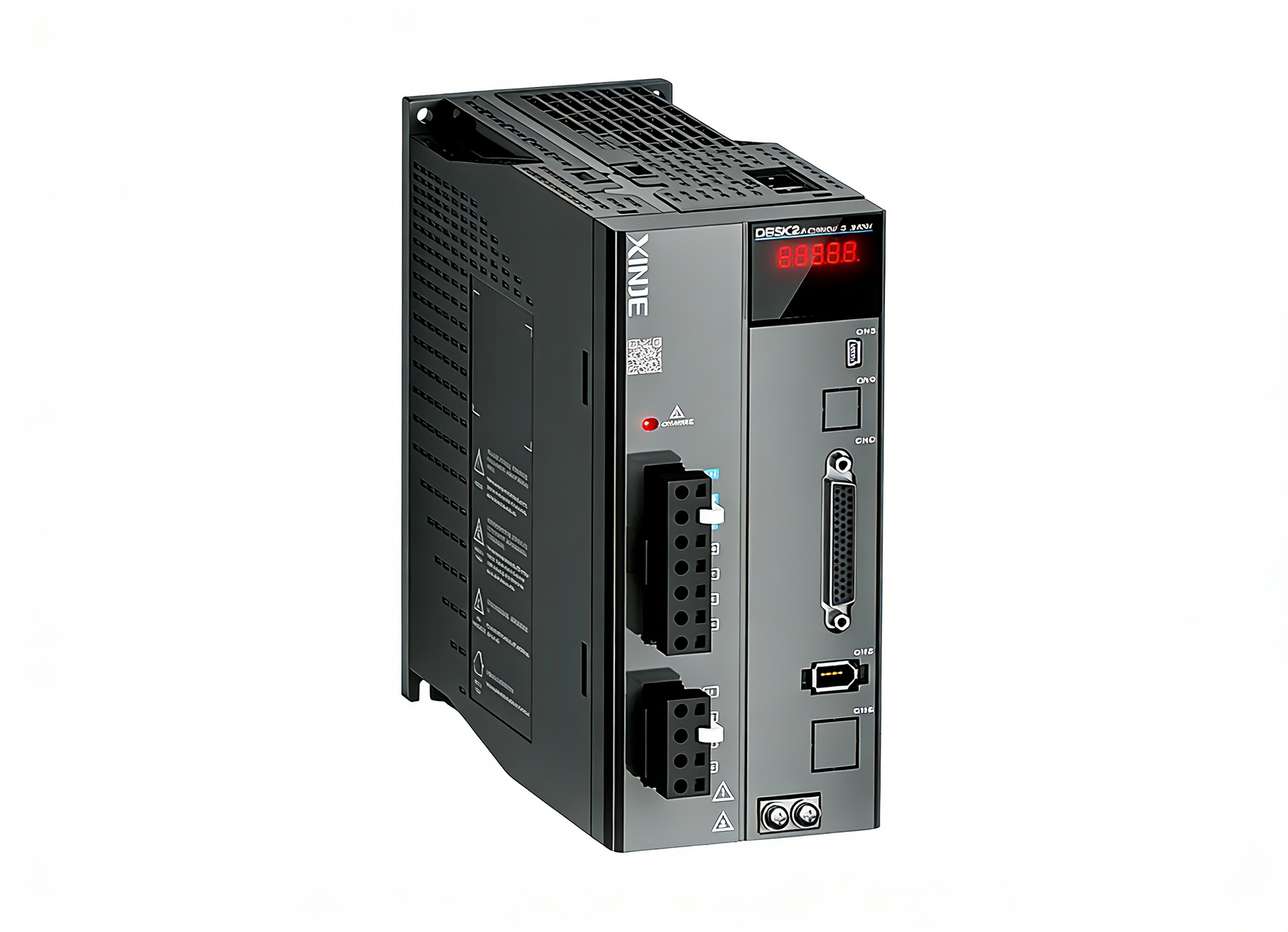

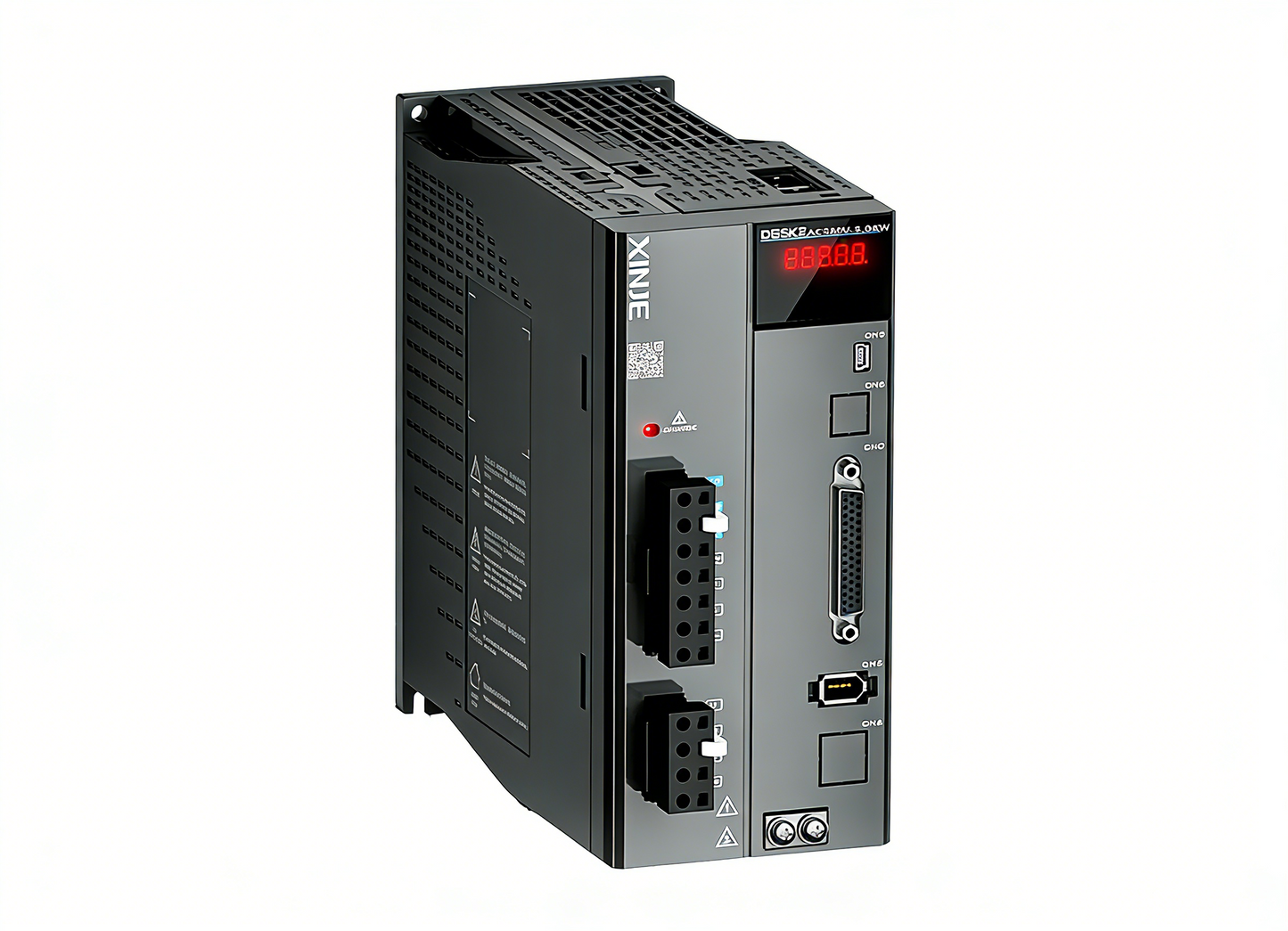

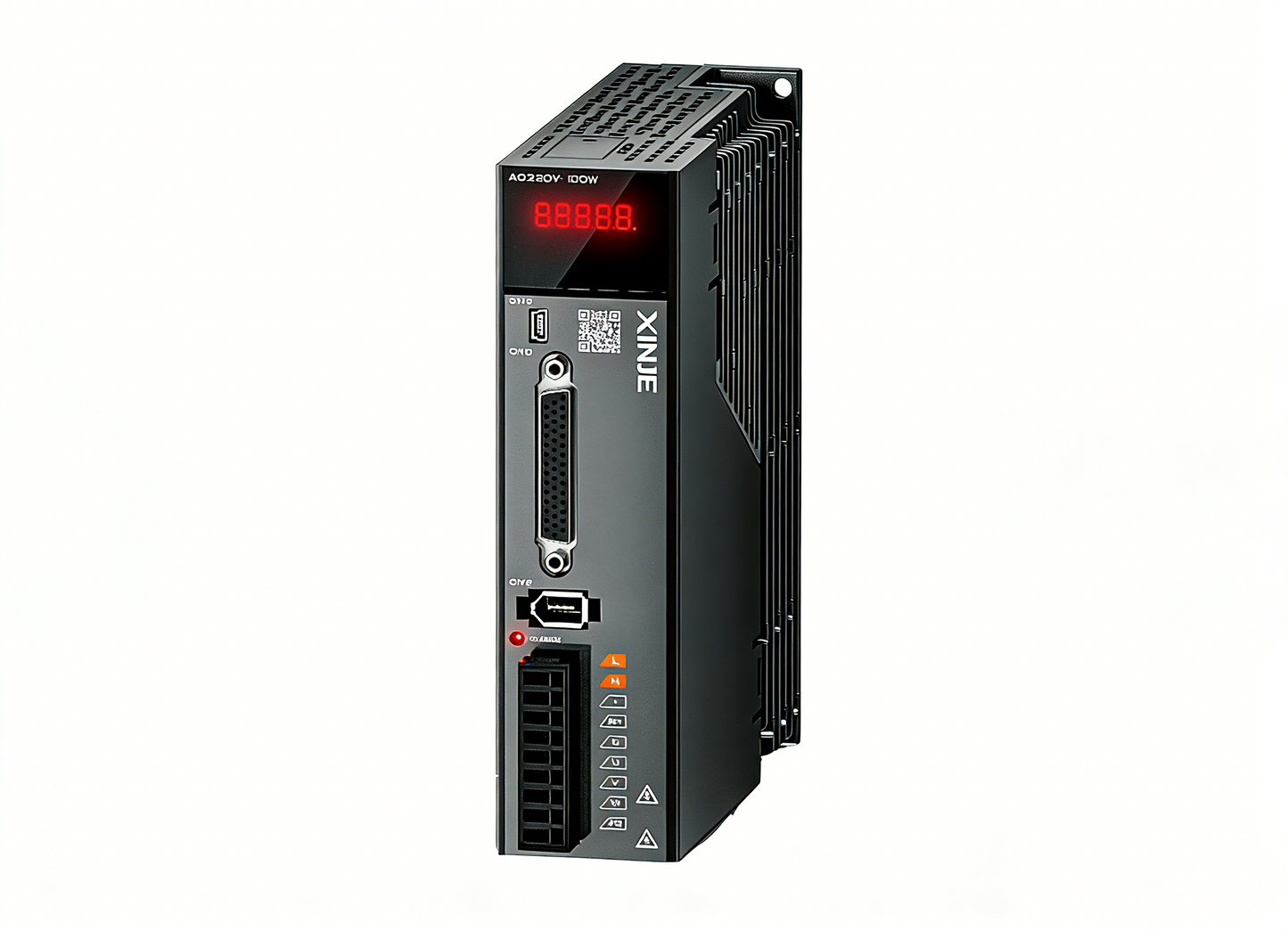

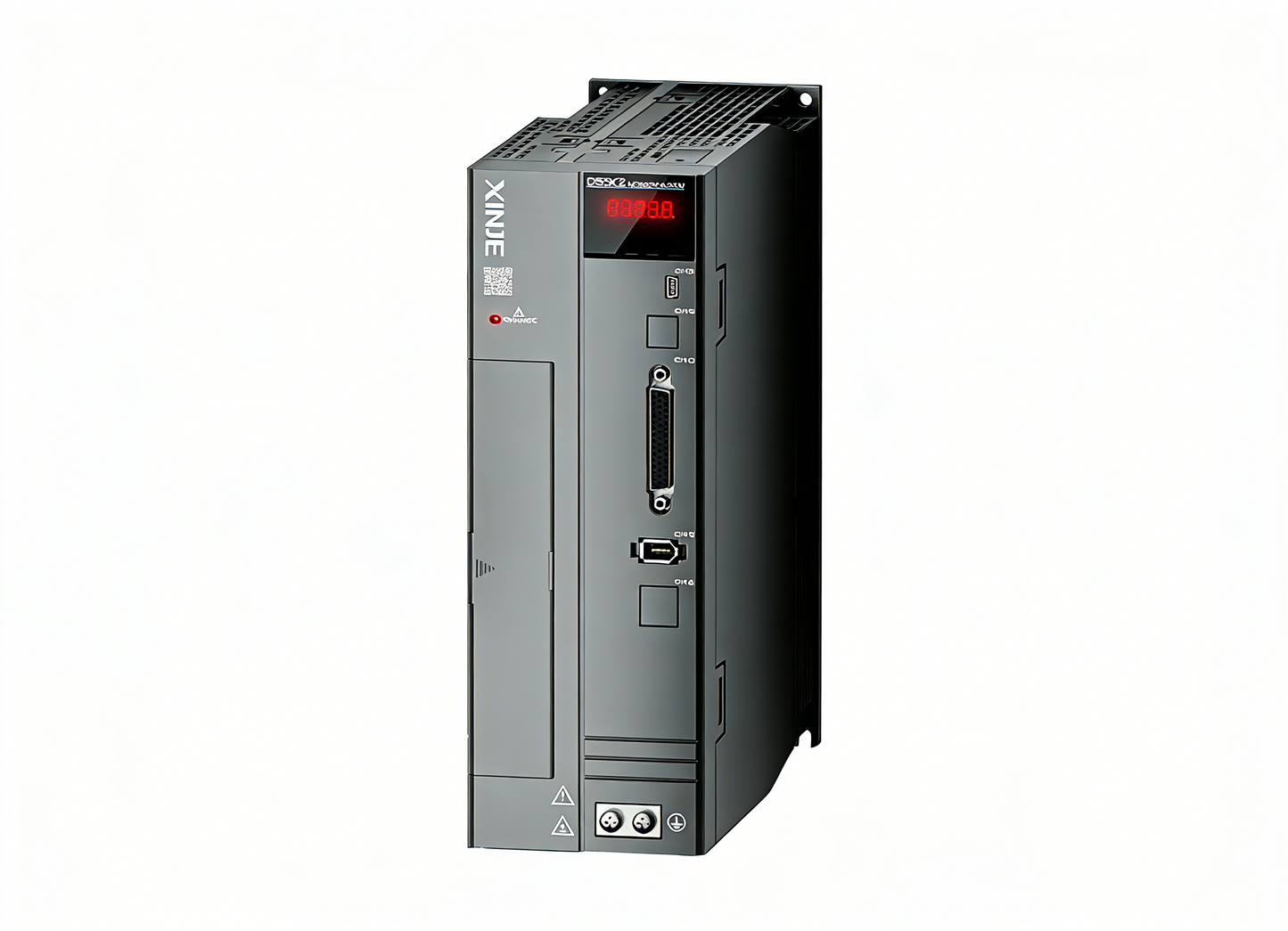

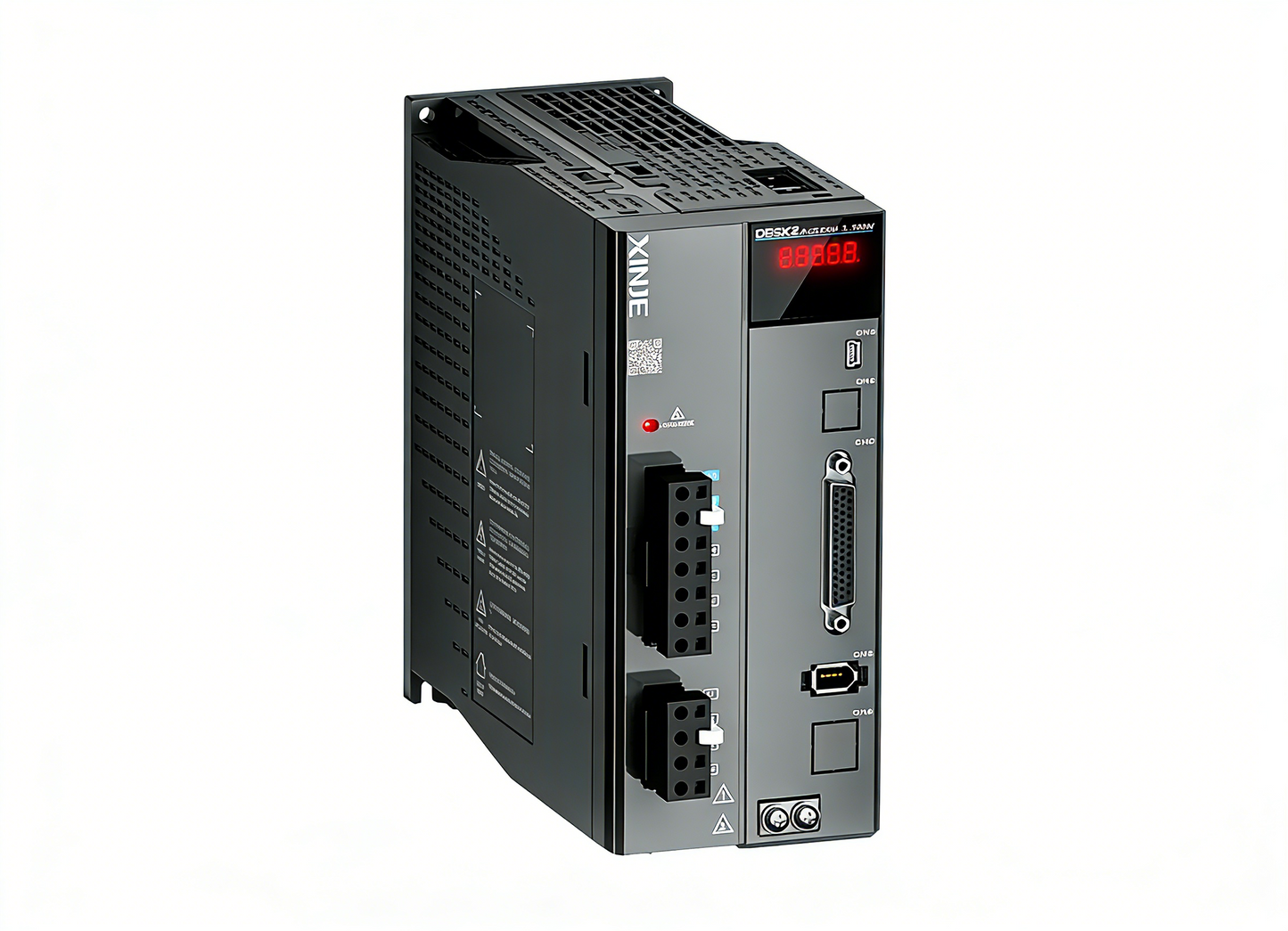

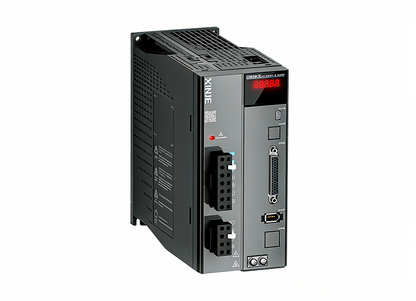

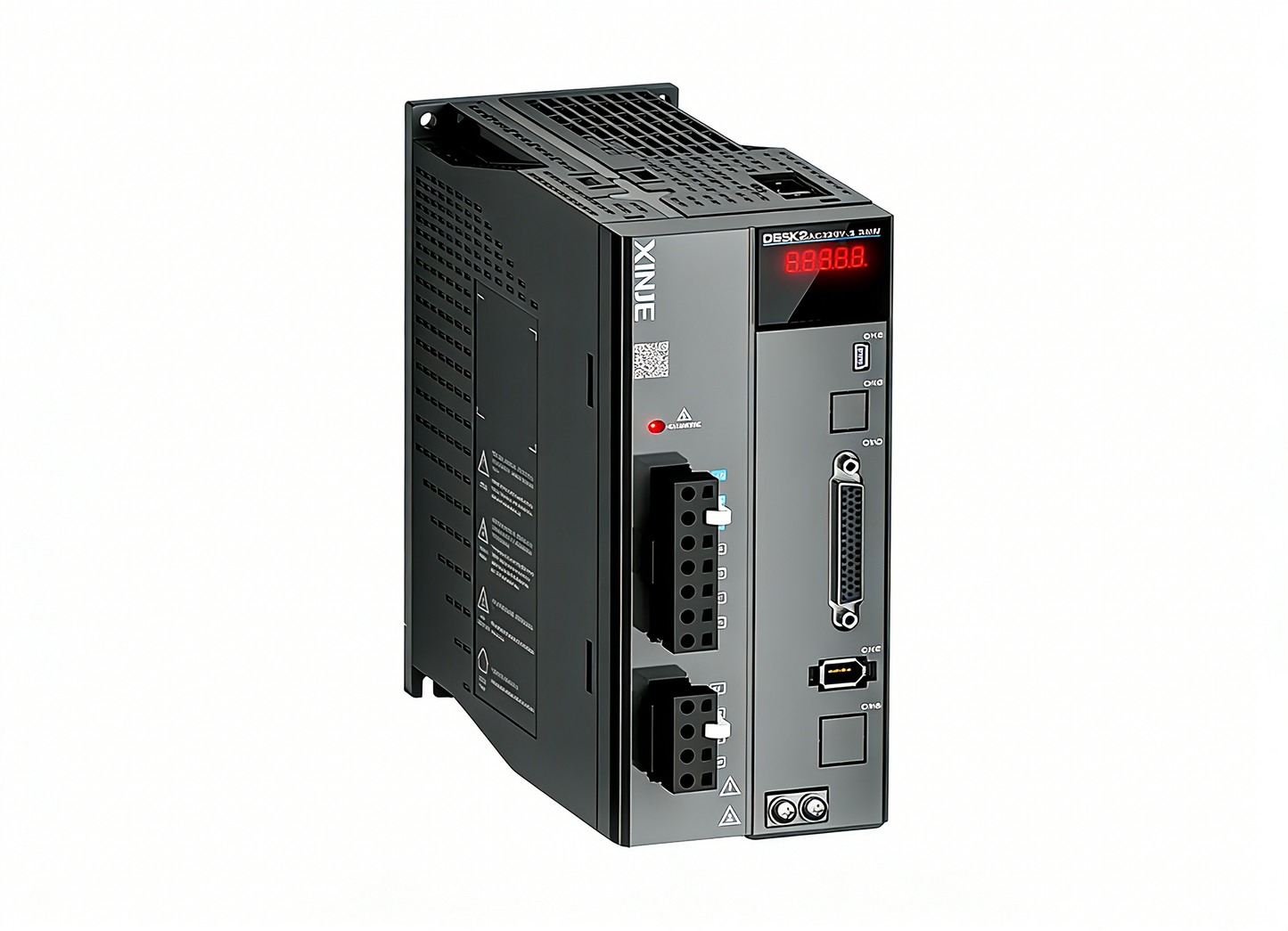

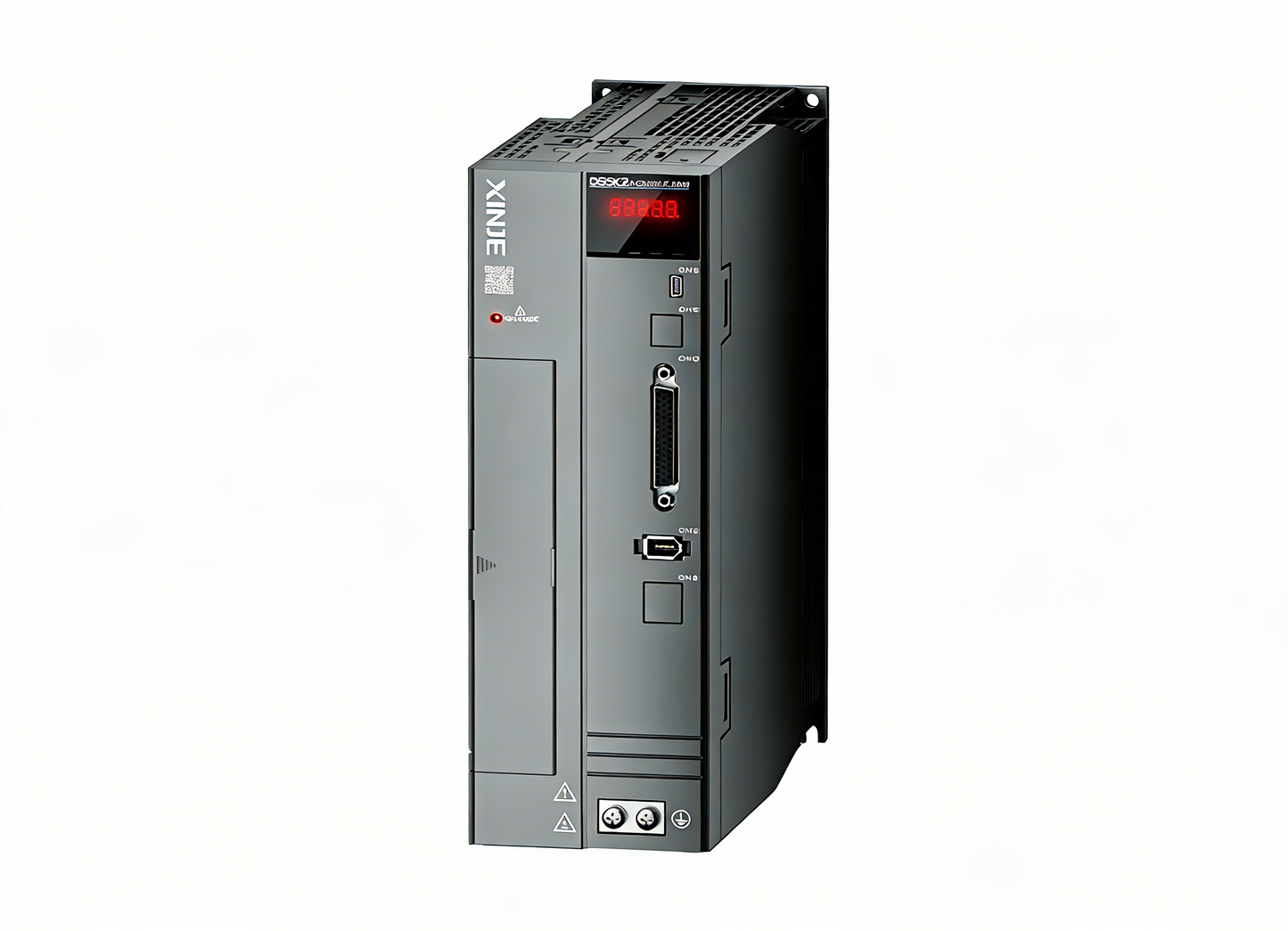

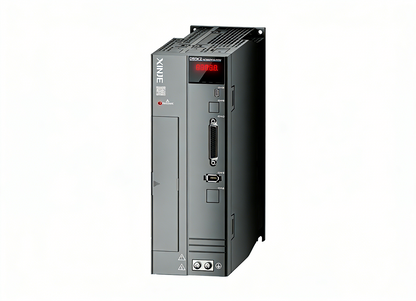

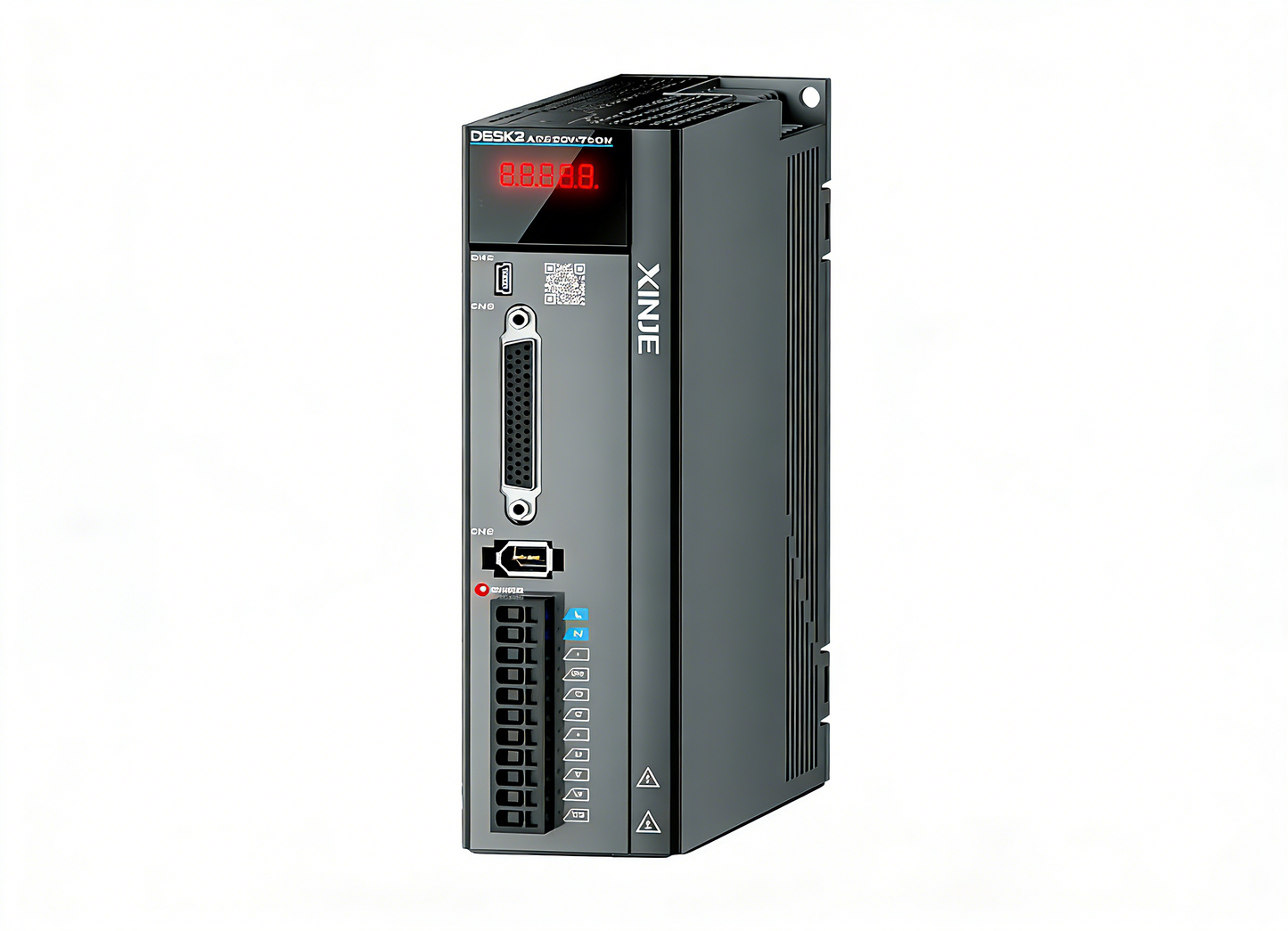

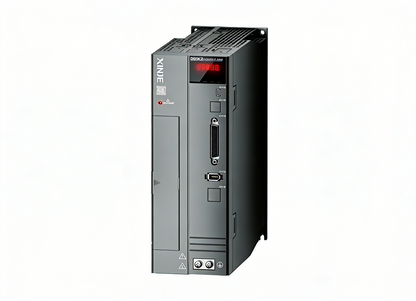

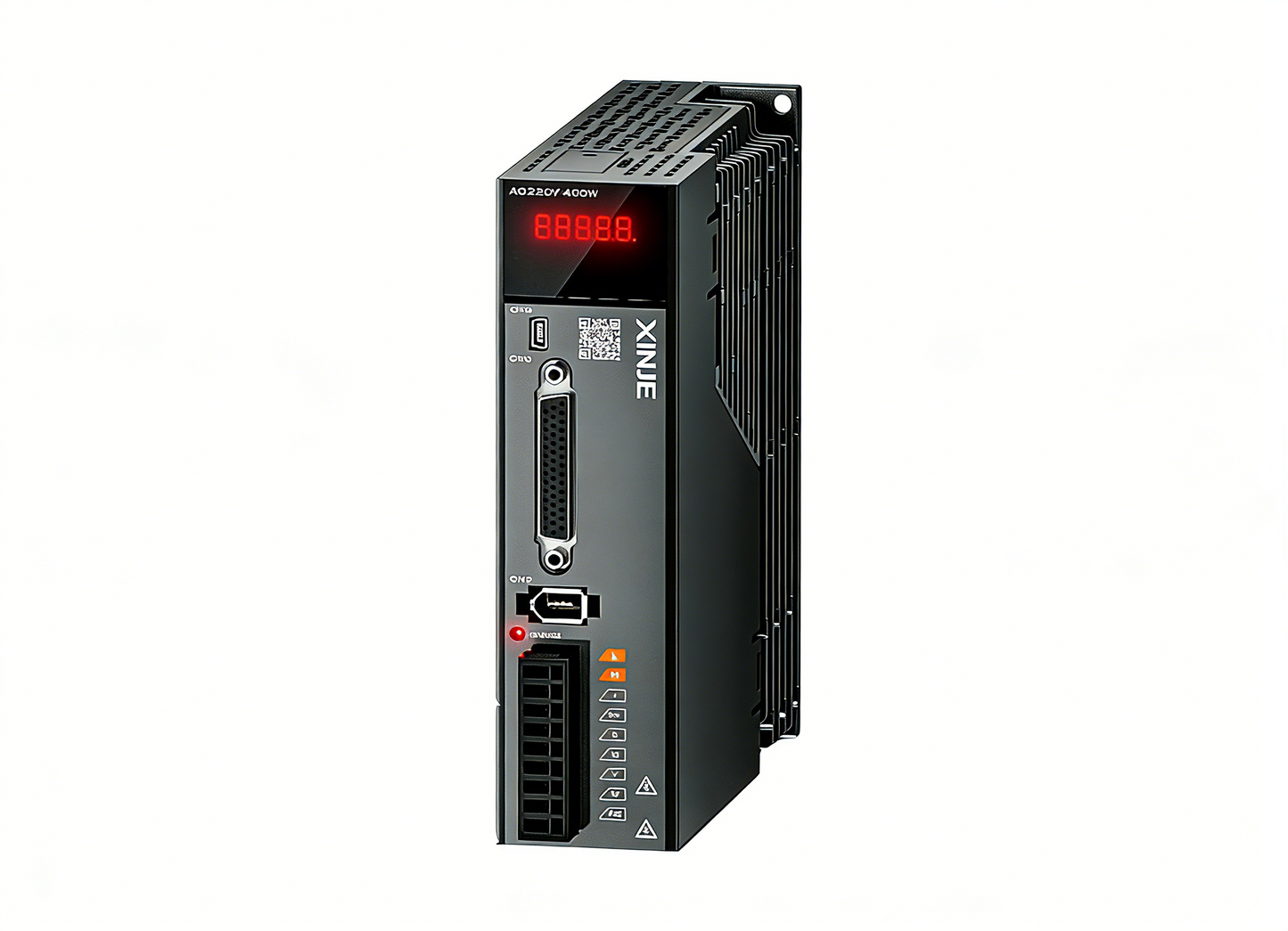

XINJE DS5K2 Series AC Servo Drive - High Dynamic Response (0.1kW - 7.5kW)

XINJE DS5K2 Series AC Servo Drive - High Dynamic Response (0.1kW - 7.5kW)

$660.00 USD

$660.00 USD

Sale Sold out

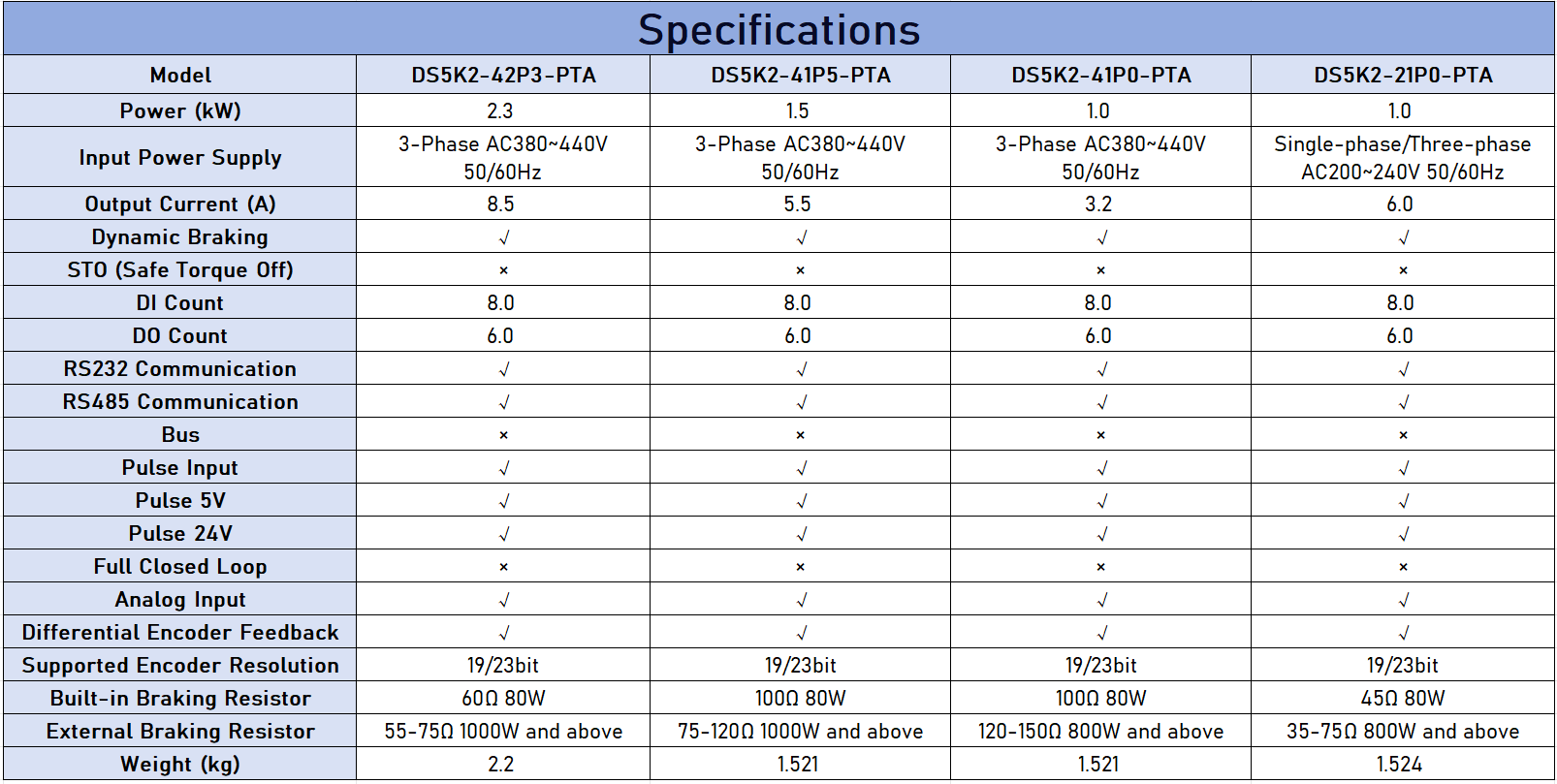

Model: DS5K2-42P3-PTA

Power (kW): 2.3
Input Power Supply: 3-Phase AC380~440V 50/60Hz
Output Current (A): 8.5
Dynamic Braking: ✓
STO (Safe Torque Off): ✕
DI Count: 8.0
DO Count: 6.0
RS232 Communication: ✓
RS485 Communication: ✓
Bus: ✕
Pulse Input: ✓
Pulse 5V: ✓
Pulse 24V: ✓
Full Closed Loop: ✕
Analog Input: ✓
Differential Encoder Feedback: ✓
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 60Ω 80W
External Braking Resistor: 55-75Ω 1000W and above
Weight (kg): 2.2

Model: DS5K2-41P5-PTA

Power (kW): 1.5
Input Power Supply: 3-Phase AC380~440V 50/60Hz
Output Current (A): 5.5
Dynamic Braking: ✓
STO (Safe Torque Off): ✕
DI Count: 8.0
DO Count: 6.0
RS232 Communication: ✓
RS485 Communication: ✓
Bus: ✕
Pulse Input: ✓
Pulse 5V: ✓
Pulse 24V: ✓
Full Closed Loop: ✕
Analog Input: ✓
Differential Encoder Feedback: ✓
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 100Ω 80W
External Braking Resistor: 75-120Ω 1000W and above
Weight (kg): 1.521

Model: DS5K2-41P0-PTA

Power (kW): 1.0
Input Power Supply: 3-Phase AC380~440V 50/60Hz
Output Current (A): 3.2
Dynamic Braking: ✓
STO (Safe Torque Off): ✕
DI Count: 8.0
DO Count: 6.0
RS232 Communication: ✓
RS485 Communication: ✓
Bus: ✕
Pulse Input: ✓
Pulse 5V: ✓
Pulse 24V: ✓
Full Closed Loop: ✕
Analog Input: ✓
Differential Encoder Feedback: ✓
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 100Ω 80W
External Braking Resistor: 120-150Ω 800W and above
Weight (kg): 1.521

Model: DS5K2-21P0-PTA

Power (kW): 1.0
Input Power Supply: Single-phase/Three-phase AC200~240V 50/60Hz
Output Current (A): 6.0
Dynamic Braking: ✓
STO (Safe Torque Off): ✕
DI Count: 8.0
DO Count: 6.0
RS232 Communication: ✓
RS485 Communication: ✓
Bus: ✕
Pulse Input: ✓
Pulse 5V: ✓
Pulse 24V: ✓
Full Closed Loop: ✕
Analog Input: ✓
Differential Encoder Feedback: ✓
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 45Ω 80W
External Braking Resistor: 35-75Ω 800W and above
Weight (kg): 1.524

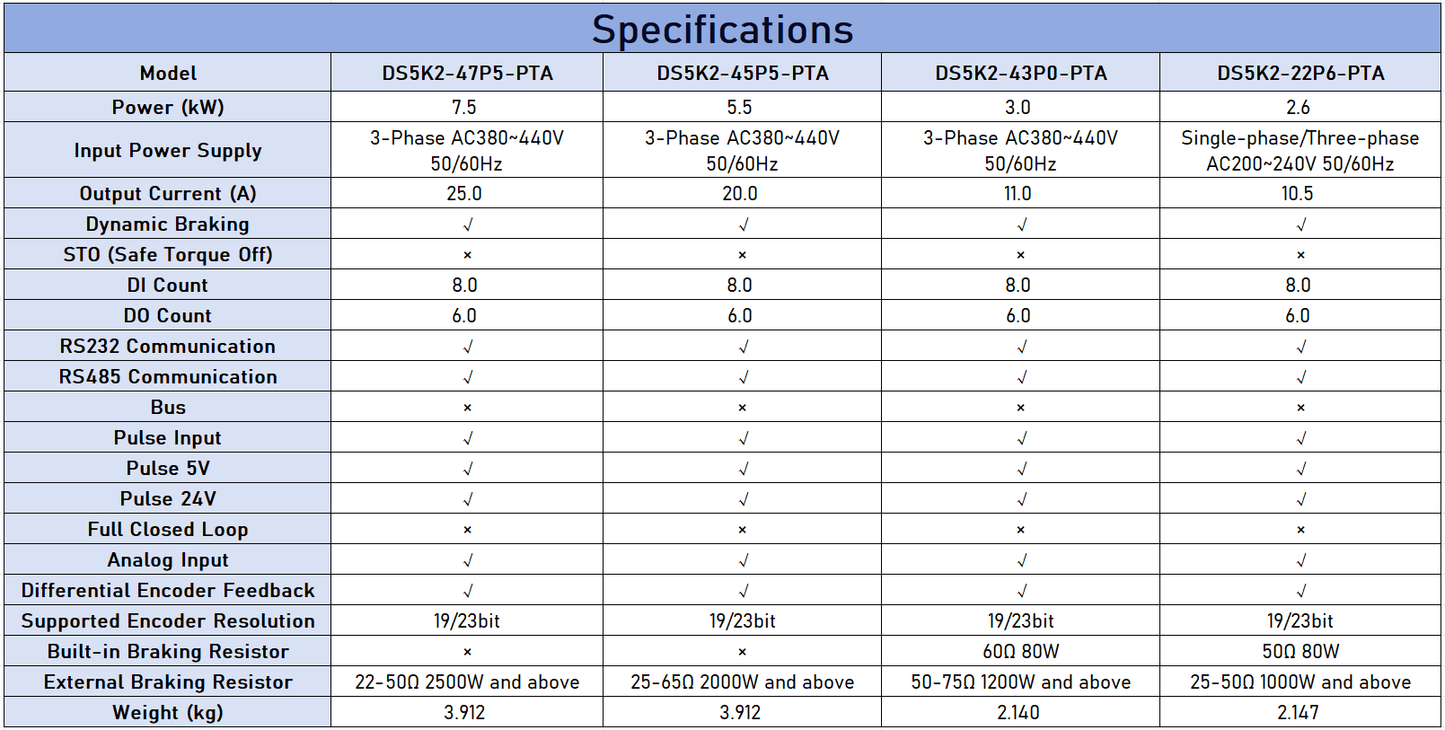

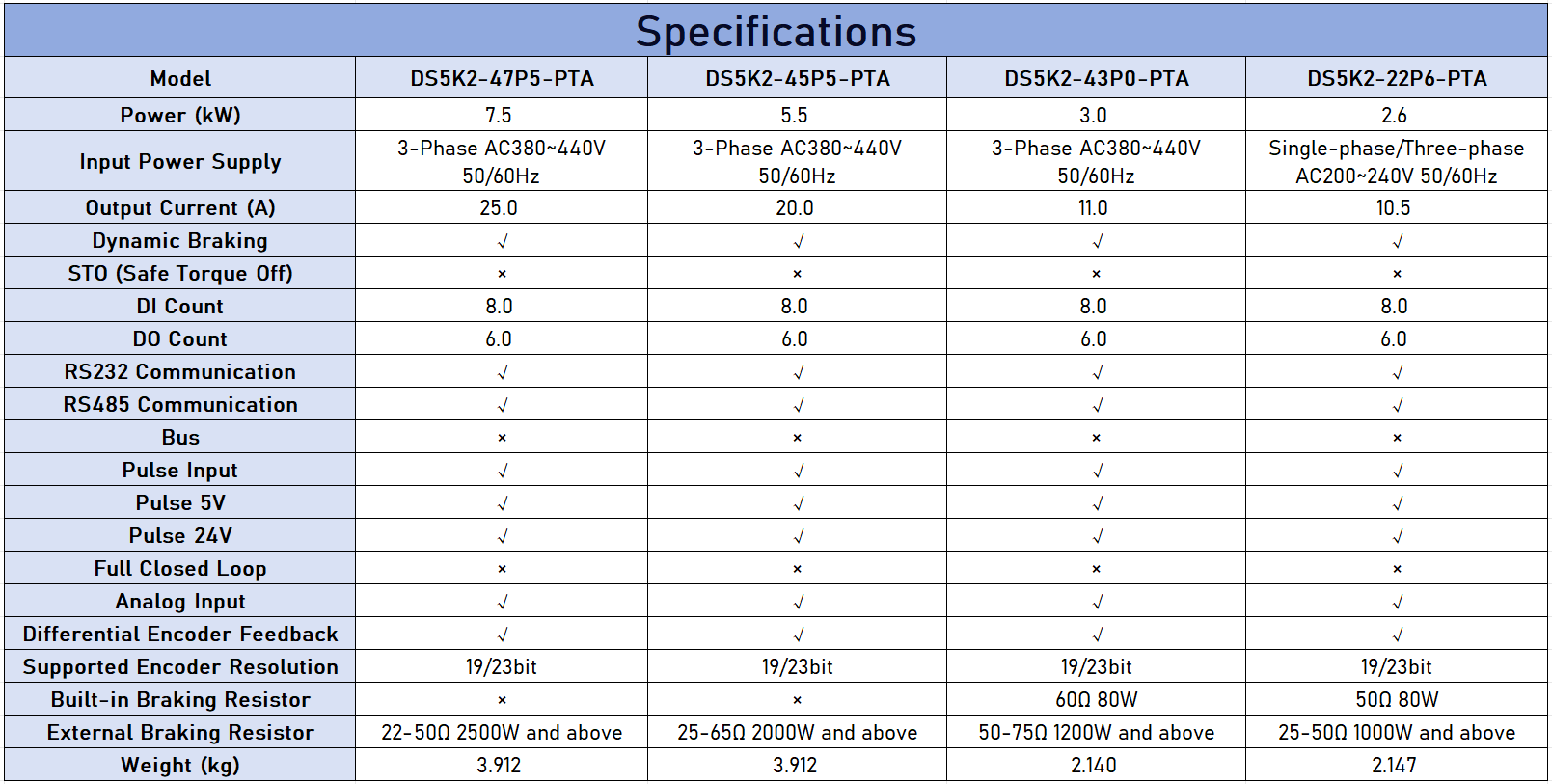

Model: DS5K2-47P5-PTA

Power (kW): 7.5
Input Power Supply: 3-Phase AC380~440V 50/60Hz
Output Current (A): 25.0
Dynamic Braking: ✓
STO (Safe Torque Off): ✕
DI Count: 8.0
DO Count: 6.0
RS232 Communication: ✓
RS485 Communication: ✓
Bus: ✕
Pulse Input: ✓
Pulse 5V: ✓
Pulse 24V: ✓
Full Closed Loop: ✕
Analog Input: ✓
Differential Encoder Feedback: ✓
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: ✕
External Braking Resistor: 22-50Ω 2500W and above
Weight (kg): 3.912

Model: DS5K2-45P5-PTA

Power (kW): 5.5
Input Power Supply: 3-Phase AC380~440V 50/60Hz
Output Current (A): 20.0
Dynamic Braking: ✓
STO (Safe Torque Off): ✕
DI Count: 8.0
DO Count: 6.0
RS232 Communication: ✓
RS485 Communication: ✓
Bus: ✕
Pulse Input: ✓
Pulse 5V: ✓
Pulse 24V: ✓
Full Closed Loop: ✕
Analog Input: ✓
Differential Encoder Feedback: ✓
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: ✕
External Braking Resistor: 25-65Ω 2000W and above
Weight (kg): 3.912

Model: DS5K2-43P0-PTA

Power (kW): 3.0
Input Power Supply: 3-Phase AC380~440V 50/60Hz
Output Current (A): 11.0
Dynamic Braking: ✓
STO (Safe Torque Off): ✕
DI Count: 8.0
DO Count: 6.0
RS232 Communication: ✓
RS485 Communication: ✓
Bus: ✕
Pulse Input: ✓
Pulse 5V: ✓
Pulse 24V: ✓
Full Closed Loop: ✕
Analog Input: ✓
Differential Encoder Feedback: ✓
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 60Ω 80W
External Braking Resistor: 50-75Ω 1200W and above
Weight (kg): 2.140

Model: DS5K2-22P6-PTA

Power (kW): 2.6
Input Power Supply: Single-phase/Three-phase AC200~240V 50/60Hz
Output Current (A): 10.5
Dynamic Braking: ✓
STO (Safe Torque Off): ✕
DI Count: 8.0
DO Count: 6.0
RS232 Communication: ✓
RS485 Communication: ✓
Bus: ✕
Pulse Input: ✓
Pulse 5V: ✓
Pulse 24V: ✓
Full Closed Loop: ✕
Analog Input: ✓
Differential Encoder Feedback: ✓
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 50Ω 80W
External Braking Resistor: 25-50Ω 1000W and above
Weight (kg): 2.147

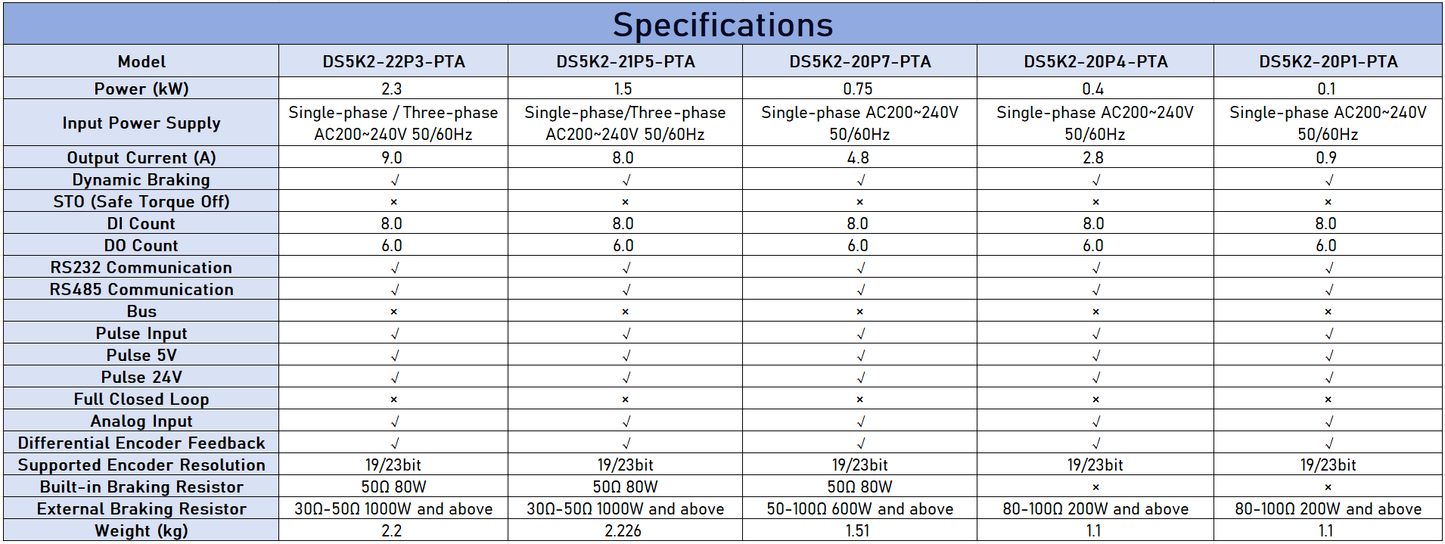

Model: DS5K2-22P3-PTA

Power (kW): 2.3
Input Power Supply: Single-phase / Three-phase AC200~240V 50/60Hz
Output Current (A): 9.0
Dynamic Braking: ✓
STO (Safe Torque Off): ✕
DI Count: 8.0
DO Count: 6.0
RS232 Communication: ✓
RS485 Communication: ✓
Bus: ✕
Pulse Input: ✓
Pulse 5V: ✓
Pulse 24V: ✓
Full Closed Loop: ✕
Analog Input: ✓
Differential Encoder Feedback: ✓
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 50Ω 80W
External Braking Resistor: 30Ω-50Ω 1000W and above
Weight (kg): 2.2

Model: DS5K2-21P5-PTA

Power (kW): 1.5
Input Power Supply: Single-phase/Three-phase AC200~240V 50/60Hz
Output Current (A): 8.0
Dynamic Braking: ✓
STO (Safe Torque Off): ✕
DI Count: 8.0
DO Count: 6.0
RS232 Communication: ✓
RS485 Communication: ✓
Bus: ✕
Pulse Input: ✓
Pulse 5V: ✓
Pulse 24V: ✓
Full Closed Loop: ✕
Analog Input: ✓
Differential Encoder Feedback: ✓
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 50Ω 80W
External Braking Resistor: 30Ω-50Ω 1000W and above
Weight (kg): 2.226

Model: DS5K2-20P7-PTA

Power (kW): 0.75
Input Power Supply: Single-phase AC200~240V 50/60Hz
Output Current (A): 4.8
Dynamic Braking: ✓
STO (Safe Torque Off): ✕
DI Count: 8.0
DO Count: 6.0
RS232 Communication: ✓
RS485 Communication: ✓
Bus: ✕
Pulse Input: ✓
Pulse 5V: ✓
Pulse 24V: ✓
Full Closed Loop: ✕
Analog Input: ✓
Differential Encoder Feedback: ✓
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 50Ω 80W
External Braking Resistor: 50-100Ω 600W and above
Weight (kg): 1.51

Model: DS5K2-20P4-PTA

Power (kW): 0.4
Input Power Supply: Single-phase AC200~240V 50/60Hz
Output Current (A): 2.8
Dynamic Braking: ✓
STO (Safe Torque Off): ✕
DI Count: 8.0
DO Count: 6.0
RS232 Communication: ✓
RS485 Communication: ✓
Bus: ✕
Pulse Input: ✓
Pulse 5V: ✓
Pulse 24V: ✓
Full Closed Loop: ✕
Analog Input: ✓
Differential Encoder Feedback: ✓
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: ✕
External Braking Resistor: 80-100Ω 200W and above
Weight (kg): 1.1

Model: DS5K2-20P1-PTA

Power (kW): 0.1
Input Power Supply: Single-phase AC200~240V 50/60Hz
Output Current (A): 0.9
Dynamic Braking: ✓
STO (Safe Torque Off): ✕
DI Count: 8.0
DO Count: 6.0
RS232 Communication: ✓
RS485 Communication: ✓
Bus: ✕
Pulse Input: ✓
Pulse 5V: ✓
Pulse 24V: ✓
Full Closed Loop: ✕
Analog Input: ✓
Differential Encoder Feedback: ✓
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: ✕
External Braking Resistor: 80-100Ω 200W and above
Weight (kg): 1.1
