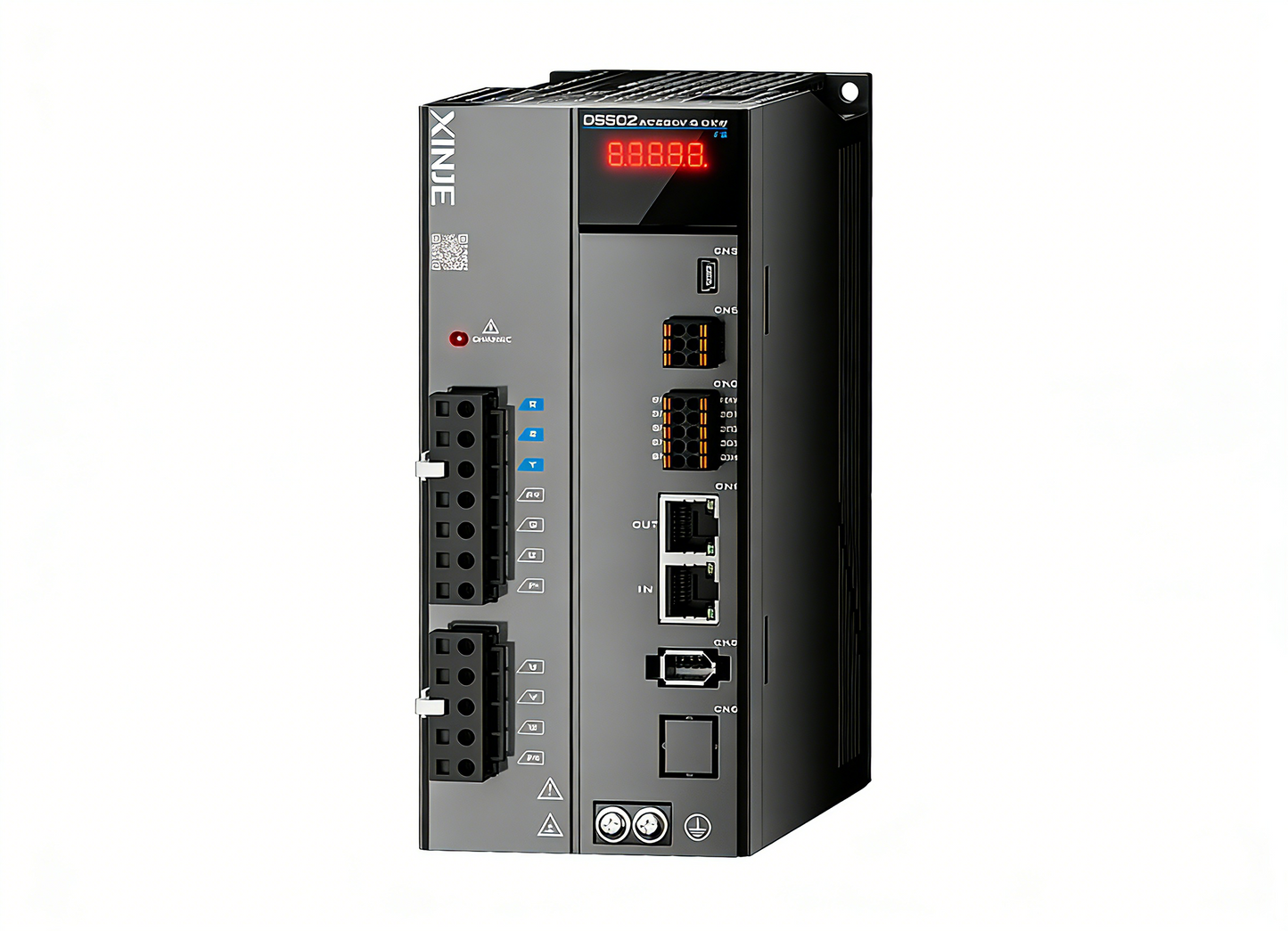

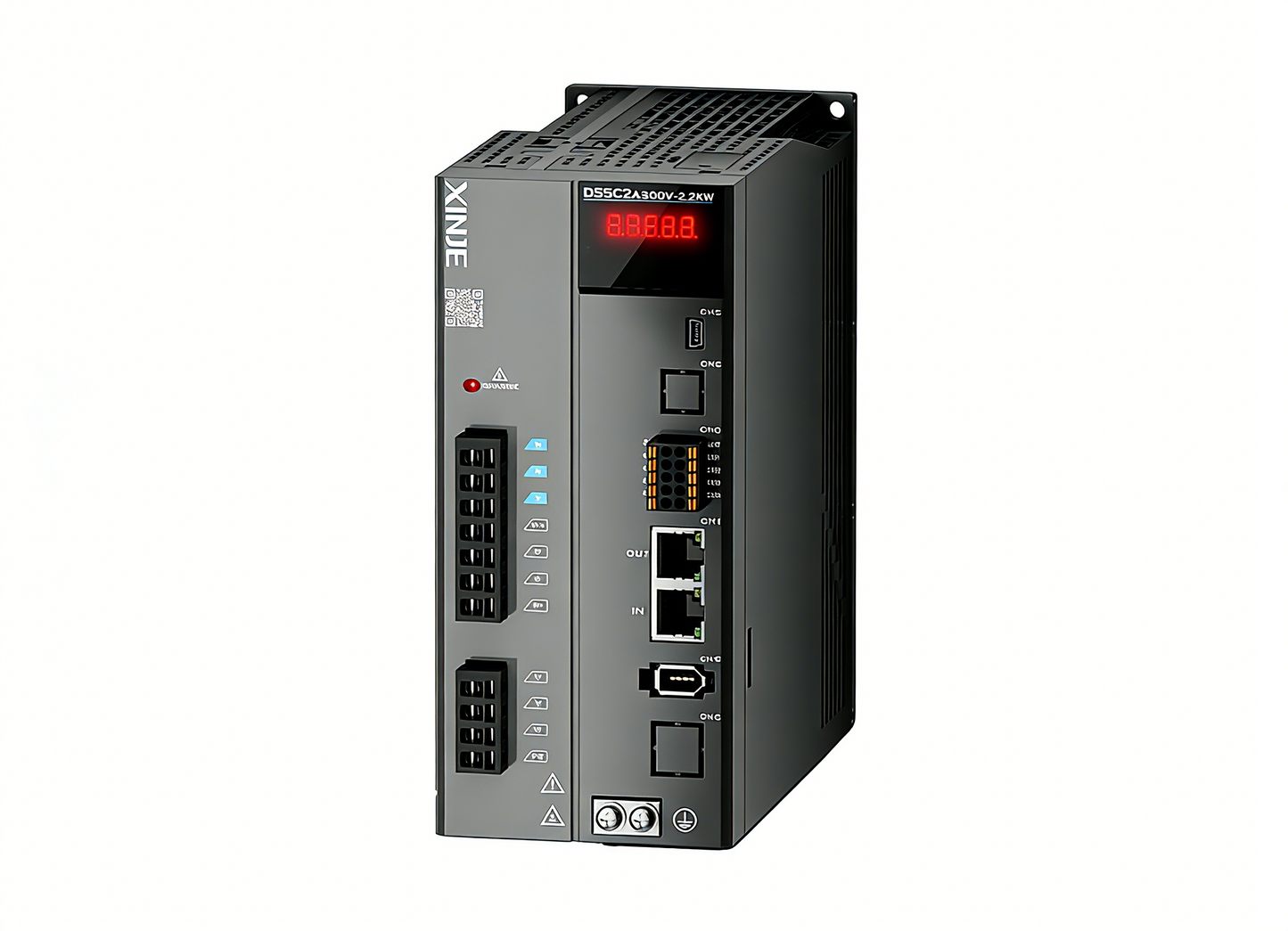

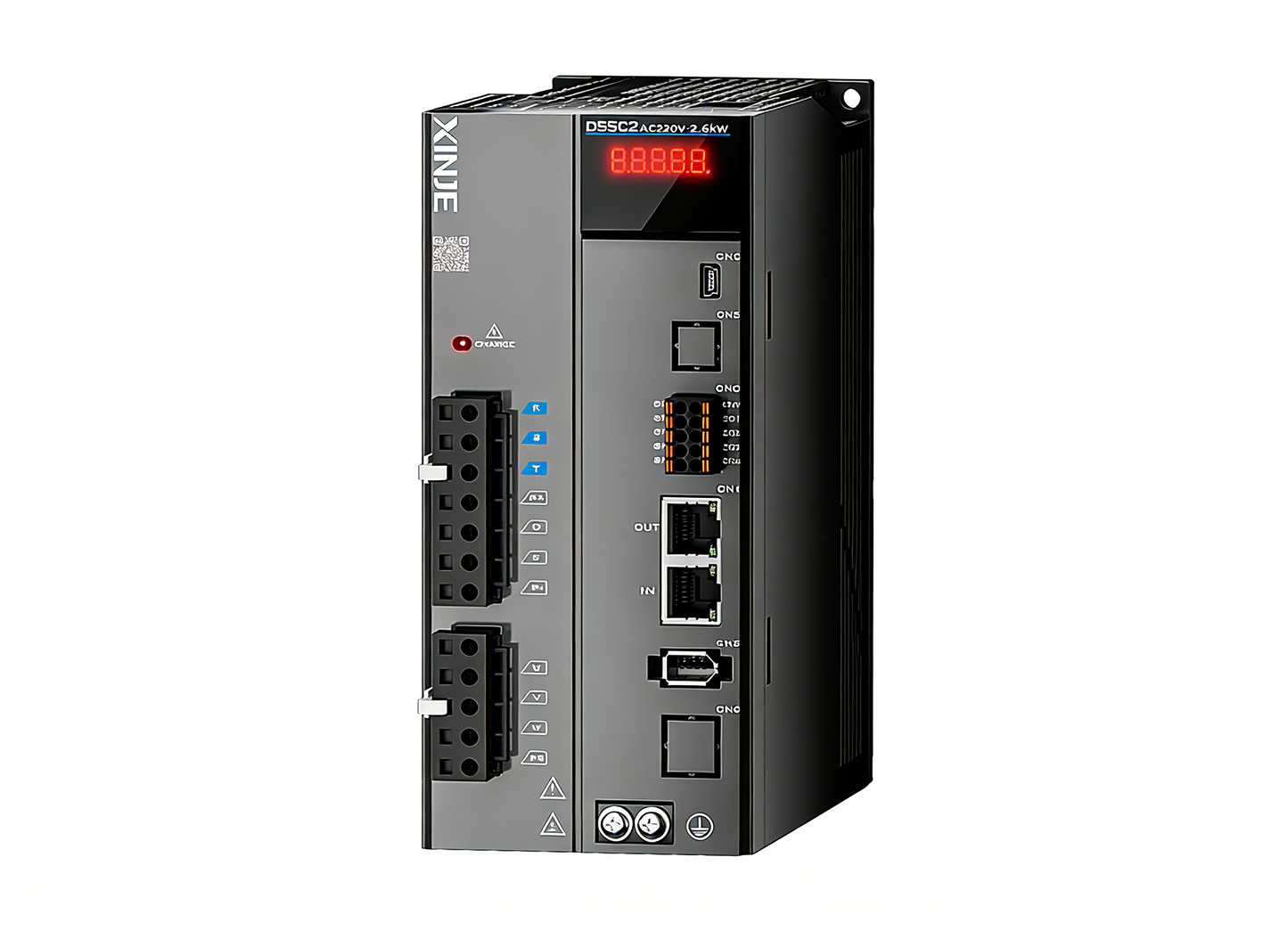

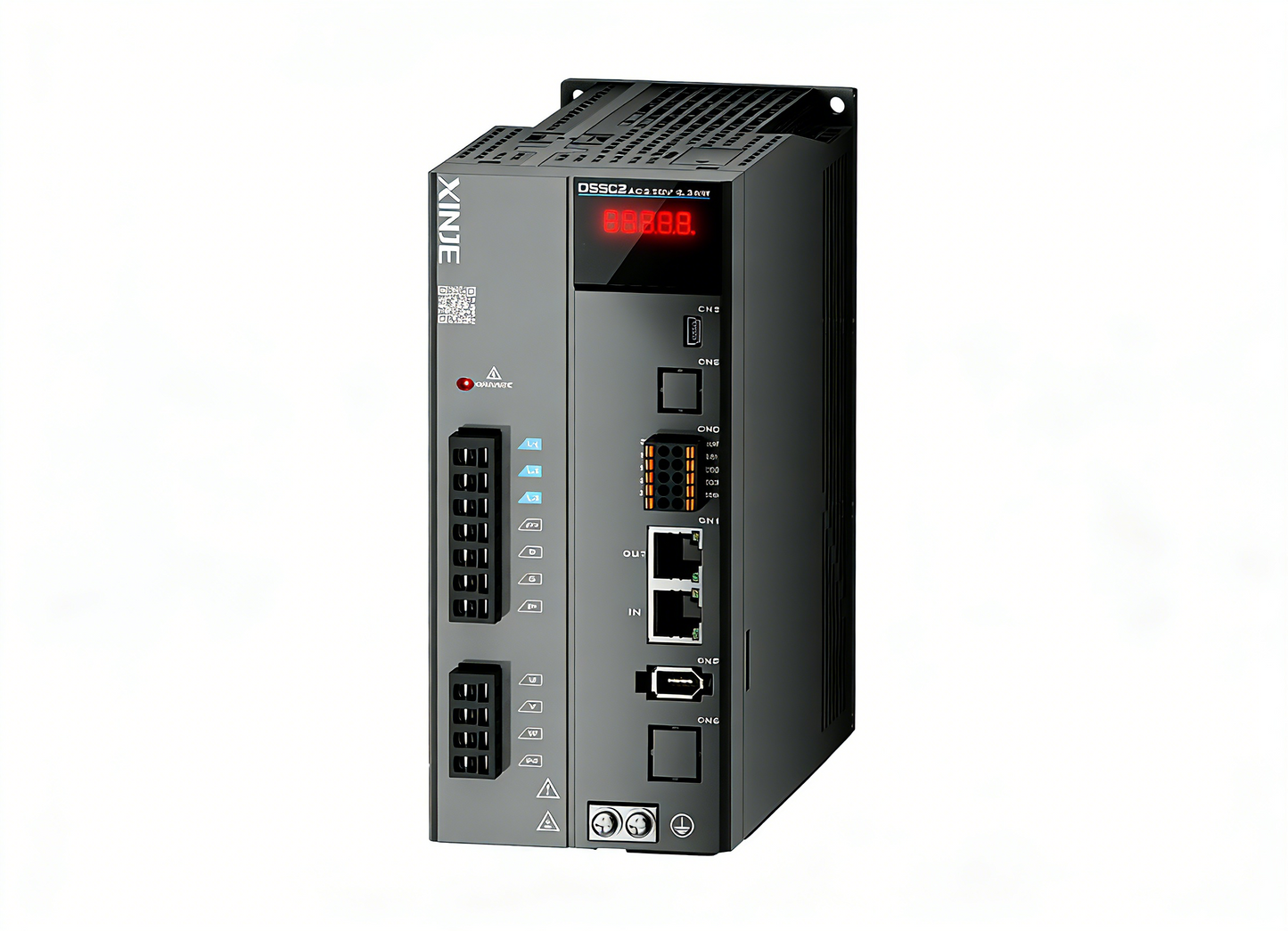

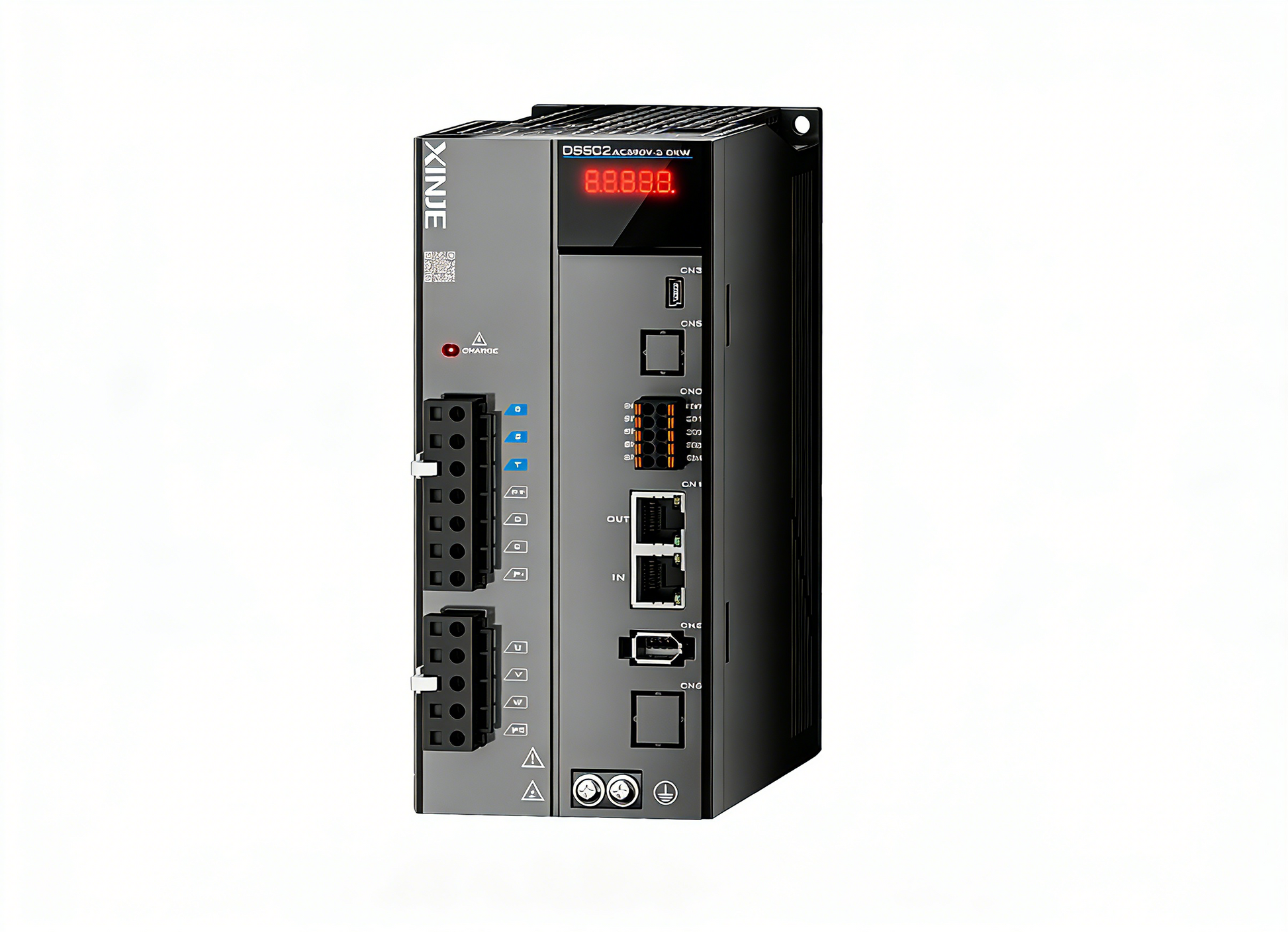

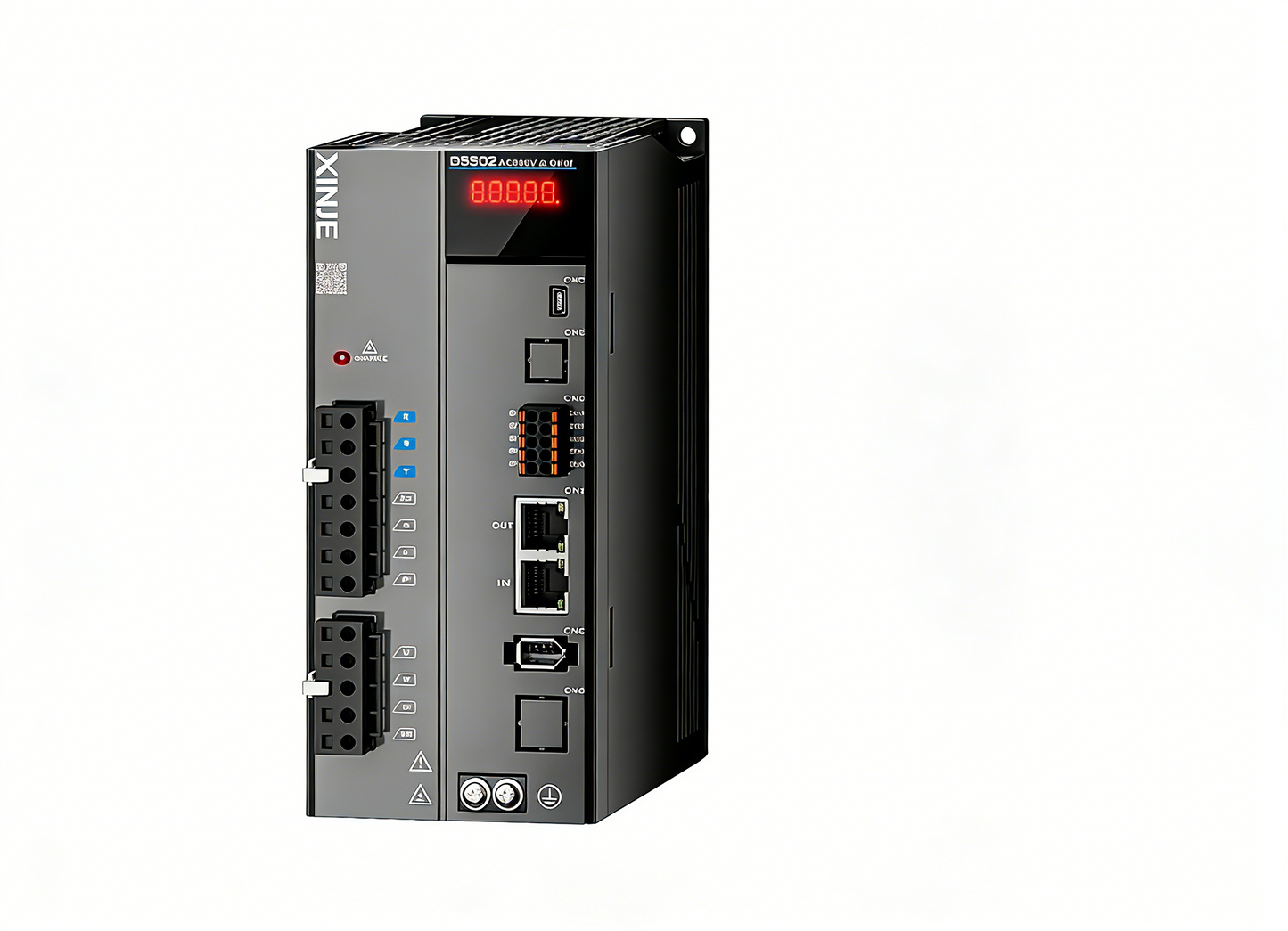

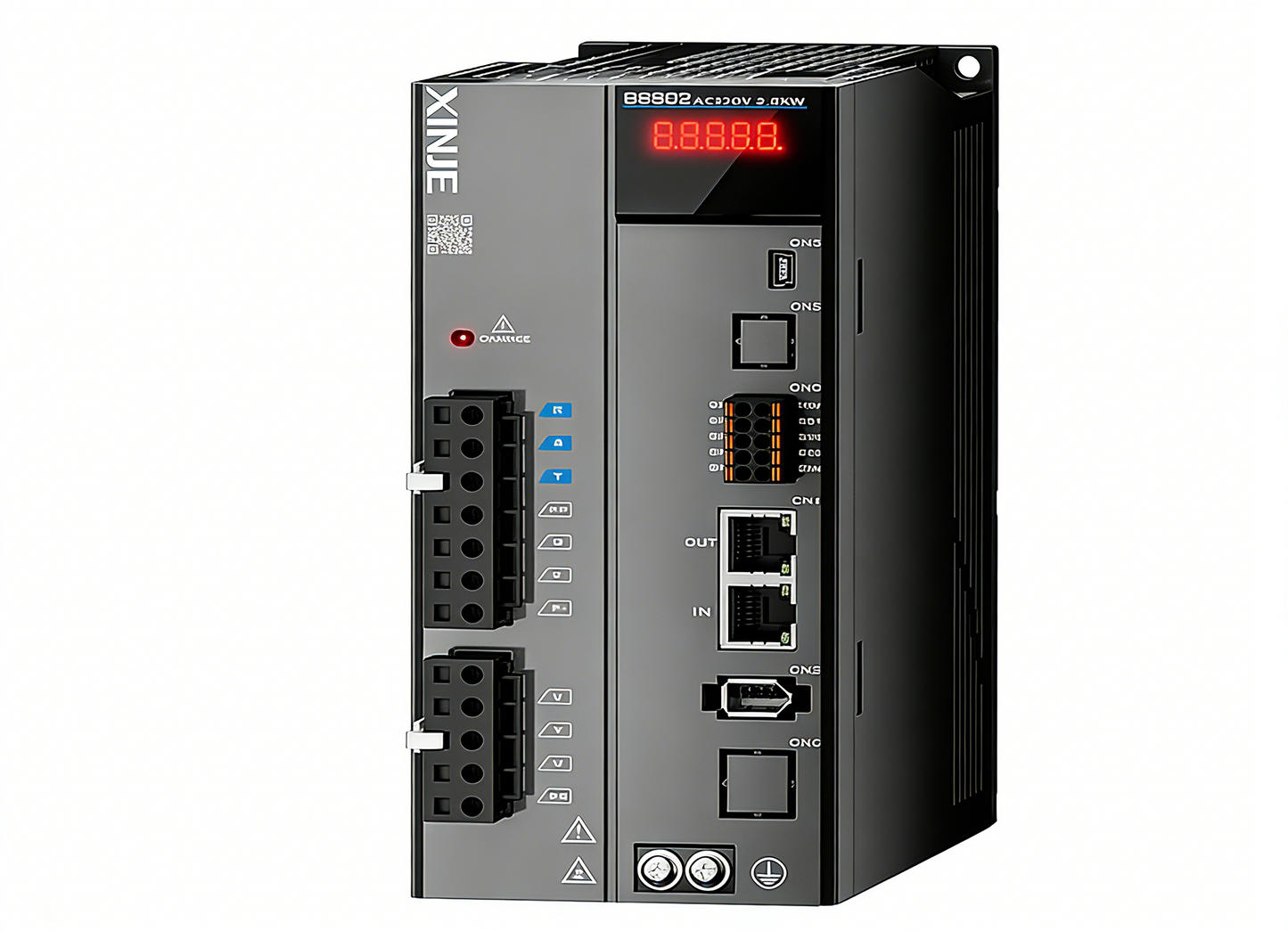

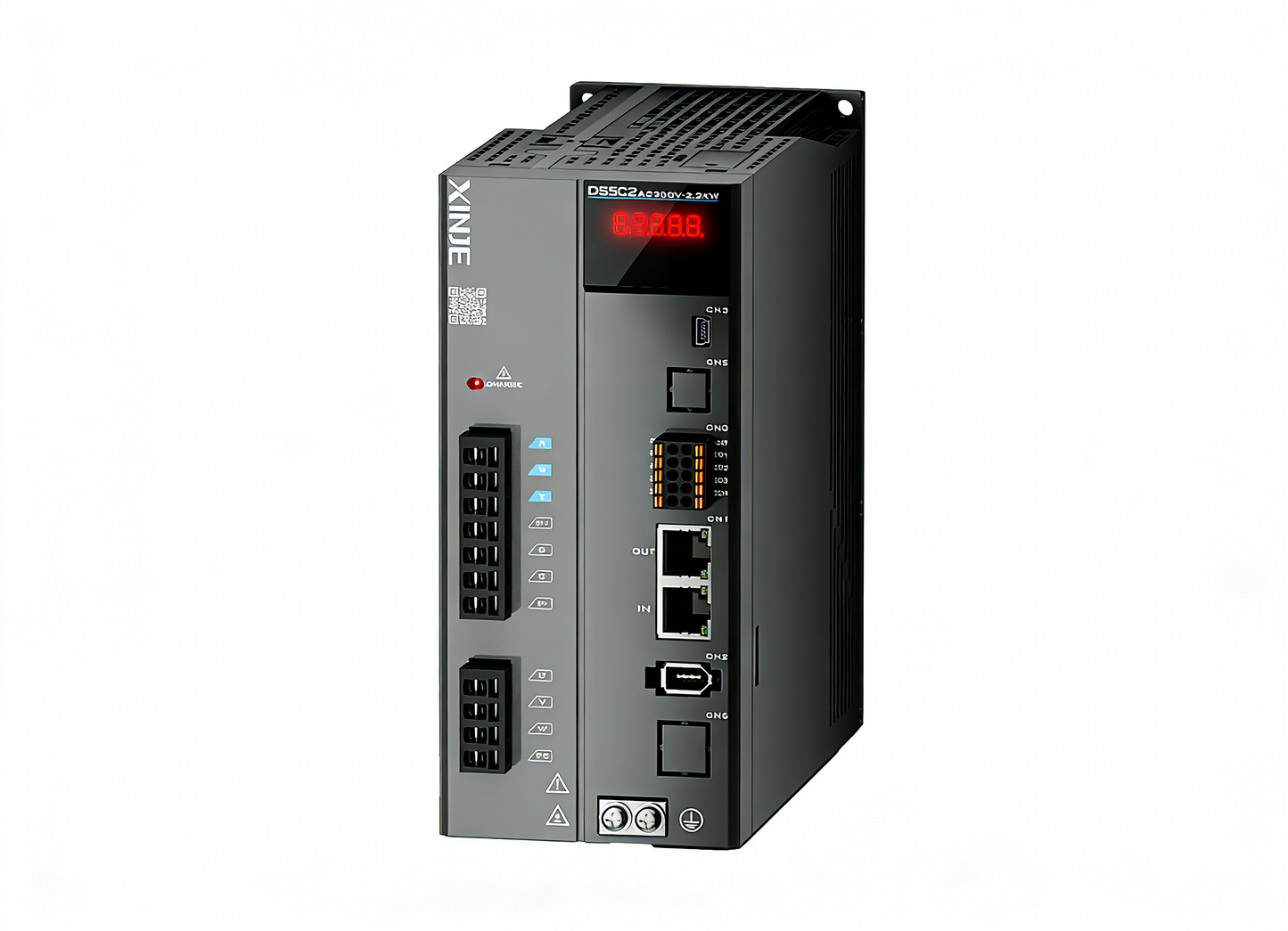

XINJE DS5C2 2.3-3kW EtherCAT Servo Drive - High Dynamic Response

XINJE DS5C2 2.3-3kW EtherCAT Servo Drive - High Dynamic Response

$800.00 USD

$800.00 USD

Sale Sold out

DS5C2-43P0-PTA-FH

Power: 3.0 kW
Input Power Supply: Three-phase AC 380~440V 50/60Hz
Output Current: 11.0 A
Dynamic Braking: Yes
STO (Safe Torque Off): No
DI Count: 5.0
DO Count: 3.0
RS232 Communication: Yes
RS485 Communication: No
Bus: EtherCAT
Pulse Input: No
Pulse 5V: No
Pulse 24V: No
Full Closed Loop: No
Analog Input: No
Differential Encoder Feedback: No
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 60Ω 80W
External Braking Resistor: 50-75Ω 1200W and above
Weight: 2.146 kg

DS5C2-42P3-PTA-FH

Power: 2.3 kW
Input Power Supply: Three-phase AC 380~440V 50/60Hz
Output Current: 8.5 A
Dynamic Braking: Yes
STO (Safe Torque Off): No
DI Count: 5.0
DO Count: 3.0
RS232 Communication: Yes
RS485 Communication: No
Bus: EtherCAT
Pulse Input: No
Pulse 5V: No
Pulse 24V: No
Full Closed Loop: No
Analog Input: No
Differential Encoder Feedback: No
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 60Ω 80W
External Braking Resistor: 55-75Ω 1000W and above
Weight: 2.146 kg

DS5C2-22P6-PTA-FH

Power: 2.6 kW
Input Power Supply: Single-phase AC 200~240V 50/60Hz
Output Current: 10.5 A
Dynamic Braking: Yes
STO (Safe Torque Off): No
DI Count: 5.0
DO Count: 3.0
RS232 Communication: Yes
RS485 Communication: No
Bus: EtherCAT
Pulse Input: No
Pulse 5V: No
Pulse 24V: No
Full Closed Loop: No
Analog Input: No
Differential Encoder Feedback: No
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 50Ω 80W
External Braking Resistor: 25-50Ω 1000W and above
Weight: 2.26 kg

DS5C2-22P3-PTA-FH

Power: 2.3 kW
Input Power Supply: Single-phase AC 200~240V 50/60Hz
Output Current: 9.0 A
Dynamic Braking: Yes
STO (Safe Torque Off): No
DI Count: 5.0
DO Count: 3.0
RS232 Communication: Yes
RS485 Communication: No
Bus: EtherCAT
Pulse Input: No
Pulse 5V: No
Pulse 24V: No
Full Closed Loop: No
Analog Input: No
Differential Encoder Feedback: No
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 50Ω 80W
External Braking Resistor: 30-50Ω 1000W and above
Weight: 2.28 kg

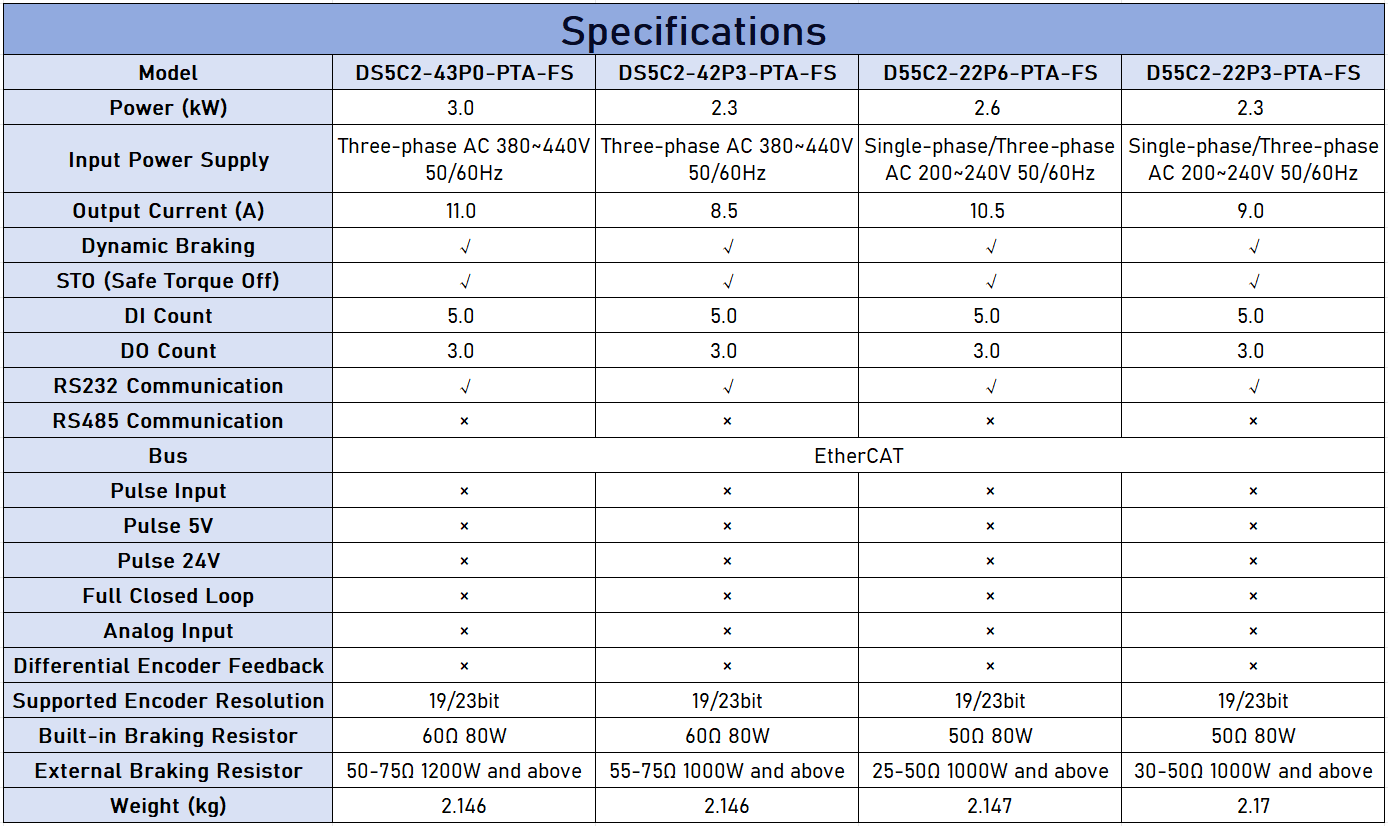

DS5C2-43P0-PTA-FS

Power: 3.0 kW
Input Power Supply: Three-phase AC 380~440V 50/60Hz
Output Current: 11.0 A
Dynamic Braking: Yes
STO (Safe Torque Off): Yes
DI Count: 5.0
DO Count: 3.0
RS232 Communication: Yes
RS485 Communication: No
Bus: EtherCAT
Pulse Input: No
Pulse 5V: No
Pulse 24V: No
Full Closed Loop: No
Analog Input: No
Differential Encoder Feedback: No
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 60Ω 80W
External Braking Resistor: 50-75Ω 1200W and above
Weight: 2.146 kg

DS5C2-42P3-PTA-FS

Power: 2.3 kW
Input Power Supply: Three-phase AC 380~440V 50/60Hz
Output Current: 8.5 A
Dynamic Braking: Yes
STO (Safe Torque Off): Yes
DI Count: 5.0
DO Count: 3.0
RS232 Communication: Yes
RS485 Communication: No
Bus: EtherCAT
Pulse Input: No
Pulse 5V: No
Pulse 24V: No
Full Closed Loop: No
Analog Input: No
Differential Encoder Feedback: No
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 60Ω 80W
External Braking Resistor: 55-75Ω 1000W and above
Weight: 2.146 kg

D55C2-22P6-PTA-FS

Power: 2.6 kW
Input Power Supply: Single-phase/Three-phase AC 200~240V 50/60Hz
Output Current: 10.5 A
Dynamic Braking: Yes
STO (Safe Torque Off): Yes
DI Count: 5.0
DO Count: 3.0
RS232 Communication: Yes
RS485 Communication: No
Bus: EtherCAT
Pulse Input: No
Pulse 5V: No
Pulse 24V: No
Full Closed Loop: No
Analog Input: No
Differential Encoder Feedback: No
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 50Ω 80W
External Braking Resistor: 25-50Ω 1000W and above
Weight: 2.147 kg

D55C2-22P3-PTA-FS

Power: 2.3 kW
Input Power Supply: Single-phase/Three-phase AC 200~240V 50/60Hz
Output Current: 9.0 A
Dynamic Braking: Yes
STO (Safe Torque Off): Yes
DI Count: 5.0
DO Count: 3.0
RS232 Communication: Yes
RS485 Communication: No
Bus: EtherCAT
Pulse Input: No
Pulse 5V: No
Pulse 24V: No
Full Closed Loop: No
Analog Input: No
Differential Encoder Feedback: No
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 50Ω 80W
External Braking Resistor: 30-50Ω 1000W and above
Weight: 2.17 kg

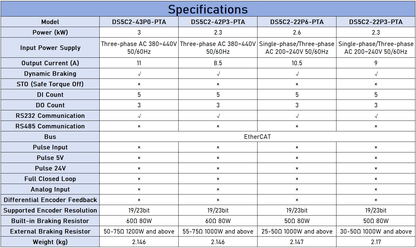

DS5C2-43P0-PTA

Power: 3.0 kW
Input Power Supply: Three-phase AC 380~440V 50/60Hz
Output Current: 11.0 A
Dynamic Braking: Yes
STO (Safe Torque Off): No
DI Count: 5.0
DO Count: 3.0
RS232 Communication: Yes
RS485 Communication: No
Bus: EtherCAT
Pulse Input: No
Pulse 5V: No
Pulse 24V: No
Full Closed Loop: No
Analog Input: No
Differential Encoder Feedback: No
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 60Ω 80W
External Braking Resistor: 50-75Ω 1200W and above
Weight: 2.146 kg

DS5C2-42P3-PTA

Power: 2.3 kW
Input Power Supply: Three-phase AC 380~440V 50/60Hz
Output Current: 8.5 A
Dynamic Braking: Yes
STO (Safe Torque Off): No
DI Count: 5.0
DO Count: 3.0
RS232 Communication: Yes
RS485 Communication: No
Bus: EtherCAT
Pulse Input: No
Pulse 5V: No
Pulse 24V: No
Full Closed Loop: No
Analog Input: No
Differential Encoder Feedback: No
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 60Ω 80W
External Braking Resistor: 55-75Ω 1000W and above
Weight: 2.146 kg

DS5C2-22P6-PTA

Power: 2.6 kW
Input Power Supply: Single-phase/Three-phase AC 200~240V 50/60Hz
Output Current: 10.5 A
Dynamic Braking: Yes
STO (Safe Torque Off): No
DI Count: 5.0
DO Count: 3.0
RS232 Communication: Yes
RS485 Communication: No
Bus: EtherCAT
Pulse Input: No
Pulse 5V: No
Pulse 24V: No
Full Closed Loop: No
Analog Input: No
Differential Encoder Feedback: No
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 50Ω 80W
External Braking Resistor: 25-50Ω 1000W and above
Weight: 2.147 kg

DS5C2-22P3-PTA

Power: 2.3 kW
Input Power Supply: Single-phase/Three-phase AC 200~240V 50/60Hz
Output Current: 9.0 A
Dynamic Braking: Yes
STO (Safe Torque Off): No
DI Count: 5.0
DO Count: 3.0
RS232 Communication: Yes
RS485 Communication: No
Bus: EtherCAT
Pulse Input: No
Pulse 5V: No
Pulse 24V: No
Full Closed Loop: No
Analog Input: No
Differential Encoder Feedback: No
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 50Ω 80W
External Braking Resistor: 30-50Ω 1000W and above
Weight: 2.17 kg
