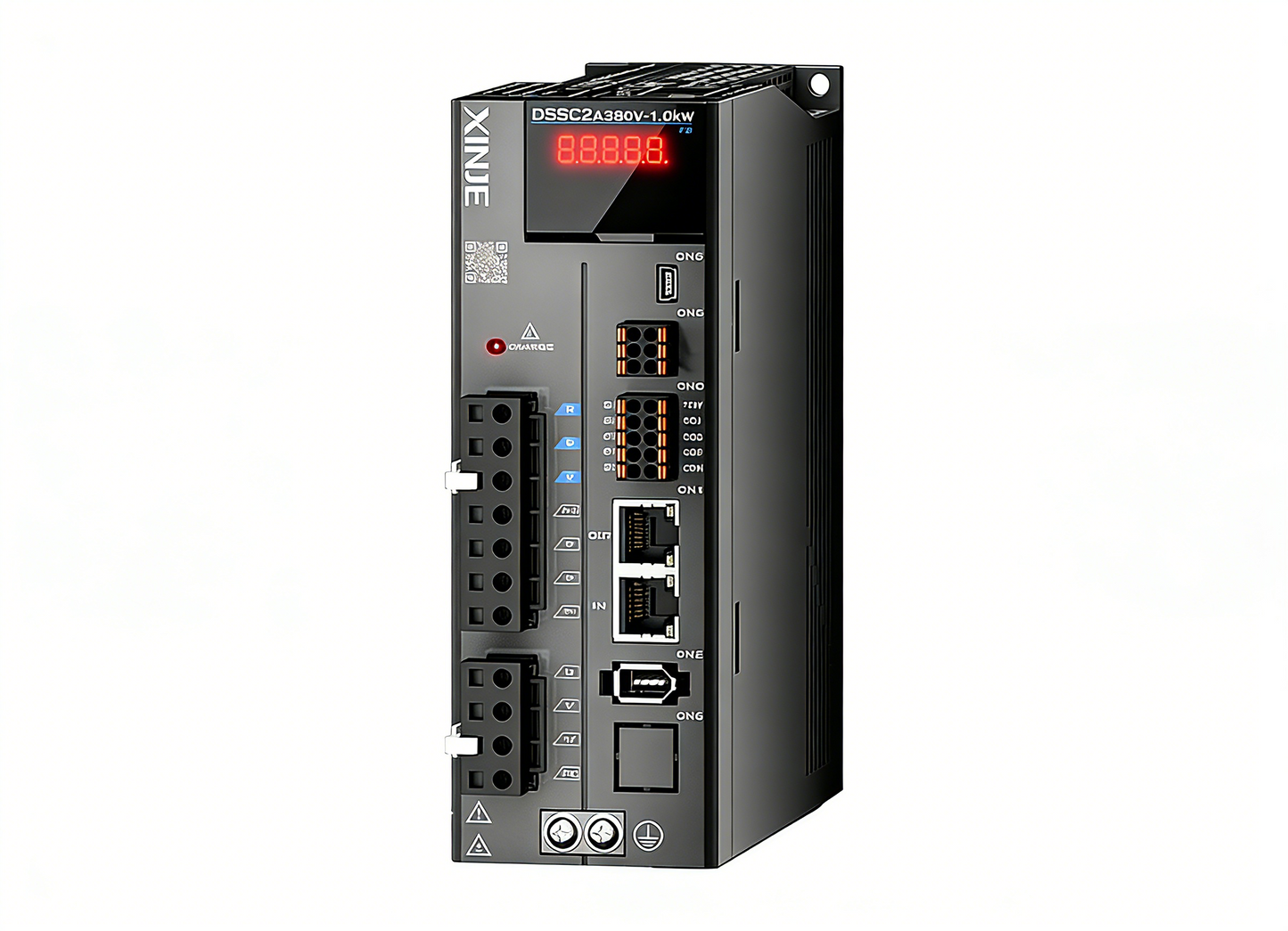

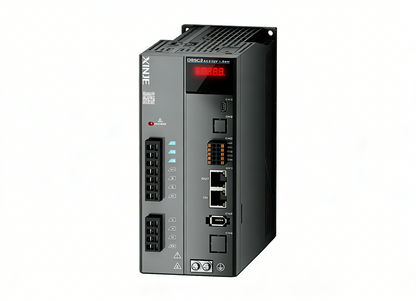

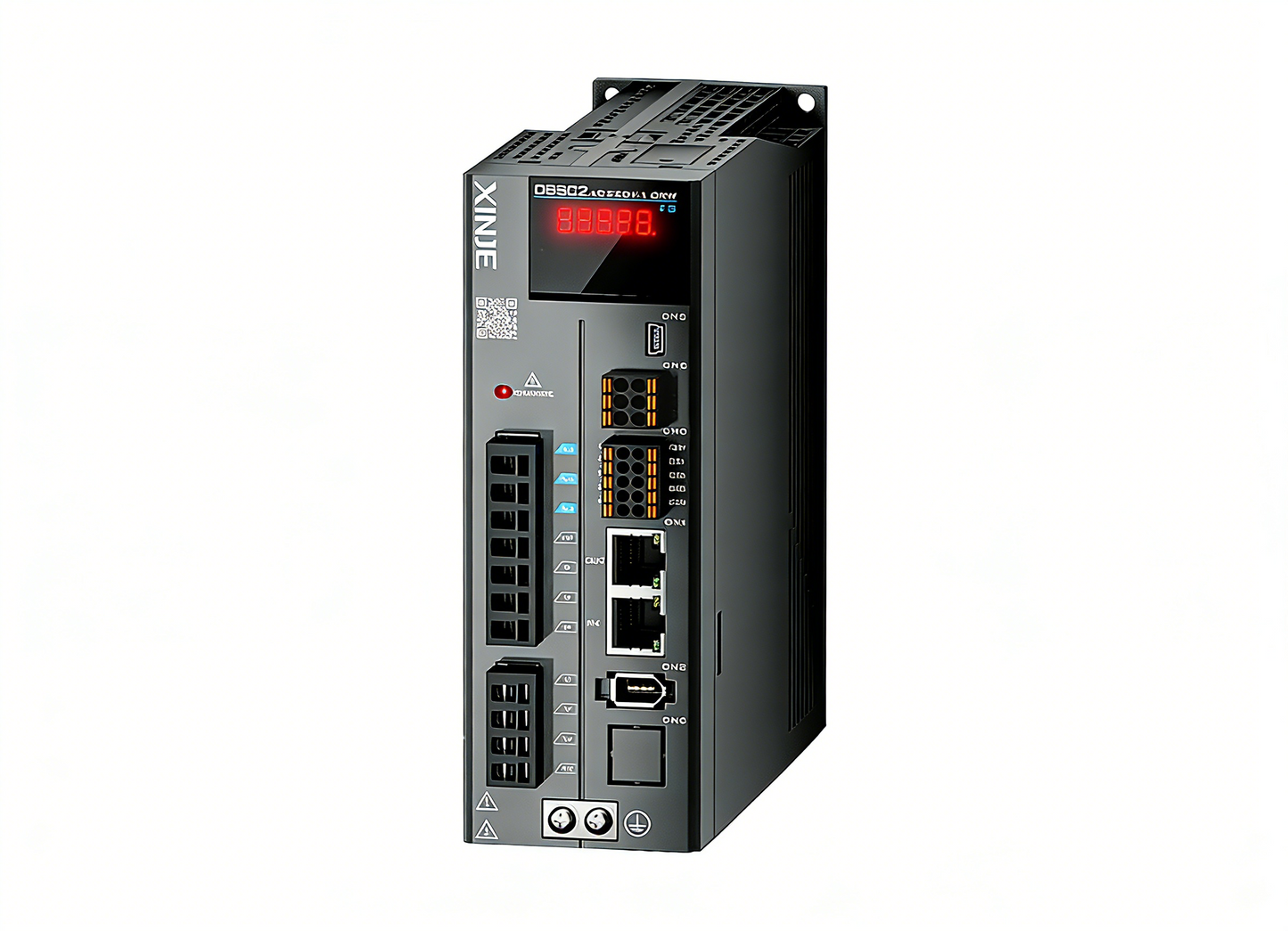

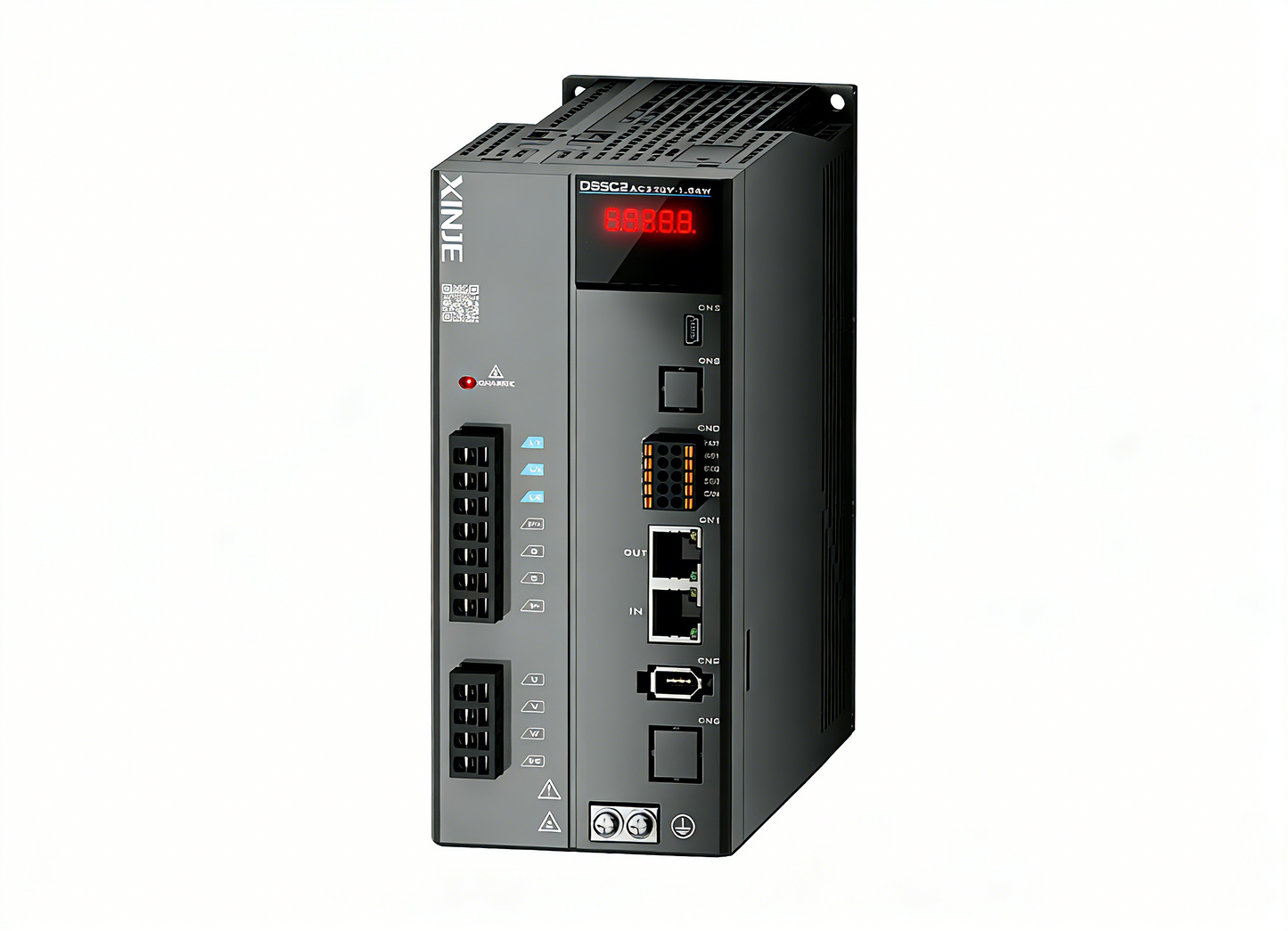

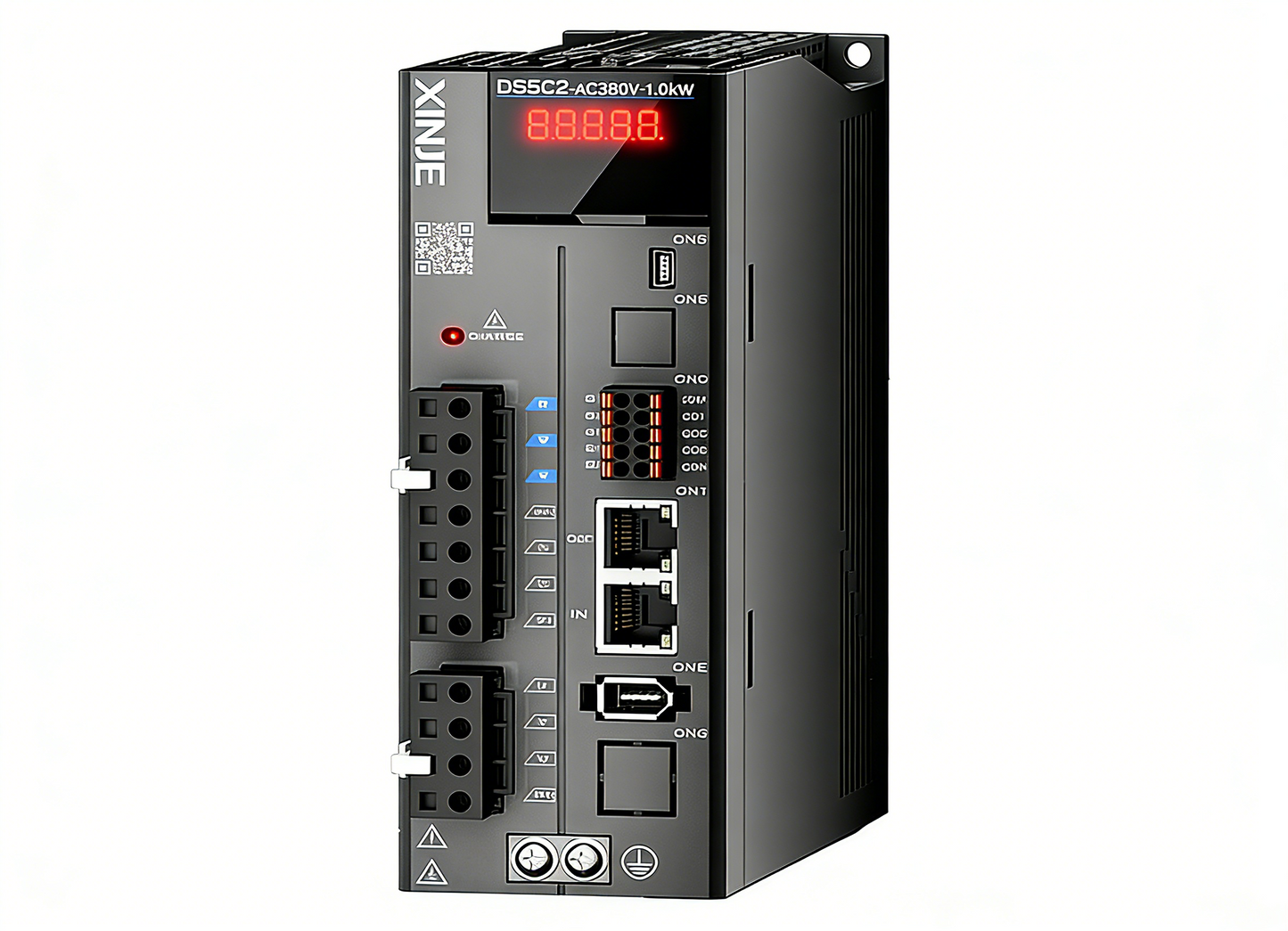

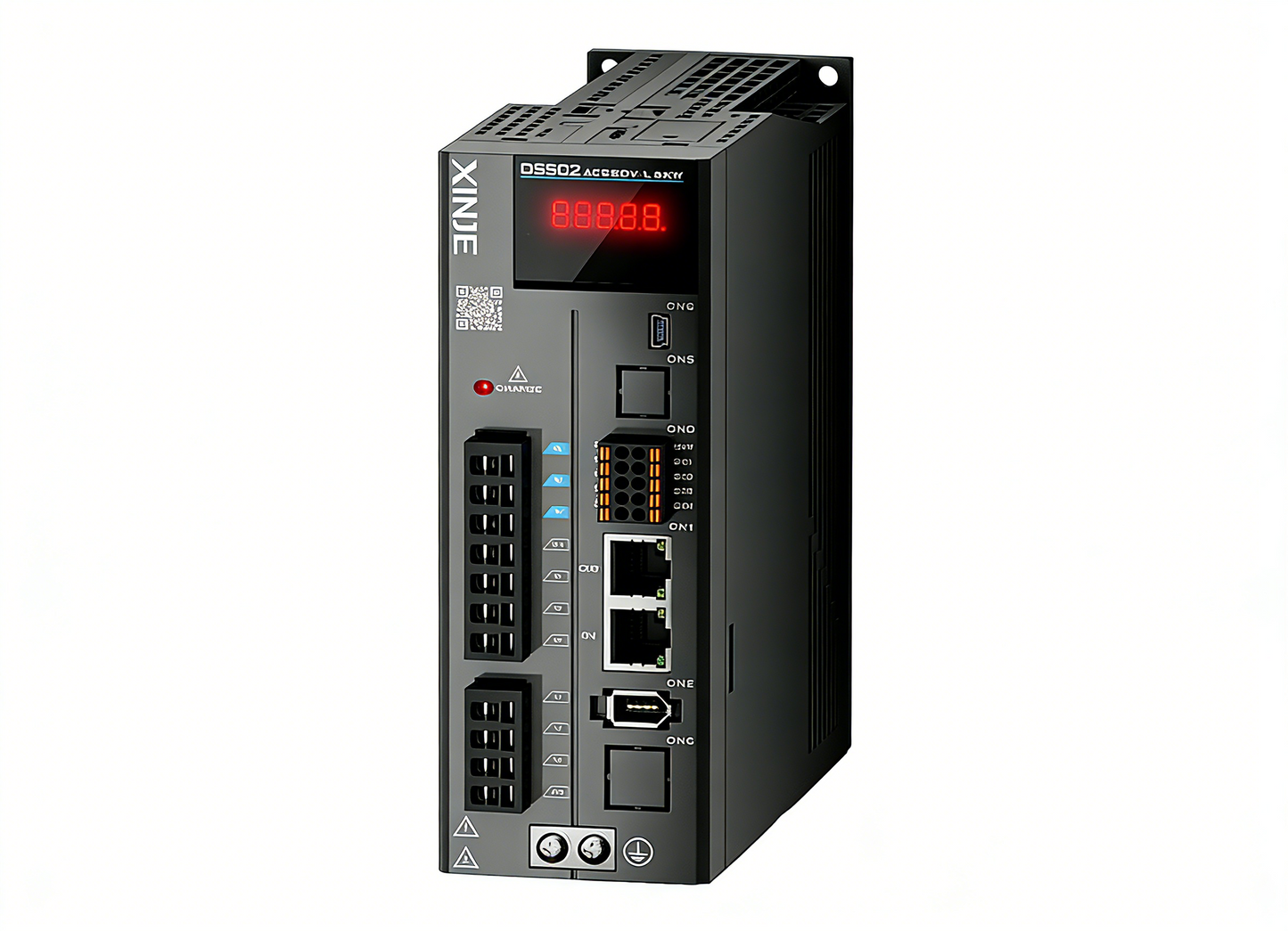

XINJE DS5C2 1-1.5kW EtherCAT Servo Drive - High Dynamic Response

XINJE DS5C2 1-1.5kW EtherCAT Servo Drive - High Dynamic Response

$500.00 USD

$500.00 USD

Sale Sold out

DS5C2-41P5-PTA-FH

Power: 1.5 kW
Input Power Supply: Three-phase AC380-440V 50/60Hz
Output Current: 5.5 A
Dynamic Braking: ✓
STO (Safe Torque Off): ✗
DI Count: 5
DO Count: 3
RS232 Communication: ✓
RS485 Communication: ✗
Bus: EtherCAT
Pulse Input: ✗
Pulse 5V: ✗
Pulse 24V: ✗
Full Closed Loop: ✗
Analog Input: ✗
Differential Encoder Feedback: ✗
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 100Ω80W
External Braking Resistor: 75-120Ω 1000W and above
Weight: 1.52 kg

DS5C2-41P0-PTA-FH

Power: 1 kW
Input Power Supply: Three-phase AC380-440V 50/60Hz
Output Current: 3.2 A
Dynamic Braking: ✓
STO (Safe Torque Off): ✗
DI Count: 5
DO Count: 3
RS232 Communication: ✓
RS485 Communication: ✗
Bus: EtherCAT
Pulse Input: ✗
Pulse 5V: ✗
Pulse 24V: ✗
Full Closed Loop: ✗
Analog Input: ✗
Differential Encoder Feedback: ✗
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 100Ω80W
External Braking Resistor: 120-150Ω 800W and above
Weight: 1.51 kg

DS5C2-21P5-PTA-FH

Power: 1.5 kW
Input Power Supply: Single-phase AC200-240V 50/60Hz
Output Current: 8.0 A
Dynamic Braking: ✓
STO (Safe Torque Off): ✗
DI Count: 5.0
DO Count: 3.0
RS232 Communication: ✓
RS485 Communication: ✗
Bus: EtherCAT
Pulse Input: ✗
Pulse 5V: ✗
Pulse 24V: ✗
Full Closed Loop: ✗
Analog Input: ✗
Differential Encoder Feedback: ✗
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 50Ω80W
External Braking Resistor: 30-50Ω 1000W and above
Weight: 2.3 kg

DS5C2-21P0-PTA-FH

Power: 1.0 kW
Input Power Supply: Single-phase AC200-240V 50/60Hz
Output Current: 6.0 A
Dynamic Braking: ✓
STO (Safe Torque Off): ✗
DI Count: 5.0
DO Count: 3.0
RS232 Communication: ✓
RS485 Communication: ✗
Bus: EtherCAT
Pulse Input: ✗
Pulse 5V: ✗
Pulse 24V: ✗
Full Closed Loop: ✗
Analog Input: ✗
Differential Encoder Feedback: ✗
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 45Ω80W
External Braking Resistor: 35-75Ω 800W and above
Weight: 1.5 kg

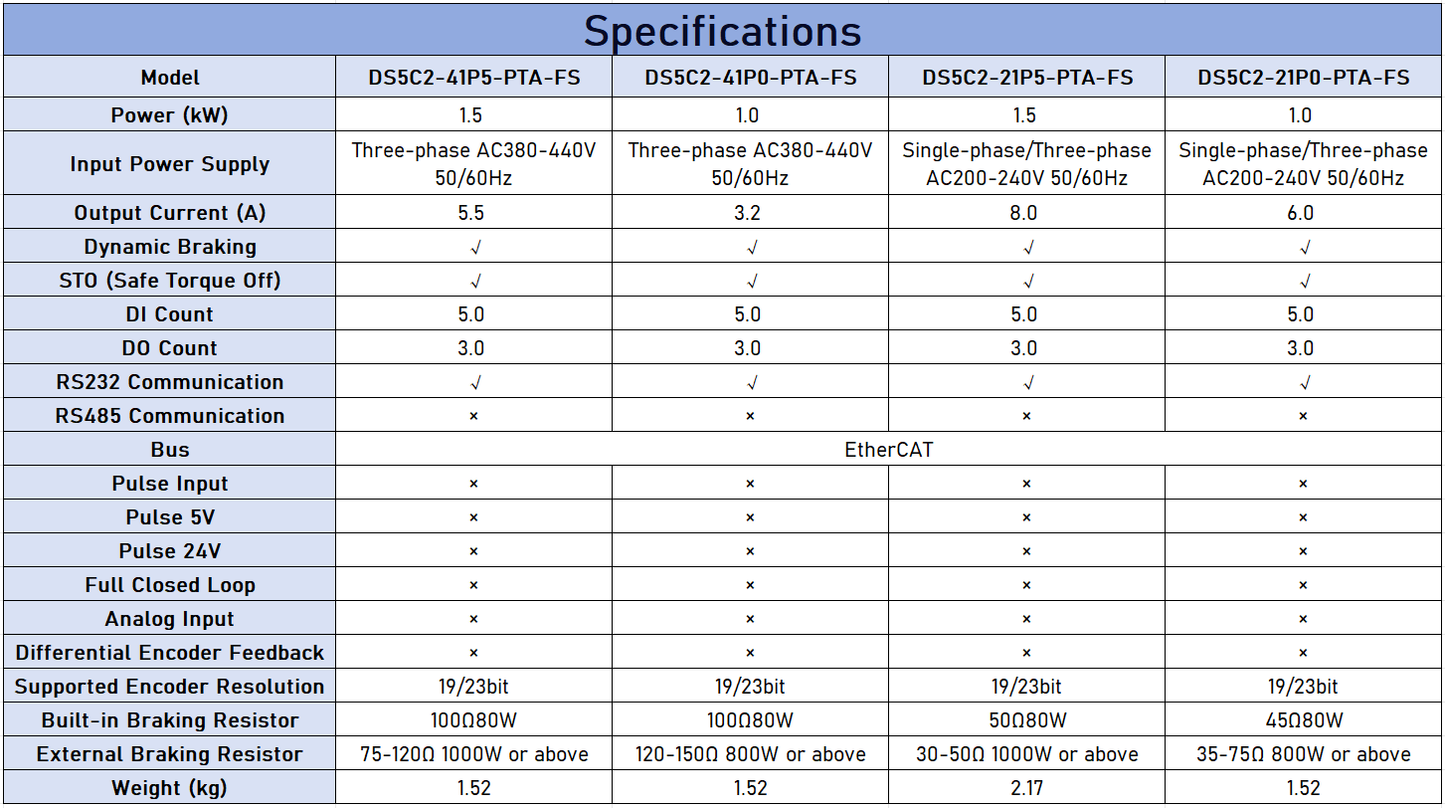

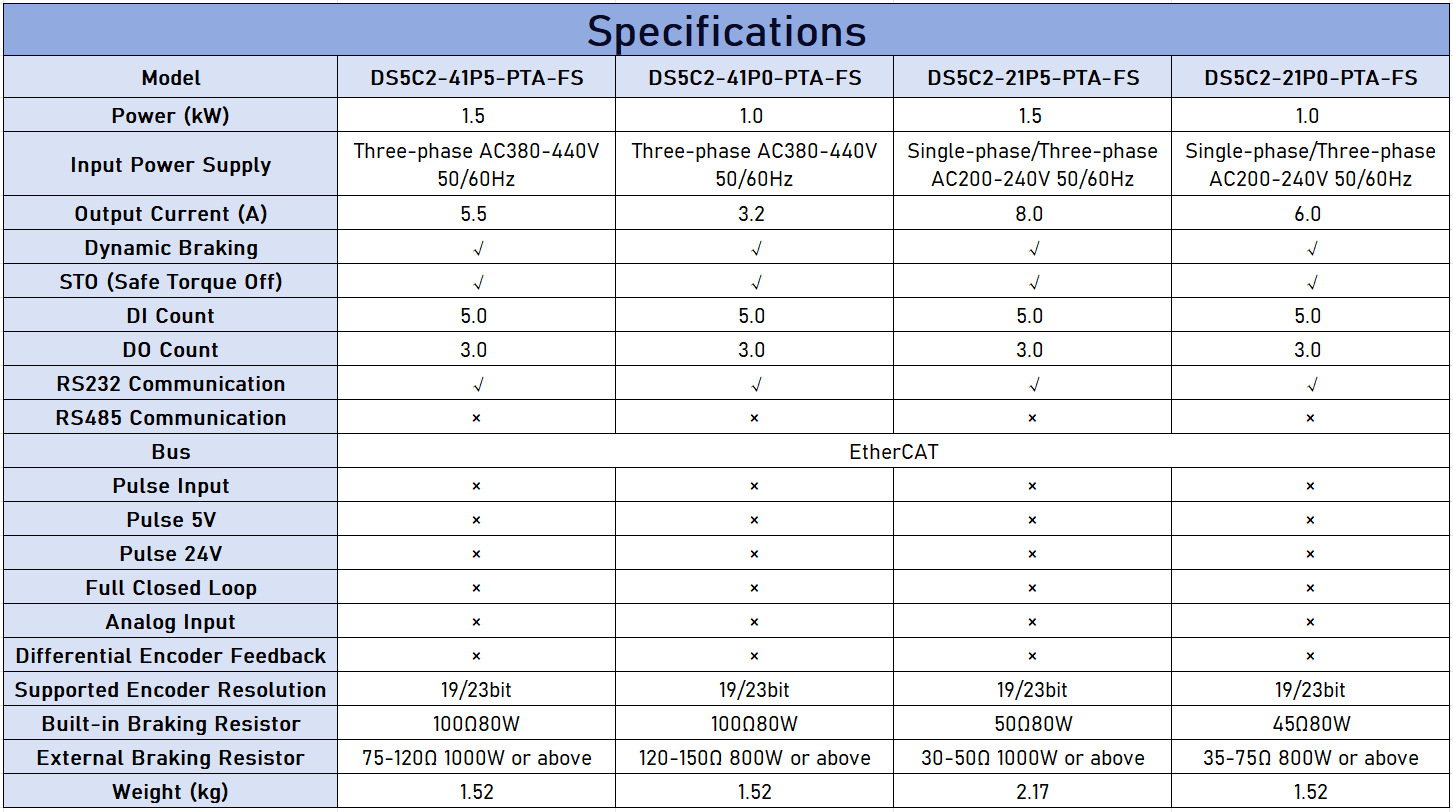

DS5C2-41P5-PTA-FS

Power: 1.5 kW
Input Power Supply: Three-phase AC380-440V 50/60Hz
Output Current: 5.5 A
Dynamic Braking: ✓
STO (Safe Torque Off): ✓
DI Count: 5.0
DO Count: 3.0
RS232 Communication: ✓
RS485 Communication: ✗
Bus: EtherCAT
Pulse Input: ✗
Pulse 5V: ✗
Pulse 24V: ✗
Full Closed Loop: ✗
Analog Input: ✗
Differential Encoder Feedback: ✗
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 100Ω80W
External Braking Resistor: 75-120Ω 1000W or above
Weight: 1.52 kg

DS5C2-41P0-PTA-FS

Power: 1.0 kW
Input Power Supply: Three-phase AC380-440V 50/60Hz
Output Current: 3.2 A
Dynamic Braking: ✓
STO (Safe Torque Off): ✓
DI Count: 5.0
DO Count: 3.0
RS232 Communication: ✓
RS485 Communication: ✗
Bus: EtherCAT
Pulse Input: ✗
Pulse 5V: ✗
Pulse 24V: ✗
Full Closed Loop: ✗
Analog Input: ✗
Differential Encoder Feedback: ✗
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 100Ω80W
External Braking Resistor: 120-150Ω 800W or above
Weight: 1.52 kg

DS5C2-21P5-PTA-FS

Power: 1.5 kW
Input Power Supply: Single-phase/Three-phase AC200-240V 50/60Hz
Output Current: 8.0 A
Dynamic Braking: ✓
STO (Safe Torque Off): ✓
DI Count: 5.0
DO Count: 3.0
RS232 Communication: ✓
RS485 Communication: ✗
Bus: EtherCAT
Pulse Input: ✗
Pulse 5V: ✗
Pulse 24V: ✗
Full Closed Loop: ✗
Analog Input: ✗
Differential Encoder Feedback: ✗
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 50Ω80W
External Braking Resistor: 30-50Ω 1000W or above
Weight: 2.17 kg

DS5C2-21P0-PTA-FS

Power: 1.0 kW
Input Power Supply: Single-phase/Three-phase AC200-240V 50/60Hz
Output Current: 6.0 A
Dynamic Braking: ✓
STO (Safe Torque Off): ✓
DI Count: 5.0
DO Count: 3.0
RS232 Communication: ✓
RS485 Communication: ✗
Bus: EtherCAT
Pulse Input: ✗
Pulse 5V: ✗
Pulse 24V: ✗
Full Closed Loop: ✗
Analog Input: ✗
Differential Encoder Feedback: ✗
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 45Ω80W
External Braking Resistor: 35-75Ω 800W or above
Weight: 1.52 kg

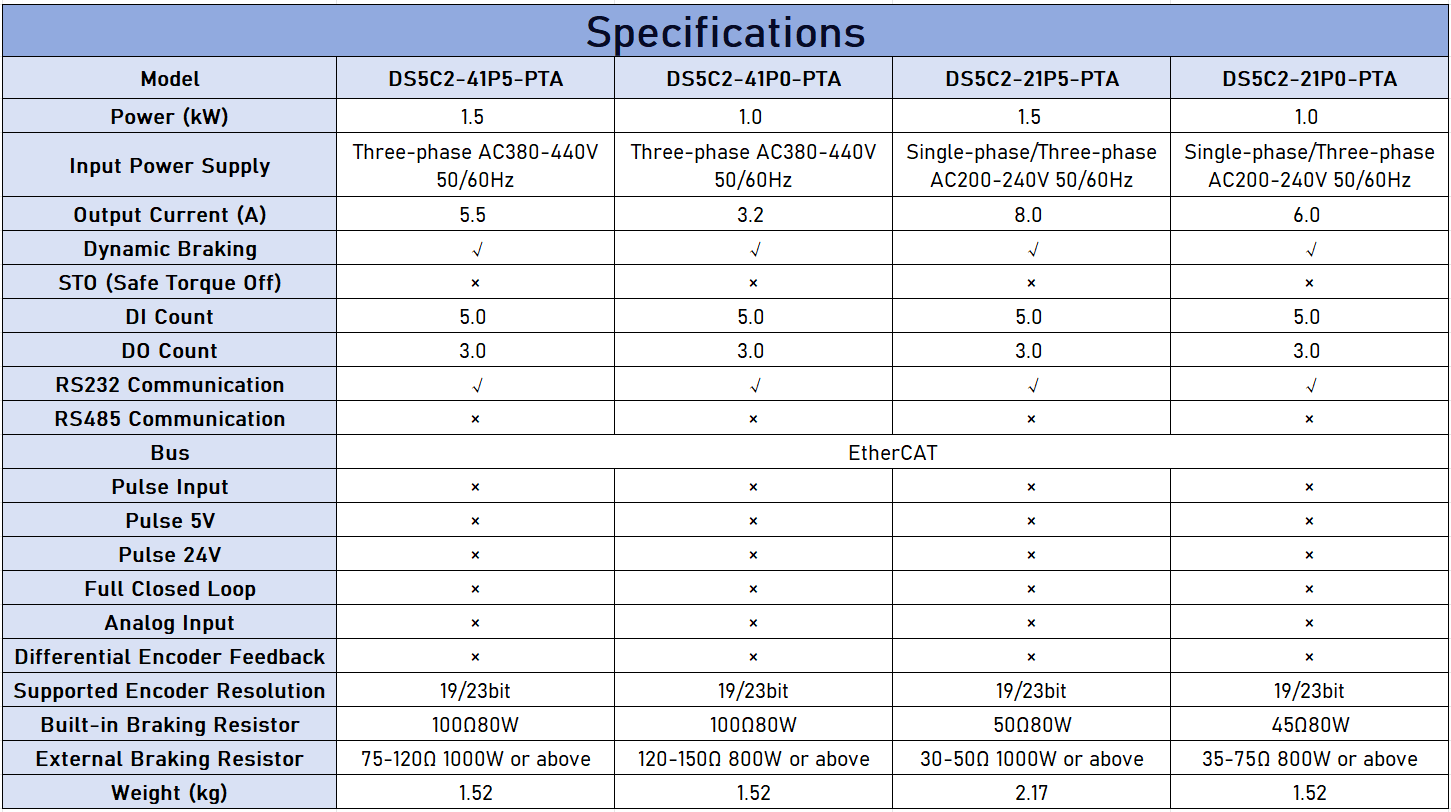

DS5C2-41P5-PTA

Power: 1.5 kW
Input Power Supply: Three-phase AC380-440V 50/60Hz
Output Current: 5.5 A
Dynamic Braking: ✓
STO (Safe Torque Off): ✗
DI Count: 5.0
DO Count: 3.0
RS232 Communication: ✓
RS485 Communication: ✗
Bus: EtherCAT
Pulse Input: ✗
Pulse 5V: ✗
Pulse 24V: ✗
Full Closed Loop: ✗
Analog Input: ✗
Differential Encoder Feedback: ✗
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 100Ω80W
External Braking Resistor: 75-120Ω 1000W or above
Weight: 1.52 kg

DS5C2-41P0-PTA

Power: 1.0 kW
Input Power Supply: Three-phase AC380-440V 50/60Hz
Output Current: 3.2 A
Dynamic Braking: ✓
STO (Safe Torque Off): ✗
DI Count: 5.0
DO Count: 3.0
RS232 Communication: ✓
RS485 Communication: ✗
Bus: EtherCAT
Pulse Input: ✗
Pulse 5V: ✗
Pulse 24V: ✗
Full Closed Loop: ✗
Analog Input: ✗
Differential Encoder Feedback: ✗
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 100Ω80W
External Braking Resistor: 120-150Ω 800W or above
Weight: 1.52 kg

DS5C2-21P5-PTA

Power: 1.5 kW
Input Power Supply: Single-phase/Three-phase AC200-240V 50/60Hz
Output Current: 8.0 A
Dynamic Braking: ✓
STO (Safe Torque Off): ✗
DI Count: 5.0
DO Count: 3.0
RS232 Communication: ✓
RS485 Communication: ✗
Bus: EtherCAT
Pulse Input: ✗
Pulse 5V: ✗
Pulse 24V: ✗
Full Closed Loop: ✗
Analog Input: ✗
Differential Encoder Feedback: ✗
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 50Ω80W
External Braking Resistor: 30-50Ω 1000W or above
Weight: 2.17 kg

DS5C2-21P0-PTA

Power: 1.0 kW
Input Power Supply: Single-phase/Three-phase AC200-240V 50/60Hz
Output Current: 6.0 A
Dynamic Braking: ✓
STO (Safe Torque Off): ✗
DI Count: 5.0
DO Count: 3.0
RS232 Communication: ✓
RS485 Communication: ✗
Bus: EtherCAT
Pulse Input: ✗
Pulse 5V: ✗
Pulse 24V: ✗
Full Closed Loop: ✗
Analog Input: ✗
Differential Encoder Feedback: ✗
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 45Ω80W
External Braking Resistor: 35-75Ω 800W or above
Weight: 1.52 kg
