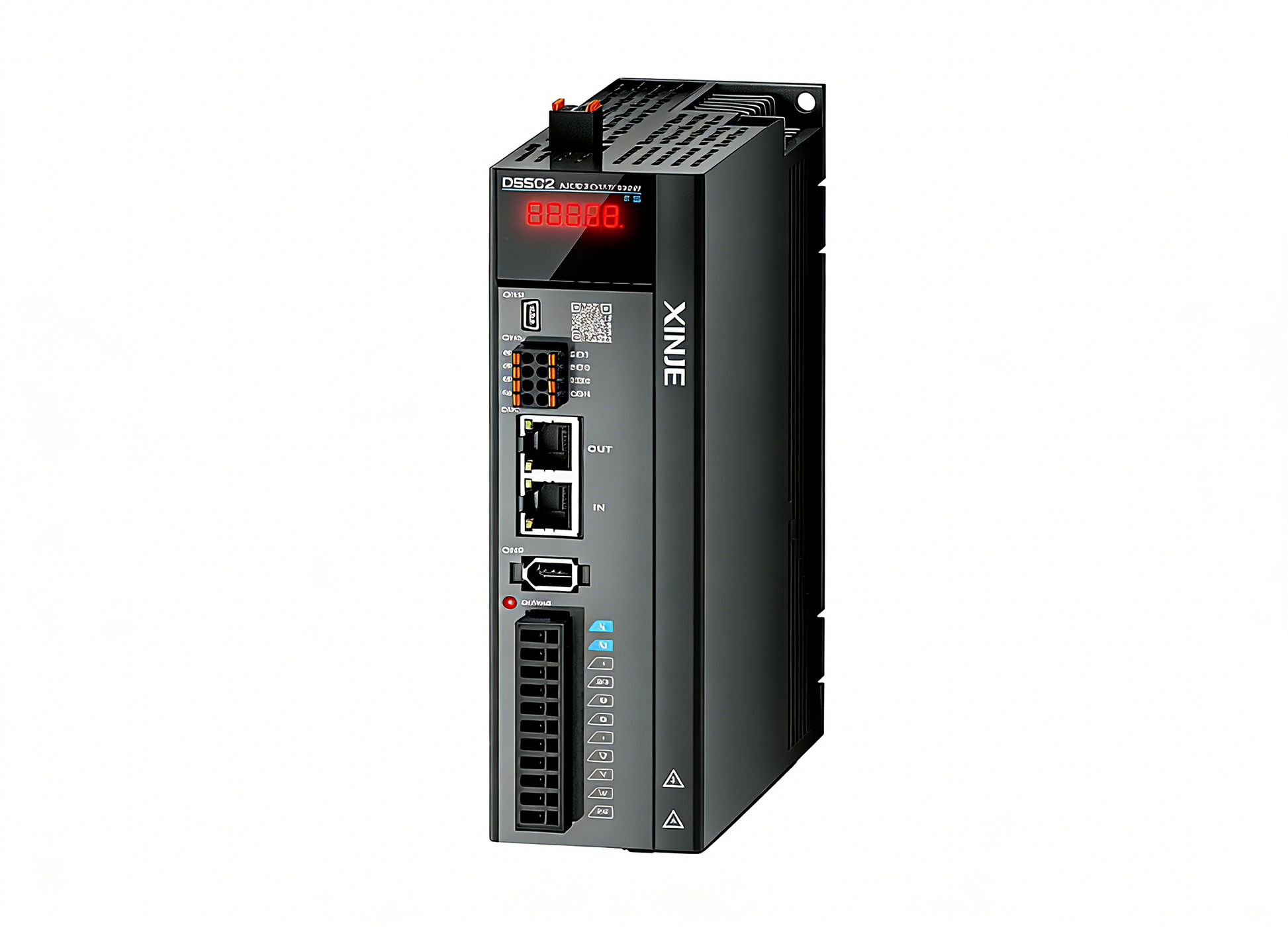

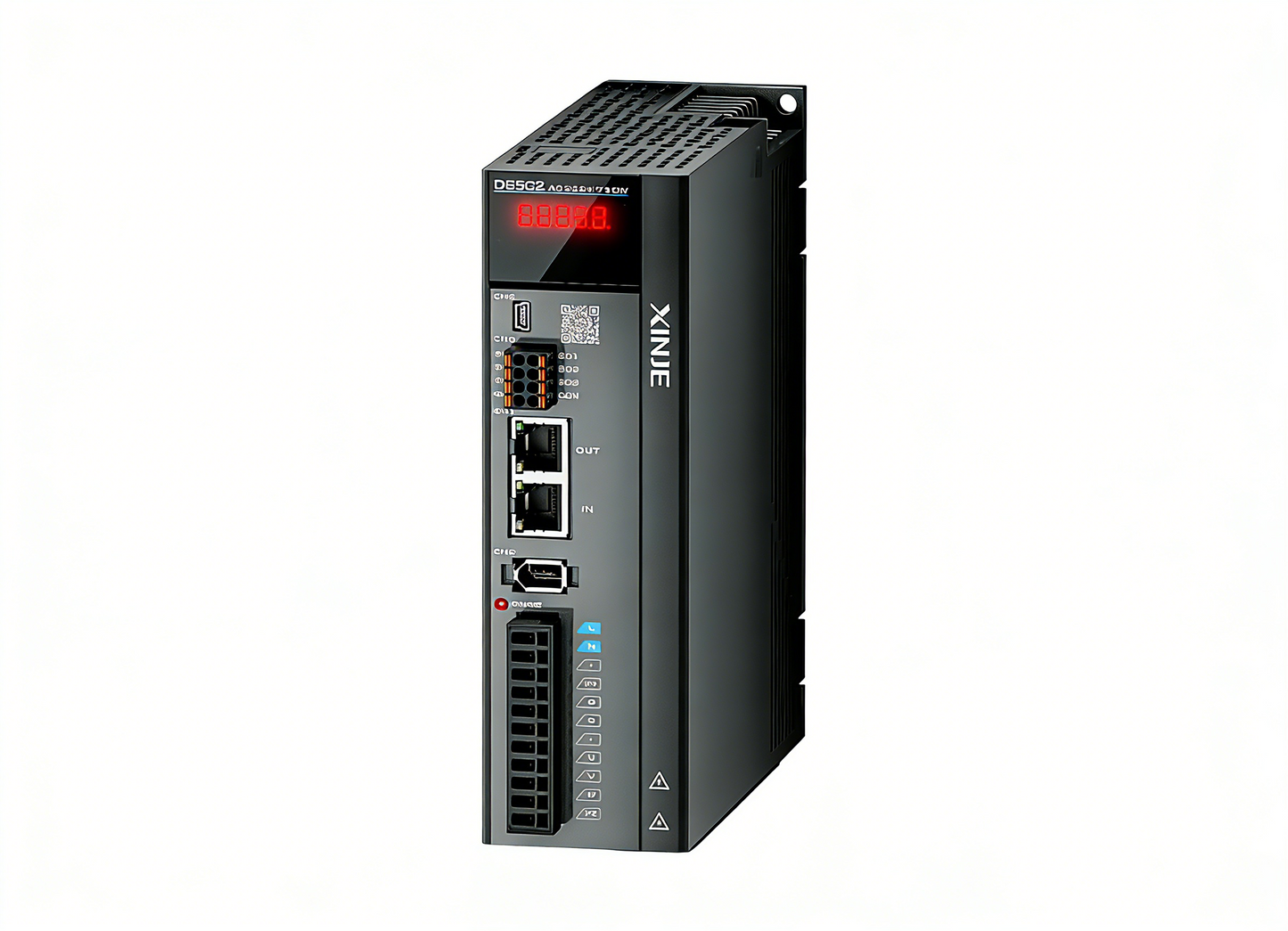

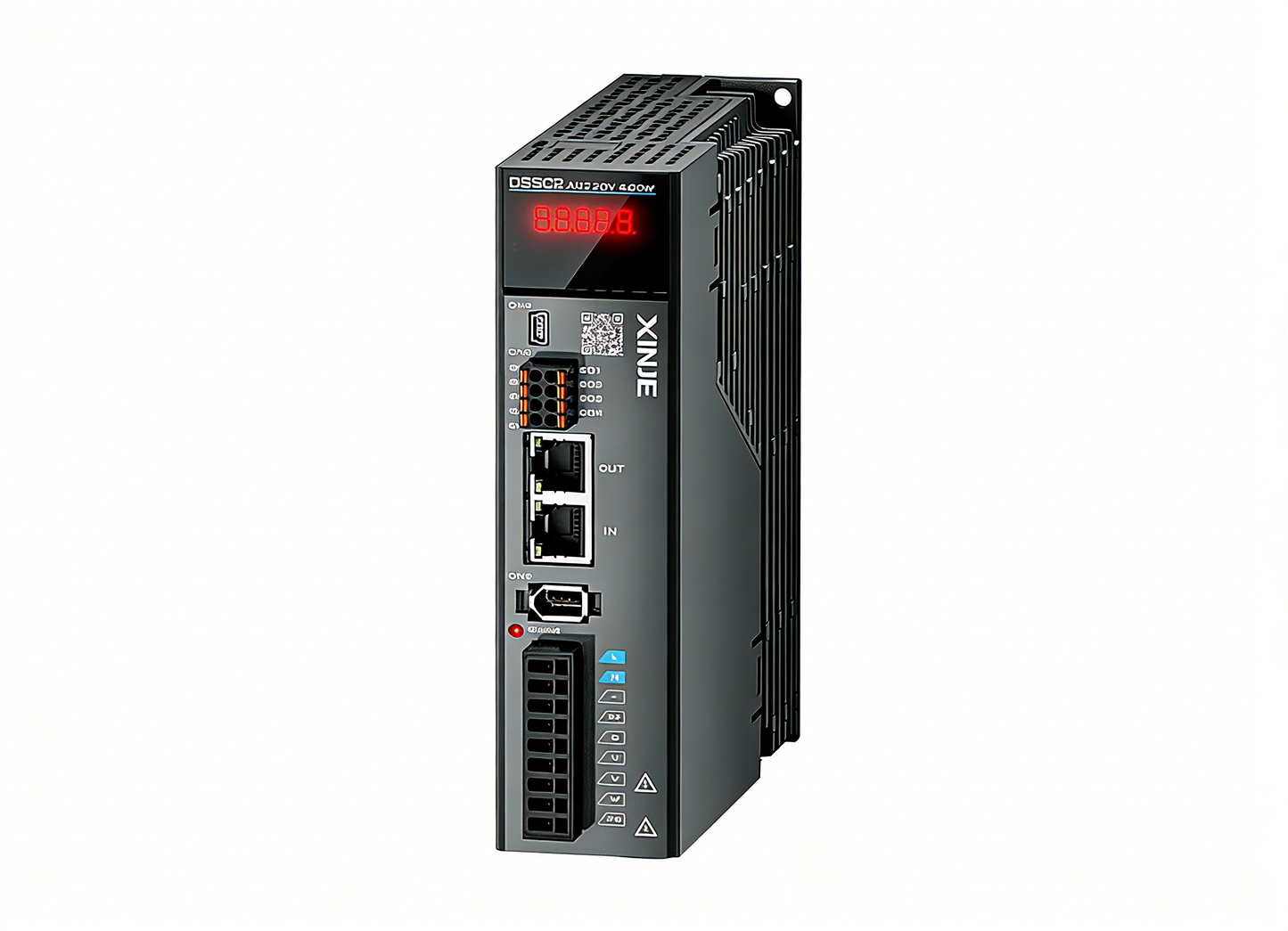

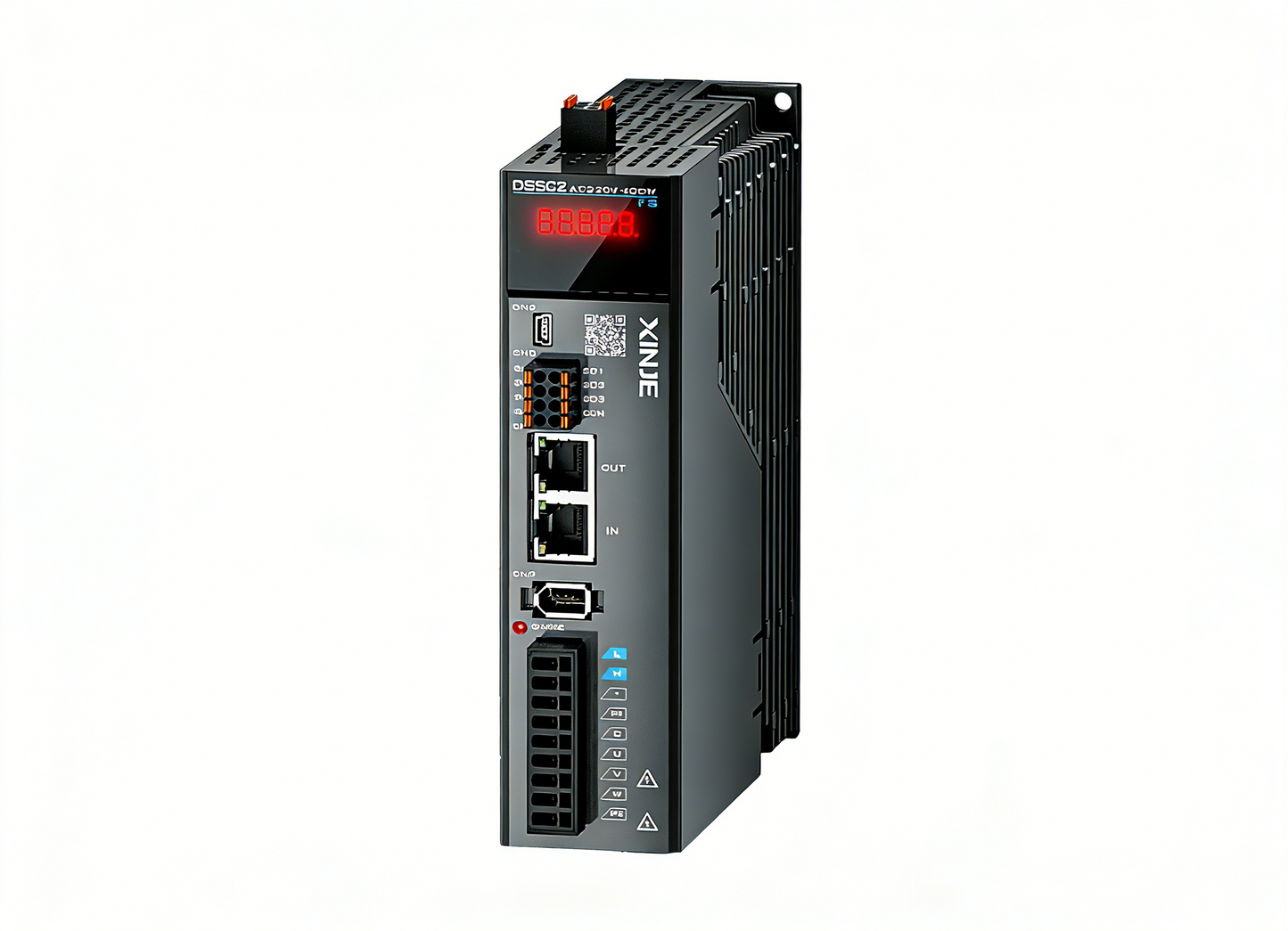

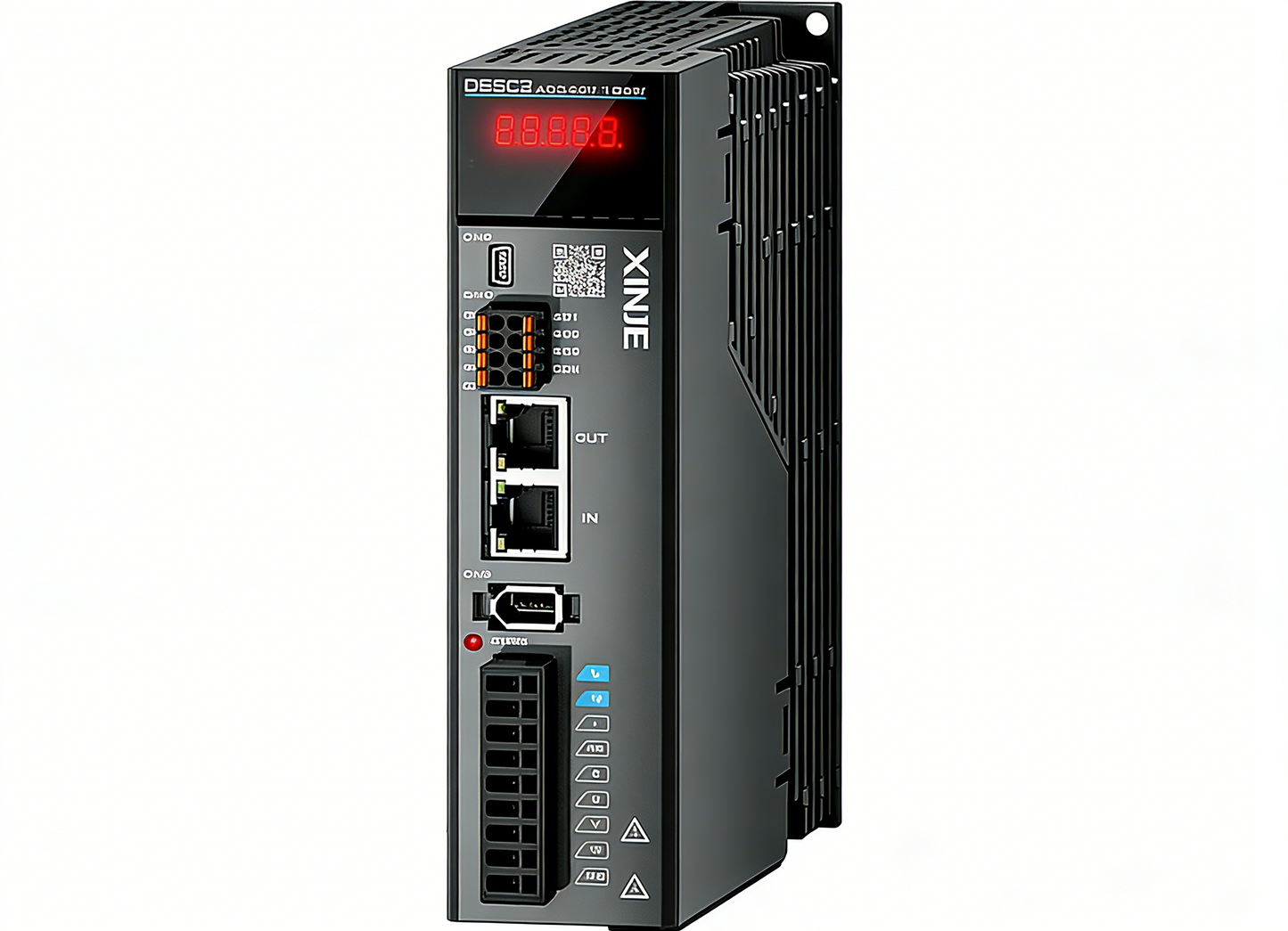

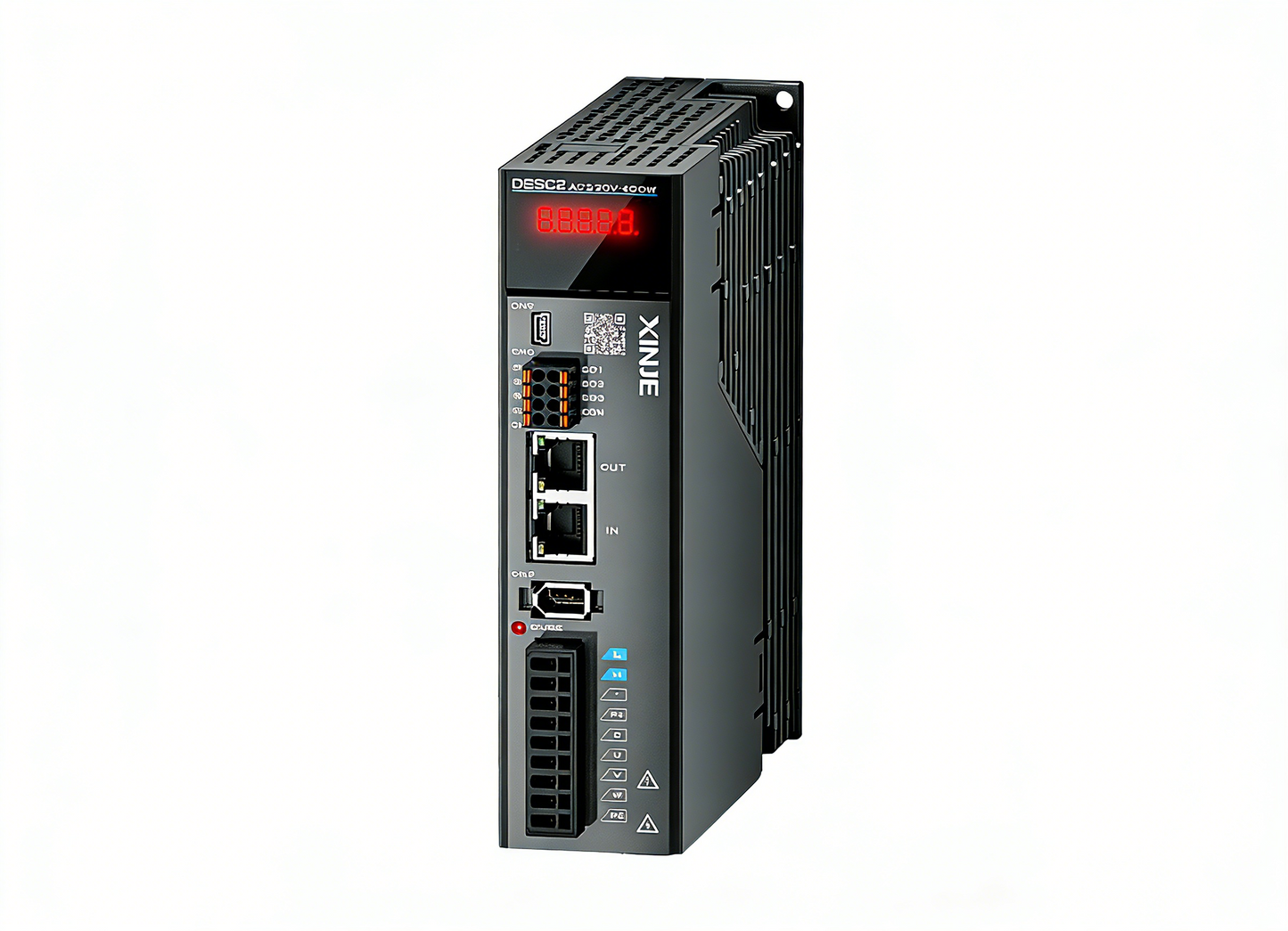

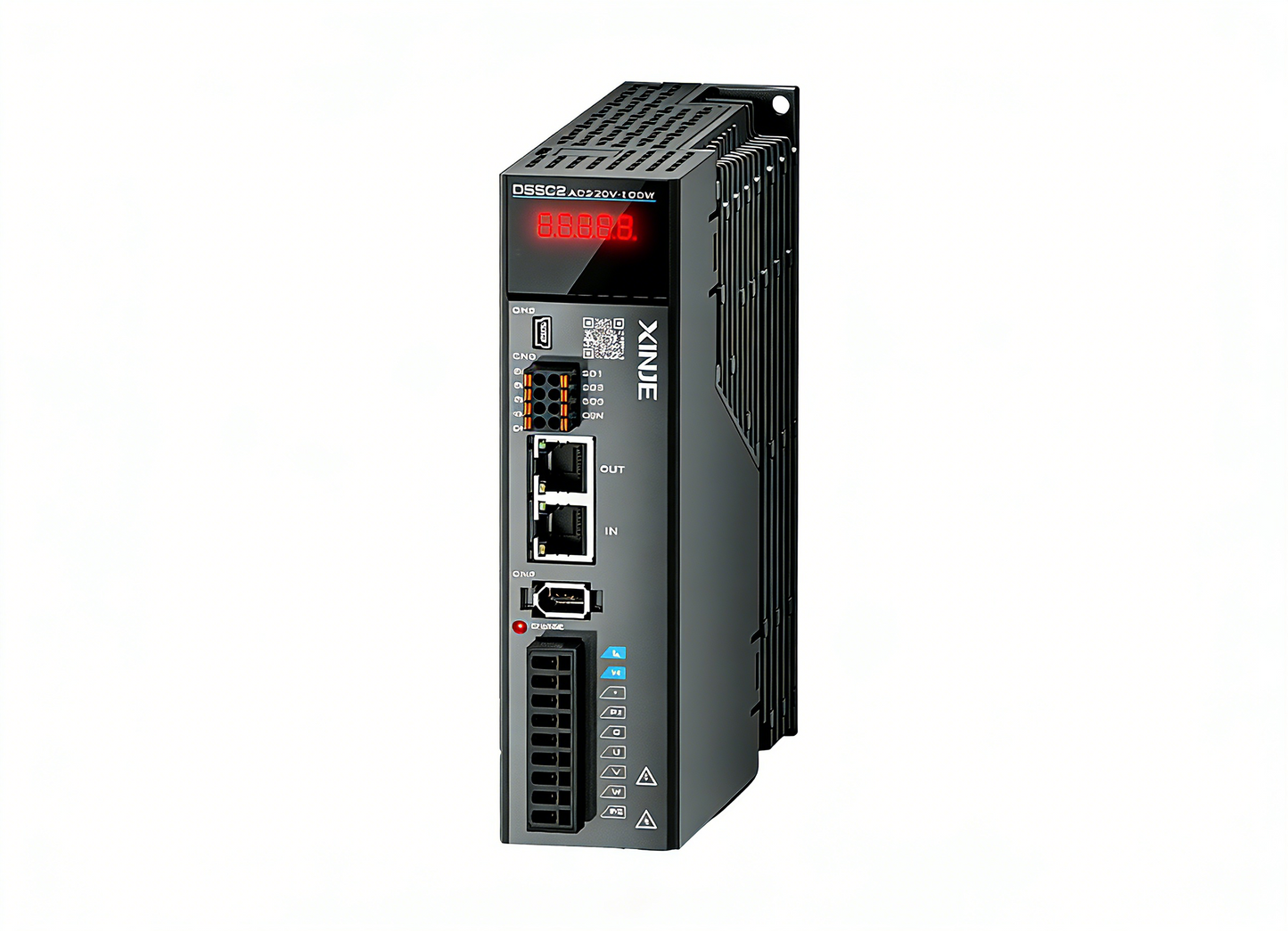

XINJE DS5C2 0.75KW And Below EtherCAT Servo Drive - High Dynamic Response

XINJE DS5C2 0.75KW And Below EtherCAT Servo Drive - High Dynamic Response

$350.00 USD

$350.00 USD

Sale Sold out

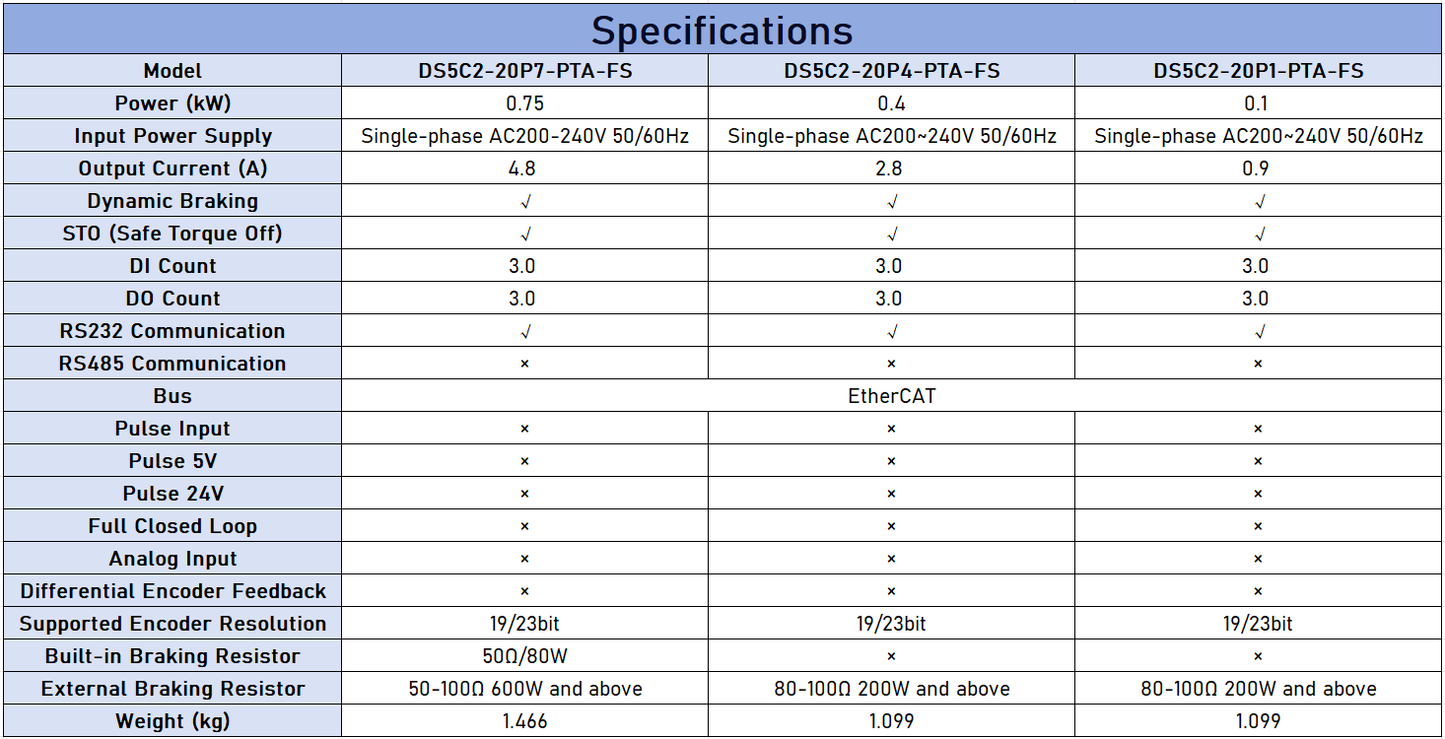

Model: DS5C2-20P7-PTA-FS

Power (kW): 0.75
Input Power Supply: Single-phase AC200-240V 50/60Hz
Output Current (A): 4.8
Dynamic Braking: ✓
STO (Safe Torque Off): ✓
DI Count: 3.0
DO Count: 3.0
RS232 Communication: ✓
RS485 Communication: × (Not Available)
Bus: EtherCAT
Pulse Input: × (Not Available)
Pulse 5V: × (Not Available)
Pulse 24V: × (Not Available)
Full Closed Loop: × (Not Available)
Analog Input: × (Not Available)
Differential Encoder Feedback: × (Not Available)
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 500/80W
External Braking Resistor: 50-1000 600W and above
Weight (kg): 1.466

Model: DS5C2-20P4-PTA-FS

Power (kW): 0.4
Input Power Supply: Single-phase AC200-240V 50/60Hz
Output Current (A): 2.8
Dynamic Braking: ✓
STO (Safe Torque Off): ✓
DI Count: 3.0
DO Count: 3.0
RS232 Communication: ✓
RS485 Communication: × (Not Available)
Bus: EtherCAT
Pulse Input: × (Not Available)
Pulse 5V: × (Not Available)
Pulse 24V: × (Not Available)
Full Closed Loop: × (Not Available)
Analog Input: × (Not Available)
Differential Encoder Feedback: × (Not Available)
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: × (Not Available)
External Braking Resistor: 80-1000 200W and above
Weight (kg): 1.099

Model: DS5C2-20P1-PTA-FS

Power (kW): 0.1
Input Power Supply: Single-phase AC200-240V 50/60Hz
Output Current (A): 0.9
Dynamic Braking: ✓
STO (Safe Torque Off): ✓
DI Count: 3.0
DO Count: 3.0
RS232 Communication: ✓
RS485 Communication: × (Not Available)
Bus: EtherCAT
Pulse Input: × (Not Available)
Pulse 5V: × (Not Available)
Pulse 24V: × (Not Available)
Full Closed Loop: × (Not Available)
Analog Input: × (Not Available)
Differential Encoder Feedback: × (Not Available)
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: × (Not Available)
External Braking Resistor: 80-1000 200W and above
Weight (kg): 1.099

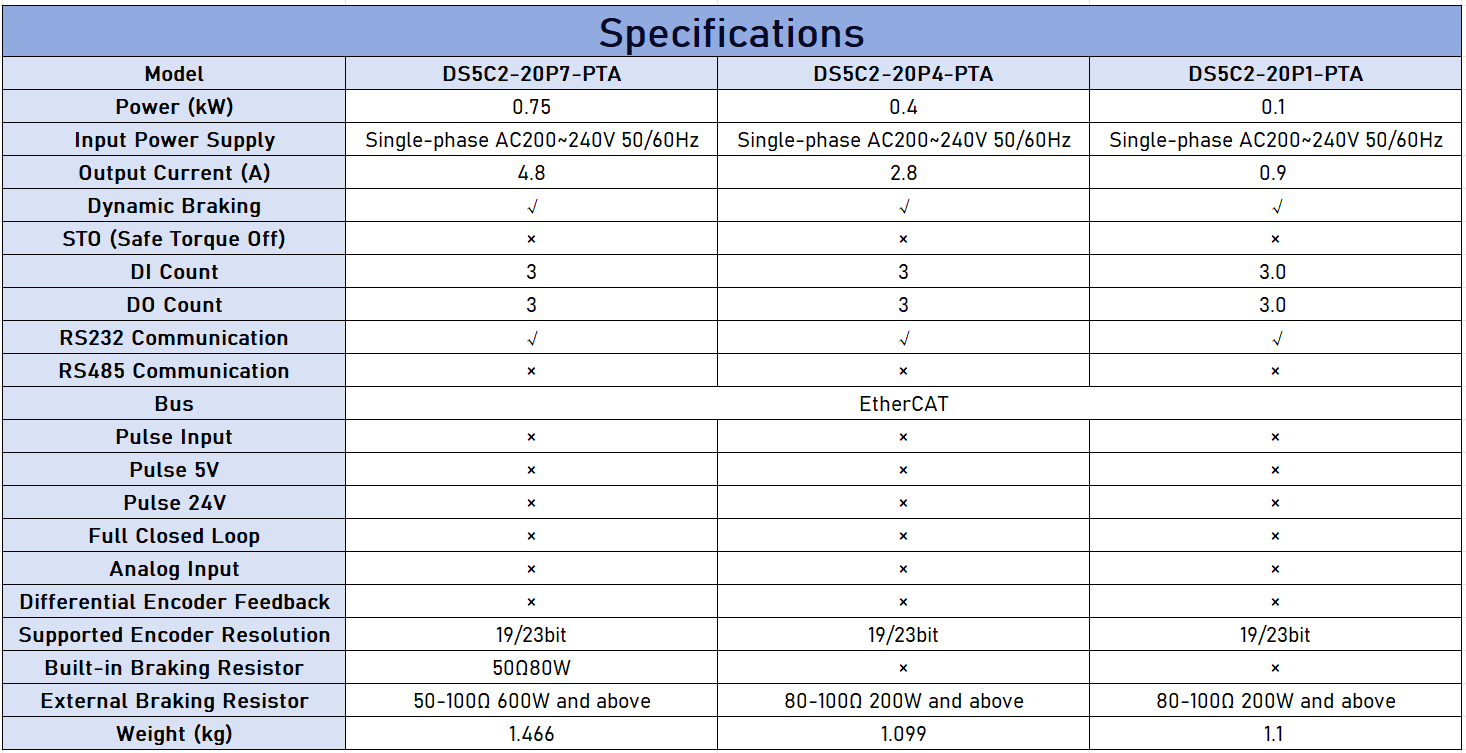

Model: DS5C2-20P7-PTA-FH

Power (kW): 0.75
Input Power Supply: Single-phase AC200-240V 50/60Hz
Output Current (A): 4.8
Dynamic Braking: ✓
STO (Safe Torque Off): × (Not Available)
DI Count: 5.0
DO Count: 3.0
RS232 Communication: ✓
RS485 Communication: × (Not Available)
Bus: EtherCAT
Pulse Input: × (Not Available)
Pulse 5V: × (Not Available)
Pulse 24V: × (Not Available)
Full Closed Loop: × (Not Available)
Analog Input: × (Not Available)
Differential Encoder Feedback: × (Not Available)
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: 500/80W
External Braking Resistor: 50-1000 600W and above
Weight (kg): 1.466

Model: DS5C2-20P4-PTA-FH

Power (kW): 0.4
Input Power Supply: Single-phase AC200-240V 50/60Hz
Output Current (A): 2.8
Dynamic Braking: ✓
STO (Safe Torque Off): × (Not Available)
DI Count: 5.0
DO Count: 3.0
RS232 Communication: ✓
RS485 Communication: × (Not Available)
Bus: EtherCAT
Pulse Input: × (Not Available)
Pulse 5V: × (Not Available)
Pulse 24V: × (Not Available)
Full Closed Loop: × (Not Available)
Analog Input: × (Not Available)
Differential Encoder Feedback: × (Not Available)
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: × (Not Available)
External Braking Resistor: 80-1000 200W and above
Weight (kg): 1.099

Model: DS5C2-20P1-PTA-FH

Power (kW): 0.1
Input Power Supply: Single-phase AC200-240V 50/60Hz
Output Current (A): 0.9
Dynamic Braking: ✓
STO (Safe Torque Off): × (Not Available)
DI Count: 5.0
DO Count: 3.0
RS232 Communication: ✓
RS485 Communication: × (Not Available)
Bus: EtherCAT
Pulse Input: × (Not Available)
Pulse 5V: × (Not Available)
Pulse 24V: × (Not Available)
Full Closed Loop: × (Not Available)
Analog Input: × (Not Available)
Differential Encoder Feedback: × (Not Available)
Supported Encoder Resolution: 19/23bit
Built-in Braking Resistor: × (Not Available)
External Braking Resistor: 80-1000 200W and above
Weight (kg): 1.1

Product features

Materials and care

Merchandising tips

View full details

Your cart
Variant	Variant total	Quantity	Price	Variant total
DS5C2-20P7-PTA-FS	DS5C2-20P7-PTA-FS $350.00/ea	$0.00	Quantity	$350.00/ea	$0.00

DS5C2-20P4-PTA-FS	DS5C2-20P4-PTA-FS $330.00/ea	$0.00	Quantity	$330.00/ea	$0.00

DS5C2-20P1-PTA-FS	DS5C2-20P1-PTA-FS $390.00/ea	$0.00	Quantity	$390.00/ea	$0.00

DS5C2-20P7-PTA-FH	DS5C2-20P7-PTA-FH $350.00/ea	$0.00	Quantity	$350.00/ea	$0.00

DS5C2-20P4-PTA-FH	DS5C2-20P4-PTA-FH $330.00/ea	$0.00	Quantity	$330.00/ea	$0.00

DS5C2-20P1-PTA-FH	DS5C2-20P1-PTA-FH $400.00/ea	$0.00	Quantity	$400.00/ea	$0.00

DS5C2-20P7-PTA	DS5C2-20P7-PTA $350.00/ea	$0.00	Quantity	$350.00/ea	$0.00

DS5C2-20P4-PTA	DS5C2-20P4-PTA $330.00/ea	$0.00	Quantity	$330.00/ea	$0.00

DS5C2-20P1-PTA	DS5C2-20P1-PTA $390.00/ea	$0.00	Quantity	$390.00/ea	$0.00
