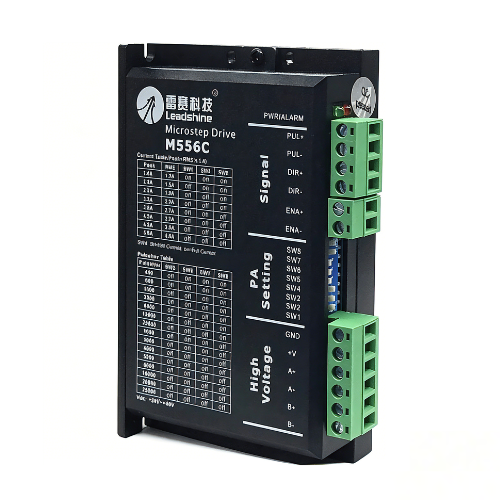

Leadshine M-C Series Pulse Economy Stepper Driver – Universal Motion Control

$999.00 USD

Sale Sold out

Product Overview

The M-C Series is an economical two-phase stepper driver launched by Leadshine. Adopting the latest 32-bit DSP technology, it supports common 8 (or 16) subdivision levels and 8 current levels, meeting the application needs of most scenarios.

With built-in micro-subdivision technology, the driver achieves high-subdivision performance even at low subdivision settings. This ensures smooth operation and low noise across low, medium, and high speeds. The driver features an internal automatic parameter tuning function, which automatically generates optimal operating parameters for different motors to maximize performance.

Key Features

Fully Digital DSP Technology: Advanced processing for precise control.
Stable & Reliable: High cost-performance ratio for economical solutions.
Easy to Use: Simple setup and integration.

M322C

Output Peak Current: 2.2 A
Supply Voltage: 18~30VDC
Matching Motor (Frame): 20/28/35
Dimensions (mm): 86*55*20
Debug Port: /
Digital Input: 3DI
Input Specification: Limit pulse frequency 70kHz, 5V, Pulse, Direction, Enable
Digital Output: /
Output Specification: /
Motor Winding Interface: 4PIN locking screw terminal
Power Input: 2PIN locking screw terminal
Control Mode: Pulse mode
Debug Software: /

M332C

Output Peak Current: 3.2 A
Supply Voltage: 18~30VDC
Matching Motor (Frame): 28/35
Dimensions (mm): 86*55*20
Debug Port: /
Digital Input: 3DI
Input Specification: Limit pulse frequency 70kHz, 5V, Pulse, Direction, Enable
Digital Output: /
Output Specification: /
Motor Winding Interface: 4PIN locking screw terminal
Power Input: 2PIN locking screw terminal
Control Mode: Pulse mode
Debug Software: /

M542C

Output Peak Current: 4.2 A
Supply Voltage: 20~50VDC
Matching Motor (Frame): 42/57
Dimensions (mm): 118*75.5*25.5
Debug Port: /
Digital Input: 3DI
Input Specification: Limit pulse frequency 200kHz, 5V, Pulse, Direction, Enable
Digital Output: /
Output Specification: /
Motor Winding Interface: 4PIN locking screw terminal
Power Input: 2PIN locking screw terminal
Control Mode: Pulse mode
Debug Software: /

M556C

Output Peak Current: 5.6 A
Supply Voltage: 20~50VDC
Matching Motor (Frame): 57/60
Dimensions (mm): 118*75.5*34
Debug Port: /
Digital Input: 3DI
Input Specification: Limit pulse frequency 200kHz, 5V, Pulse, Direction, Enable
Digital Output: /
Output Specification: /
Motor Winding Interface: 4PIN locking screw terminal
Power Input: 2PIN locking screw terminal
Control Mode: Pulse mode
Debug Software: /

MA860C(V3.0)

Output Peak Current: 7.2 A
Supply Voltage: 20~80VAC / 30~100VDC
Matching Motor (Frame): 86/110
Dimensions (mm): 151*97*53
Debug Port: RS232 Debug Port
Digital Input: 3DI
Input Specification: Limit pulse frequency 200kHz, 5V, Pulse, Direction, Enable
Digital Output: 2DO
Output Specification: OC output, max output 100mA, supports alarm, braking
Motor Winding Interface: 4PIN locking screw terminal
Power Input: 2PIN locking screw terminal
Control Mode: Pulse mode
Debug Software: StandardProTuner
