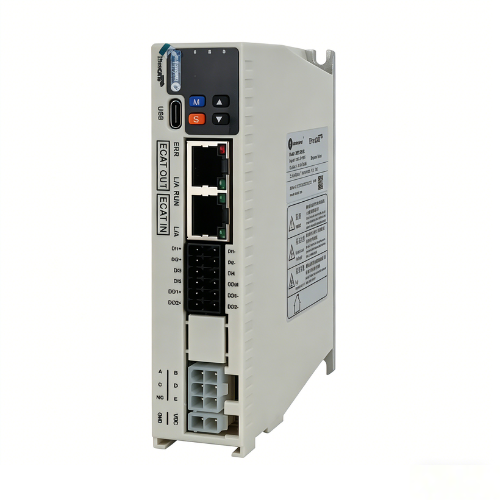

Leadshine DM5-EC Series High-End 5-Phase EtherCAT Stepper Driver

$999.00 USD

Sale Sold out

Product Overview

The DM5-EC Series is a new generation of 5-phase stepper motor drivers featuring an EtherCAT bus interface, engineered by Leadshine. Compared to traditional 2-phase drivers, this series effectively overcomes common limitations, offering superior precision and stability.

By utilizing EtherCAT slave technology, the drive achieves real-time control and data transmission with a high-speed rate of 100Mb/s. It is designed for simple operation, stability, and excellence performance.

Key Features & Benefits:

High Precision: Accurate positioning with minimal speed fluctuation across all speed ranges.
Smooth Operation: Low torque ripple, low vibration, and low noise.
High Performance: Fast acceleration and high maximum operating speed.
EtherCAT Bus: Real-time control with 100Mb/s transmission rate.
Reliable: Simple to use, stable, and robust.

DM5-EC522

Peak Output Current: 2.2 A
Supply Voltage: 20-50 VDC
Matched Motor (Frame): 28 mm
Dimensions (L*W*H): 129*97*28 mm
Digital Inputs: 5DI (Supports Probe, Origin, Limits, E-Stop, 12-24V)
Digital Outputs: 2DO (OC Output, Max 30V, 100mA, Alarm/General)
Debug Port: TYPE-C
Motor Connector: 6PIN
Power Connector: 2PIN
Communication Protocol: EtherCAT
Control Modes: CSP, PP, PV, HM
Sync Modes: DC Synchronization & Free run
Sync Cycle: 0.25us ~ 20ms
Software: MotionStudio, NMS Multi-machine Management

DM5-EC532

Peak Output Current: 3.2 A
Supply Voltage: 20-50 VDC
Matched Motor (Frame): 42 mm
Dimensions (L*W*H): 129*97*28 mm
Digital Inputs: 5DI (Supports Probe, Origin, Limits, E-Stop, 12-24V)
Digital Outputs: 2DO (OC Output, Max 30V, 100mA, Alarm/General)
Debug Port: TYPE-C
Motor Connector: 6PIN
Power Connector: 2PIN
Communication Protocol: EtherCAT
Control Modes: CSP, PP, PV, HM
Sync Modes: DC Synchronization & Free run
Sync Cycle: 0.25us ~ 20ms
Software: MotionStudio, NMS Multi-machine Management

DM5-EC542

Peak Output Current: 4.2 A
Supply Voltage: 20-50 VDC
Matched Motor (Frame): 60 mm
Dimensions (L*W*H): 129*97*28 mm
Digital Inputs: 5DI (Supports Probe, Origin, Limits, E-Stop, 12-24V)
Digital Outputs: 2DO (OC Output, Max 30V, 100mA, Alarm/General)
Debug Port: TYPE-C
Motor Connector: 6PIN
Power Connector: 2PIN
Communication Protocol: EtherCAT
Control Modes: CSP, PP, PV, HM
Sync Modes: DC Synchronization & Free run
Sync Cycle: 0.25us ~ 20ms
Software: MotionStudio, NMS Multi-machine Management
