Leadshine DM3B Series EtherCAT Integrated Stepper Drive

Leadshine DM3B Series EtherCAT Integrated Stepper Drive

$999.00 USD
$999.00 USD
Sale Sold out

Product Overview: DM3B Series

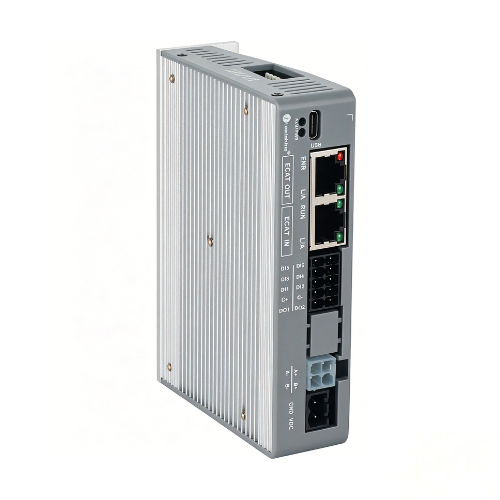

The DM3B Series is a premium, high-speed bus stepper driver independently developed by Leadshine. Designed for precision and efficiency, it supports the CoE (CANopen over EtherCAT) protocol and complies with the CiA402 standard.

High-Speed Connectivity

Supports a bus transmission rate of up to 100Mb/s, ensuring rapid data exchange.

Advanced Control Modes

Versatile support for CSP, PP, PV, and HM control modes to suit various application needs.

Why Choose the DM3B Series?

  • Real-Time Control: Achieves precise real-time control and data transmission for stepper systems.
  • Optimized Efficiency: Delivers significant advantages in saving space, time, and costs.
  • System Optimization: Utilizing the efficient, stable, and mature EtherCAT industrial bus solution significantly reduces system complexity and costs for multi-axis control networks.

Ideal for multi-axis control networks, the DM3B Series offers a robust solution that streamlines your automation setup while maintaining high performance.

DM3B-EC542
  • Output Peak Current (A): 4.2
  • Supply Voltage (VDC): 20~50VDC
  • Matching Motor (Frame Size): 35/42
  • Dimensions (mm): 118*90*28
  • Debug Port: TYPE-C
  • Digital Inputs: 6DI
  • Input Specification: Control signal 12-24V, supports probe input, origin, positive limit, negative limit, emergency stop, universal input, etc.
  • Digital Outputs: 2DO
  • Output Specification: OC output, max pull-up 30V, max output 100mA, supports alarm, braking, universal output, etc.
  • Motor Winding Interface: /
  • Power Supply Input: /
  • Communication Protocol: EtherCAT
  • Control Mode: CSP, PP, PV, HM
  • Synchronization Mode: DC Synchronization & Freerun mode
  • Synchronization Cycle: 250us~20ms
  • Debugging Software: Motion Studio, NMS multi-machine management software
DM3B-EC556
  • Output Peak Current (A): 5.6
  • Supply Voltage (VDC): 20~50VDC
  • Matching Motor (Frame Size): 57/60
  • Dimensions (mm): 118*90*28
  • Debug Port: TYPE-C
  • Digital Inputs: 6DI
  • Input Specification: Control signal 12-24V, supports probe input, origin, positive limit, negative limit, emergency stop, universal input, etc.
  • Digital Outputs: 2DO
  • Output Specification: OC output, max pull-up 30V, max output 100mA, supports alarm, braking, universal output, etc.
  • Motor Winding Interface: /
  • Power Supply Input: /
  • Communication Protocol: EtherCAT
  • Control Mode: CSP, PP, PV, HM
  • Synchronization Mode: DC Synchronization & Freerun mode
  • Synchronization Cycle: 250us~20ms
  • Debugging Software: Motion Studio, NMS multi-machine management software
DM3B-EC570
  • Output Peak Current (A): 7.0
  • Supply Voltage (VDC): 20~50VDC
  • Matching Motor (Frame Size): 86 (Below 8.5Nm)
  • Dimensions (mm): 118*90*28
  • Debug Port: TYPE-C
  • Digital Inputs: 6DI
  • Input Specification: Control signal 12-24V, supports probe input, origin, positive limit, negative limit, emergency stop, universal input, etc.
  • Digital Outputs: 2DO
  • Output Specification: OC output, max pull-up 30V, max output 100mA, supports alarm, braking, universal output, etc.
  • Motor Winding Interface: /
  • Power Supply Input: /
  • Communication Protocol: EtherCAT
  • Control Mode: CSP, PP, PV, HM
  • Synchronization Mode: DC Synchronization & Freerun mode
  • Synchronization Cycle: 250us~20ms
  • Debugging Software: Motion Studio, NMS multi-machine management software
DM3B-EC882AC
  • Output Peak Current (A): 8.2
  • Supply Voltage (VDC): 20~60VAC/24~72VDC
  • Matching Motor (Frame Size): 86
  • Dimensions (mm): 151*113*40
  • Debug Port: Micro USB
  • Digital Inputs: 5DI
  • Input Specification: Control signal 12-24V, supports probe input, origin, positive limit, negative limit, emergency stop, universal input, etc.
  • Digital Outputs: 2DO
  • Output Specification: OC output, max pull-up 30V, max output 100mA, supports alarm, braking, universal output, etc.
  • Motor Winding Interface: /
  • Power Supply Input: /
  • Communication Protocol: EtherCAT
  • Control Mode: CSP, PP, PV, HM
  • Synchronization Mode: DC Synchronization & Freerun mode
  • Synchronization Cycle: 250us~20ms
  • Debugging Software: Motion Studio, NMS multi-machine management software
DM3B-EC522
  • Output Peak Current (A): 2.2
  • Supply Voltage (VDC): 20~50VDC
  • Matching Motor (Frame Size): 28/35/42
  • Dimensions (mm): 118*90*28
  • Debug Port: TYPE-C
  • Digital Inputs: 6DI
  • Input Specification: Control signal 12-24V, supports probe input, origin, positive limit, negative limit, emergency stop, universal input, etc.
  • Digital Outputs: 2DO
  • Output Specification: OC output, max pull-up 30V, max output 100mA, supports alarm, braking, universal output, etc.
  • Motor Winding Interface: /
  • Power Supply Input: /
  • Communication Protocol: EtherCAT
  • Control Mode: CSP, PP, PV, HM
  • Synchronization Mode: DC Synchronization & Freerun mode
  • Synchronization Cycle: 250us~20ms
  • Debugging Software: Motion Studio, NMS multi-machine management software
