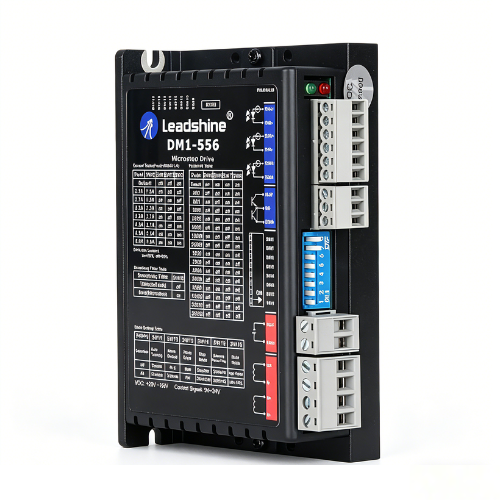

Leadshine DM1 Series Pulse Universal Stepper Driver

$999.00 USD

Sale Sold out

Leadshine DM1 Series Pulse Standard Stepper Driver

Ingenious Design · Ultimate Reliability · Empowering Smart Manufacturing

🚀 High Reliability & Cost-Effective

Combining over 20 years of application experience to ensure powerful functionality and superior cost performance.

⚡ Wide Signal Compatibility

Fully compatible with 5~24V pulse signals, adapting to various control systems.

🎛️ Rich DIP Switch Functions

Configurable extended function DIP switches for flexible operation and easy debugging.

⚙️ Dual Control Modes

Supports both Pulse and IO control modes simultaneously to meet diverse scenarios.

Product Overview

The DM1 Series is a pulse standard stepper driver launched by Leadshine, utilizing the latest open-loop stepper drive control algorithms. The entire series is equipped with a debugging port, a set of extended function DIP switches, and a metal heat sink. It achieves ultimate stability and reliability while ensuring powerful performance.

Empowered by craftsmanship, the DM1 Series is dedicated to assisting the transformation and upgrading of China's advanced equipment manufacturing industry.

Model: DM1-422

Peak Output Current:2.2 A
Supply Voltage:24~48 VDC
Matched Motor (Frame):20/28/35/42
Dimensions (mm):86*56*20
Debug Port:RS232 Debug Port
Digital Inputs (DI):3DI (Limit pulse freq 200/500kHz, compatible 5~24V, Pulse/Dir/Enable)
Digital Outputs (DO):1DO (OC Output, Max 100mA, Alarm support)
Motor Connector:4PIN Screw Terminal
Power Input:2PIN Screw Terminal
Control Mode:Pulse Mode
Debug Software:MotionStudio 2.3

Model: DM1-432

Peak Output Current:3.2 A
Supply Voltage:24~48 VDC
Matched Motor (Frame):42
Dimensions (mm):86*56*20
Debug Port:RS232 Debug Port
Digital Inputs (DI):3DI (Limit pulse freq 200/500kHz, compatible 5~24V, Pulse/Dir/Enable)
Digital Outputs (DO):1DO (OC Output, Max 100mA, Alarm support)
Motor Connector:4PIN Screw Terminal
Power Input:2PIN Screw Terminal
Control Mode:Pulse Mode
Debug Software:MotionStudio 2.3

Model: DM1-542

Peak Output Current:4.2 A
Supply Voltage:20~50 VDC
Matched Motor (Frame):42/57
Dimensions (mm):118*75.5*25.5
Debug Port:RS232 Debug Port
Digital Inputs (DI):3DI (Limit pulse freq 200/500kHz, compatible 5~24V, Pulse/Dir/Enable)
Digital Outputs (DO):2DO (OC Output, Max 100mA, Alarm & Error support)
Motor Connector:4PIN Screw Terminal
Power Input:2PIN Screw Terminal
Control Mode:Pulse Mode
Debug Software:MotionStudio 2.3

Model: DM1-556

Peak Output Current:5.6 A
Supply Voltage:20~50 VDC
Matched Motor (Frame):57/60
Dimensions (mm):118*75.5*34
Debug Port:RS232 Debug Port
Digital Inputs (DI):3DI (Limit pulse freq 200/500kHz, compatible 5~24V, Pulse/Dir/Enable)
Digital Outputs (DO):2DO (OC Output, Max 100mA, Alarm & Error support)
Motor Connector:4PIN Screw Terminal
Power Input:2PIN Screw Terminal
Control Mode:Pulse Mode
Debug Software:MotionStudio 2.3

Model: DM1-870

Peak Output Current:7.0 A
Supply Voltage:20~80 VDC
Matched Motor (Frame):57/60/86
Dimensions (mm):118*75.5*34
Debug Port:RS232 Debug Port
Digital Inputs (DI):3DI (Limit pulse freq 200/500kHz, compatible 5~24V, Pulse/Dir/Enable)
Digital Outputs (DO):2DO (OC Output, Max 100mA, Alarm & Error support)
Motor Connector:4PIN Screw Terminal
Power Input:2PIN Screw Terminal
Control Mode:Pulse Mode
Debug Software:MotionStudio 2.3
