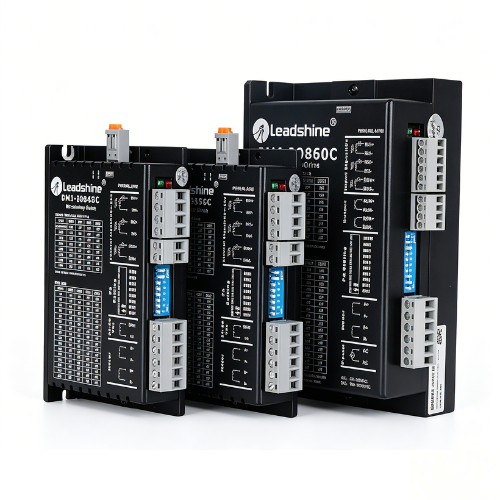

Leadshine DM1-IO Series IO Speed Control Stepper Driver - Pulse Compatible

$999.00 USD

Sale Sold out

Product Overview

The DM1-IO series, launched by Leadshine, are IO speed-controlled stepper drivers. They achieve constant speed control of stepper motors via IO switch triggering. The speed can be selected via external DIP switches or set through PC software. Features like 2-speed settings and acceleration switching meet diverse application requirements. This series can drive 2-phase stepper motors ranging from NEMA 17 (42) to NEMA 34 (86). It utilizes advanced control algorithms for precise current control and reduced motor heating. The built-in anti-resonance algorithm effectively eliminates low-speed jitter, ensuring smooth operation.

Key Features

Constant speed control via IO switch signals.
16 speed levels, 2 acceleration settings, supports 2-speed function.
Built-in excellent anti-resonance algorithm.
Supports switching between IO mode and Pulse mode.

DM1-IO422C

Output Peak Current: 2.2 A
Supply Voltage: 24-48 VDC
Matching Motor: 20/28/35/42
Dimensions: 86*56*20 mm
Debug Port: RS232
Digital Inputs: 3DI (5~24V, FWD, REV, 2nd Speed)
Digital Outputs: 1DO (OC Output, Max 100mA, Alarm)
Motor Connector: 4PIN Screw Terminal
Power Connector: 2PIN Screw Terminal
Control Mode: Digital IO Speed Control
Debug Software: MotionStudio 2.3
Compatibility: Compatible with Pulse Mode

DM1-IO442C

Output Peak Current: 4.2 A
Supply Voltage: 24-36 VDC
Matching Motor: 35/42
Dimensions: 122*76*25 mm
Debug Port: RS232
Digital Inputs: 3DI (5~24V, FWD, REV, 2nd Speed)
Digital Outputs: 1DO (OC Output, Max 100mA, Alarm)
Motor Connector: 4PIN Screw Terminal
Power Connector: 2PIN Screw Terminal
Control Mode: Digital IO Speed Control
Debug Software: MotionStudio 2.3
Compatibility: Compatible with Pulse Mode

DM1-IO542C

Output Peak Current: 4.2 A
Supply Voltage: 24-50 VDC
Matching Motor: 42/57
Dimensions: 118*75.5*25.5 mm
Debug Port: RS232
Digital Inputs: 3DI (5~24V, FWD, REV, 2nd Speed)
Digital Outputs: 1DO (OC Output, Max 100mA, Alarm)
Motor Connector: 4PIN Screw Terminal
Power Connector: 2PIN Screw Terminal
Control Mode: Digital IO Speed Control
Debug Software: MotionStudio 2.3
Compatibility: Compatible with Pulse Mode

DM1-IO556C

Output Peak Current: 5.6 A
Supply Voltage: 24-50 VDC
Matching Motor: 57/60
Dimensions: 118*75.5*34 mm
Debug Port: RS232
Digital Inputs: 3DI (5~24V, FWD, REV, 2nd Speed)
Digital Outputs: 1DO (OC Output, Max 100mA, Alarm)
Motor Connector: 4PIN Screw Terminal
Power Connector: 2PIN Screw Terminal
Control Mode: Digital IO Speed Control
Debug Software: MotionStudio 2.3
Compatibility: Compatible with Pulse Mode

DM1-IO860C(V2.0)

Output Peak Current: 7.2 A
Supply Voltage: 24-70 VAC / 30-100 VDC
Matching Motor: 86/110
Dimensions: 151*95*53 mm
Debug Port: RS232
Digital Inputs: 3DI (5~24V, FWD, REV, 2nd Speed)
Digital Outputs: 2DO (OC Output, Max 100mA, Alarm/Brake)
Motor Connector: 4PIN Screw Terminal
Power Connector: 2PIN Screw Terminal
Control Mode: Digital IO Speed Control
Debug Software: MotionStudio 2.3
Compatibility: Compatible with Pulse Mode

2DM1-V460-JBT

Output Peak Current: 6.0 A
Supply Voltage: 20-40 VDC
Matching Motor: 42/57
Dimensions: 118*75.5*25.5 mm
Debug Port: RS232
Digital Inputs: 2DI (5~24V, Enable, Direction)
Digital Outputs: None
Motor Connector: 4PIN Screw Terminal
Power Connector: 2PIN Screw Terminal
Control Mode: Analog IO Speed Control
Debug Software: MotionStudio 2.3
Compatibility: Compatible with Pulse Mode

2DM1-V580

Output Peak Current: 8.0 A
Supply Voltage: 20-50 VDC
Matching Motor: 57/60
Dimensions: 118*75.5*34 mm
Debug Port: RS232
Digital Inputs: 2DI (5~24V, Enable, Direction)
Digital Outputs: None
Motor Connector: 4PIN Screw Terminal
Power Connector: 2PIN Screw Terminal
Control Mode: Analog IO Speed Control
Debug Software: MotionStudio 2.3
Compatibility: Compatible with Pulse Mode
