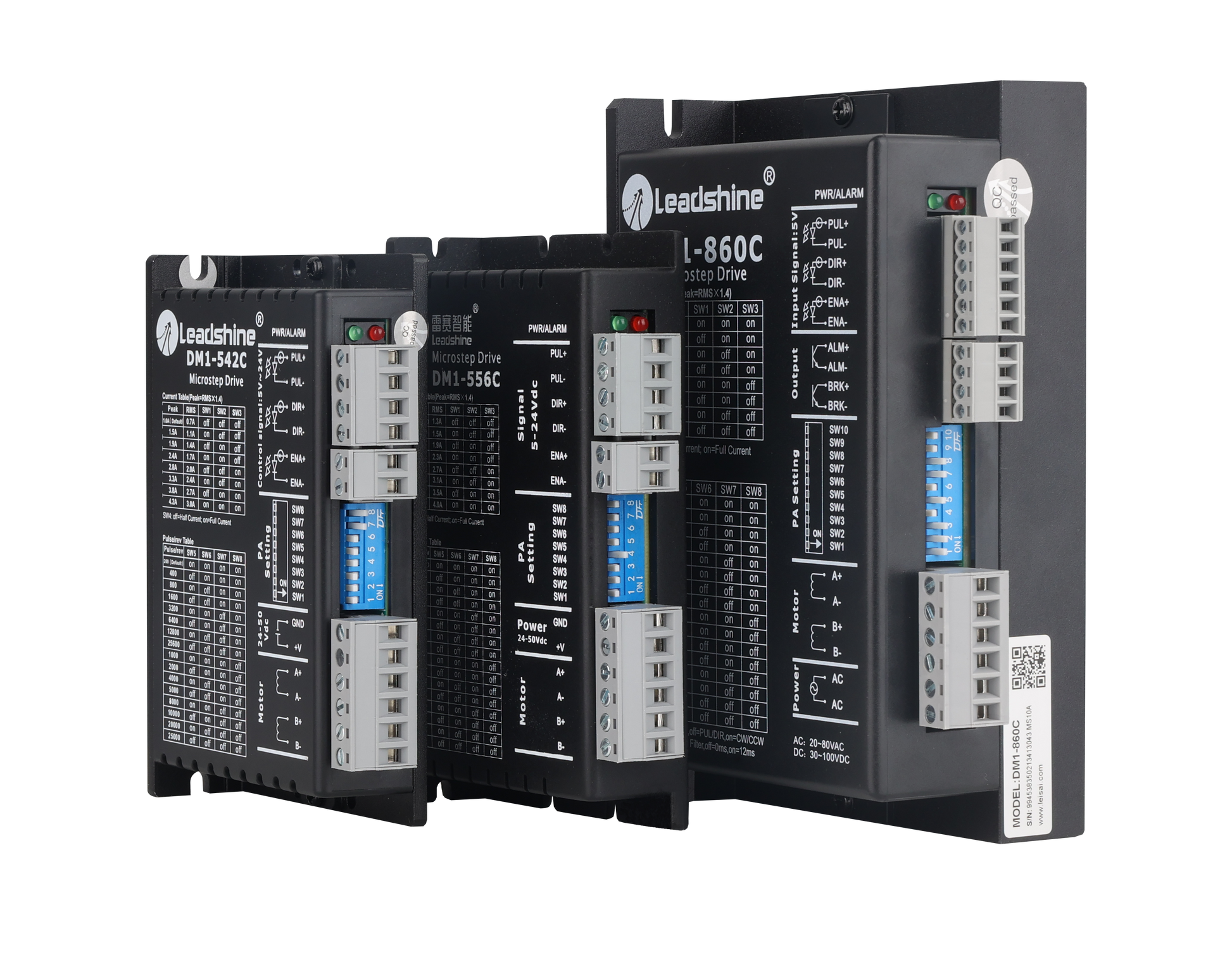

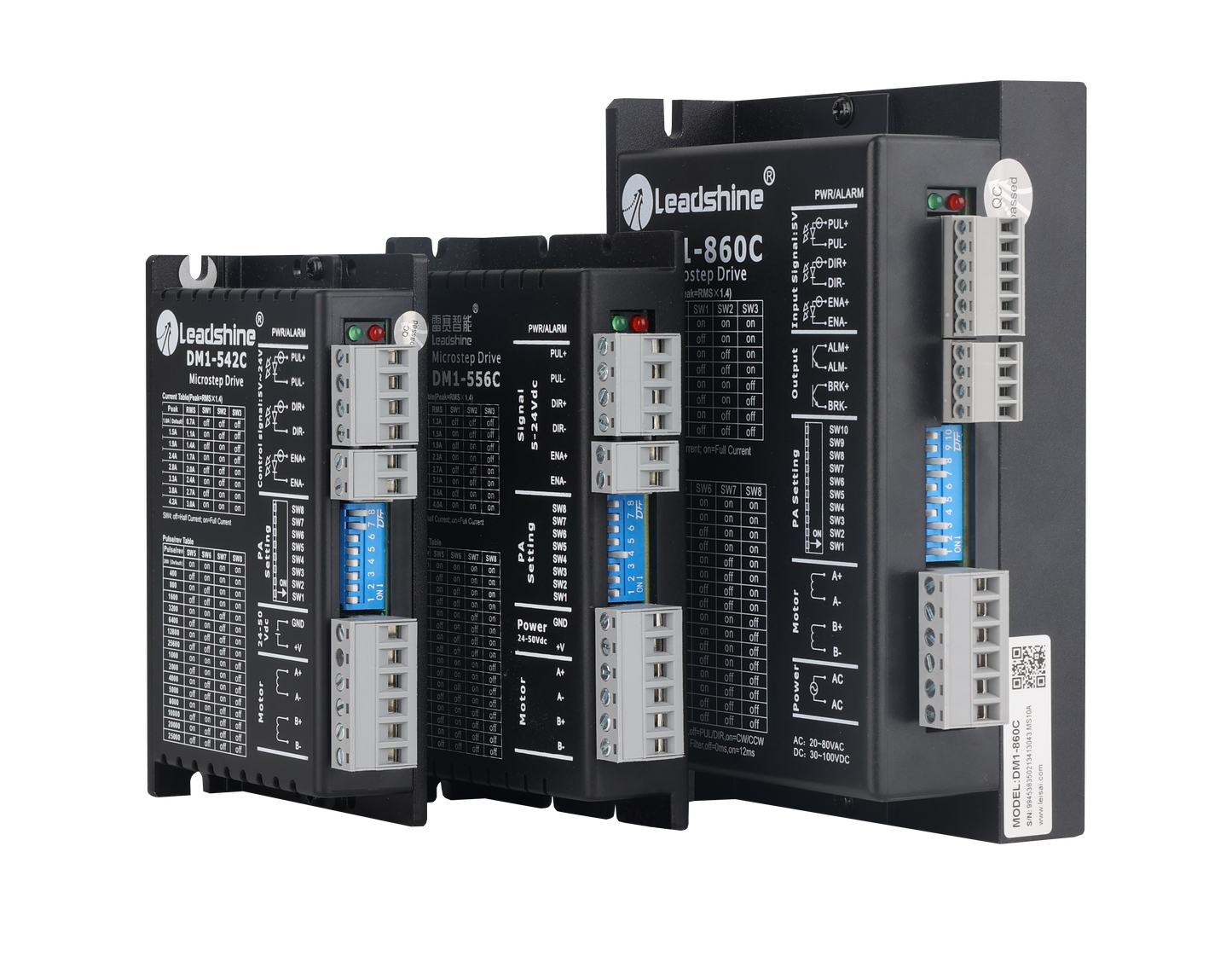

Leadshine DM1-C Series Pulse Universal Stepper Driver - Cost-Effective Motion Control Solution

$999.00 USD

Sale Sold out

DM1-C Series Pulse Economy Stepper Driver

The DM1-C series is a pulse economy stepper driver launched by Leadshine. It offers high cost-performance, ease of use, and stability. Based on the classic DM series, the DM1-C digital series features fully domestic components, optimized functions, and improved performance. It utilizes a new generation of advanced current control algorithms and features motor parameter auto-tuning to meet complex application needs.

High Cost-Performance: An extremely cost-effective solution with strong market competitiveness.
Wide Signal Compatibility: Compatible with 5~24V pulse signals.
Easy to Use: Designed for simplicity and reliability.
Advanced Features: Includes motor parameter auto-tuning and built-in filtering parameters.

DM1-422C

Output Peak Current: 2.2 A
Supply Voltage: 24~48VDC
Matching Motor: 20/28/35/42
Dimensions: 86*55*20 mm
Debug Port: /
Digital Input: 3DI
Input Spec: Limit pulse freq 200kHz, Compatible 5~24V, Pulse/Dir/Enable
Digital Output: /
Motor Winding Interface: 4PIN screw terminal
Power Input: 2PIN screw terminal
Control Mode: Pulse Mode
Communication Protocol: /

DM1-432C

Output Peak Current: 3.2 A
Supply Voltage: 24~48VDC
Matching Motor: 35/42
Dimensions: 86*55*20 mm
Debug Port: /
Digital Input: 3DI
Input Spec: Limit pulse freq 200kHz, Compatible 5~24V, Pulse/Dir/Enable
Digital Output: /
Motor Winding Interface: 4PIN screw terminal
Power Input: 2PIN screw terminal
Control Mode: Pulse Mode
Communication Protocol: /

DM1-442C

Output Peak Current: 4.2 A
Supply Voltage: 24~36VDC
Matching Motor: 42
Dimensions: 122*76*25 mm
Debug Port: /
Digital Input: 3DI
Input Spec: Limit pulse freq 200kHz, Compatible 5~24V, Pulse/Dir/Enable
Digital Output: /
Motor Winding Interface: 4PIN screw terminal
Power Input: 2PIN screw terminal
Control Mode: Pulse Mode
Communication Protocol: /

DM1-542C

Output Peak Current: 4.2 A
Supply Voltage: 24~50VDC
Matching Motor: 57
Dimensions: 118*75.5*25.5 mm
Debug Port: /
Digital Input: 3DI
Input Spec: Limit pulse freq 200kHz, Compatible 5~24V, Pulse/Dir/Enable
Digital Output: /
Motor Winding Interface: 4PIN screw terminal
Power Input: 2PIN screw terminal
Control Mode: Pulse Mode
Communication Protocol: /

DM1-556C

Output Peak Current: 5.6 A
Supply Voltage: 24~50VDC
Matching Motor: 57/60
Dimensions: 118*75.5*25.5 mm
Debug Port: /
Digital Input: 3DI
Input Spec: Limit pulse freq 200kHz, Compatible 5~24V, Pulse/Dir/Enable
Digital Output: /
Motor Winding Interface: 4PIN screw terminal
Power Input: 2PIN screw terminal
Control Mode: Pulse Mode
Communication Protocol: /

DM1-860C(V2.0)

Output Peak Current: 7.2 A
Supply Voltage: 24~70VAC / 30~100VDC
Matching Motor: 86/110
Dimensions: 151*95*53 mm
Debug Port: RS232 Debug Port
Digital Input: 3DI
Input Spec: Limit pulse freq 200kHz, Compatible 5~24V, Pulse/Dir/Enable
Digital Output: 2DO (OC Output, Max 100mA, Support Alarm/Hold)
Motor Winding Interface: 4PIN screw terminal
Power Input: 2PIN screw terminal
Control Mode: Pulse Mode
Communication Protocol: /
Debug Software: MotionStudio 2.3

DM1-3580

Output Peak Current: 8.0 A
Supply Voltage: 20~50VDC
Matching Motor: 57/60
Dimensions: 118*75.5*34 mm
Debug Port: RS232 Debug Port
Digital Input: 3DI
Input Spec: Limit pulse freq 200/500kHz, Compatible 5~24V, Pulse/Dir/Enable
Digital Output: /
Motor Winding Interface: 4PIN screw terminal
Power Input: 2PIN screw terminal
Control Mode: Pulse Mode
Communication Protocol: /
Debug Software: MotionStudio 2.3
