Product Overview

The DM Series Digital Stepper Driver utilizes a high-performance 32-bit DSP processor. Integrating nine revolutionary motor control technologies, it is capable of driving the full range of 35-130 two-phase and three-phase stepper motors.

It automatically generates optimal control parameters for different motors to maximize performance. This ensures the motor achieves the "Triple-Super Performance":

Ultra-smooth operation
Ultra-low noise
Ultra-low heat generation

1. Full Digital DSP Technology

Advanced 32-bit DSP processing for precise and responsive control.

2. Stable & Reliable

Built for durability with exceptional performance in demanding environments.

3. Rich Expansion Functions

Versatile features designed to meet diverse application requirements.

DM422(V3.0)

Output Peak Current: 2.2 A
Supply Voltage: 12~36VDC
Matching Motor: 20/28/35/42
Dimensions: 86*55*20 mm
Debug Port: RS232
Digital Input: 3DI
Input Spec: Limit pulse frequency 200kHz, 5V/24V, Pulse/Dir/Enable
Digital Output: 1DO
Output Spec: OC Output, Max 100mA, Support Alarm
Motor Winding Interface: 4PIN locking screw terminal
Power Input: 2PIN locking screw terminal
Control Mode: Pulse Mode
Debug Software: StandardProTuner

DM542(V3.0)

Output Peak Current: 4.2 A
Supply Voltage: 20~50VDC
Matching Motor: 42/57
Dimensions: 118*75.5*25.5 mm
Debug Port: RS232
Digital Input: 3DI
Input Spec: Limit pulse frequency 200kHz, 5V/24V, Pulse/Dir/Enable
Digital Output: 2DO
Output Spec: OC Output, Max 100mA, Support Alarm/Warning
Motor Winding Interface: 4PIN locking screw terminal
Power Input: 2PIN locking screw terminal
Control Mode: Pulse Mode
Debug Software: StandardProTuner

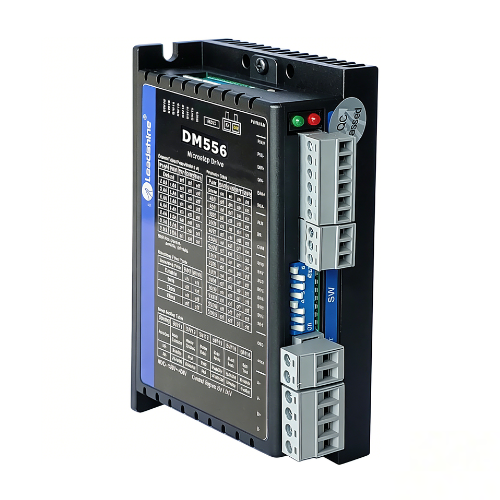

DM556(V3.0)

Output Peak Current: 5.6 A
Supply Voltage: 20~50VDC
Matching Motor: 57/60
Dimensions: 118*75.5*34 mm
Debug Port: RS232
Digital Input: 3DI
Input Spec: Limit pulse frequency 200kHz, 5V/24V, Pulse/Dir/Enable
Digital Output: 2DO
Output Spec: OC Output, Max 100mA, Support Alarm/Warning
Motor Winding Interface: 4PIN locking screw terminal
Power Input: 2PIN locking screw terminal
Control Mode: Pulse Mode
Debug Software: StandardProTuner

DM870(V3.0)

Output Peak Current: 7.0 A
Supply Voltage: 20~80VDC
Matching Motor: 57/60/86
Dimensions: 118*75.5*34 mm
Debug Port: RS232
Digital Input: 3DI
Input Spec: Limit pulse frequency 200kHz, 5V/24V, Pulse/Dir/Enable
Digital Output: 2DO
Output Spec: OC Output, Max 100mA, Support Alarm/Warning
Motor Winding Interface: 4PIN locking screw terminal
Power Input: 2PIN locking screw terminal
Control Mode: Pulse Mode
Debug Software: StandardProTuner

DM415S(V2.0)

Output Peak Current: 1.5 A
Supply Voltage: 18~36VDC
Matching Motor: 20/28/35
Dimensions: 86*55*20 mm
Debug Port: RS232
Digital Input: 3DI
Input Spec: Limit pulse frequency 70kHz, 5V, Pulse/Dir/Enable
Digital Output: 1DO
Output Spec: OC Output, Max 100mA, Support Alarm
Motor Winding Interface: 4PIN locking screw terminal
Power Input: 2PIN locking screw terminal
Control Mode: Pulse Mode
Debug Software: StandardProTuner

DM422S(V2.0)

Output Peak Current: 2.2 A
Supply Voltage: 18~36VDC
Matching Motor: 20/28/35/42
Dimensions: 86*55*20 mm
Debug Port: RS232
Digital Input: 3DI
Input Spec: Limit pulse frequency 70kHz, 5V, Pulse/Dir/Enable
Digital Output: 1DO
Output Spec: OC Output, Max 100mA, Support Alarm
Motor Winding Interface: 4PIN locking screw terminal
Power Input: 2PIN locking screw terminal
Control Mode: Pulse Mode
Debug Software: StandardProTuner

3DM580S

Output Peak Current: 8.0 A
Supply Voltage: 20~50VDC
Matching Motor: 57/60
Dimensions: 118*145*83 mm
Debug Port: RS232
Digital Input: 3DI
Input Spec: Limit pulse frequency 200kHz, 5V, Pulse/Dir/Enable
Digital Output: 1DO
Output Spec: OC Output, Max 100mA, Support Alarm
Motor Winding Interface: 4PIN locking screw terminal
Power Input: 2PIN locking screw terminal
Control Mode: Pulse Mode
Debug Software: StandardProTuner

DM2282

Output Peak Current: 8.2 A
Supply Voltage: 180~240VAC
Matching Motor: 110/130
Dimensions: 200*149*83 mm
Debug Port: RS232
Digital Input: 3DI
Input Spec: Limit pulse frequency 200kHz, 5V, Pulse/Dir/Enable
Digital Output: 1DO
Output Spec: OC Output, Max 100mA, Support Alarm/In-Place
Motor Winding Interface: 4PIN locking screw barrier terminal
Power Input: 3PIN locking screw barrier terminal
Control Mode: Pulse Mode
Debug Software: StandardProTuner

3DM2283

Output Peak Current: 11.7 A
Supply Voltage: 180~240VAC
Matching Motor: 110/130
Dimensions: 200*149*83 mm
Debug Port: RS232
Digital Input: 3DI
Input Spec: Limit pulse frequency 200kHz, 5V, Pulse/Dir/Enable
Digital Output: 1DO
Output Spec: OC Output, Max 100mA, Support Alarm/In-Place
Motor Winding Interface: 3PIN locking screw barrier terminal
Power Input: 3PIN locking screw barrier terminal
Control Mode: Pulse Mode
Debug Software: StandardProTuner
