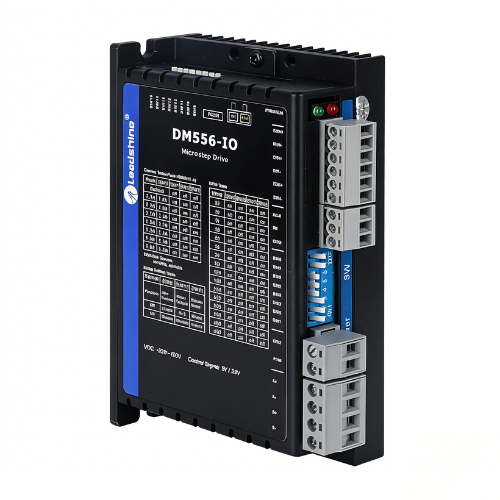

Leadshine DM-IO Series Pulse Universal Stepper Driver with IO Speed Control

$999.00 USD

Sale Sold out

The DM-IO/DM-V Series represents the speed-controlled evolution of Leadshine's renowned DM series stepper drivers. Retaining the robust reliability of the original DM line, these drivers are engineered to meet precise speed regulation requirements.

By integrating speed control directly into the driver, this series eliminates the need for an extra pulse axis, significantly reducing hardware costs while enhancing flexibility and convenience for on-site applications.

Key Features & Benefits

✔
Stable, Reliable, and High Performance Built on the proven DM platform, ensuring consistent operation in demanding environments.
✔
Digital I/O Switch Speed Control Adjust speed easily via digital inputs, simplifying system integration without a complex controller.
✔
Rich Expansion Functions Versatile connectivity options to support a wide range of application needs.
✔
Smooth Operation & Anti-Resonance Advanced algorithms ensure smooth motion and effectively suppress mid-frequency resonance.

DM422S-IO-24

Peak Output Current: 2.2 A
Supply Voltage: 20~40VDC
Matching Motor (Frame): 35/42
Dimensions (mm): 86*55*20
Debug Port: RS232 Debug Port
Digital Inputs: 3DI
Input Spec: Compatible 5~24V, Start/Stop, Direction, Enable
Digital Outputs: /
Output Spec: /
Motor Winding Interface: 4PIN Locking Screw Terminal
Power Input: 2PIN Locking Screw Terminal
Communication Protocol: /
Control Mode: Digital IO Speed Mode
Sync Mode: /
Sync Cycle: /
Debug Software: StandardProTuner

DM556-IO

Peak Output Current: 5.6 A
Supply Voltage: 20~50VDC
Matching Motor (Frame): 57/60
Dimensions (mm): 118*75.5*34
Debug Port: RS232 Debug Port
Digital Inputs: 3DI
Input Spec: Compatible 5~24V, Start/Stop, Direction, Enable
Digital Outputs: 2DO
Output Spec: OC Output, Max Output 100mA, Supports Alarm, Jam
Motor Winding Interface: 4PIN Locking Screw Terminal
Power Input: 2PIN Locking Screw Terminal
Communication Protocol: /
Control Mode: Digital IO Speed Mode
Sync Mode: /
Sync Cycle: /
Debug Software: StandardProTuner

DM870-IO

Peak Output Current: 7.0 A
Supply Voltage: 20~70VDC
Matching Motor (Frame): 57/60/86
Dimensions (mm): 118*75.5*34
Debug Port: RS232 Debug Port
Digital Inputs: 3DI
Input Spec: Compatible 5~24V, Start/Stop, Direction, Enable
Digital Outputs: 2DO
Output Spec: OC Output, Max Output 100mA, Supports Alarm, Jam
Motor Winding Interface: 4PIN Locking Screw Terminal
Power Input: 2PIN Locking Screw Terminal
Communication Protocol: /
Control Mode: Digital IO Speed Mode
Sync Mode: /
Sync Cycle: /
Debug Software: StandardProTuner

DM2282-IO-24

Peak Output Current: 8.2 A
Supply Voltage: 180~240VAC
Matching Motor (Frame): 110/130
Dimensions (mm): 200*145*83
Debug Port: RS232 Debug Port
Digital Inputs: 3DI
Input Spec: Compatible 5~24V, Start/Stop, Direction, Enable
Digital Outputs: 1DO
Output Spec: OC Output, Max Output 100mA, Supports Alarm
Motor Winding Interface: 4PIN Locking Screw Terminal
Power Input: 2PIN Locking Screw Terminal
Communication Protocol: /
Control Mode: Digital IO Speed Mode
Sync Mode: /
Sync Cycle: /
Debug Software: StandardProTuner
