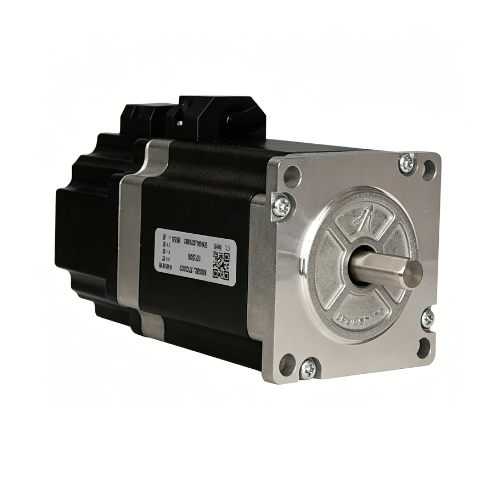

Leadshine CM brake-type 57CM series high-precision stepper motor

$999.00 USD

Sale Sold out

Product Overview

The 57CM Series is a line of high-performance, cost-effective stepper motors developed by Leadshine (Raystar) utilizing advanced Japanese design concepts, new manufacturing processes, and imported core materials. Compared to standard stepper motors on the market, this series offers higher torque, lower heat generation, and superior operational smoothness.

Built on large-scale automated production lines with a strict quality management system, these motors ensure exceptional reliability and consistency in mass production performance parameters. The 57 frame size series includes multiple brake-type stepper motors ranging from 1.3 to 2.6 N·m, offering versatile options for various application scenarios.

Key Features

✔️ Step Angle: 1.8°
✔️ Frame Size: 57 mm
✔️ Holding Torque: 1.3 ~ 2.6 N·m
✔️ High Torque Density
✔️ Low Heat Generation
✔️ High Smoothness
✔️ High Consistency

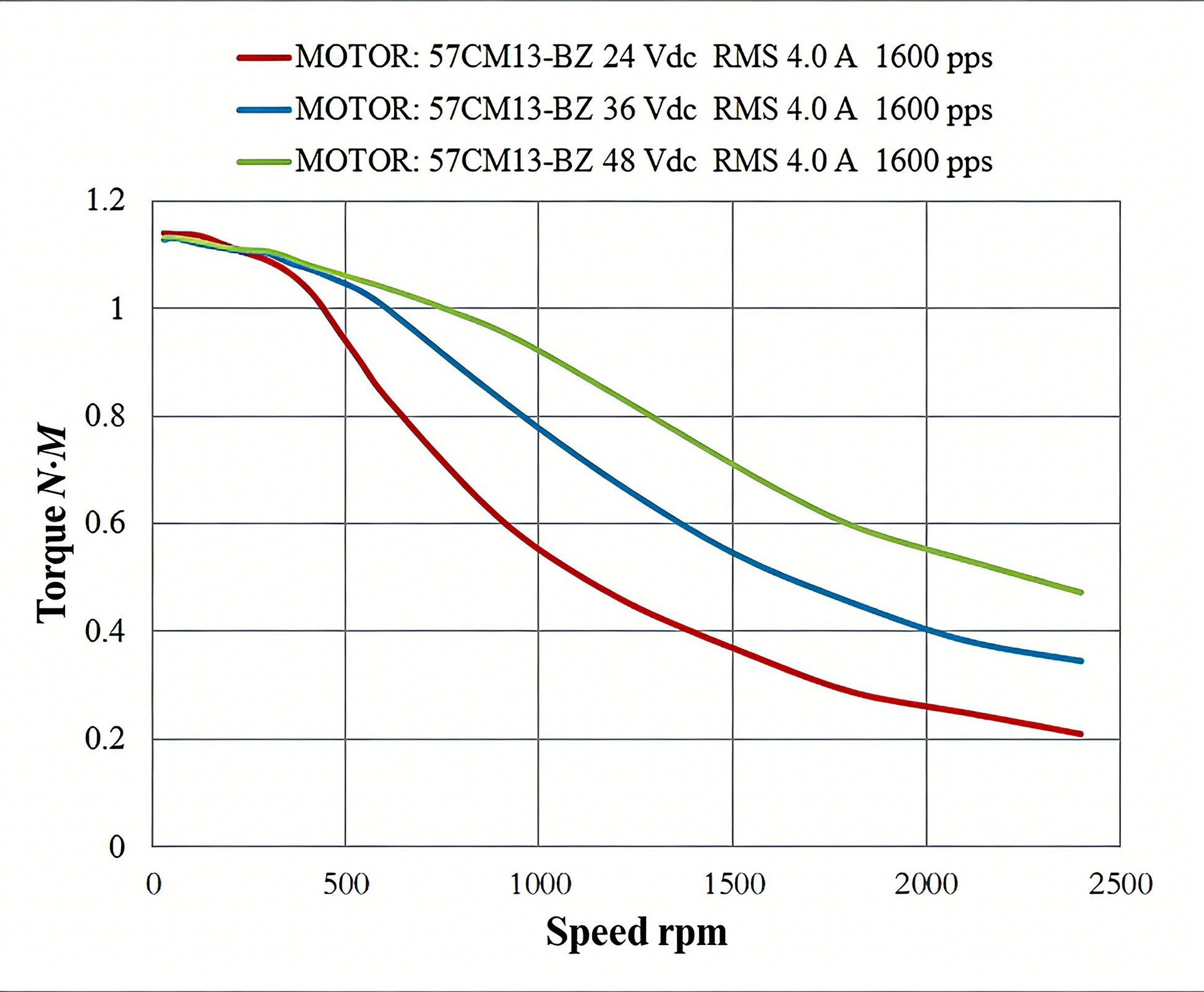

57CM13-BZ Specifications ▼

Static Torque: 1.3 N.m
Rated Current: 5 A
Resistance: 0.42 Ω
Inductance: 1.6 mH
Rotor Inertia: 300 g.cm²
Body Length: 95.5 mm
Weight: 1.15 Kg
IP Rating: IP40
Certification: CE / RoHS

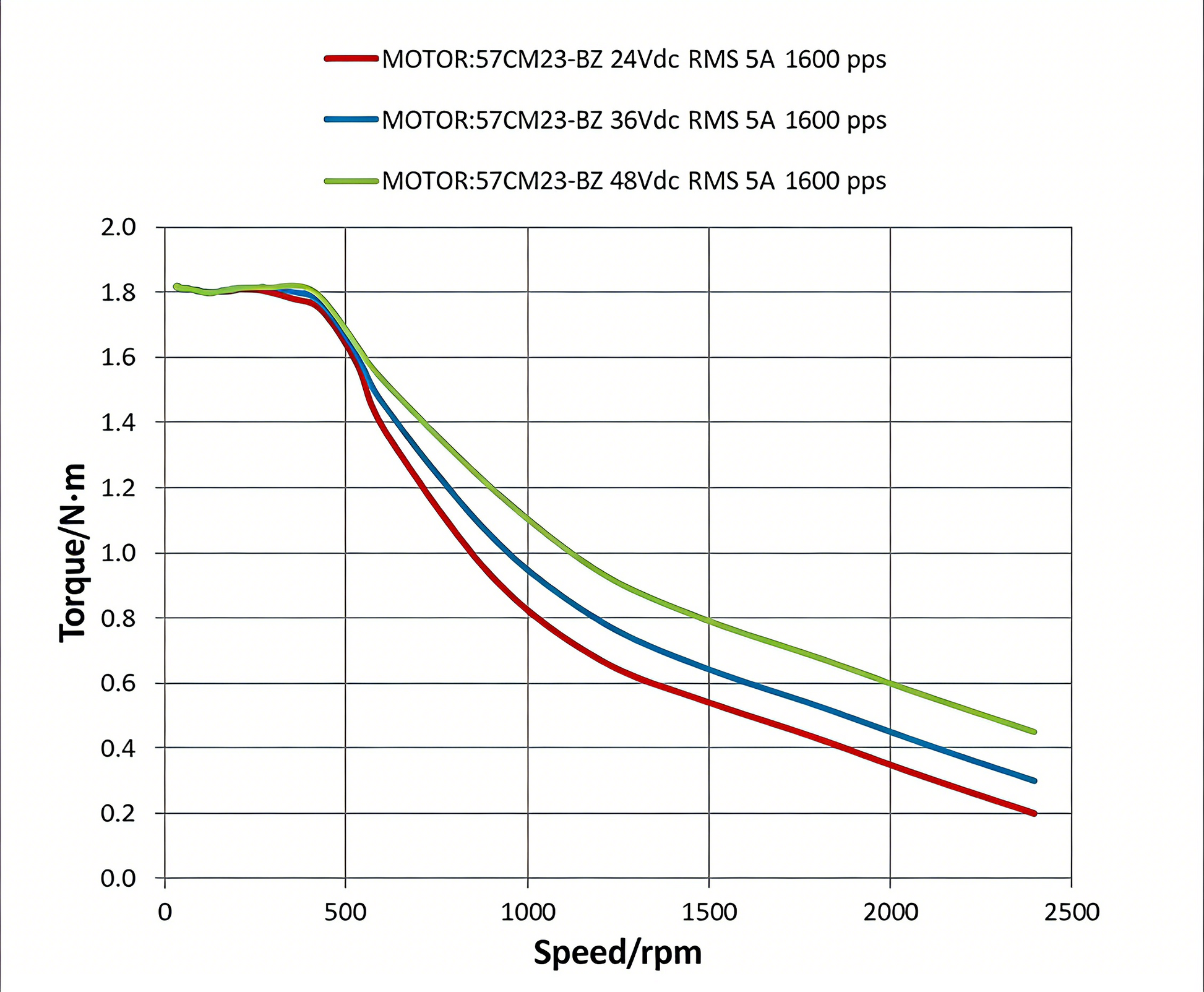

57CM23-BZ Specifications ▼

Static Torque: 2.3 N.m
Rated Current: 5 A
Resistance: 0.38 Ω
Inductance: 1.75 mH
Rotor Inertia: 480 g.cm²
Body Length: 116.5 mm
Weight: 1.5 Kg
IP Rating: IP40
Certification: CE / RoHS

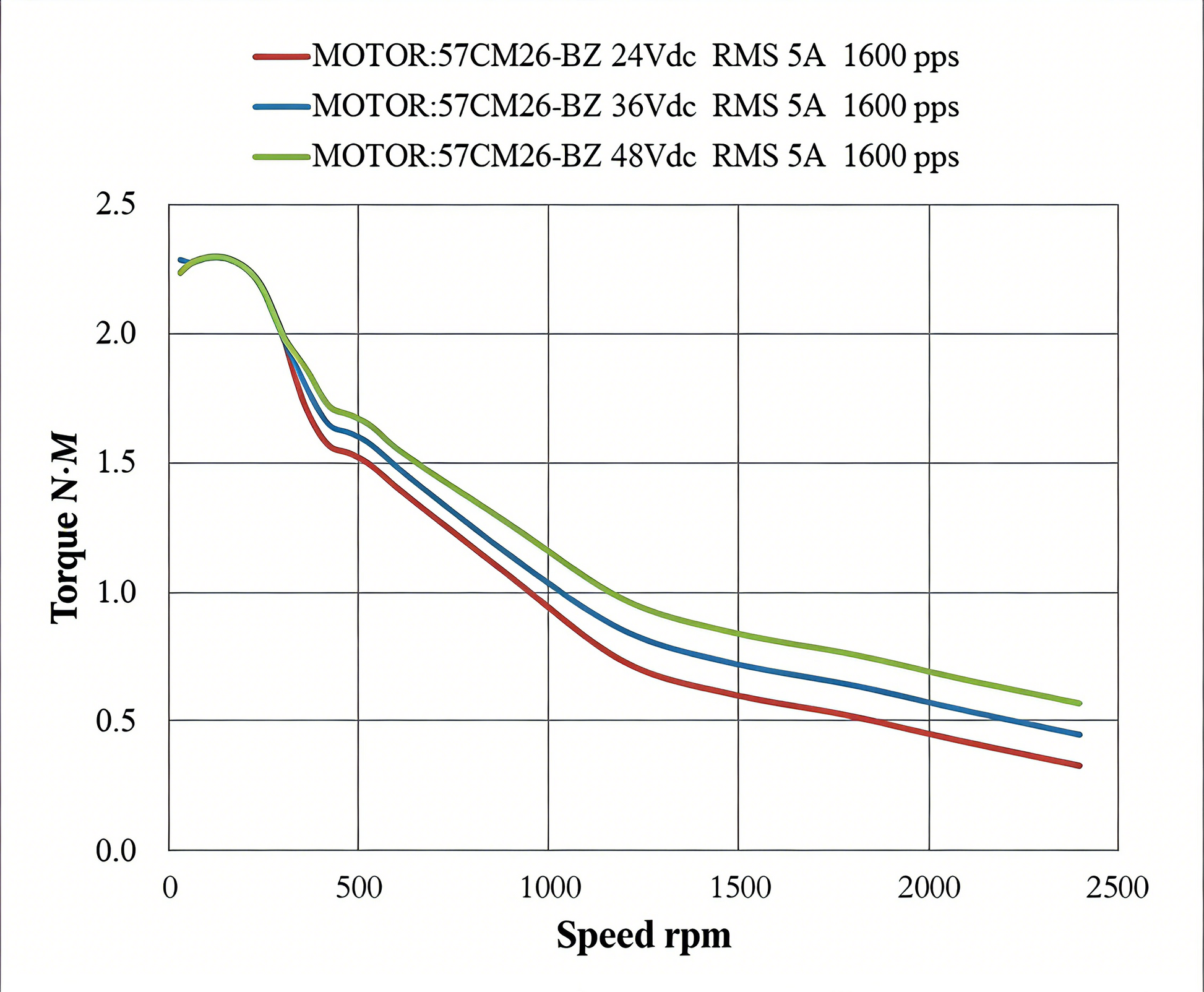

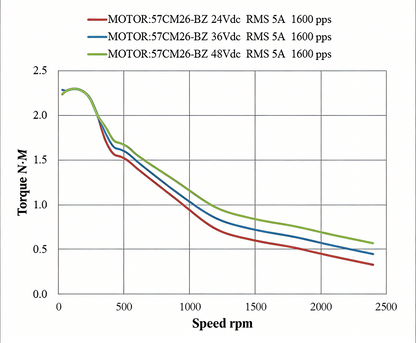

57CM26-BZ Specifications ▼

Static Torque: 2.6 N.m
Rated Current: 5 A
Resistance: 0.44 Ω
Inductance: 2.2 mH
Rotor Inertia: 520 g.cm²
Body Length: 125.5 mm
Weight: 1.6 Kg
IP Rating: IP40
Certification: CE / RoHS
