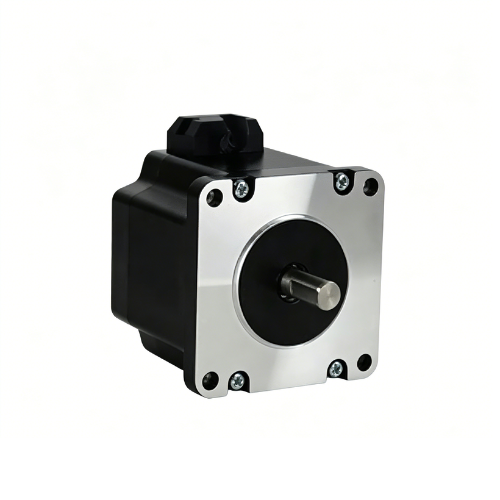

Leadshine 605CM Series High-Precision 5-Phase Stepper Motor

$999.00 USD

Sale Sold out

Product Overview

The 605CM series is a new high-end 5-phase stepping motor from Leadshine, designed and manufactured in Japan using imported core materials. It features a small basic step angle of 0.72° (0.36° for high-resolution models). Compared to 2-phase motors with a 1.8° step angle, it offers higher precision control, faster response, and lower vibration and noise. The NEMA 24 frame offers two standard models with holding torques from 1.1 to 2.1 N•m, suitable for various applications.

Features:

Step Angle: 0.72°
Frame Size: 60 (NEMA 24)
Holding Torque: 1.1 ~ 2.1 N.m
Higher Precision
Faster Response
Lower Vibration

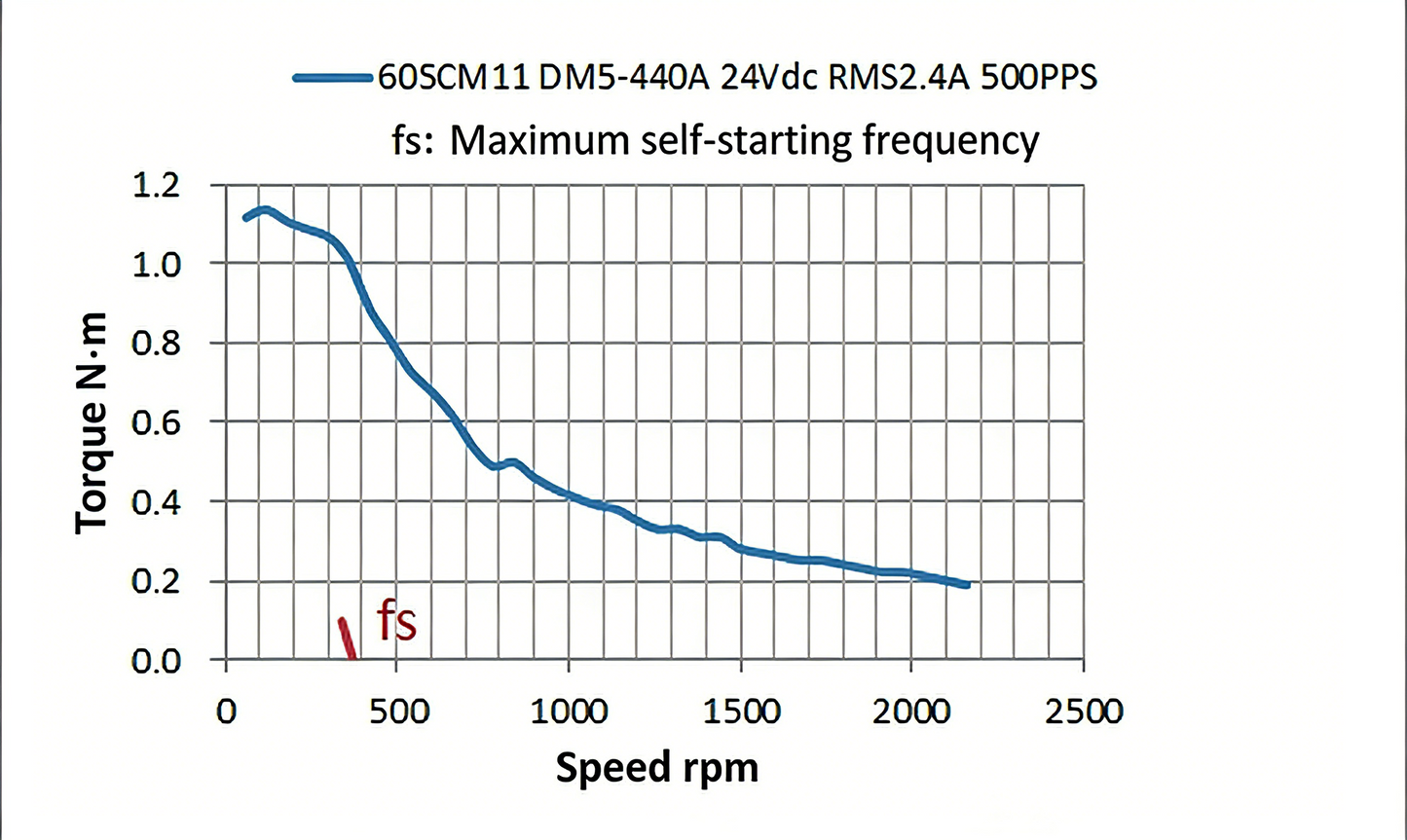

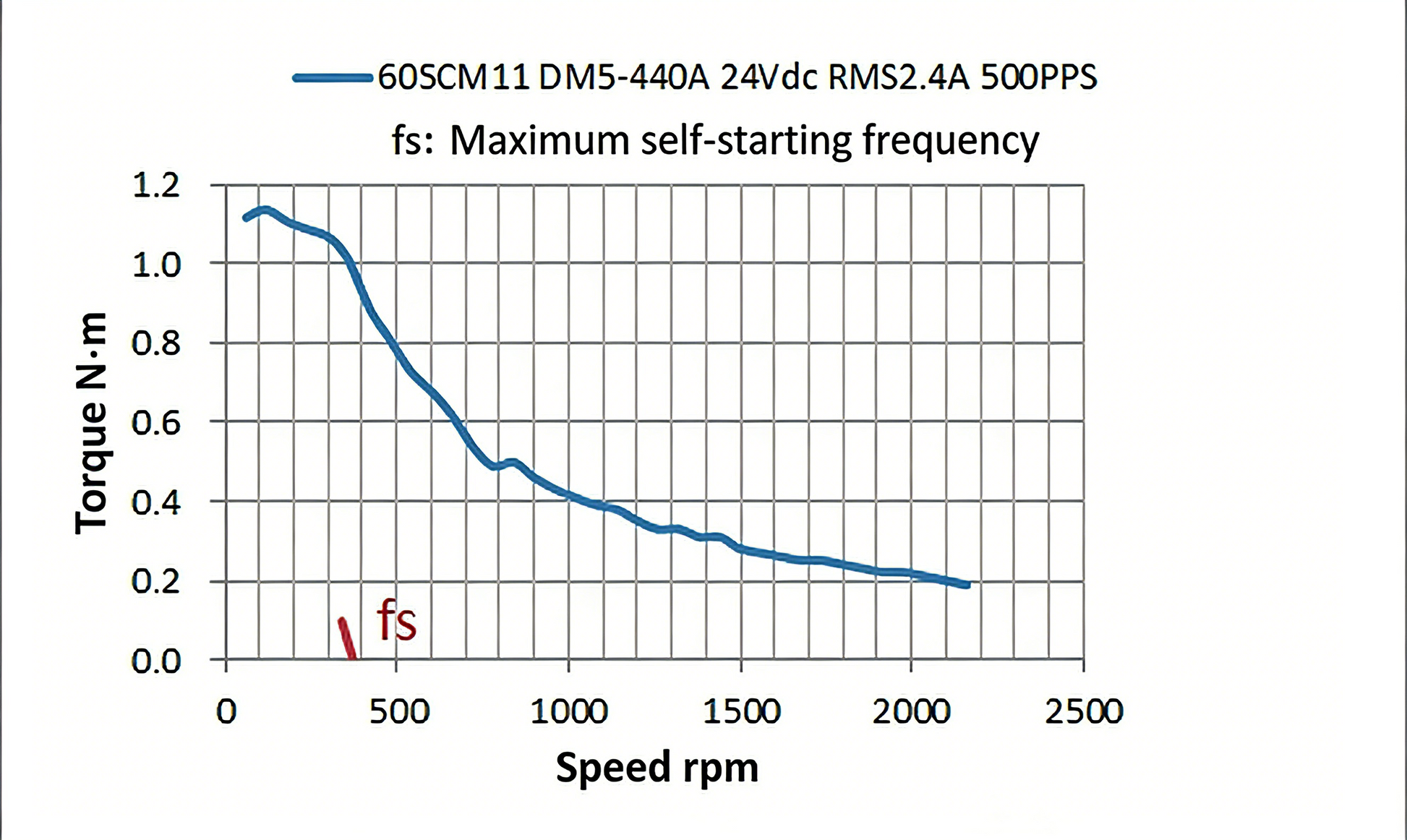

Model: 605CM11

Static Torque: 1.1 N.m
Rated Current: 2.4 A
Resistance: 0.46 Ω
Inductance: 1.5 mH
Rotor Inertia: 290 g.cm²
Body Length: 56.5 mm
Weight: 0.8 Kg
IP Rating: IP40
Certification: RoHS

Model: 605CM11-SZ

Static Torque: 1.1 N.m
Rated Current: 2.4 A
Resistance: 0.69 Ω
Inductance: 1.5 mH
Rotor Inertia: 290 g.cm²
Body Length: 56.5 mm
Weight: 0.8 Kg
IP Rating: IP40
Certification: RoHS

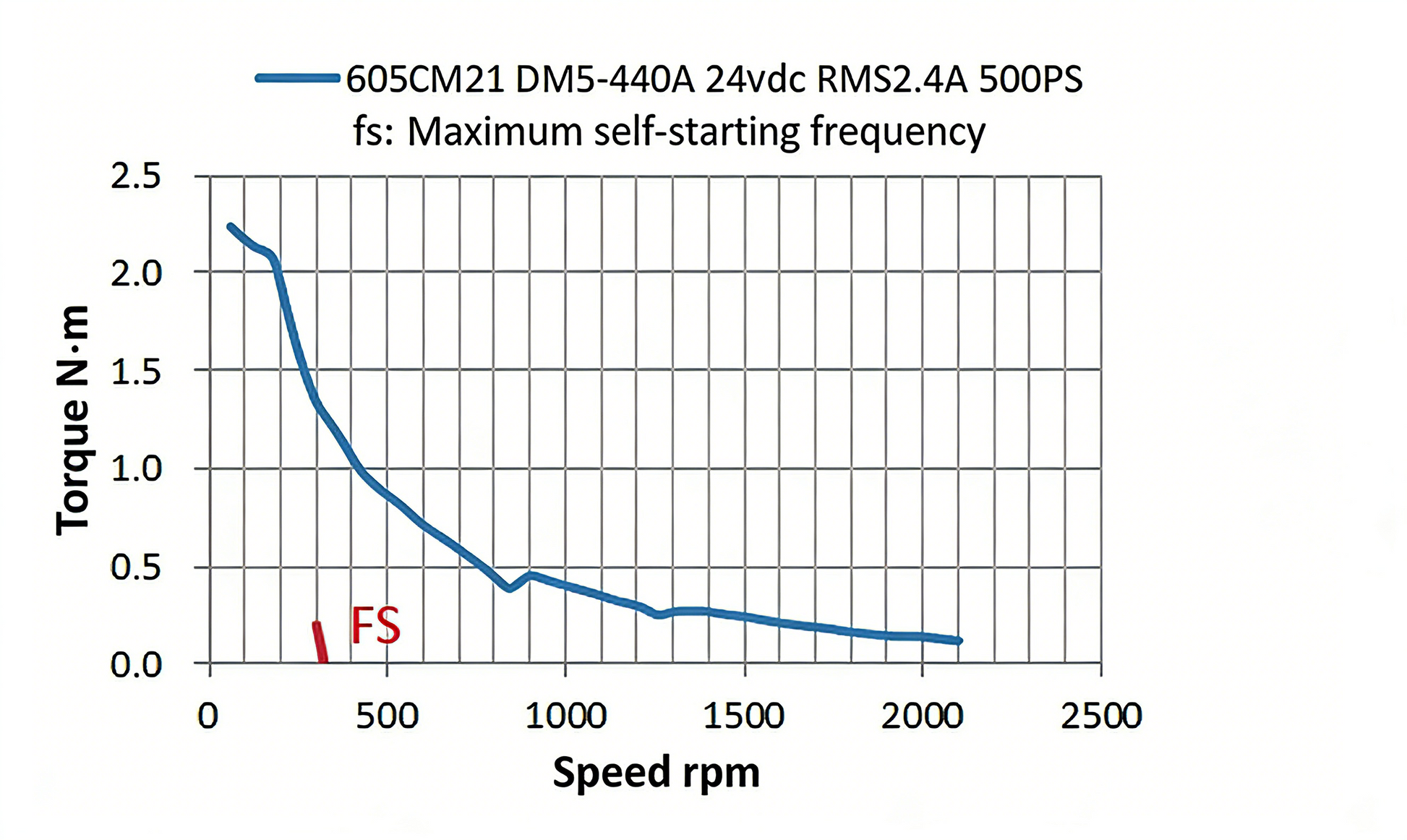

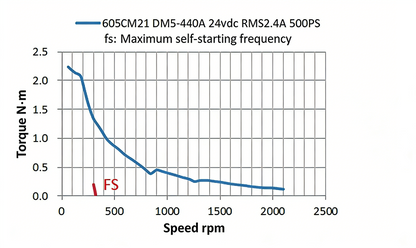

Model: 605CM21

Static Torque: 2.1 N.m
Rated Current: 2.4 A
Resistance: 0.69 Ω
Inductance: 3 mH
Rotor Inertia: 540 g.cm²
Body Length: 87.5 mm
Weight: 1.3 Kg
IP Rating: IP40
Certification: RoHS

Model: 605CM21-SZ

Static Torque: 2.1 N.m
Rated Current: 2.4 A
Resistance: 0.69 Ω
Inductance: 3 mH
Rotor Inertia: 540 g.cm²
Body Length: 87.5 mm
Weight: 1.3 Kg
IP Rating: IP40
Certification: RoHS
