Leadshine 57CM Series Stepper Motor | High Torque, Low Heat, Superior Consistency

$999.00 USD

Sale Sold out

Product Overview

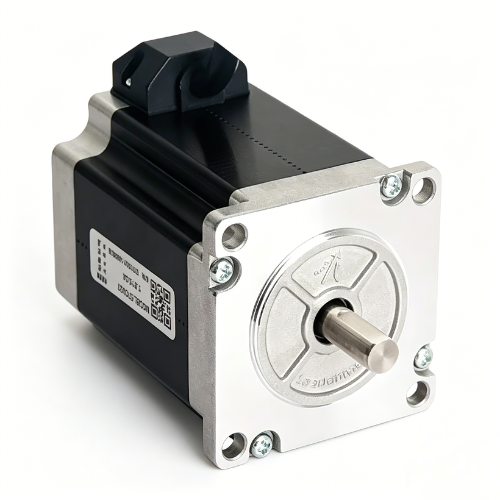

The 57CM series is a high-performance, cost-effective stepper motor developed by Leadshine using new Japanese designs, advanced craftsmanship, and imported core materials. Compared to common stepper motors on the market, it offers higher torque, lower heat generation, and better operational smoothness. Thanks to large-scale automated production lines and a strict quality management system, this series is more stable and reliable, with superior consistency in performance parameters across batches!

The 57 frame size (including D57 frame) includes various standard stepper motors ranging from 0.6 to 3.1 N•m, which can be selected according to different application scenarios.

Features:

Step Angle: 1.8°
Frame Size: 57
Holding Torque: 0.6 ~ 3.1 N.m
High Torque
Low Heat Generation
High Smoothness
High Consistency

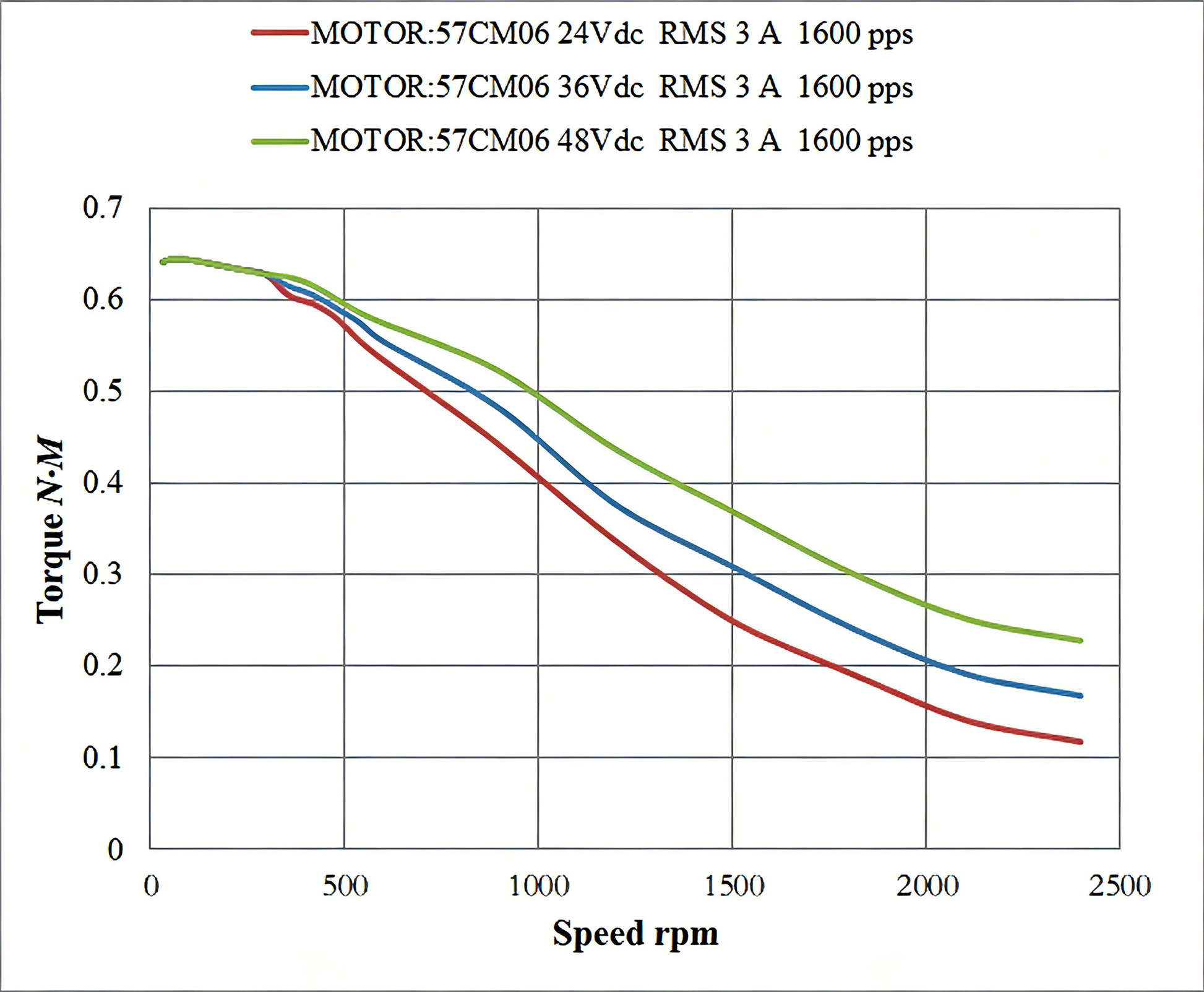

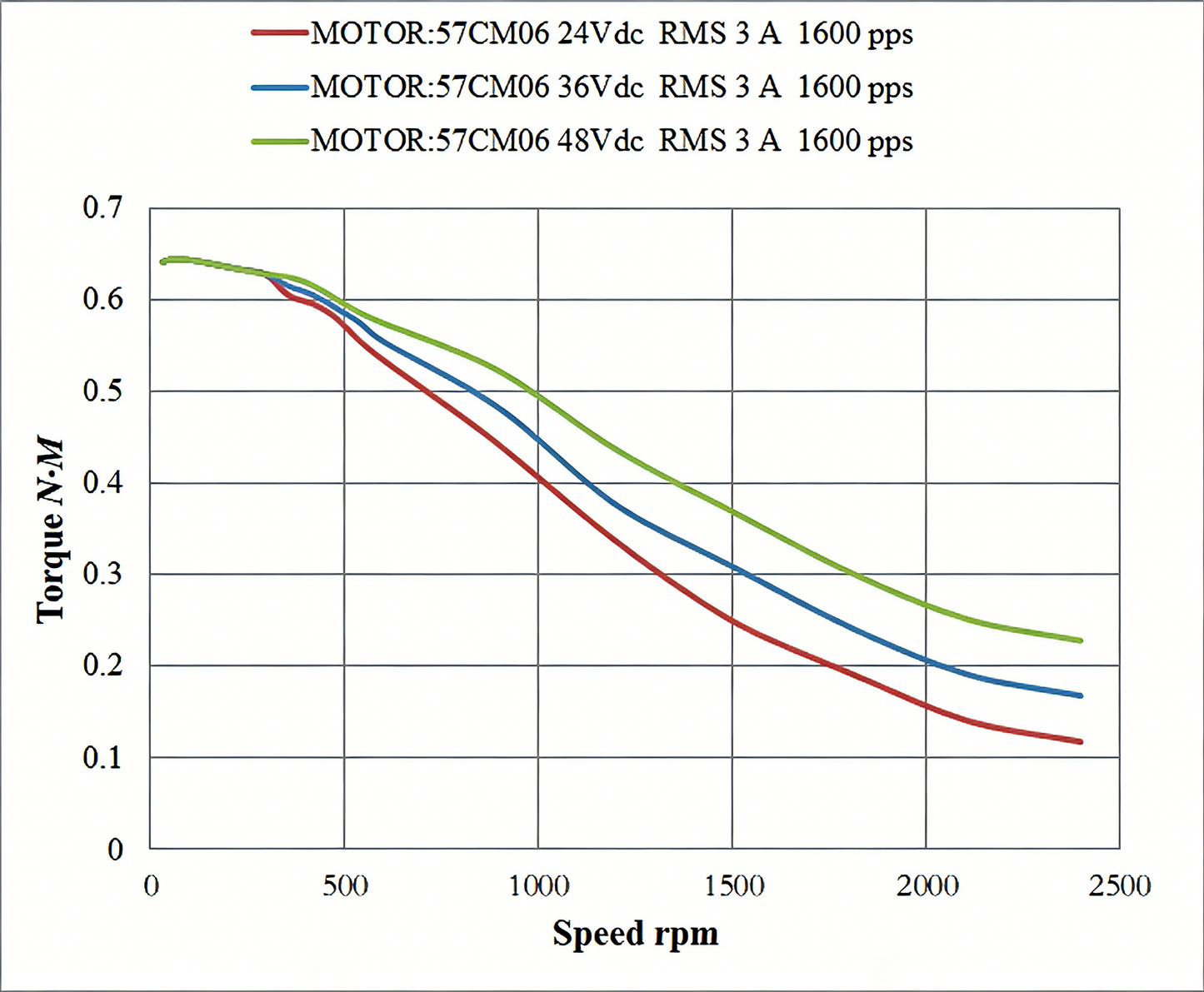

57CM06

Holding Torque: 0.6 N.m
Rated Current: 3 A
Resistance: 0.7 Ω
Inductance: 1.4 mH
Rotor Inertia: 120 g.cm²
Body Length: 41 mm
Weight: 0.48 Kg
IP Rating: IP40
Certification: CE/RoHS

57CM13-3A

Holding Torque: 1.3 N.m
Rated Current: 3 A
Resistance: 0.8 Ω
Inductance: 2.8 mH
Rotor Inertia: 300 g.cm²
Body Length: 56 mm
Weight: 0.72 Kg
IP Rating: IP40
Certification: CE/RoHS

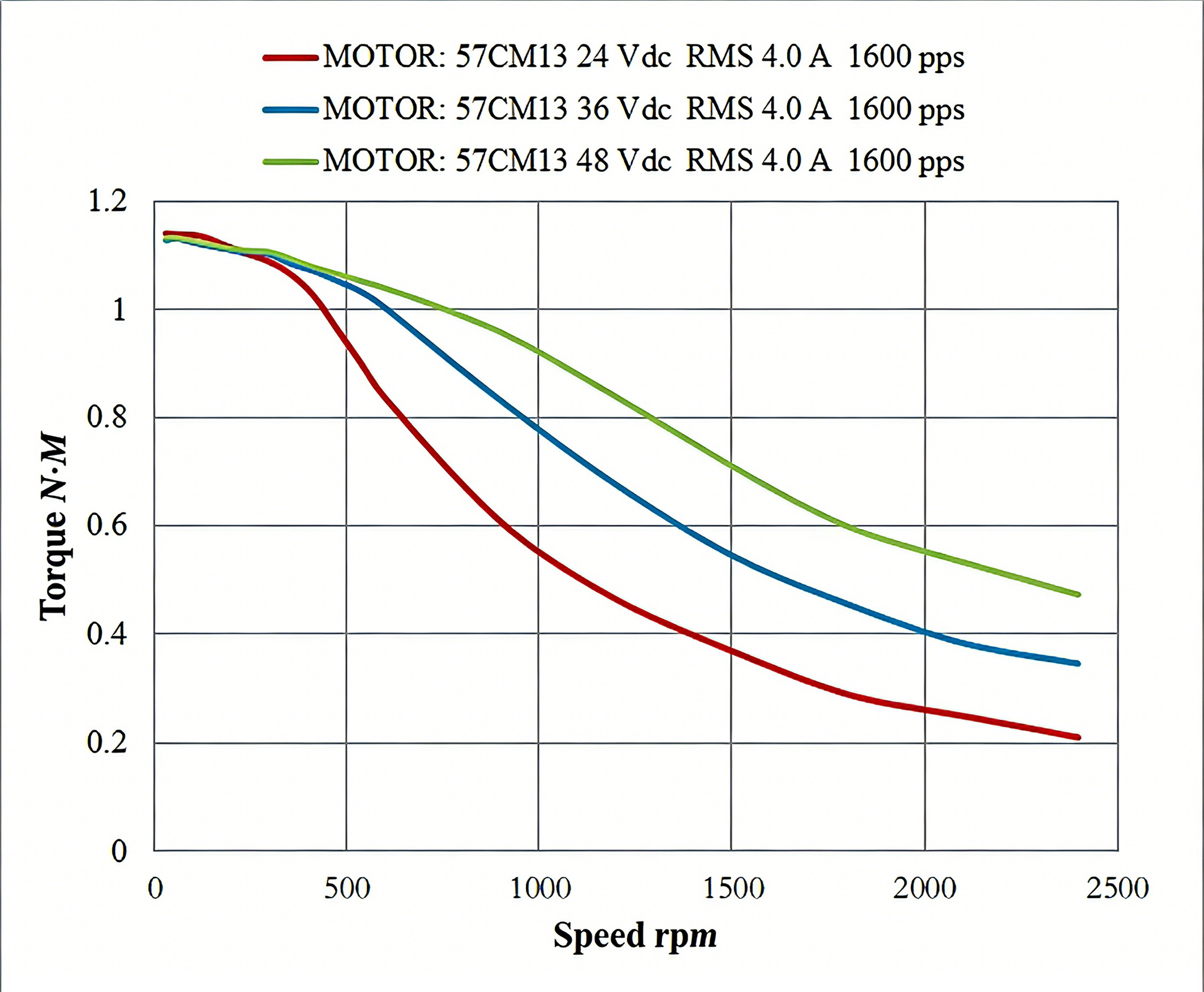

57CM13

Holding Torque: 1.3 N.m
Rated Current: 4 A
Resistance: 0.42 Ω
Inductance: 1.6 mH
Rotor Inertia: 300 g.cm²
Body Length: 56 mm
Weight: 0.72 Kg
IP Rating: IP40
Certification: CE/RoHS

57CM13-SZ

Holding Torque: 1.3 N.m
Rated Current: 4 A
Resistance: 0.42 Ω
Inductance: 1.6 mH
Rotor Inertia: 300 g.cm²
Body Length: 56 mm
Weight: 0.72 Kg
IP Rating: IP40
Certification: CE/RoHS

57CM23-3A

Holding Torque: 2.3 N.m
Rated Current: 3 A
Resistance: 1.1 Ω
Inductance: 4.2 mH
Rotor Inertia: 480 g.cm²
Body Length: 76 mm
Weight: 1.09 Kg
IP Rating: IP40
Certification: CE/RoHS

57CM23-4A

Holding Torque: 2.3 N.m
Rated Current: 4 A
Resistance: 0.5 Ω
Inductance: 2 mH
Rotor Inertia: 480 g.cm²
Body Length: 76 mm
Weight: 1.09 Kg
IP Rating: IP40
Certification: CE/RoHS/Reach/UL

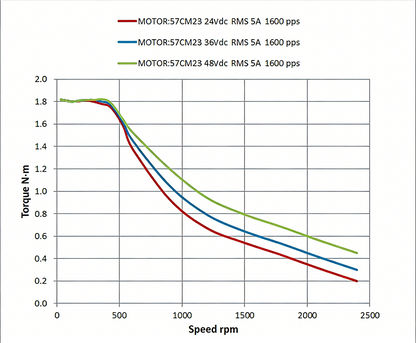

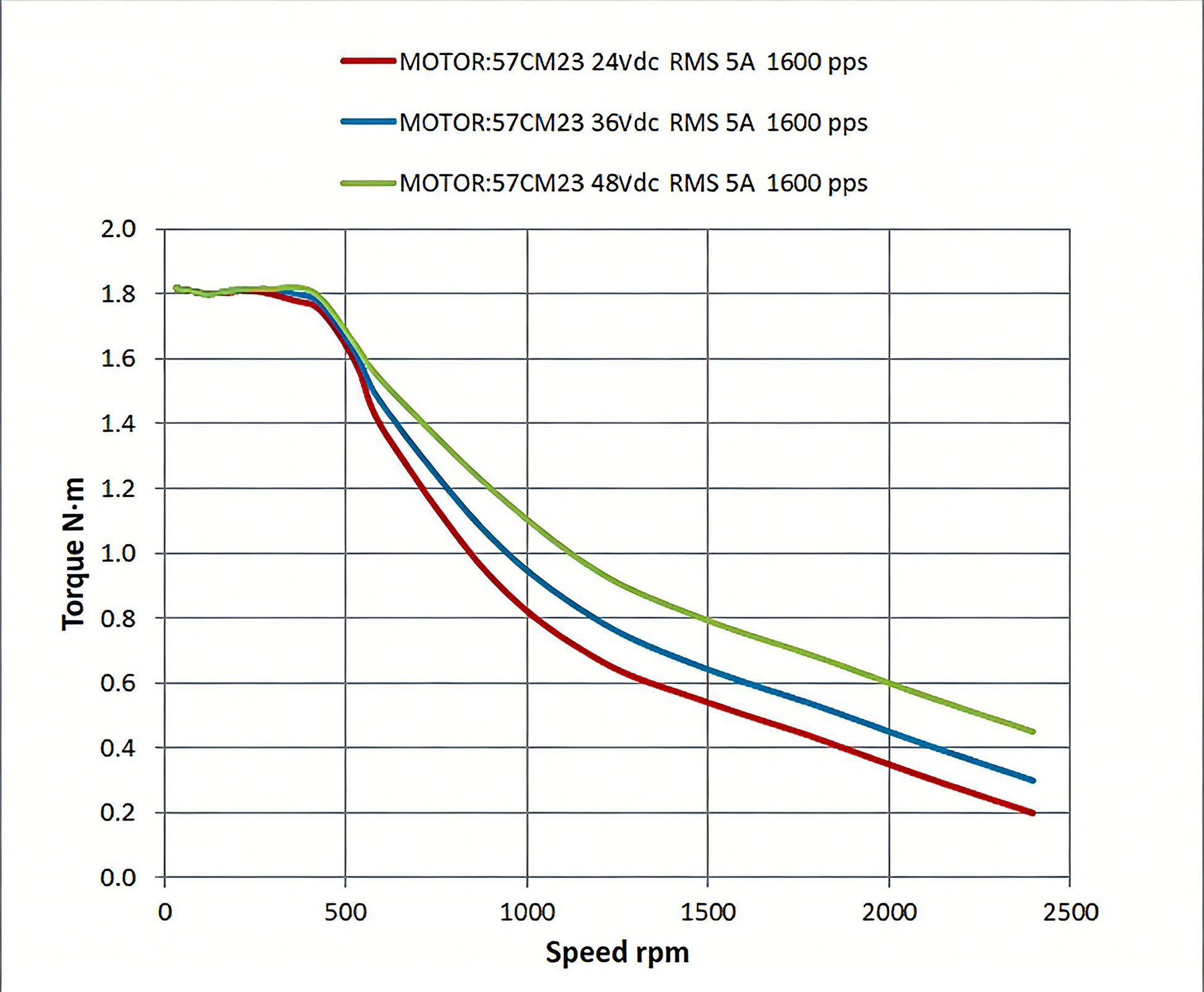

57CM23

Holding Torque: 2.3 N.m
Rated Current: 5 A
Resistance: 0.38 Ω
Inductance: 1.75 mH
Rotor Inertia: 480 g.cm²
Body Length: 76 mm
Weight: 1.09 Kg
IP Rating: IP40
Certification: CE/RoHS

57CM23-SZ

Holding Torque: 2.3 N.m
Rated Current: 5 A
Resistance: 0.38 Ω
Inductance: 1.75 mH
Rotor Inertia: 480 g.cm²
Body Length: 76 mm
Weight: 1.09 Kg
IP Rating: IP40
Certification: CE/RoHS

57CM26-4A

Holding Torque: 2.6 N.m
Rated Current: 4 A
Resistance: 0.8 Ω
Inductance: 3.2 mH
Rotor Inertia: 520 g.cm²
Body Length: 86 mm
Weight: 1.25 Kg
IP Rating: IP40
Certification: CE/RoHS

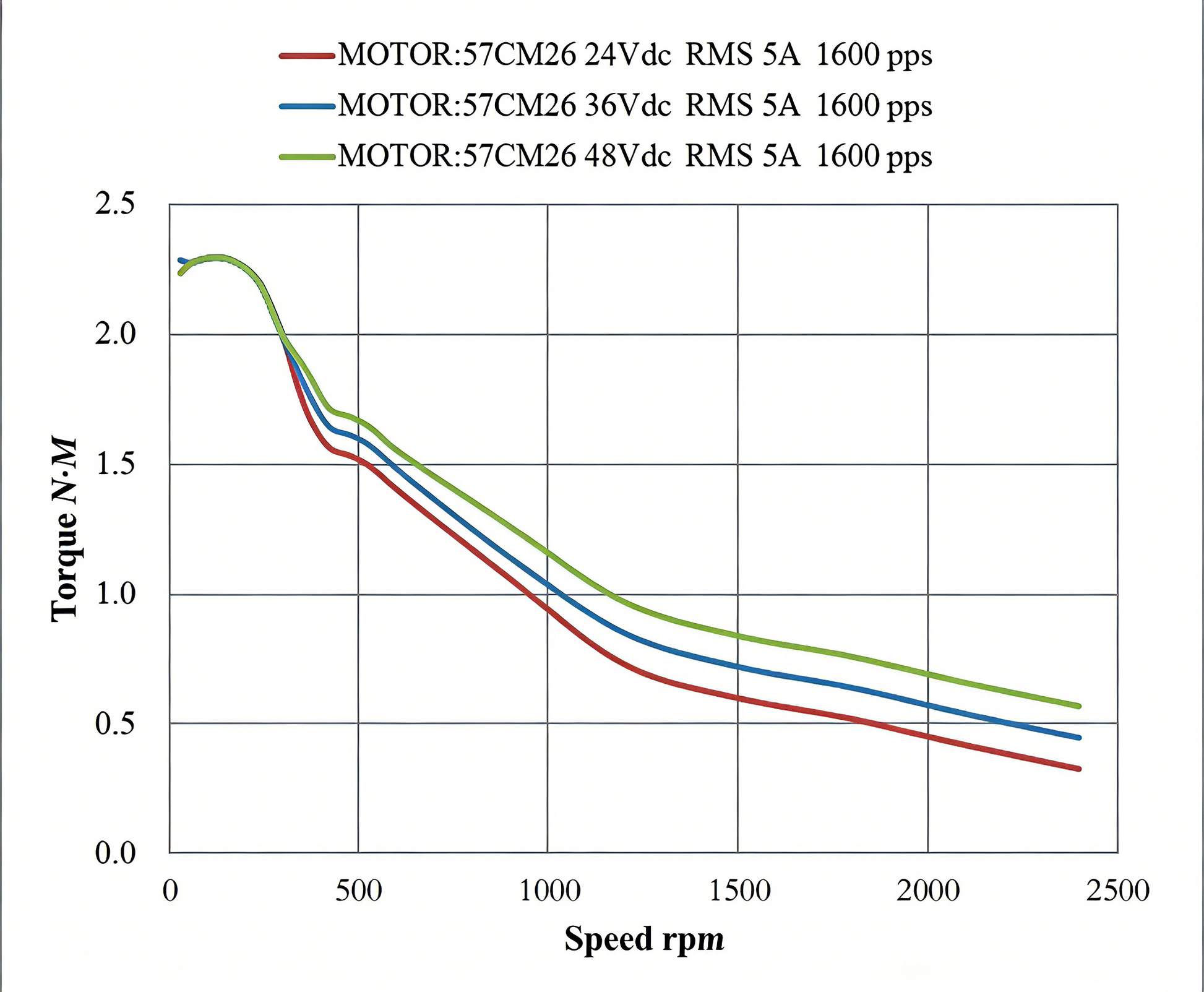

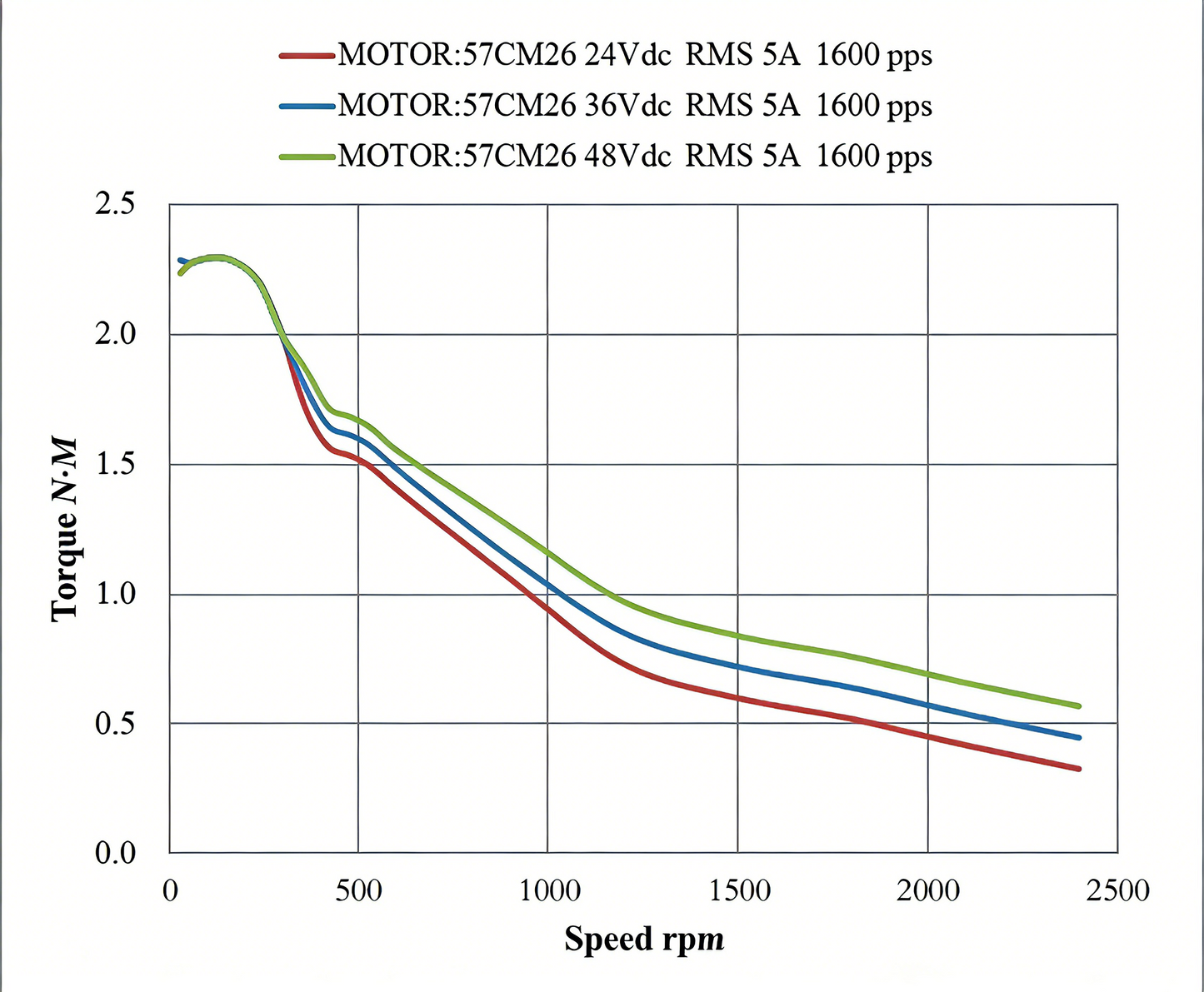

57CM26

Holding Torque: 2.6 N.m
Rated Current: 5 A
Resistance: 0.44 Ω
Inductance: 2 mH
Rotor Inertia: 520 g.cm²
Body Length: 86 mm
Weight: 1.25 Kg
IP Rating: IP40
Certification: CE/RoHS

57CM26-SZ

Holding Torque: 2.6 N.m
Rated Current: 5 A
Resistance: 0.44 Ω
Inductance: 2 mH
Rotor Inertia: 520 g.cm²
Body Length: 86 mm
Weight: 1.25 Kg
IP Rating: IP40
Certification: CE/RoHS

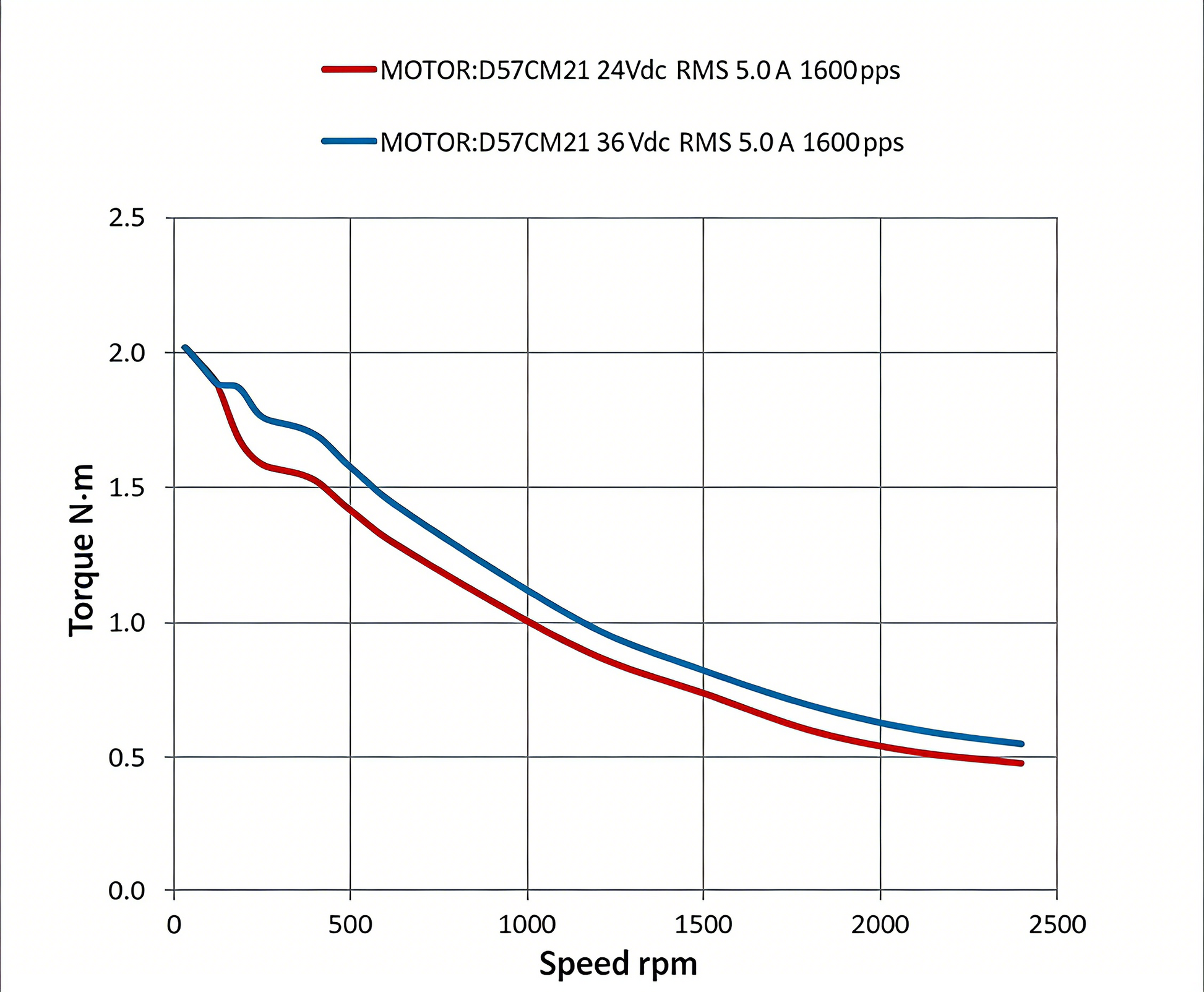

D57CM21

Holding Torque: 2.1 N.m
Rated Current: 5 A
Resistance: 0.21 Ω
Inductance: 0.75 mH
Rotor Inertia: 570 g.cm²
Body Length: 69 mm
Weight: 0.96 Kg
IP Rating: IP40
Certification: CE/RoHS

D57CM31-4A

Holding Torque: 3.1 N.m
Rated Current: 4 A
Resistance: 0.62 Ω
Inductance: 2.8 mH
Rotor Inertia: 840 g.cm²
Body Length: 86 mm
Weight: 1.38 Kg
IP Rating: IP40
Certification: CE/RoHS

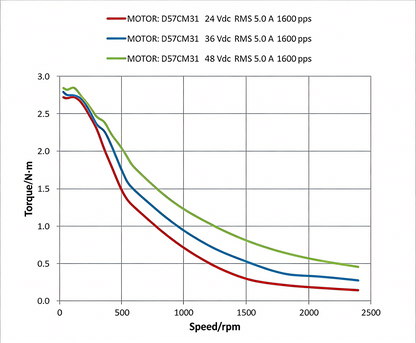

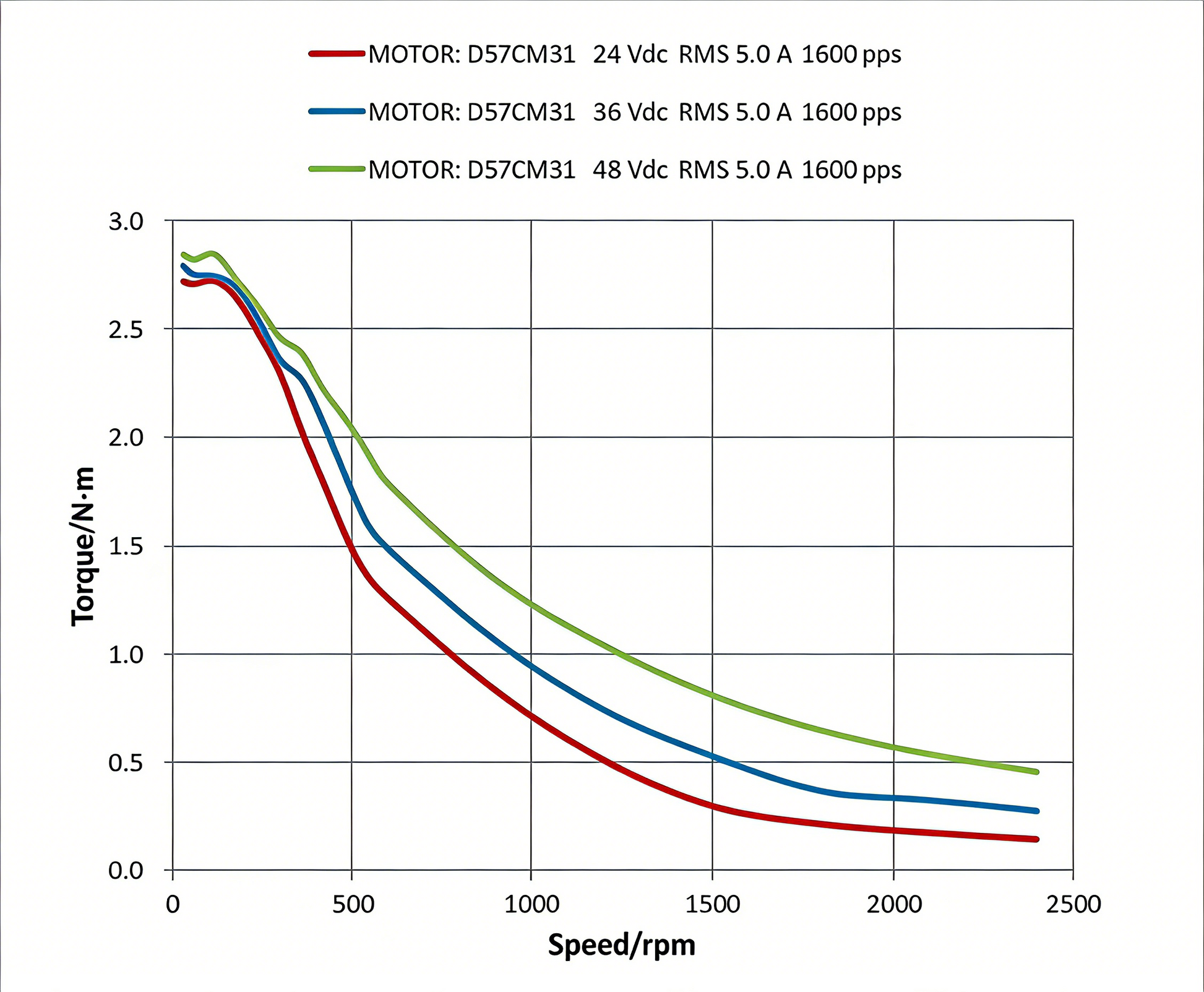

D57CM31

Holding Torque: 3.1 N.m
Rated Current: 5 A
Resistance: 0.26 Ω
Inductance: 1.18 mH
Rotor Inertia: 840 g.cm²
Body Length: 86 mm
Weight: 1.38 Kg
IP Rating: IP40
Certification: CE/RoHS

D57CM31-SZ

Holding Torque: 3.1 N.m
Rated Current: 5 A
Resistance: 0.26 Ω
Inductance: 1.18 mH
Rotor Inertia: 840 g.cm²
Body Length: 86 mm
Weight: 1.38 Kg
IP Rating: IP40
Certification: CE/RoHS
