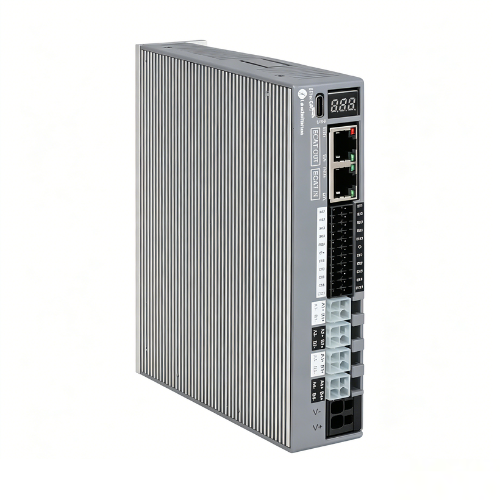

Leadshine 4DM3C-EC Series High-Speed EtherCAT Bus Stepper Drive

$999.00 USD

Sale Sold out

Leadshine 4DM3C-EC Series: Economic EtherCAT 4-in-1 Driver

The 4DM3C-EC Series is a cost-effective, all-in-one stepper driver solution launched by Leadshine. Designed for efficiency, it features an EtherCAT bus communication interface and complies with the CiA402 standard. With a high-speed transmission rate of up to 100Mb/s, this driver delivers powerful performance at a fraction of the cost of standard 4-axis EtherCAT products.

⚡ High-Speed Performance

EtherCAT Bus Interface
Transmission rate up to 100Mb/s
Compliant with CiA402 standard

🎛️ Versatile Control Modes

Supports multiple modes for precise application fit:

CSP, PP, PV, HM, CSP

Why Choose the 4DM3C-EC?

This series is engineered to efficiently control four independent axes while maximizing your operational efficiency.

✅ Save Space: Compact 4-in-1 integrated design.
✅ Save Time: Fast setup and high-speed data transmission.
✅ Save Cost: Higher price-performance ratio compared to standard EtherCAT products.

Model: 4DM3C-EC432

Output Peak Current: 3.2 A
Supply Voltage: 20~40VDC
Matching Motor (Frame): 28/35/42
Dimensions (mm): 155*116.5*33
Debug Port: TYPE-C
Digital Inputs: 4*4DI (Control signal 12-24V, supports Probe, Origin, +Limit, -Limit, E-Stop, General Input)
Digital Outputs: 4*1DO (OC Output, Max pull-up 30V, Max output 100mA, supports Alarm, Brake, General Output)
Communication Protocol: EtherCAT
Control Modes: CSP, PP, PV, HM
Synchronization Mode: DC Synchronization & Freerun Mode
Synchronization Cycle: 250us~20ms
Debug Software: Motion Studio, NMS Multi-machine Management Software

Model: 4DM3C-EC556

Output Peak Current: 5.6 A
Supply Voltage: 20~50VDC
Matching Motor (Frame): 57/60
Dimensions (mm): 155*116.5*33
Debug Port: TYPE-C
Digital Inputs: 4*4DI (Control signal 12-24V, supports Probe, Origin, +Limit, -Limit, E-Stop, General Input)
Digital Outputs: 4*1DO (OC Output, Max pull-up 30V, Max output 100mA, supports Alarm, Brake, General Output)
Communication Protocol: EtherCAT
Control Modes: CSP, PP, PV, HM
Synchronization Mode: DC Synchronization & Freerun Mode
Synchronization Cycle: 250us~20ms
Debug Software: Motion Studio, NMS Multi-machine Management Software
