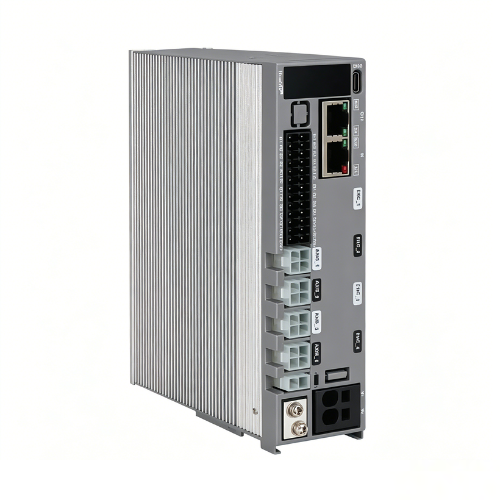

Leadshine 4DM3-EC Series High-Speed EtherCAT Bus Step Driver
Leadshine 4DM3-EC Series High-Speed EtherCAT Bus Step Driver
Product Overview
The 4DM3-EC series is an all-in-one drive product from Leadshine, building upon high-performance digital stepper drivers with added bus communication capabilities.
Utilizing the EtherCAT bus communication interface and based on EtherCAT slave technology, this series complies with the CiA402 standard. It features a bus transmission rate of up to 100Mb/s and supports CSP, PP, PV, and HM control modes.
Designed to enable real-time control and data transmission for stepper systems, the 4DM3-EC series offers significant advantages, including space-saving, time-saving, and cost reduction. For multi-axis control networks, adopting this efficient, stable, and mature EtherCAT industrial bus solution brings significant optimization to customers in terms of space, cost, and system complexity.
4DM3-EC522
- Output Peak Current (A): 2.2
- Supply Voltage (VDC): 20~50VDC
- Matching Motor (Frame): 28/35/42
- Dimensions (mm): 155*116.5*40
- Debug Port: TYPE-C
- Digital Inputs: 4*4DI
- Input Specs: Control signal 12-24V, supports probe input, origin, positive limit, negative limit, emergency stop, general purpose input, etc.
- Digital Outputs: 4*1DO
- Output Specs: OC output, max pull-up 30V, max output 100mA, functions support alarm, hold, general purpose output, etc.
- Motor Winding Interface: /
- Power Input Port: /
- Communication Protocol: EtherCAT
- Control Modes: CSP, PP, PV, HM
- Synchronization Mode: DC Synchronization & Freerun mode
- Synchronization Cycle: 250us~20ms
- Debug Software: Motion Studio, NMS multi-machine management software
4DM3-EC556
- Output Peak Current (A): 5.6
- Supply Voltage (VDC): 20~50VDC
- Matching Motor (Frame): 57/60
- Dimensions (mm): 155*116.5*40
- Debug Port: TYPE-C
- Digital Inputs: 4*4DI
- Input Specs: Control signal 12-24V, supports probe input, origin, positive limit, negative limit, emergency stop, general purpose input, etc.
- Digital Outputs: 4*1DO
- Output Specs: OC output, max pull-up 30V, max output 100mA, functions support alarm, hold, general purpose output, etc.
- Motor Winding Interface: /
- Power Input Port: /
- Communication Protocol: EtherCAT
- Control Modes: CSP, PP, PV, HM
- Synchronization Mode: DC Synchronization & Freerun mode
- Synchronization Cycle: 250us~20ms
- Debug Software: Motion Studio, NMS multi-machine management software
4DM3-EC882
- Output Peak Current (A): 8.2
- Supply Voltage (VDC): 20~70VDC
- Matching Motor (Frame): 86
- Dimensions (mm): 155*116.5*40
- Debug Port: TYPE-C
- Digital Inputs: 4*4DI
- Input Specs: Control signal 12-24V, supports probe input, origin, positive limit, negative limit, emergency stop, general purpose input, etc.
- Digital Outputs: 4*1DO
- Output Specs: OC output, max pull-up 30V, max output 100mA, functions support alarm, hold, general purpose output, etc.
- Motor Winding Interface: /
- Power Input Port: /
- Communication Protocol: EtherCAT
- Control Modes: CSP, PP, PV, HM
- Synchronization Mode: DC Synchronization & Freerun mode
- Synchronization Cycle: 250us~20ms
- Debug Software: Motion Studio, NMS multi-machine management software
