Product Overview
The 42CM Series is a high-performance, cost-effective stepper motor developed by Leadshine (Leadsail) using new Japanese designs, advanced craftsmanship, and imported core materials.
Compared to common stepper motors on the market, this series offers higher torque, lower heat generation, and superior operational smoothness. Thanks to large-scale automated production lines and a strict quality management system, these motors are more stable and reliable, ensuring excellent consistency in batch performance parameters.

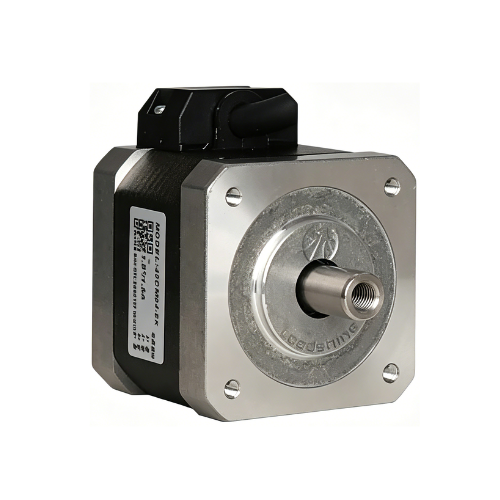

The NEMA 17 (42mm) frame size series includes various hollow shaft models ranging from 0.4 to 0.8 N·m, allowing for selection based on specific application requirements.
Key Features
-
Step Angle: 1.8°
-
Frame Size: 42mm (NEMA 17)
-

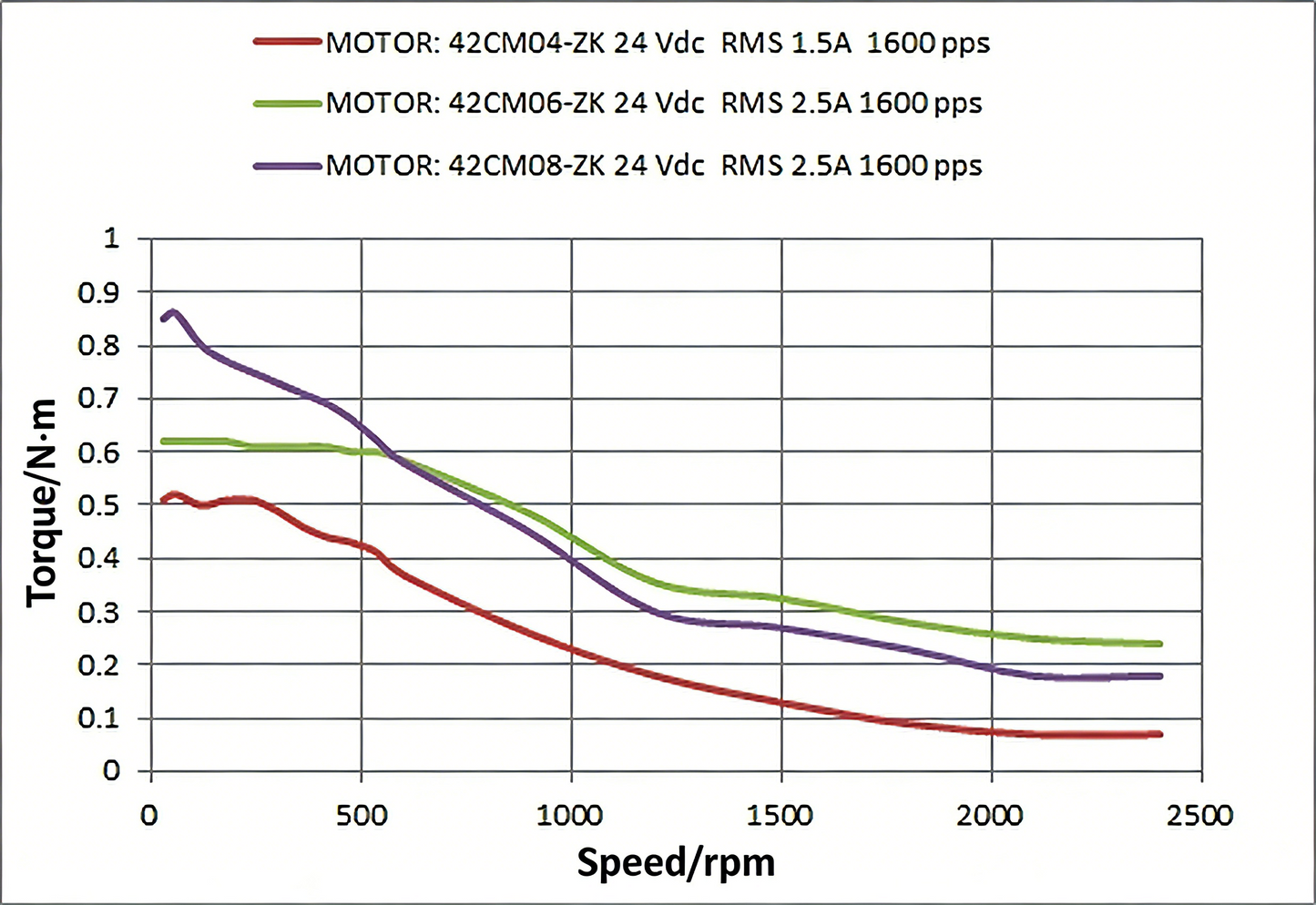

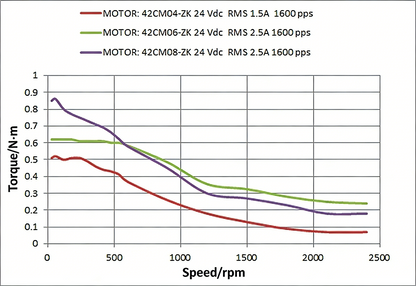

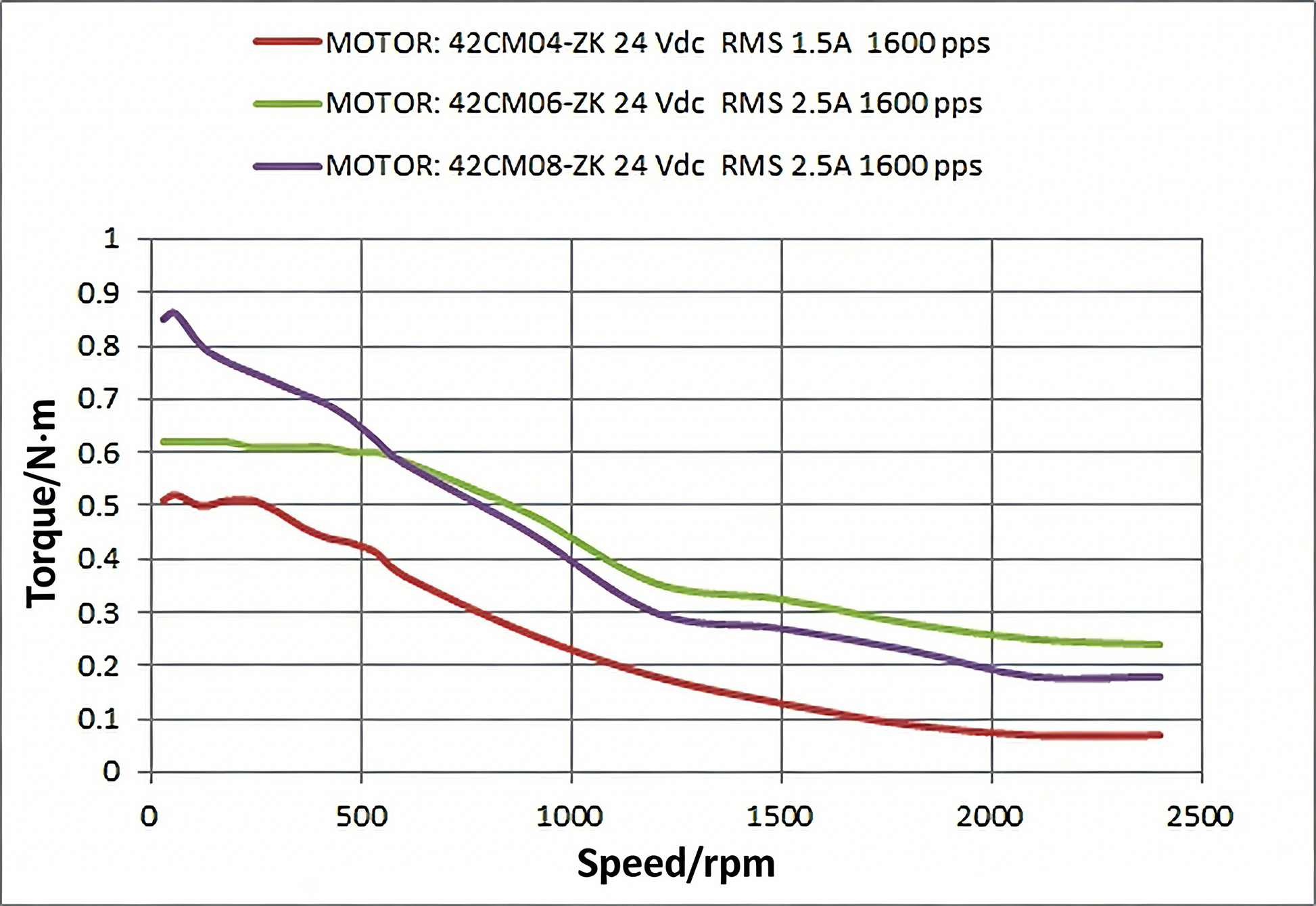

Holding Torque: 0.4 ~ 0.8 N·m
-
Characteristics: High Torque, Low Heat Generation, High Smoothness, High Consistency
