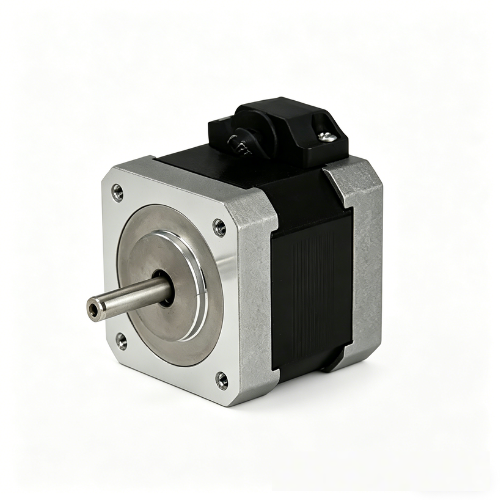

Leadshine 425CMS Series High-Precision 5-Phase Stepper Motor

$999.00 USD

Sale Sold out

Product Overview

The 425CMS Series is a high-end 5-phase stepper motor newly launched by Leadshine. It features a new Japanese design, advanced manufacturing processes, and imported core materials. The high-resolution version offers a basic step angle of 0.36°. Compared to standard 2-phase motors (1.8°), it achieves higher precision control, faster response speeds, and significantly lower vibration and noise. The NEMA 17 (42mm) frame is available in two standard holding torque options: 0.26 N•m and 0.44 N•m.

Key Features:

Step Angle: 0.36°
Frame Size: 42mm
Holding Torque: 0.26 ~ 0.44 N•m
Higher Precision
Faster Response
Lower Vibration & Noise

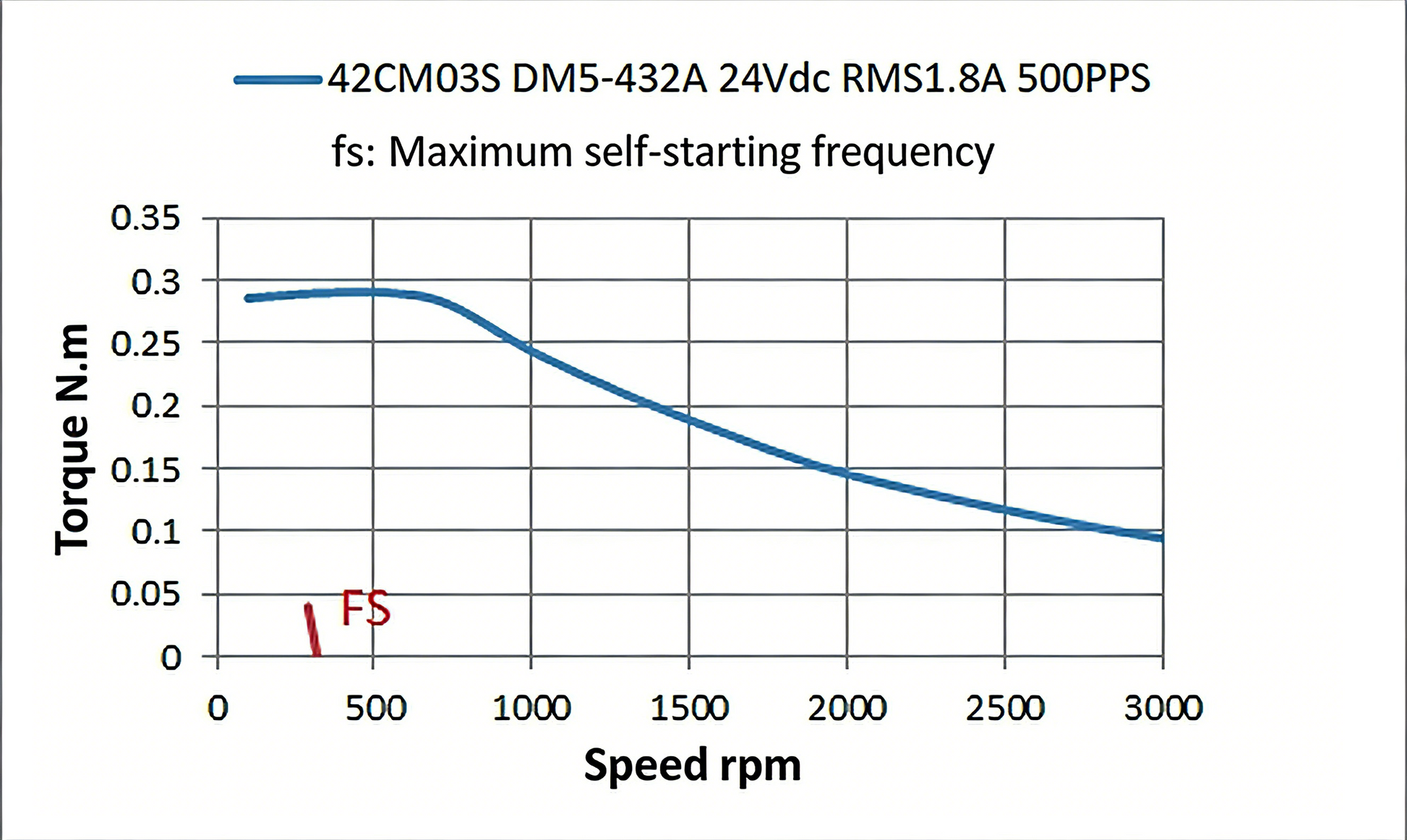

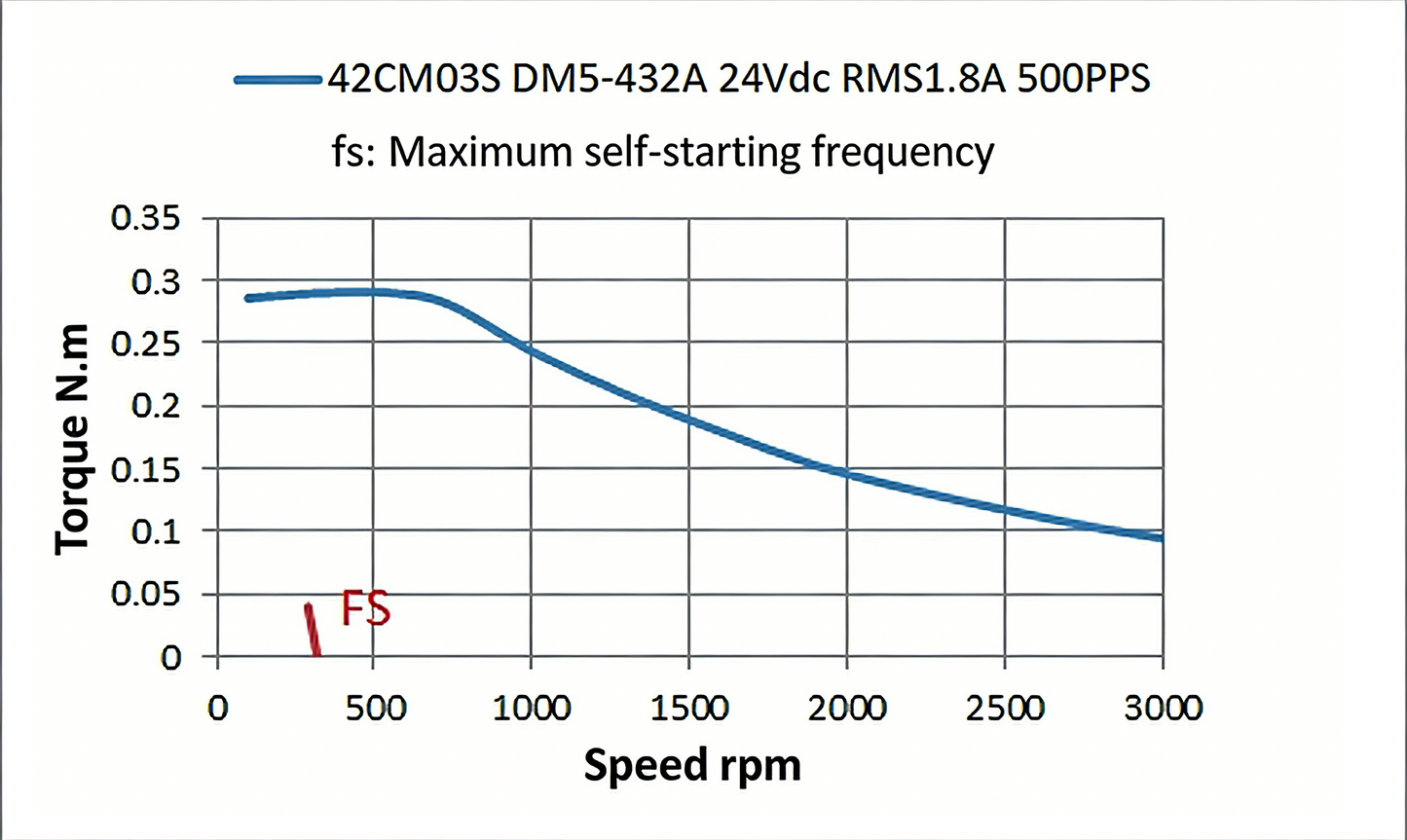

425CM03S

Static Torque: 0.26 N.m
Rated Current: 1.8 A
Resistance: 0.41 Ω
Inductance: 0.7 mH
Rotor Inertia: 54 g.cm²
Body Length: 41 mm
Weight: 0.3 Kg
IP Rating: IP40
Certification: RoHS

425CM03S-SZ

Static Torque: 0.26 N.m
Rated Current: 1.8 A
Resistance: 0.41 Ω
Inductance: 0.7 mH
Rotor Inertia: 54 g.cm²
Body Length: 41 mm
Weight: 0.3 Kg
IP Rating: IP40
Certification: RoHS

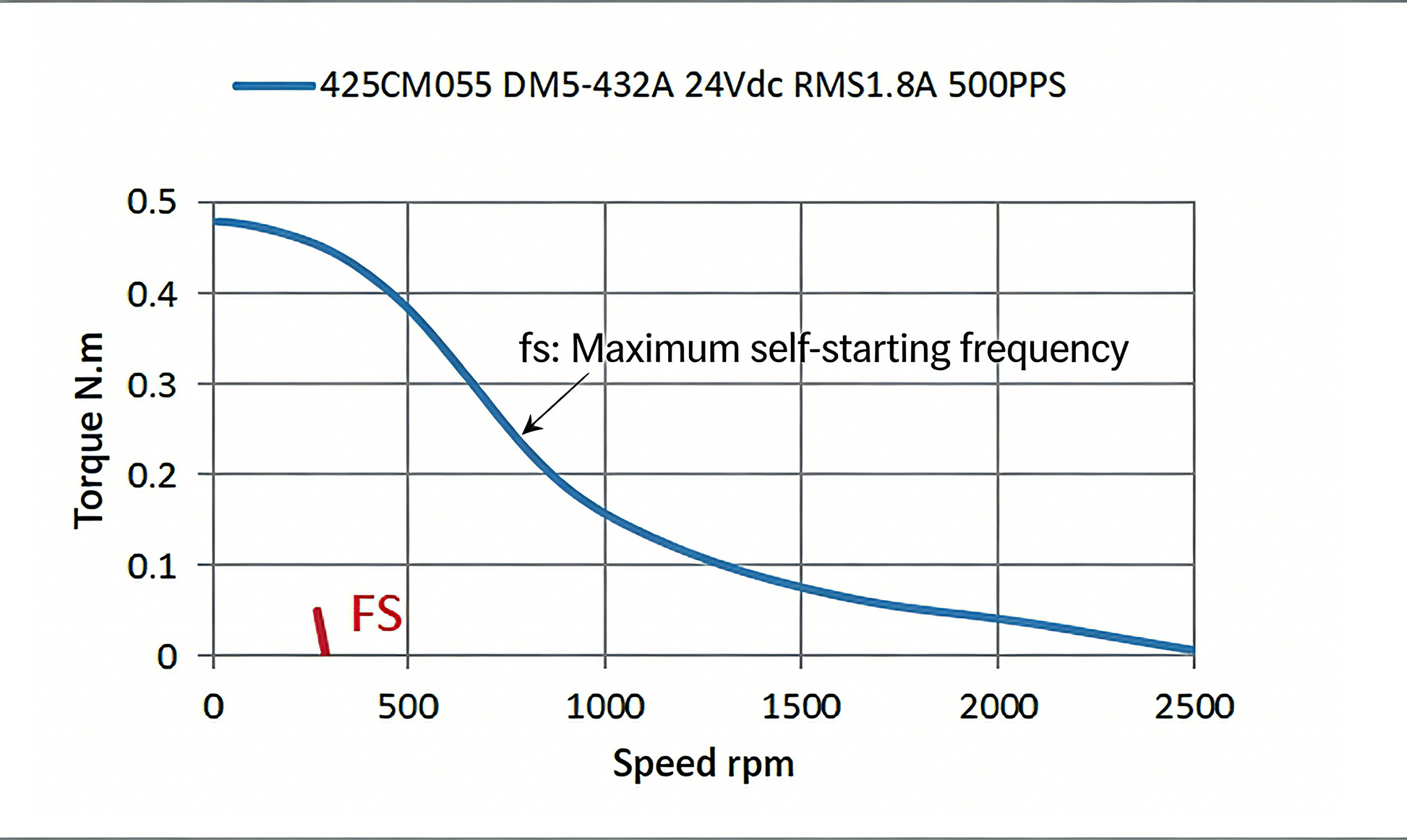

425CM05S

Static Torque: 0.44 N.m
Rated Current: 1.8 A
Resistance: 0.65 Ω
Inductance: 1.45 mH
Rotor Inertia: 110 g.cm²
Body Length: 61 mm
Weight: 0.5 Kg
IP Rating: IP40
Certification: RoHS

425CM05S-SZ

Static Torque: 0.44 N.m
Rated Current: 1.8 A
Resistance: 0.65 Ω
Inductance: 1.45 mH
Rotor Inertia: 110 g.cm²
Body Length: 61 mm
Weight: 0.5 Kg
IP Rating: IP40
Certification: RoHS
