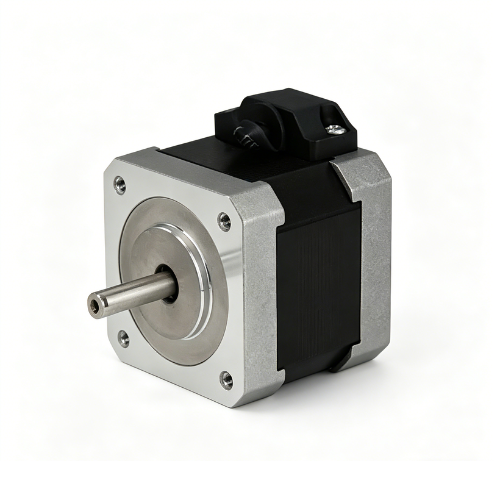

Leadshine 425CM Series High-Precision 5-Phase Stepper Motor

$999.00 USD

Sale Sold out

Product Overview

The 425CM series is a high-end 5-phase stepper motor newly launched by Leadshine. It features a new Japanese design, advanced manufacturing processes, and imported core materials. The basic step angle is a small 0.72° (0.36° for high-resolution models). Compared to 2-phase stepper motors with a standard 1.8° step angle, this series achieves higher precision control, faster response speeds, and significantly lower vibration and noise. The NEMA 17 (42mm) frame offers various standard models ranging from 0.3 to 0.5 N•m to suit different application scenarios.

Features & Benefits

Step Angle: 0.72°
Frame Size: NEMA 17 (42mm)
Holding Torque: 0.3 ~ 0.5 N.m
Higher Precision
Faster Response
Lower Vibration & Noise

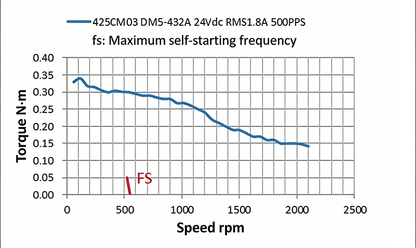

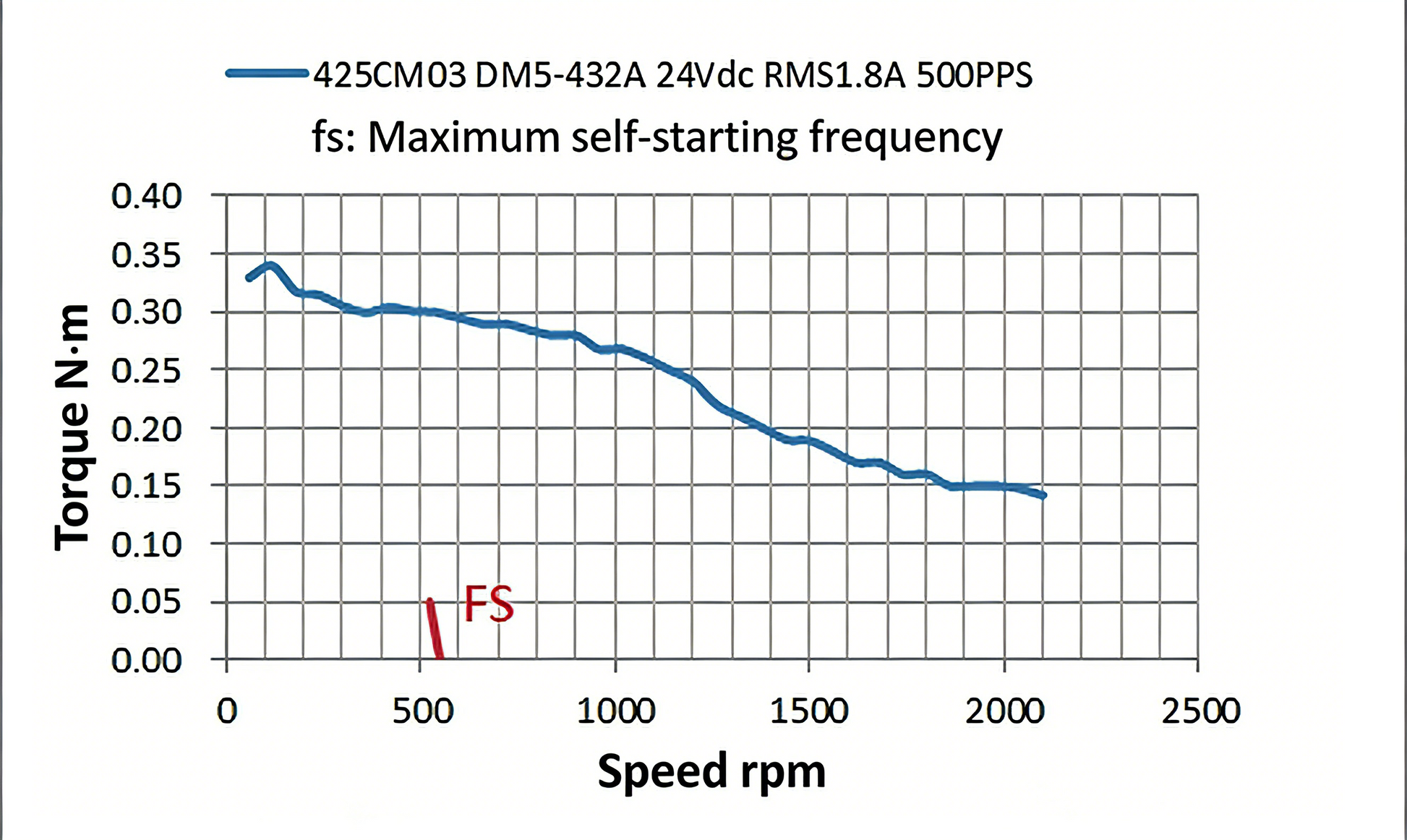

425CM03

Model: 425CM03
Static Torque: 0.3 N.m
Rated Current: 1.8 A
Resistance: 0.41 Ω
Inductance: 0.54 mH
Rotor Inertia: 54 g.cm²
Body Length: 41 mm
Weight: 0.3 Kg
IP Rating: IP40
Certification: RoHS

425CM03-SZ

Model: 425CM03-SZ
Static Torque: 0.3 N.m
Rated Current: 1.8 A
Resistance: 0.41 Ω
Inductance: 0.54 mH
Rotor Inertia: 54 g.cm²
Body Length: 41 mm
Weight: 0.3 Kg
IP Rating: IP40
Certification: RoHS

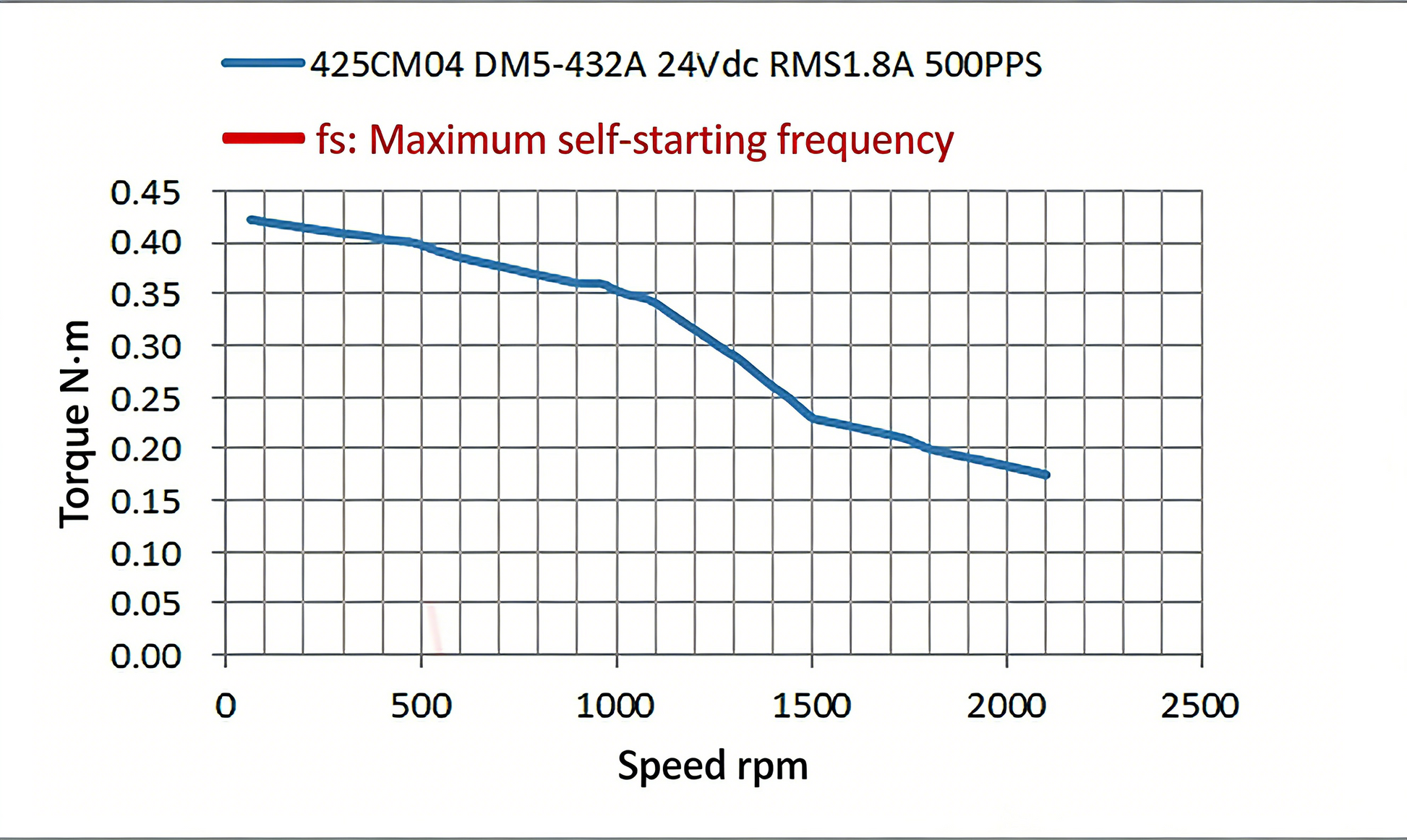

425CM04

Model: 425CM04
Static Torque: 0.37 N.m
Rated Current: 1.8 A
Resistance: 0.5 Ω
Inductance: 0.7 mH
Rotor Inertia: 77 g.cm²
Body Length: 49 mm
Weight: 0.36 Kg
IP Rating: IP40
Certification: RoHS

425CM04-SZ

Model: 425CM04-SZ
Static Torque: 0.37 N.m
Rated Current: 1.8 A
Resistance: 0.5 Ω
Inductance: 0.7 mH
Rotor Inertia: 77 g.cm²
Body Length: 49 mm
Weight: 0.36 Kg
IP Rating: IP40
Certification: RoHS

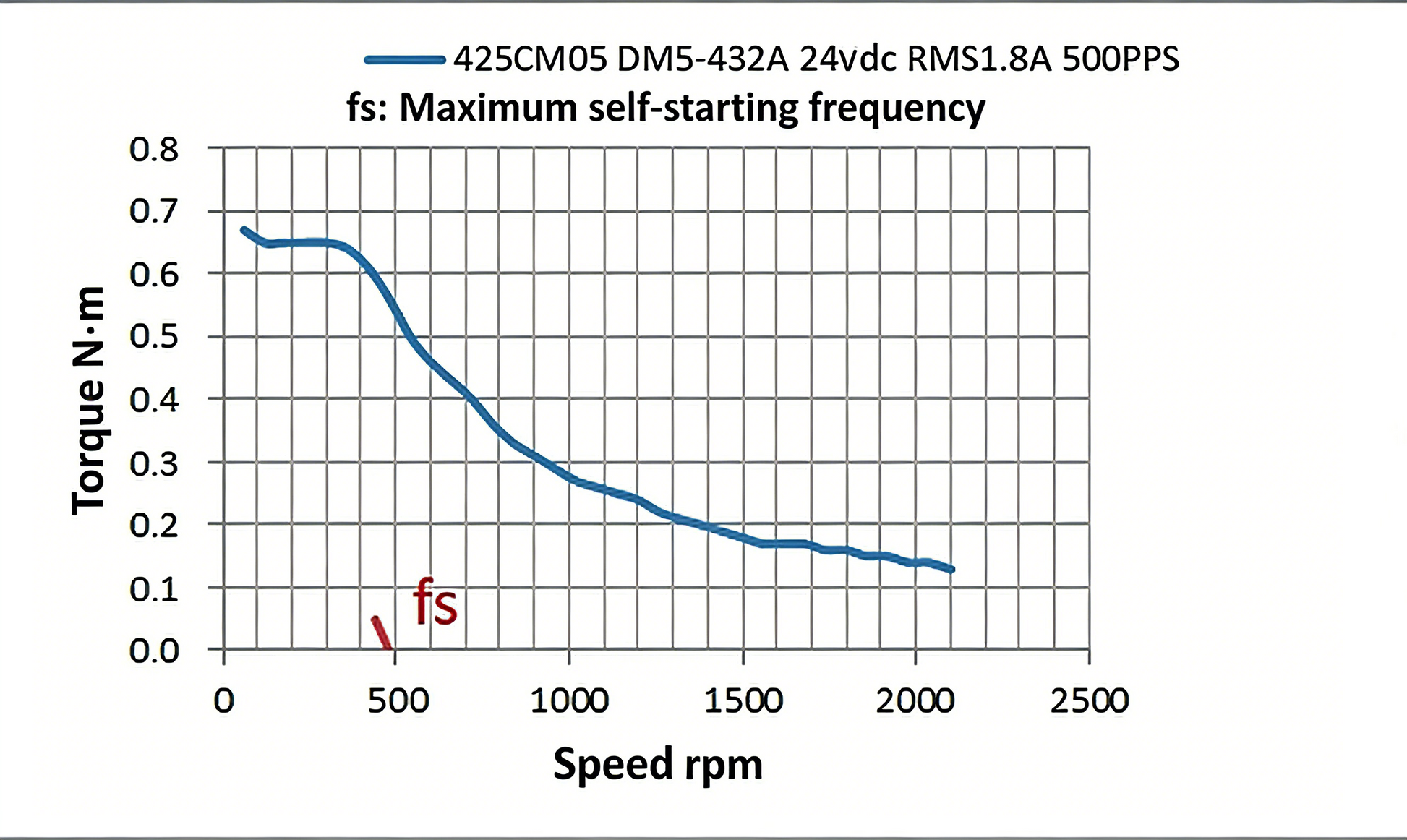

425CM05

Model: 425CM05
Static Torque: 0.5 N.m
Rated Current: 1.8 A
Resistance: 0.65 Ω
Inductance: 1.1 mH
Rotor Inertia: 110 g.cm²
Body Length: 61 mm
Weight: 0.5 Kg
IP Rating: IP40
Certification: RoHS

425CM05-SZ

Model: 425CM05-SZ
Static Torque: 0.5 N.m
Rated Current: 1.8 A
Resistance: 0.65 Ω
Inductance: 1.1 mH
Rotor Inertia: 110 g.cm²
Body Length: 61 mm
Weight: 0.5 Kg
IP Rating: IP40
Certification: RoHS
