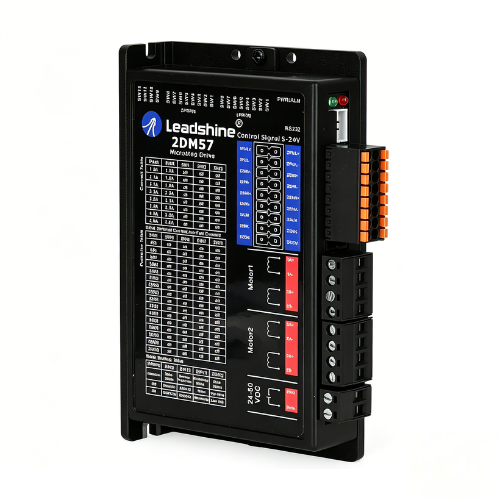

Leadshine 2DM Series Dual-Axis Pulse Stepper Driver - Universal Motion Control

Product Overview

The 2DM Series is a newly launched dual-axis pulse-type stepper driver. Built on the latest software and hardware platform, it combines high performance with intelligent control. This series supports dual-axis synchronous/independent control, comprehensively reducing usage costs while ensuring fast response, low noise, and strong compatibility.

The 2DM series can drive 2-phase stepper motors with frame sizes from 42 to 86. It features a built-in anti-resonance algorithm that effectively solves the problem of low-speed jitter, ensuring smoother motor operation. With a rich selection of models and functional configurations, it meets the needs of a wide range of application scenarios.

Key Features:

• Dual-axis independent drive: Supports mirror synchronization.
• High performance: Rich functionality.
• Flexible Control: Supports switching between Pulse and IO modes.
• Safety Outputs: Supports alarm and brake outputs.

Technical Specifications

• Model: 2DM57
• Output Peak Current: 5.6 A
• Supply Voltage: 24~50 VDC
• Matched Motor: 57/60 Frame
• Dimensions: 130*79.5*25.5 mm
• Debug Interface: RS232
• Digital Inputs: 6DI (Pulse/Dir/Enable, 5-24V compatible)
• Digital Outputs: 4DO (OC Output, Max 100mA, Alarm/Brake support)
• Pulse Frequency: 200kHz / 500kHz
• Motor Interface: 4PIN Screw Terminal
• Power Interface: 2PIN Screw Terminal
• Control Mode: Pulse Mode / IO Mode
• Debugging Software: MotionStudio 2.3
