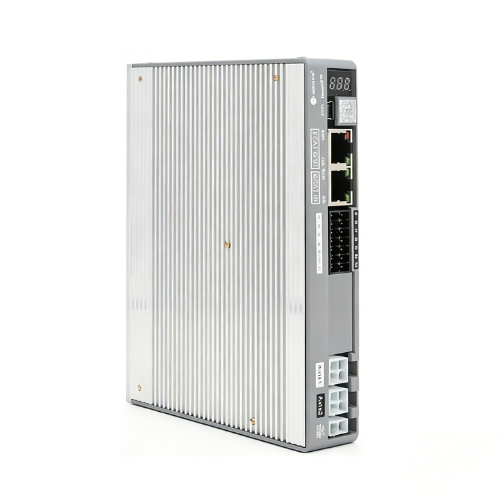

Leadshine 2DM3-EIP Series EtherNet/IP Integrated Stepper Drive

$999.00 USD

Sale Sold out

2DM3-EIP Series Overview

The 2DM3-EIP series is an integrated 2-in-1 drive product by Leadshine, building upon high-performance digital stepper drives with added bus communication capabilities. Utilizing the Ethernet/IP bus communication interface and slave technology, it achieves real-time control and data transmission with speeds up to 100Mb/s. Known for its simplicity, reliability, and excellence performance, it supports various master station control systems (Leadshine, Omron, Keyence, etc.) and is widely used in photovoltaic, lithium battery, and 3C electronics industries.

🚀 Efficient Dual-Axis Control

Occupies only one network IP address for dual-axis control, reducing network load.
Two axes can be controlled and run independently without interference.

🔌 Enhanced Usability

Spring terminals for plug-and-play wiring; no IO soldering required.
Two sets of DIP switches for quick and intuitive IP address setting.

📉 Space Saving Design

Thinner profile compared to single-axis products.
Requires only half the installation space for the same number of axes.

🌐 Ethernet/IP Communication

Supports Ethernet/IP communication protocol.
Built-in Position, Velocity, and Homing control modes.

💰 Reduced Cabling

Reduces network communication cable usage and potential external interference.
Reduces power cable usage and potential failure points.

🛠️ Powerful Diagnostics

Digital tube displays status and alarm info for quick fault diagnosis.
Drive can connect to PC via USB for debugging/upgrades without external power.

Technical Specifications

Model: 2DM3-EIP522

Peak Output Current: 2.2 A
Supply Voltage: 20~50VDC
Matching Motor (Frame): 20/28/35/42
Dimensions (mm): 155*116.5*28
Debug Port: MINI-USB
Digital Inputs: 2*4DI (Control signal 12-24V, supports probe, home, positive limit, negative limit, E-stop, general purpose)
Digital Outputs: 2*2DO (OC output, max pull-up 30V, max output 100mA, supports alarm, brake, general purpose)
Motor Winding Interface: 4PIN MOLEX Connector
Power Input: 2PIN MOLEX Connector
Communication Protocol: EtherNet/IP
Control Mode: PP, PV, HM
Debug Software: Motion Studio

Model: 2DM3-EIP556

Peak Output Current: 5.6 A
Supply Voltage: 20~50VDC
Matching Motor (Frame): 57/60
Dimensions (mm): 155*116.5*28
Debug Port: MINI-USB
Digital Inputs: 2*4DI (Control signal 12-24V, supports probe, home, positive limit, negative limit, E-stop, general purpose)
Digital Outputs: 2*2DO (OC output, max pull-up 30V, max output 100mA, supports alarm, brake, general purpose)
Motor Winding Interface: 4PIN MOLEX Connector
Power Input: 2PIN MOLEX Connector
Communication Protocol: EtherNet/IP
Control Mode: PP, PV, HM
Debug Software: Motion Studio

Model: 2DM3-EIP870

Peak Output Current: 7.0 A
Supply Voltage: 20~70VDC
Matching Motor (Frame): 86 (Below 4.5Nm)
Dimensions (mm): 155*116.5*28
Debug Port: MINI-USB
Digital Inputs: 2*4DI (Control signal 12-24V, supports probe, home, positive limit, negative limit, E-stop, general purpose)
Digital Outputs: 2*2DO (OC output, max pull-up 30V, max output 100mA, supports alarm, brake, general purpose)
Motor Winding Interface: 4PIN MOLEX Connector
Power Input: 2PIN MOLEX Connector
Communication Protocol: EtherNet/IP
Control Mode: PP, PV, HM
Debug Software: Motion Studio
