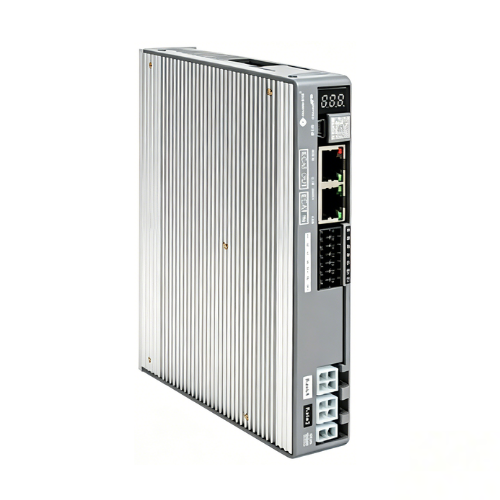

Leadshine 2DM3-ECS Series EtherCAT Integrated Stepper Drive

$999.00 USD

Sale Sold out

Product Overview

The 2DM3-EC Series is an all-in-one integrated drive developed by Leadshine. Building upon high-performance digital stepper technology, it incorporates EtherCAT bus communication. Based on EtherCAT slave technology, it achieves real-time control and data transmission with speeds up to 100Mb/s.

Characterized by simplicity, stability, and excellence performance, it is compatible with various master control systems including Leadshine, Beckhoff, Omron, Keyence, and Panasonic. It is widely used in photovoltaics, civil industries, lithium battery equipment, and 3C electronics.

Key Features

⚡ Higher Efficiency with Dual-Axis Control

Occupies only a single network node.
Two axes can be controlled and run independently without interference.

📉 Significantly Reduced Installation Space

Thinner profile compared to single-axis products.
Requires only half the installation space for the same number of axes.

🔌 Reduced Wiring Consumption

Reduces network communication cable usage and minimizes external interference.
Reduces power cable usage, thereby lowering potential failure points.

🛠️ Powerful Functions & Diagnostics

Equipped with a digital display to show status and alarm info for faster fault diagnosis.
Supports USB connection to PC software for upgrades and debugging without external power supply.

Model: 2DM3-EC522

Peak Output Current: 2.2 A
Supply Voltage: 20~50VDC
Matching Motor (Frame): 28/35/42
Dimensions: 155*116.5*28 mm
Debug Port: MINI-USB
Digital Inputs: 2*4DI
Input Spec: Control signal 12-24V, supports Probe, Origin, +Limit, -Limit, E-Stop, General Input
Digital Outputs: 2*2DO
Output Spec: OC output, Max pull-up 30V, Max output 100mA, supports Alarm, Hold, General Output
Motor Connector: 4PIN MOLEX
Power Input: 2PIN MOLEX
Communication Protocol: EtherCAT
Control Mode: CSP, PP, PV, HM
Synchronization Mode: DC Synchronization & Freerun mode
Synchronization Cycle: 250us~20ms
Debug Software: Motion Studio, NMS Multi-machine Management Software

Model: 2DM3-EC556

Peak Output Current: 5.6 A
Supply Voltage: 20~50VDC
Matching Motor (Frame): 57/60
Dimensions: 155*116.5*28 mm
Debug Port: MINI-USB
Digital Inputs: 2*4DI
Input Spec: Control signal 12-24V, supports Probe, Origin, +Limit, -Limit, E-Stop, General Input
Digital Outputs: 2*2DO
Output Spec: OC output, Max pull-up 30V, Max output 100mA, supports Alarm, Hold, General Output
Motor Connector: 4PIN MOLEX
Power Input: 2PIN MOLEX
Communication Protocol: EtherCAT
Control Mode: CSP, PP, PV, HM
Synchronization Mode: DC Synchronization & Freerun mode
Synchronization Cycle: 250us~20ms
Debug Software: Motion Studio, NMS Multi-machine Management Software

Model: 2DM3-EC870

Peak Output Current: 7.0 A
Supply Voltage: 20~70VDC
Matching Motor (Frame): 86 (Below 8.5Nm)
Dimensions: 155*116.5*28 mm
Debug Port: MINI-USB
Digital Inputs: 2*4DI
Input Spec: Control signal 12-24V, supports Probe, Origin, +Limit, -Limit, E-Stop, General Input
Digital Outputs: 2*2DO
Output Spec: OC output, Max pull-up 30V, Max output 100mA, supports Alarm, Hold, General Output
Motor Connector: 4PIN MOLEX
Power Input: 2PIN MOLEX
Communication Protocol: EtherCAT
Control Mode: CSP, PP, PV, HM
Synchronization Mode: DC Synchronization & Freerun mode
Synchronization Cycle: 250us~20ms
Debug Software: Motion Studio, NMS Multi-machine Management Software

Model: 2DM3-EC432S

Peak Output Current: 3.2 A
Supply Voltage: 20~40VDC
Matching Motor (Frame): 28/35/42
Dimensions: 129*97*28 mm
Debug Port: TYPE-C
Digital Inputs: 2*4DI
Input Spec: Control signal 12-24V, supports Probe, Origin, +Limit, -Limit, E-Stop, General Input
Digital Outputs: 2*2DO
Output Spec: OC output, Max pull-up 30V, Max output 100mA, supports Alarm, Hold, General Output
Motor Connector: 4PIN MOLEX
Power Input: 2PIN MOLEX
Communication Protocol: EtherCAT
Control Mode: CSP, PP, PV, HM
Synchronization Mode: DC Synchronization & Freerun mode
Synchronization Cycle: 250us~20ms
Debug Software: Motion Studio, NMS Multi-machine Management Software

Model: 2DM3-EC556S

Peak Output Current: 5.6 A
Supply Voltage: 20~50VDC
Matching Motor (Frame): 57/60
Dimensions: 129*97*34.5 mm
Debug Port: TYPE-C
Digital Inputs: 2*4DI
Input Spec: Control signal 12-24V, supports Probe, Origin, +Limit, -Limit, E-Stop, General Input
Digital Outputs: 2*2DO
Output Spec: OC output, Max pull-up 30V, Max output 100mA, supports Alarm, Hold, General Output
Motor Connector: 4PIN MOLEX
Power Input: 2PIN MOLEX
Communication Protocol: EtherCAT
Control Mode: CSP, PP, PV, HM
Synchronization Mode: DC Synchronization & Freerun mode
Synchronization Cycle: 250us~20ms
Debug Software: Motion Studio, NMS Multi-machine Management Software

Model: 2DM3-EC882S

Peak Output Current: 8.2 A
Supply Voltage: 20~60VDC
Matching Motor (Frame): 86
Dimensions: 155*116.5*33 mm
Debug Port: TYPE-C
Digital Inputs: 2*4DI
Input Spec: Control signal 12-24V, supports Probe, Origin, +Limit, -Limit, E-Stop, General Input
Digital Outputs: 2*2DO
Output Spec: OC output, Max pull-up 30V, Max output 100mA, supports Alarm, Hold, General Output
Motor Connector: 4PIN MOLEX
Power Input: 2PIN MOLEX
Communication Protocol: EtherCAT
Control Mode: CSP, PP, PV, HM
Synchronization Mode: DC Synchronization & Freerun mode
Synchronization Cycle: 250us~20ms
Debug Software: Motion Studio, NMS Multi-machine Management Software
