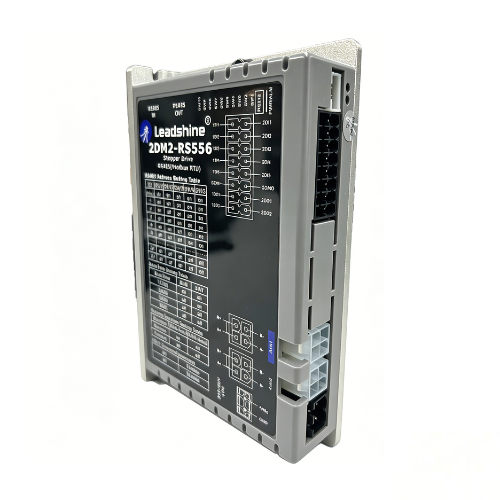

Leadshine 2DM2 Series RS485 Integrated Stepper Drive | Modbus RTU Bus Controller | 20-50VDC

$999.00 USD

Sale Sold out

Product Overview

The 2DM2 Series is a dual-axis, 485 open-loop bus stepper product independently developed by Leadshine. Utilizing RS485 network (Modbus bus) technology, it features a built-in position table with up to 16 segments. It can be triggered via RS485 signals or external I/O signals to function as a programmable driver, achieving real-time control and data transmission for stepper systems. Supporting networks of up to 32 axes, the driver is equipped with rich input/output interfaces to complete motion control functions such as positioning, speed control, and homing.

Key Features & Benefits

📐 Space Saving

High-density integration: Significantly smaller physical volume.
Simplified wiring: Saves valuable control cabinet space.
Expansion ready: Frees up equipment space for future functional upgrades.

🛠️ Labor Efficiency

Fast Installation: Installation points reduced by half; wiring efficiency doubled.
Easy Setup: Integrated debugging and configuration for streamlined software settings.
Low Maintenance: Fewer maintenance nodes reduce long-term operational costs.

💰 Cost Reduction

Better Value: More cost-effective than purchasing two single-axis drivers.
Material Savings: Reduces consumption of motors, power cables, and communication lines.
High ROI: Reduced maintenance requirements result in superior comprehensive cost-performance.

2DM2-RS522

Peak Output Current: 2.2 A
Supply Voltage: 20~50VDC
Matching Motor (Frame): 28/35/42
Dimensions: 130*84.5*25.5 mm
Debug Port: RS232 Debug Port
Digital Input: 2*5DI
Input Specification: Control signal 12-24V, functions include Origin, +Limit, -Limit, E-Stop, Path Address, Trigger Command, Home Trigger, etc.
Digital Output: 2*2DO
Output Specification: OC Output, Max output 100mA, functions include Alarm, Hold, In-Position, Home Complete, etc.
Motor Winding Interface: 2*2PIN MOLEX
Power Input Port: 2PIN Screw Terminal
Communication Protocol: Modbus RTU
Control Mode: PR16 Segments (Absolute, Relative, Speed, Home Return modes, etc.)
Sync Mode: /
Sync Cycle: /
Debug Software: Motion Studio

2DM2-RS556

Peak Output Current: 5.6 A
Supply Voltage: 20~50VDC
Matching Motor (Frame): 57/60
Dimensions: 130*84.5*25.5 mm
Debug Port: RS232 Debug Port
Digital Input: 2*5DI
Input Specification: Control signal 12-24V, functions include Origin, +Limit, -Limit, E-Stop, Path Address, Trigger Command, Home Trigger, etc.
Digital Output: 2*2DO
Output Specification: OC Output, Max output 100mA, functions include Alarm, Hold, In-Position, Home Complete, etc.
Motor Winding Interface: 2*2PIN MOLEX
Power Input Port: 2PIN Screw Terminal
Communication Protocol: Modbus RTU
Control Mode: PR16 Segments (Absolute, Relative, Speed, Home Return modes, etc.)
Sync Mode: /
Sync Cycle: /
Debug Software: Motion Studio

2DM2-RS570

Peak Output Current: 7.0 A
Supply Voltage: 20~50VDC
Matching Motor (Frame): 86 (Below 4.5Nm)
Dimensions: 130*84.5*25.5 mm
Debug Port: RS232 Debug Port
Digital Input: 2*5DI
Input Specification: Control signal 12-24V, functions include Origin, +Limit, -Limit, E-Stop, Path Address, Trigger Command, Home Trigger, etc.
Digital Output: 2*2DO
Output Specification: OC Output, Max output 100mA, functions include Alarm, Hold, In-Position, Home Complete, etc.
Motor Winding Interface: 2*2PIN MOLEX
Power Input Port: 2PIN Screw Terminal
Communication Protocol: Modbus RTU
Control Mode: PR16 Segments (Absolute, Relative, Speed, Home Return modes, etc.)
Sync Mode: /
Sync Cycle: /
Debug Software: Motion Studio
