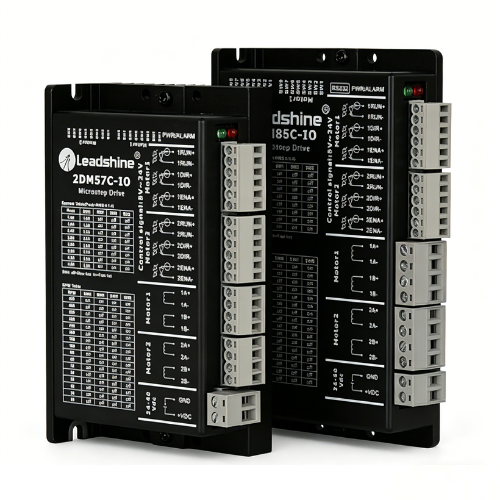

Leadshine 2DM-IO Series 2-Axis Stepper Driver - IO Speed Control & Pulse Type, Universal Dual-Axis Driver

$999.00 USD

Sale Sold out

Product Overview

The 2DM-IO series is a newly launched dual-axis IO control stepper driver by Leadshine. Built on the latest software and hardware platform, it integrates high performance with intelligent control. This series supports dual-axis synchronous/independent control, comprehensively reducing usage costs while achieving fast response, low noise, and strong compatibility.

The 2DM-IO series can drive 42~86 frame two-phase stepper motors. It features a built-in anti-resonance algorithm that effectively solves the problem of low-speed jitter, making motor operation smoother. Rich options and functional configurations can meet the needs of more application scenarios.

Key Features

Dual-Axis Control, Two-in-One: Integrated control for two motors.
Low Cost, High Performance: Optimized cost-efficiency without sacrificing power.
Flexible Speed Regulation: Versatile speed control functions.
IO/Pulse Mode Switching: Supports switching between control modes.

2DM57C-IO

Peak Output Current: 4.5 A
Supply Voltage: 24~40VDC
Matching Motor: 42/57
Dimensions (mm): 118*69.2*34
Debug Port: /
Digital Inputs: 6DI
Input Specs: Compatible 5~24V, Forward, Reverse, 2-Speed
Digital Output: /
Motor Interface: 4PIN Screw Terminal
Power Interface: 2PIN Screw Terminal
Control Mode: Digital IO Speed Mode
Debug Software: /

2DM86C-IO

Peak Output Current: 7.0 A
Supply Voltage: 24~50VDC
Matching Motor: 57/60/86
Dimensions (mm): 130*79.5*25.5
Debug Port: RS232 Debug Port
Digital Inputs: 6DI
Input Specs: Compatible 5~24V, Forward, Reverse, 2-Speed
Digital Output: /
Motor Interface: 4PIN Screw Terminal
Power Interface: 2PIN Screw Terminal
Control Mode: Digital IO Speed Mode
Debug Software: MotionStudio 2.3

2DM57C-V

Peak Output Current: 4.5 A
Supply Voltage: 24~40VDC
Matching Motor: 42/57
Dimensions (mm): 118*69.2*34
Debug Port: /
Digital Inputs: 5DI
Input Specs: Compatible 5~24V, Forward, Reverse, Enable, Multi-speed
Digital Output: 1DO (OC Output, Max 100mA, Alarm Support)
Motor Interface: 4PIN Screw Terminal
Power Interface: 2PIN Screw Terminal
Control Mode: Digital IO Speed Mode
Debug Software: /

2DM86C-V

Peak Output Current: 7.0 A
Supply Voltage: 24~50VDC
Matching Motor: 57/60/86
Dimensions (mm): 130*79.5*25.5
Debug Port: RS232 Debug Port
Digital Inputs: 5DI
Input Specs: Compatible 5~24V, Forward, Reverse, Enable, Multi-speed
Digital Output: 1DO (OC Output, Max 100mA, Alarm Support)
Motor Interface: 4PIN Screw Terminal
Power Interface: 2PIN Screw Terminal
Control Mode: Digital IO Speed Mode
Debug Software: MotionStudio 2.3

2DM57C-A

Peak Output Current: 4.5 A
Supply Voltage: 24~40VDC
Matching Motor: 42/57
Dimensions (mm): 118*69.2*34
Debug Port: /
Digital Inputs: 3DI
Input Specs: Compatible 5~24V, Forward, Reverse, 2-Speed
Digital Output: 1DO (OC Output, Max 100mA, Alarm Support)
Motor Interface: 4PIN Screw Terminal
Power Interface: 2PIN Screw Terminal
Control Mode: Analog IO Speed Mode / Pulse Mode
Debug Software: /

2DM86C-A

Peak Output Current: 7.0 A
Supply Voltage: 24~50VDC
Matching Motor: 57/60/86
Dimensions (mm): 130*79.5*25.5
Debug Port: RS232 Debug Port
Digital Inputs: 3DI
Input Specs: Compatible 5~24V, Forward, Reverse, 2-Speed
Digital Output: 1DO (OC Output, Max 100mA, Alarm Support)
Motor Interface: 4PIN Screw Terminal
Power Interface: 2PIN Screw Terminal
Control Mode: Analog IO Speed Mode / Pulse Mode
Debug Software: MotionStudio 2.3
