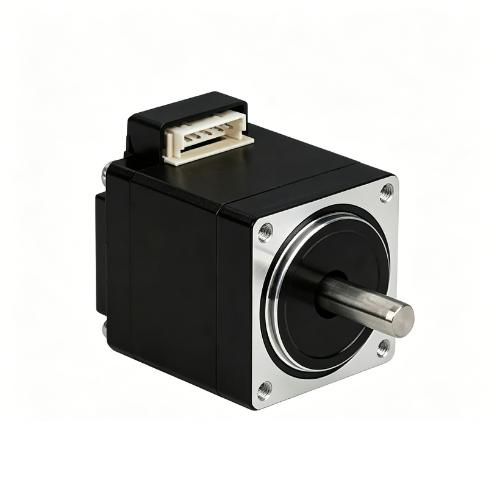

Leadshine 285CM Series High-Precision 5-Phase Stepper Motor

$999.00 USD

Sale Sold out

285CM Series Overview

The 285CM Series is a high-end 5-phase stepper motor newly launched by Leadshine (Leisai). Featuring Japanese design, advanced craftsmanship, and imported core materials, it offers a basic step angle of 0.72° (0.36° for high-res models). Compared to standard 1.8° 2-phase motors, it delivers higher precision, faster response, and lower vibration.

Key Features:

Step Angle: 0.72°
Frame Size: 28mm
Holding Torque: 0.05 ~ 0.12 N·m
Higher Precision & Faster Response
Lower Vibration & Noise

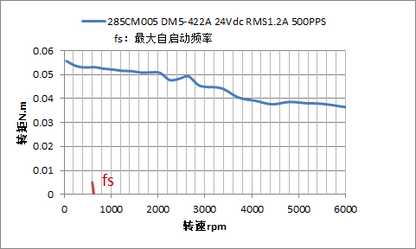

285CM005 +

Static Torque: 0.05 N.m
Rated Current: 1.2 A
Resistance: 0.56 Ω
Inductance: 0.2 mH
Rotor Inertia: 9 g.cm²
Body Length: 32 mm
Weight: 0.1 Kg
IP Rating: IP40
Certification: RoHS

285CM005-SZ +

Static Torque: 0.05 N.m
Rated Current: 1.2 A
Resistance: 0.56 Ω
Inductance: 0.2 mH
Rotor Inertia: 9 g.cm²
Body Length: 32 mm
Weight: 0.1 Kg
IP Rating: IP40
Certification: RoHS

285CM012 +

Static Torque: 0.12 N.m
Rated Current: 1.2 A
Resistance: 0.88 Ω
Inductance: 0.6 mH
Rotor Inertia: 12 g.cm²
Body Length: 52 mm
Weight: 0.2 Kg
IP Rating: IP40
Certification: RoHS

285CM012-SZ +

Static Torque: 0.12 N.m
Rated Current: 1.2 A
Resistance: 0.88 Ω
Inductance: 0.6 mH
Rotor Inertia: 12 g.cm²
Body Length: 52 mm
Weight: 0.2 Kg
IP Rating: IP40
Certification: RoHS
