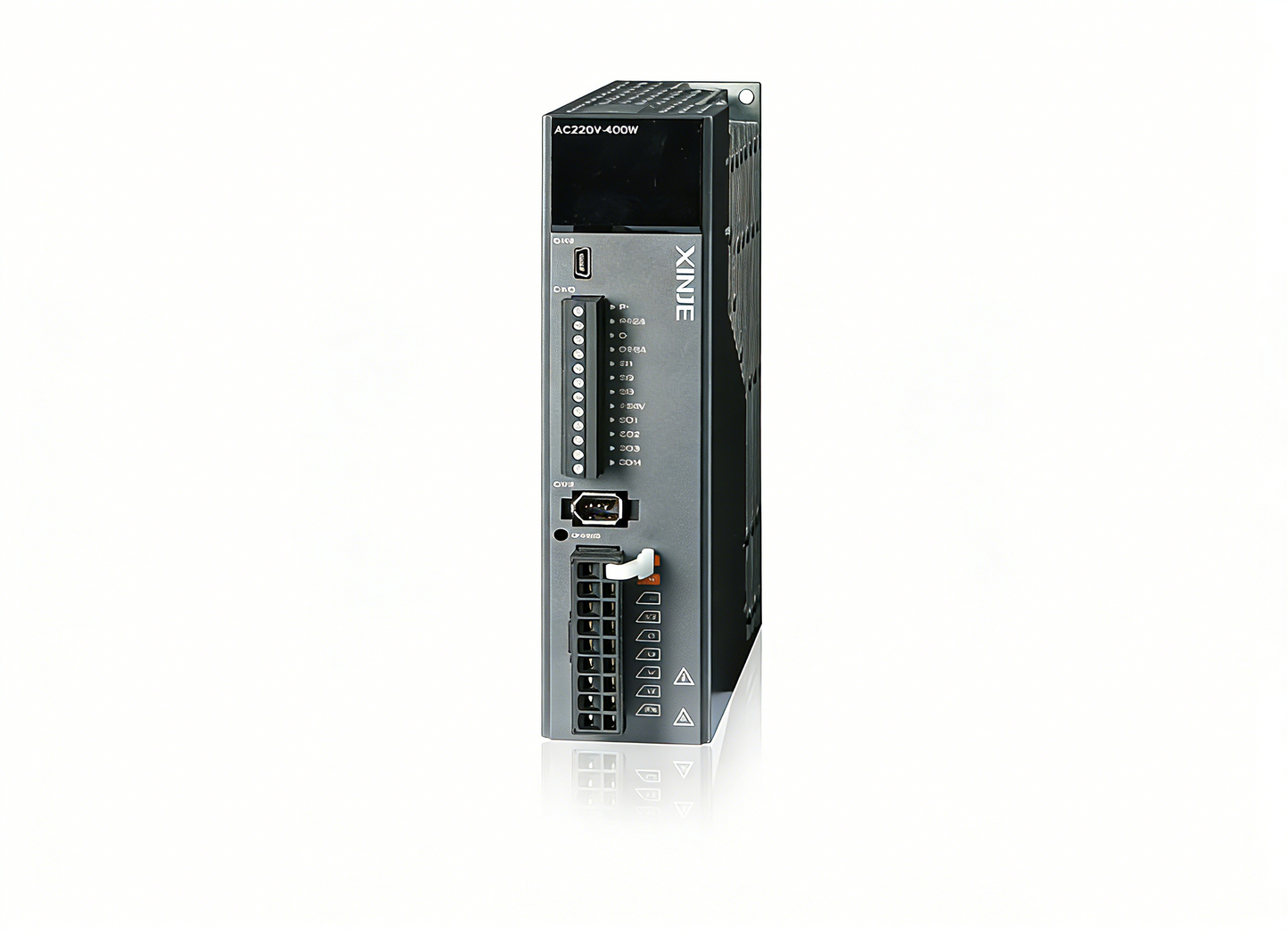

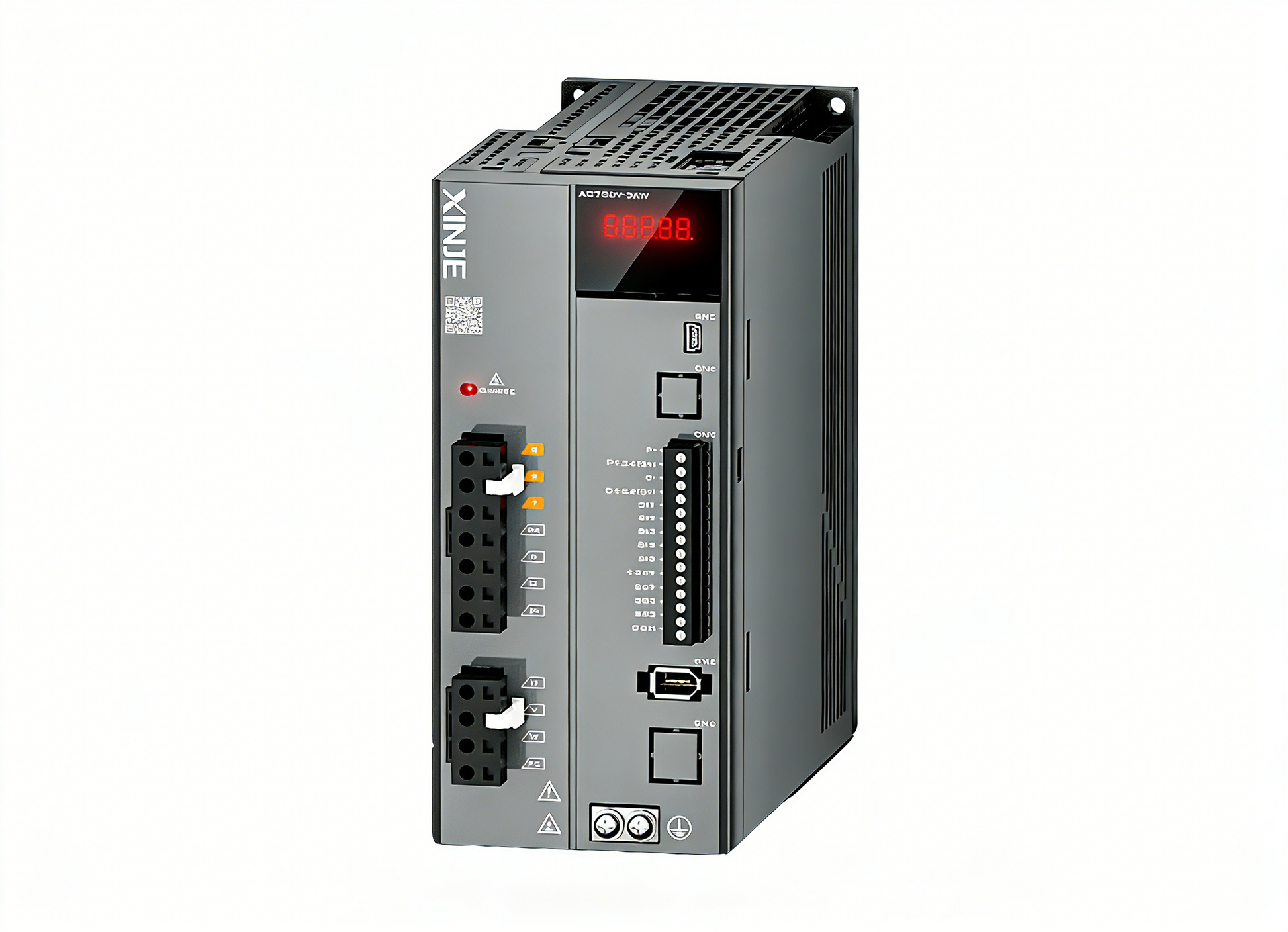

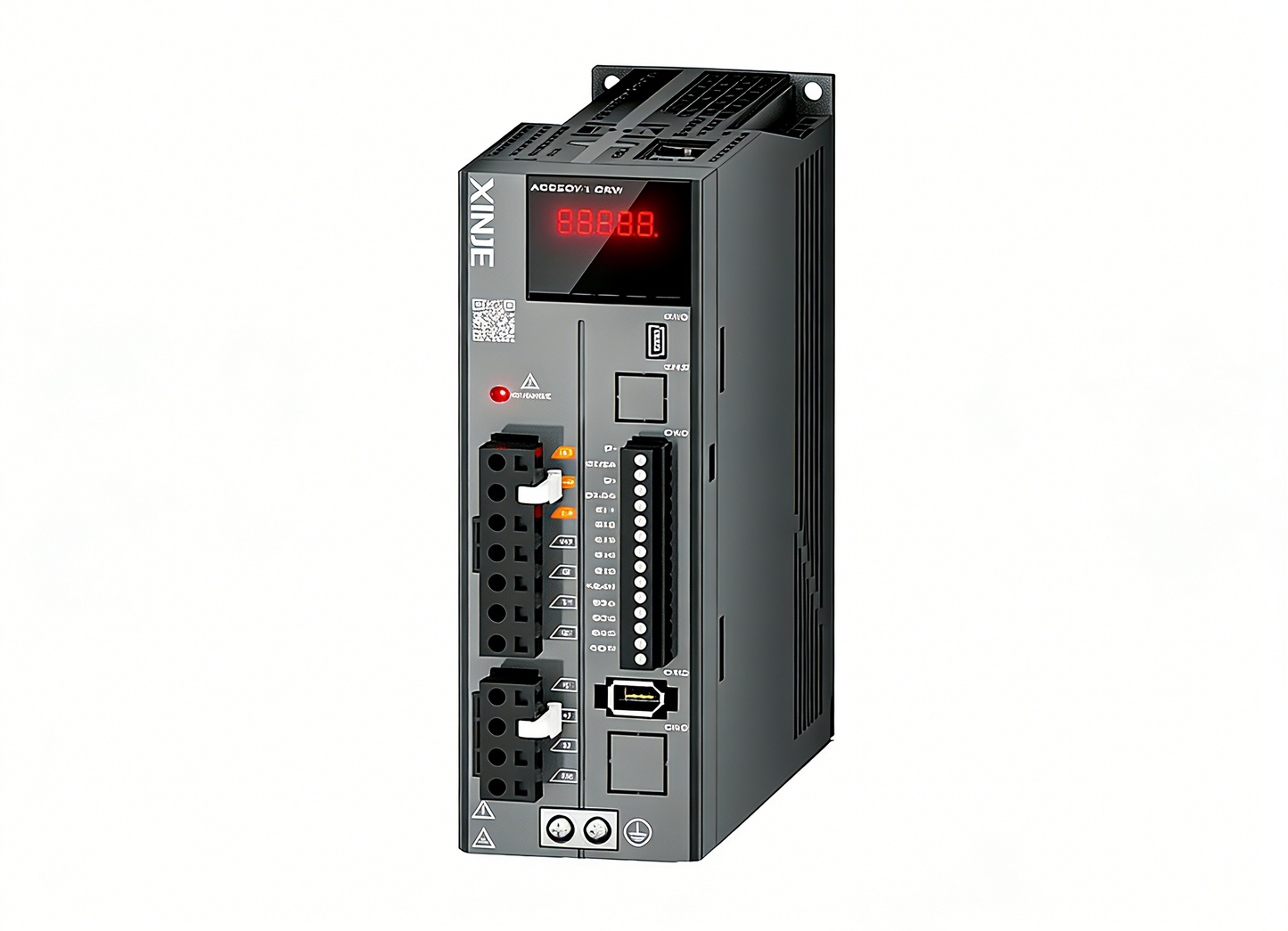

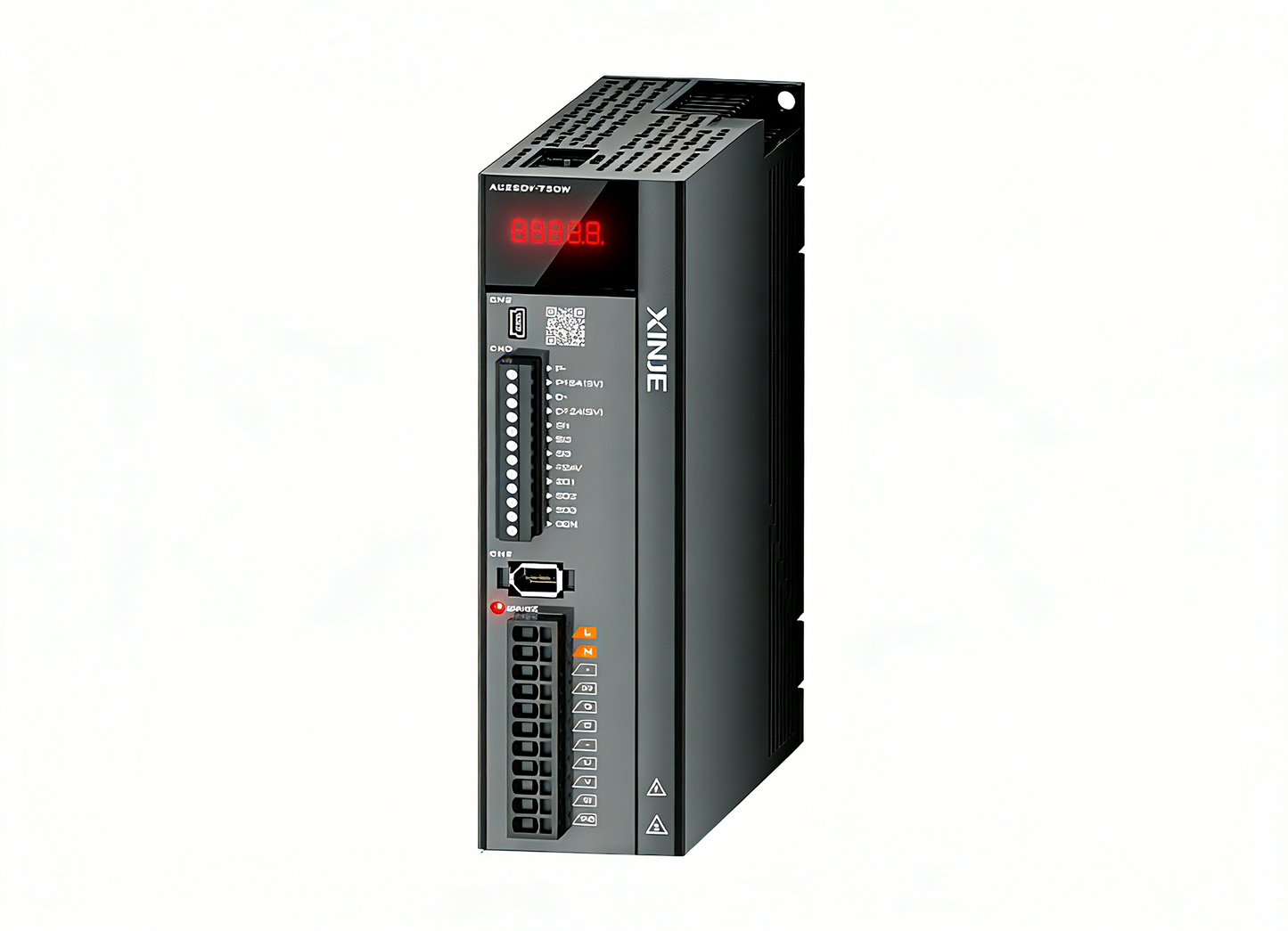

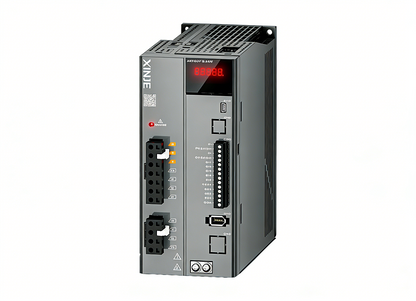

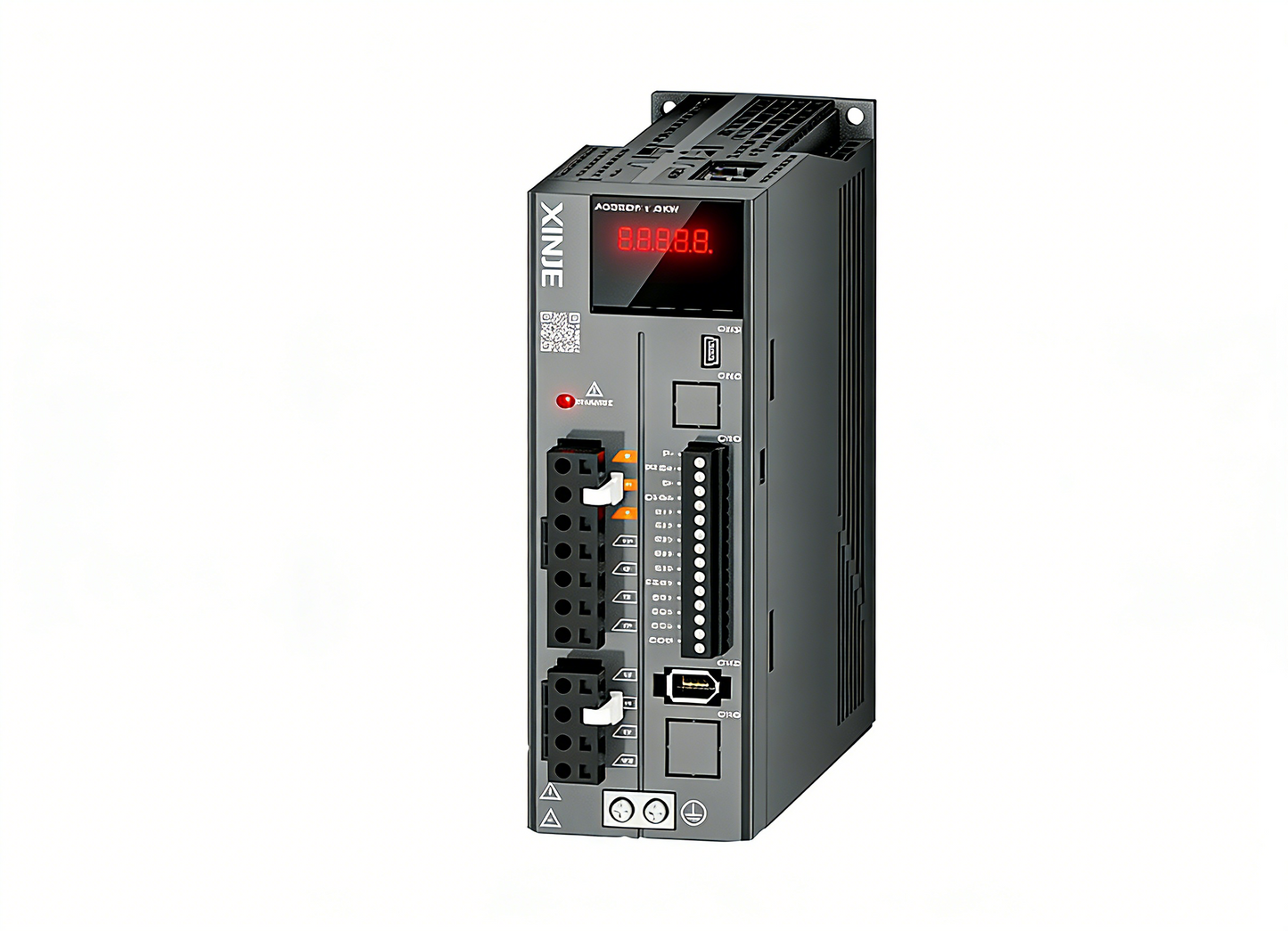

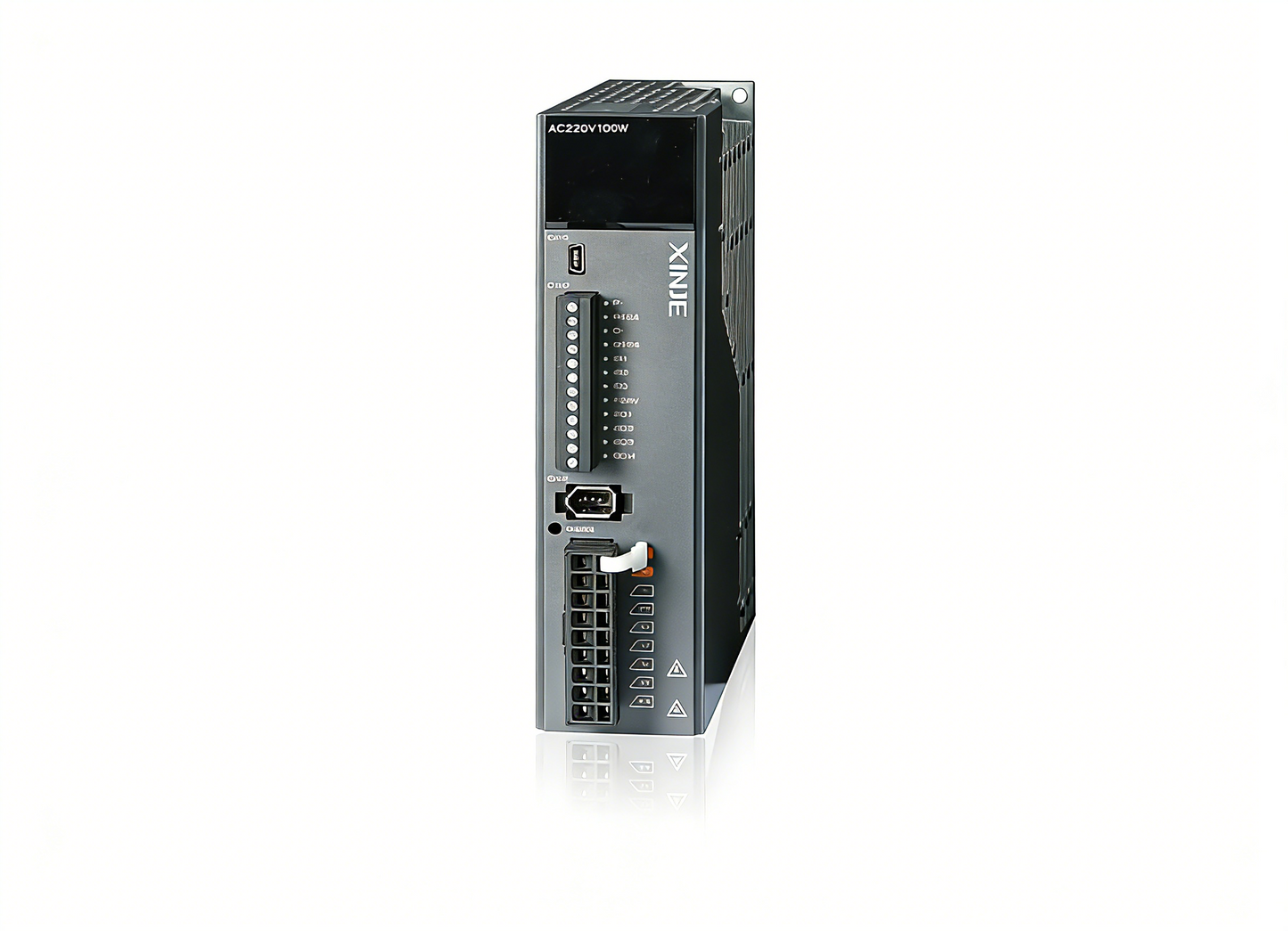

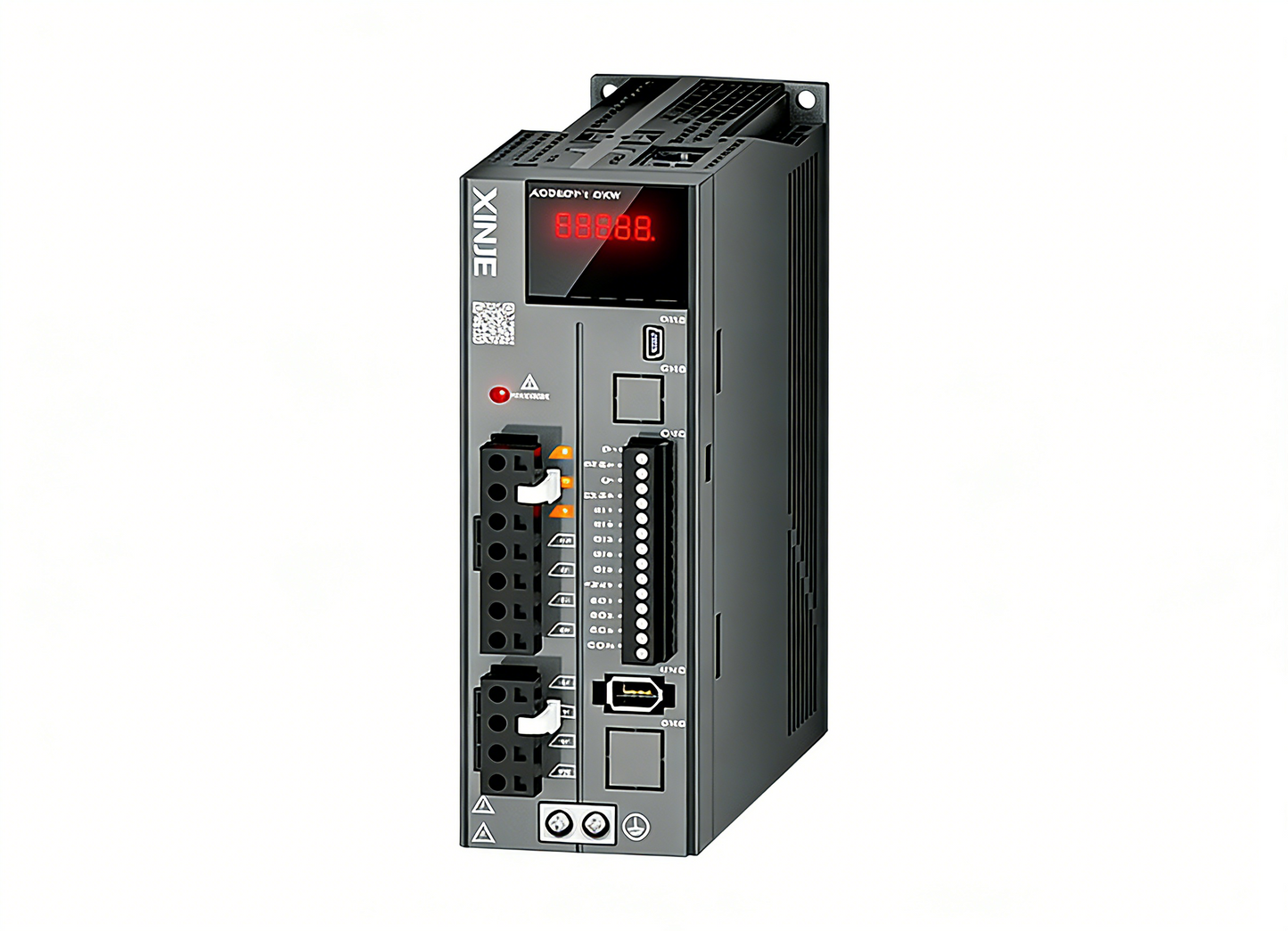

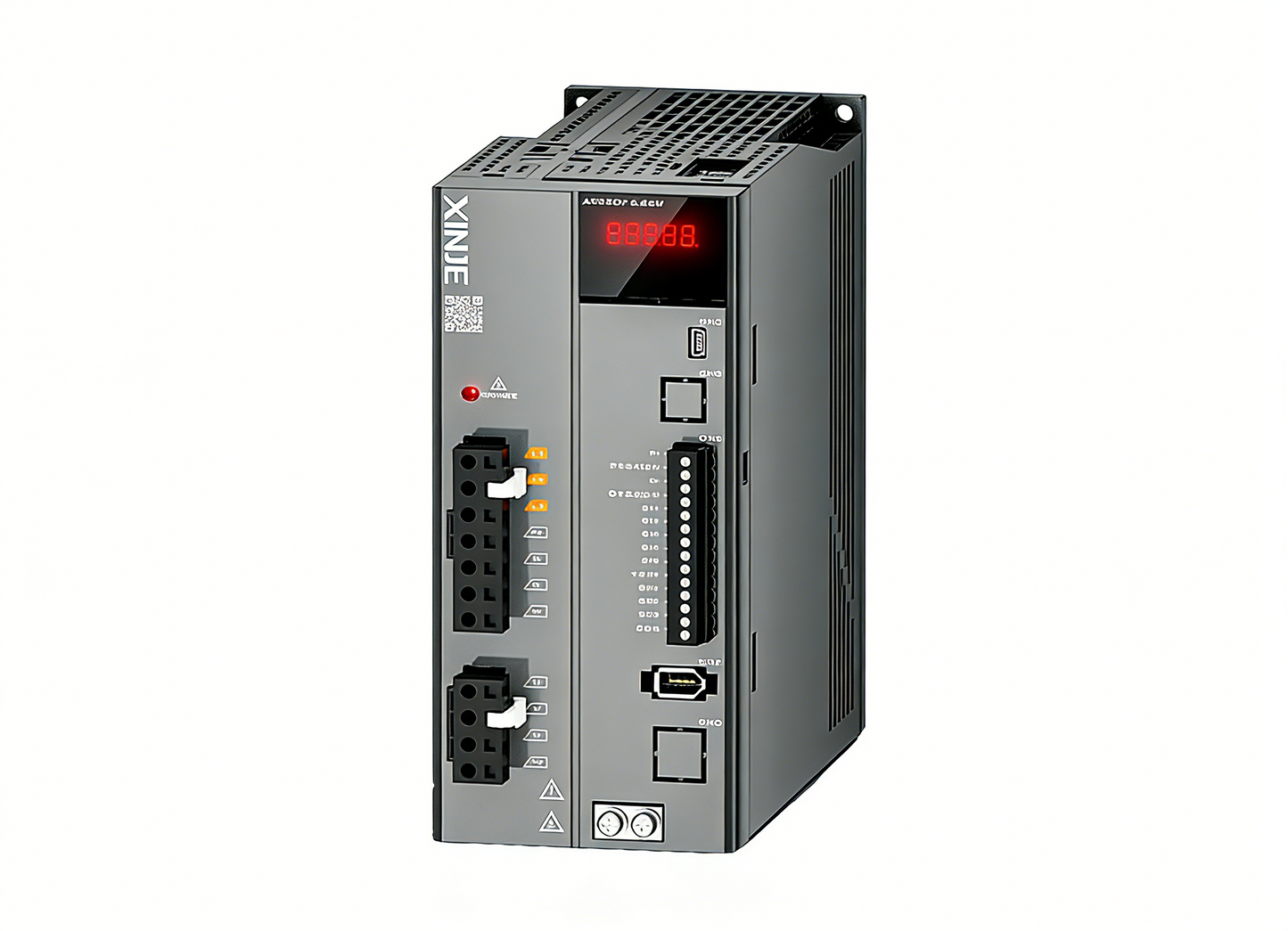

XINJE DS5L1 Series AC Servo Drive (0.1kW-3.0kW) | 17-bit High Precision | Pulse/Analog/RS485 Control

XINJE DS5L1 Series AC Servo Drive (0.1kW-3.0kW) | 17-bit High Precision | Pulse/Analog/RS485 Control

$800.00 USD

$800.00 USD

Sale Sold out

Model: DS5L1-43P0-PTA

Power: 3.0 kW
Input Power Supply: Three-phase AC380~440V 50/60Hz
Output Current: 11.0 A
Dynamic Braking: √ (Supported)
STO (Safe Torque Off): × (Not Supported)
DI Count: 5.0
DO Count: 3.0
RS232 Communication: √
RS485 Communication: √
Bus: ×
Pulse Input: √
Pulse 5V: √
Pulse 24V: √
Full Closed Loop: ×
Analog Input: ×
Differential Encoder Feedback: ×
Supported Encoder Resolution: 17/23bit
Built-in Braking Resistor: 60Ω 80W
External Braking Resistor: 50-75Ω 1200W or more
Weight: 2.146 kg

Model: DS5L1-42P3-PTA

Power: 2.3 kW
Input Power Supply: Three-phase AC380~440V 50/60Hz
Output Current: 8.3 A
Dynamic Braking: √ (Supported)
STO (Safe Torque Off): × (Not Supported)
DI Count: 5.0
DO Count: 3.0
RS232 Communication: √
RS485 Communication: √
Bus: ×
Pulse Input: √
Pulse 5V: √
Pulse 24V: √
Full Closed Loop: ×
Analog Input: ×
Differential Encoder Feedback: ×
Supported Encoder Resolution: 17/23bit
Built-in Braking Resistor: 60Ω 80W
External Braking Resistor: 55-75Ω 1000W or more
Weight: 2.146 kg

Model: DS5L1-22P6-PTA

Power: 2.6 kW
Input Power Supply: Single/Three-phase AC200~240V 50/60Hz
Output Current: 10.5 A
Dynamic Braking: √ (Supported)
STO (Safe Torque Off): × (Not Supported)
DI Count: 5.0
DO Count: 3.0
RS232 Communication: √
RS485 Communication: √
Bus: ×
Pulse Input: √
Pulse 5V: √
Pulse 24V: √
Full Closed Loop: ×
Analog Input: ×
Differential Encoder Feedback: ×
Supported Encoder Resolution: 17/23bit
Built-in Braking Resistor: 50Ω 80W
External Braking Resistor: 25-50Ω 1000W or more
Weight: 2.147 kg

Model: DS5L1-22P3-PTA

Power: 2.3 kW
Input Power Supply: Single/Three-phase AC200~240V 50/60Hz
Output Current: 9.0 A
Dynamic Braking: √ (Supported)
STO (Safe Torque Off): × (Not Supported)
DI Count: 5.0
DO Count: 3.0
RS232 Communication: √
RS485 Communication: √
Bus: ×
Pulse Input: √
Pulse 5V: √
Pulse 24V: √
Full Closed Loop: ×
Analog Input: ×
Differential Encoder Feedback: ×
Supported Encoder Resolution: 17/23bit
Built-in Braking Resistor: 50Ω 80W
External Braking Resistor: 30-50Ω 1000W or more
Weight: 2.170 kg

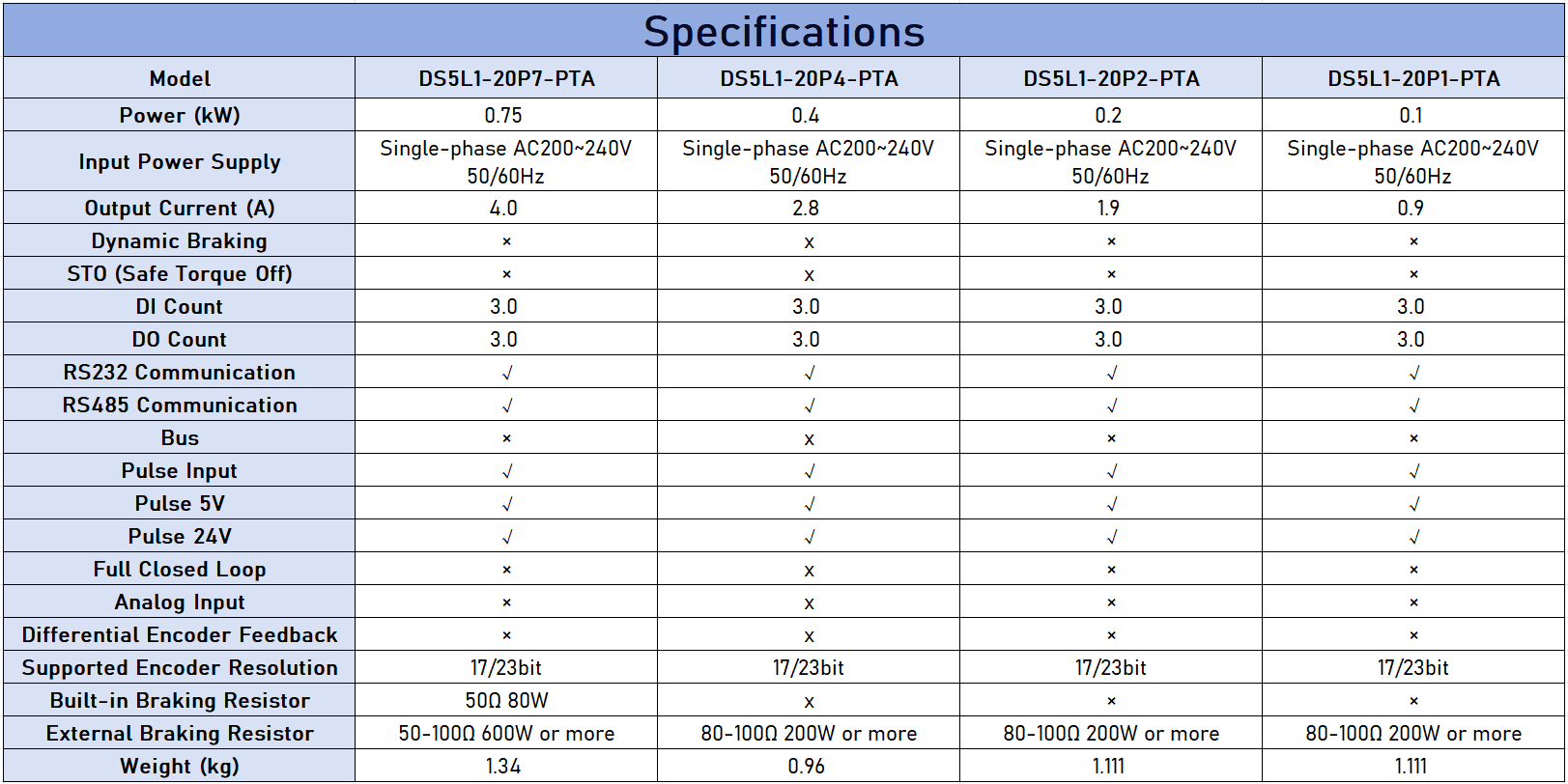

Model: DS5L1-20P7-PTA

Power: 0.75 kW
Input Power Supply: Single-phase AC200~240V 50/60Hz
Output Current: 4.0 A
Dynamic Braking: × (Not Supported)
STO (Safe Torque Off): ×
DI Count: 3.0
DO Count: 3.0
RS232 Communication: √
RS485 Communication: √
Bus: ×
Pulse Input: √
Pulse 5V: √
Pulse 24V: √
Full Closed Loop: ×
Analog Input: ×
Differential Encoder Feedback: ×
Supported Encoder Resolution: 17/23bit
Built-in Braking Resistor: 50Ω 80W
External Braking Resistor: 50-100Ω 600W or more
Weight: 1.34 kg

Model: DS5L1-20P4-PTA

Power: 0.4 kW
Input Power Supply: Single-phase AC200~240V 50/60Hz
Output Current: 2.8 A
Dynamic Braking: ×
STO (Safe Torque Off): ×
DI Count: 3.0
DO Count: 3.0
RS232 Communication: √
RS485 Communication: √
Bus: ×
Pulse Input: √
Pulse 5V: √
Pulse 24V: √
Full Closed Loop: ×
Analog Input: ×
Differential Encoder Feedback: ×
Supported Encoder Resolution: 17/23bit
Built-in Braking Resistor: ×
External Braking Resistor: 80-100Ω 200W or more
Weight: 0.96 kg

Model: DS5L1-20P2-PTA

Power: 0.2 kW
Input Power Supply: Single-phase AC200~240V 50/60Hz
Output Current: 1.9 A
Dynamic Braking: ×
STO (Safe Torque Off): ×
DI Count: 3.0
DO Count: 3.0
RS232 Communication: √
RS485 Communication: √
Bus: ×
Pulse Input: √
Pulse 5V: √
Pulse 24V: √
Full Closed Loop: ×
Analog Input: ×
Differential Encoder Feedback: ×
Supported Encoder Resolution: 17/23bit
Built-in Braking Resistor: ×
External Braking Resistor: 80-100Ω 200W or more
Weight: 1.111 kg

Model: DS5L1-20P1-PTA

Power: 0.1 kW
Input Power Supply: Single-phase AC200~240V 50/60Hz
Output Current: 0.9 A
Dynamic Braking: ×
STO (Safe Torque Off): ×
DI Count: 3.0
DO Count: 3.0
RS232 Communication: √
RS485 Communication: √
Bus: ×
Pulse Input: √
Pulse 5V: √
Pulse 24V: √
Full Closed Loop: ×
Analog Input: ×
Differential Encoder Feedback: ×
Supported Encoder Resolution: 17/23bit
Built-in Braking Resistor: ×
External Braking Resistor: 80-100Ω 200W or more
Weight: 1.111 kg

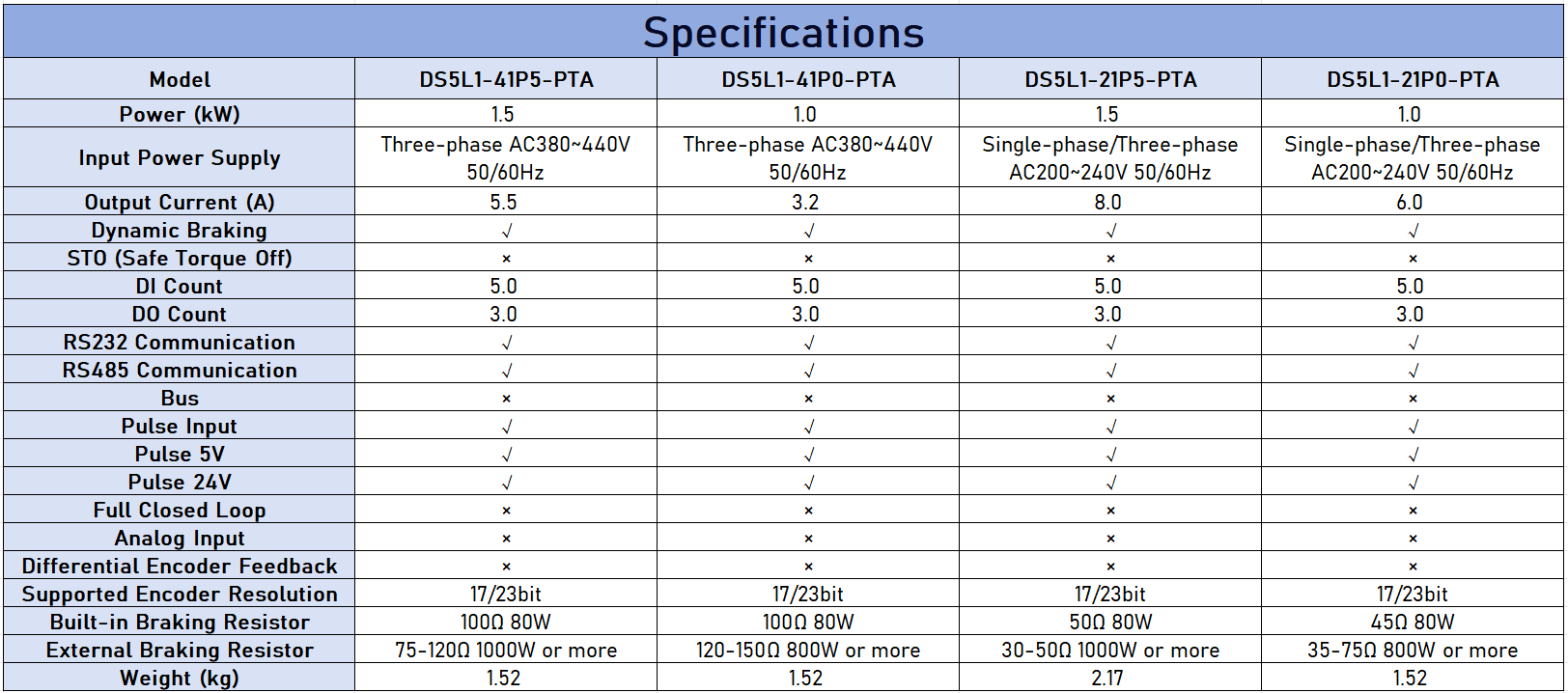

Model: DS5L1-41P5-PTA

Power: 1.5 kW
Input Power Supply: Three-phase AC380~440V 50/60Hz
Output Current: 5.5 A
Dynamic Braking: √
STO (Safe Torque Off): ×
DI Count: 5.0
DO Count: 3.0
RS232 Communication: √
RS485 Communication: √
Bus: ×
Pulse Input: √
Pulse 5V: √
Pulse 24V: √
Full Closed Loop: ×
Analog Input: ×
Differential Encoder Feedback: ×
Supported Encoder Resolution: 17/23bit
Built-in Braking Resistor: 100Ω 80W
External Braking Resistor: 75-120Ω 1000W or more
Weight: 1.52 kg

Model: DS5L1-41P0-PTA

Power: 1.0 kW
Input Power Supply: Three-phase AC380~440V 50/60Hz
Output Current: 3.2 A
Dynamic Braking: √
STO (Safe Torque Off): ×
DI Count: 5.0
DO Count: 3.0
RS232 Communication: √
RS485 Communication: √
Bus: ×
Pulse Input: √
Pulse 5V: √
Pulse 24V: √
Full Closed Loop: ×
Analog Input: ×
Differential Encoder Feedback: ×
Supported Encoder Resolution: 17/23bit
Built-in Braking Resistor: 100Ω 80W
External Braking Resistor: 120-150Ω 800W or more
Weight: 1.52 kg

Model: DS5L1-21P5-PTA

Power: 1.5 kW
Input Power Supply: Single-phase/Three-phase AC200~240V 50/60Hz
Output Current: 8.0 A
Dynamic Braking: √
STO (Safe Torque Off): ×
DI Count: 5.0
DO Count: 3.0
RS232 Communication: √
RS485 Communication: √
Bus: ×
Pulse Input: √
Pulse 5V: √
Pulse 24V: √
Full Closed Loop: ×
Analog Input: ×
Differential Encoder Feedback: ×
Supported Encoder Resolution: 17/23bit
Built-in Braking Resistor: 50Ω 80W
External Braking Resistor: 30-50Ω 1000W or more
Weight: 2.17 kg

Model: DS5L1-21P0-PTA

Power: 1.0 kW
Input Power Supply: Single-phase/Three-phase AC200~240V 50/60Hz
Output Current: 6.0 A
Dynamic Braking: √
STO (Safe Torque Off): ×
DI Count: 5.0
DO Count: 3.0
RS232 Communication: √
RS485 Communication: √
Bus: ×
Pulse Input: √
Pulse 5V: √
Pulse 24V: √
Full Closed Loop: ×
Analog Input: ×
Differential Encoder Feedback: ×
Supported Encoder Resolution: 17/23bit
Built-in Braking Resistor: 45Ω 80W
External Braking Resistor: 35-75Ω 800W or more
Weight: 1.52 kg
